Mirror Component Views

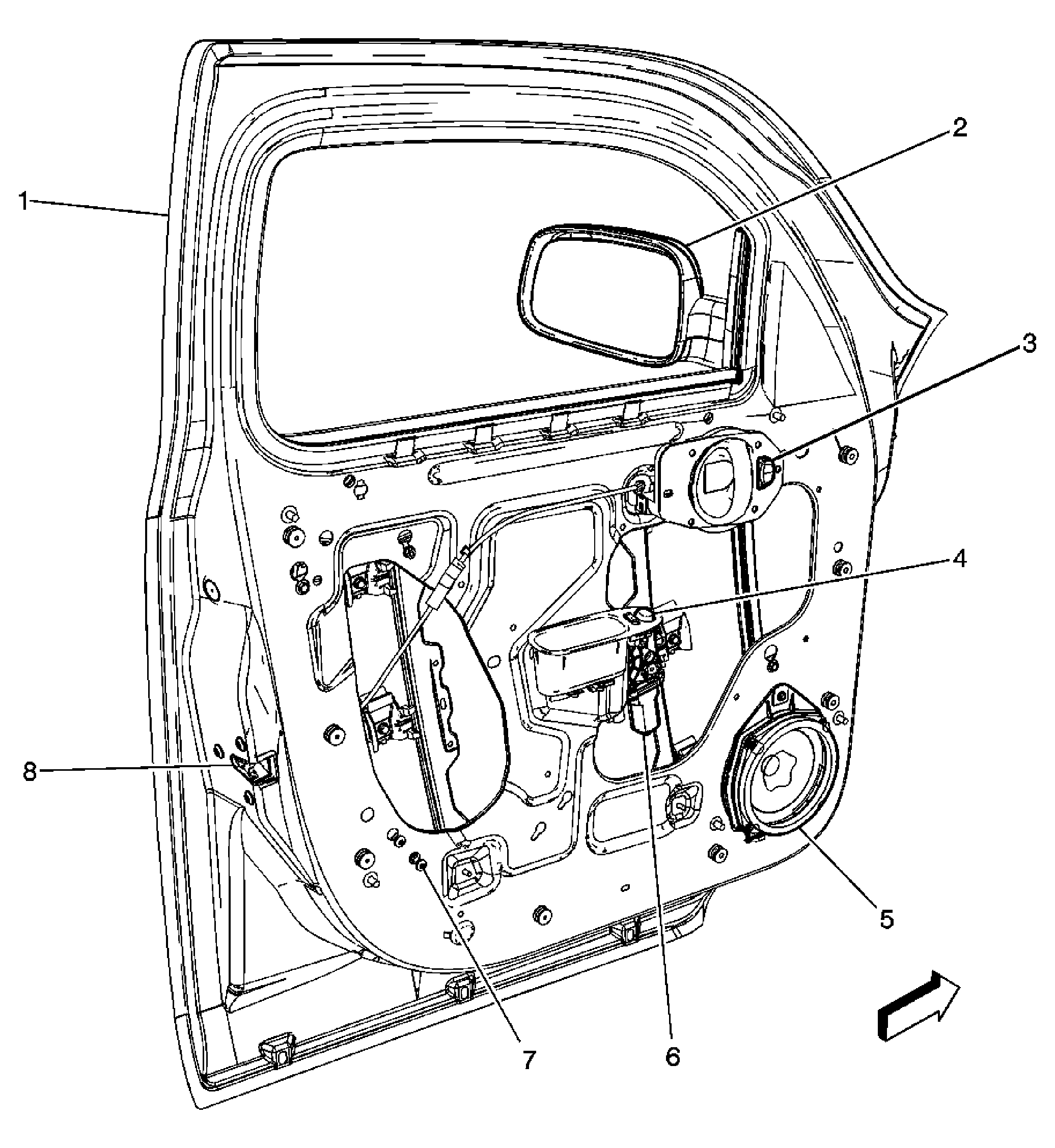

| Callout | Component Name |
|---|---|
| 1 | Door Frame |
| 2 | Outside Rearview Mirror Motor - Driver |
| 3 | Door Lock Switch - Driver |
| 4 | Outside Rearview Mirror Switch |
| 5 | Speaker - LF Door |
| 6 | Window Motor - Driver |
| 7 | Inflatable Restraint Side Impact Sensor (SIS) Left (ASF) |
| 8 | Door Latch - Driver |

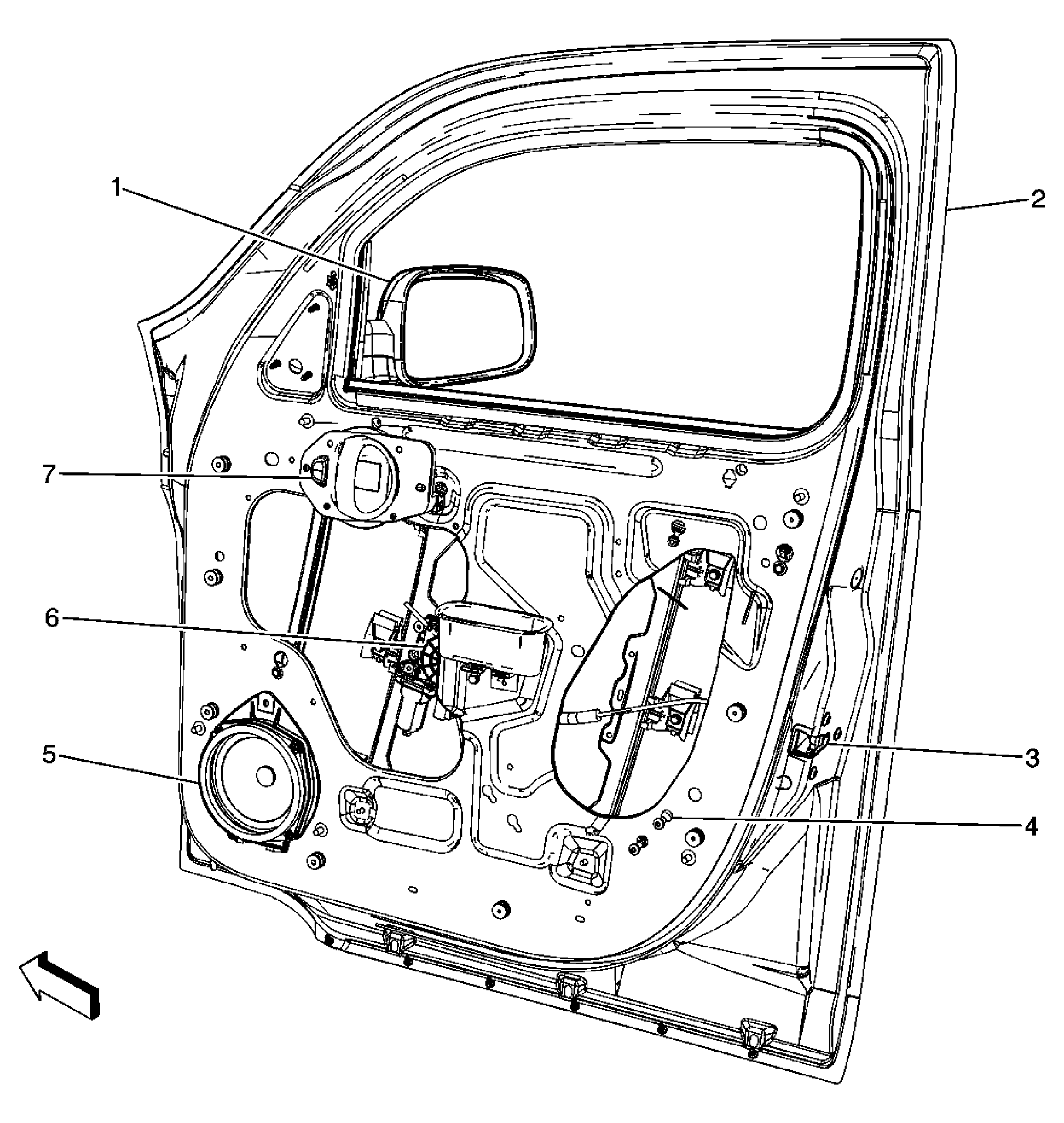

| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror Motor - Passenger |
| 2 | Door Frame |
| 3 | Door Latch - Passenger |
| 4 | Inflatable Restraint Side Impact Sensor (SIS) Right (ASF) |
| 5 | Speaker - RF Door |
| 6 | Window Motor - Passenger |
| 7 | Door Lock Switch - Passenger |

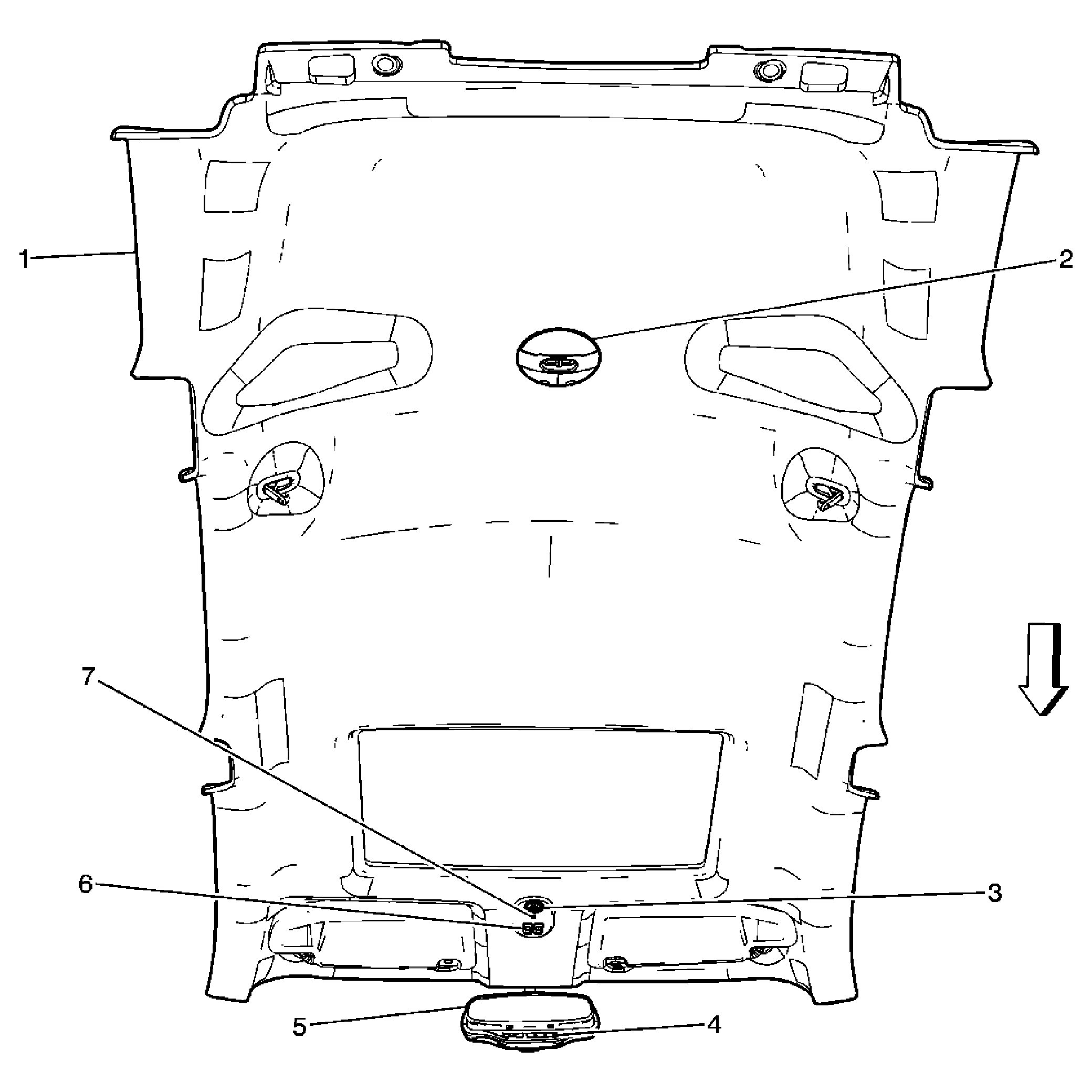

| Callout | Component Name |
|---|---|
| 1 | Headliner |
| 2 | Dome Lamp |
| 3 | Cellular Microphone (UE1) |
| 4 | Onstar Button Assembly (UE1) |
| 5 | Inside Rearview Mirror |
| 6 | Sunroof Switch (CF5) |
| 7 | Console Flood Lamp |
