Installation Procedure

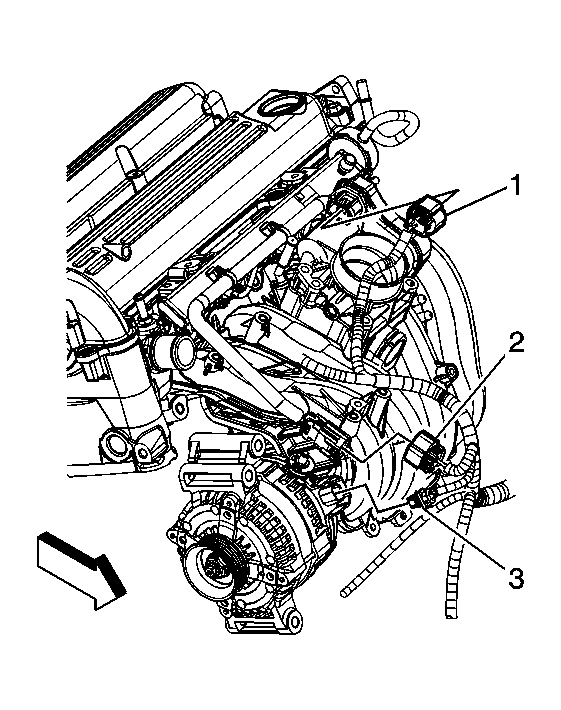

    Fig 1: TAC Electrical Connector
    GM1623764Courtesy of GENERAL MOTORS CORP.
  1. Raise the generator into position.
  2. Connect the generator electrical connector (3).
    3. Fig 2: Generator & Bolts
    GM1631670Courtesy of GENERAL MOTORS CORP.
  3. Install the generator lower bolt until snug.
  4. Position the coolant heater cord and secure with NEW tie straps, if equipped.
  5. Lower the vehicle.
  6. Install the generator upper bolts until snug.
    7. NOTE: Refer to Fastener Notice .
  7. Tighten the generator bolts.

    Tighten:  Tighten the bolts to 22 N.m (16 lb ft).

    8. Fig 3: Engine Harness
    GM1625472Courtesy of GENERAL MOTORS CORP.
  8. Install the engine harness terminal (1) to the generator.
  9. Install the generator terminal nut (2).

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

  10. Install the drive belt. Refer to Drive Belt Replacement or Drive Belt Replacement .
  11. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement or Air Cleaner Assembly Replacement .
  12. Connect negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
