Keyless Entry Antenna Replacement

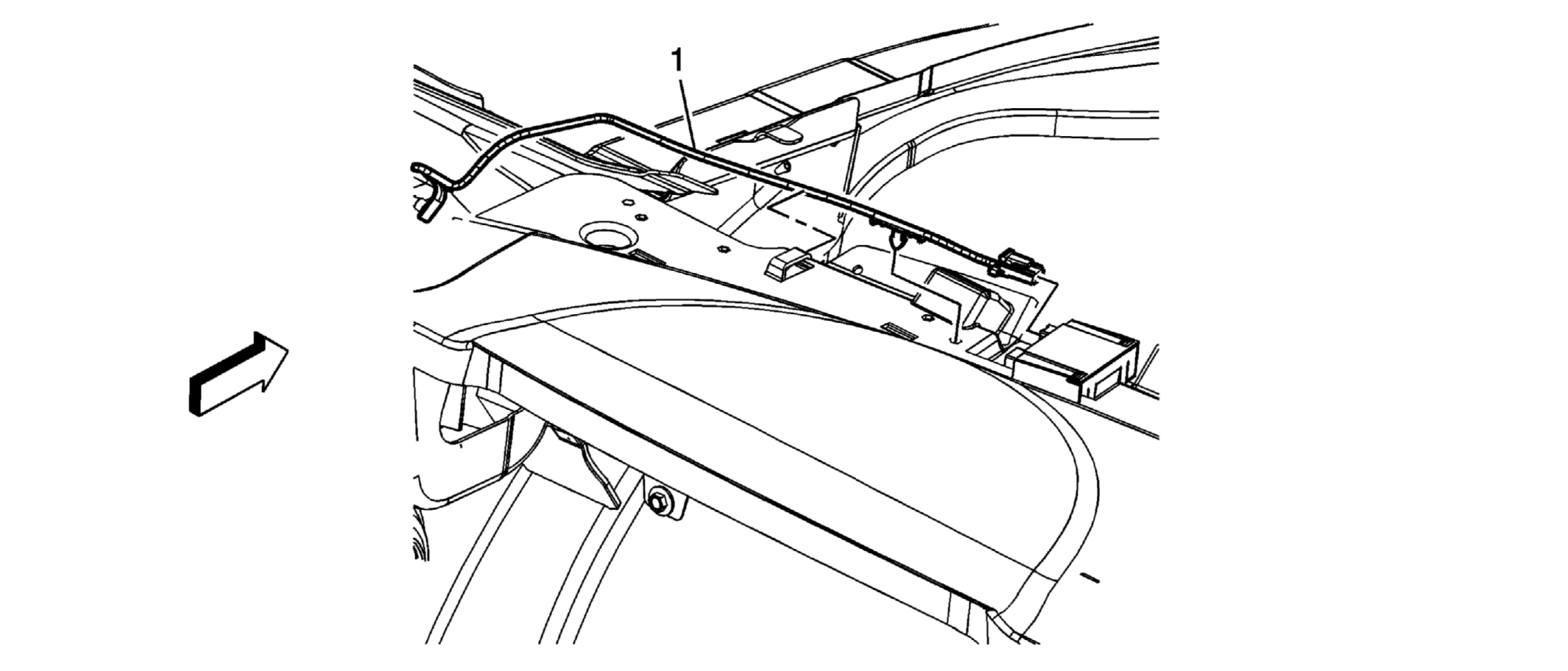

Fig 1: Identifying Keyless Entry Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
1	Remote Control Door Lock Receiver Antenna Assembly Tip: Disconnect the antenna from the door lock receiver.
