Traction Control Switch Replacement

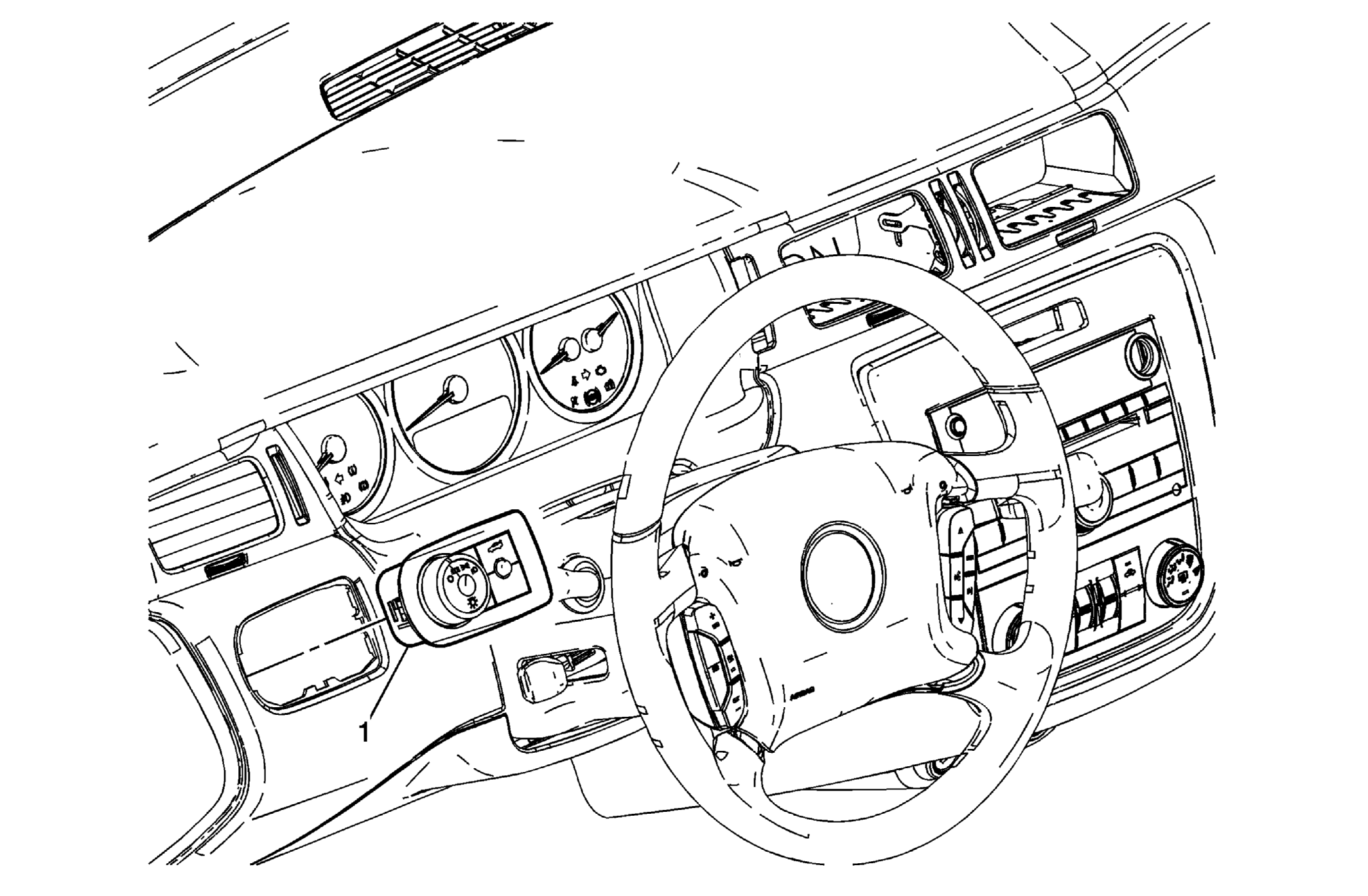

Fig 1: View Of Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Switch Assembly, Headlamp Instrument Panel Dimmer Tip: The traction control switch is part of the headlamp switch and must be serviced as an assembly. Disconnect the electrical connector.
