Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Rear Quarterpanel (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 5: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 6: Lower Right Front Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Lower Right Front Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 9: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

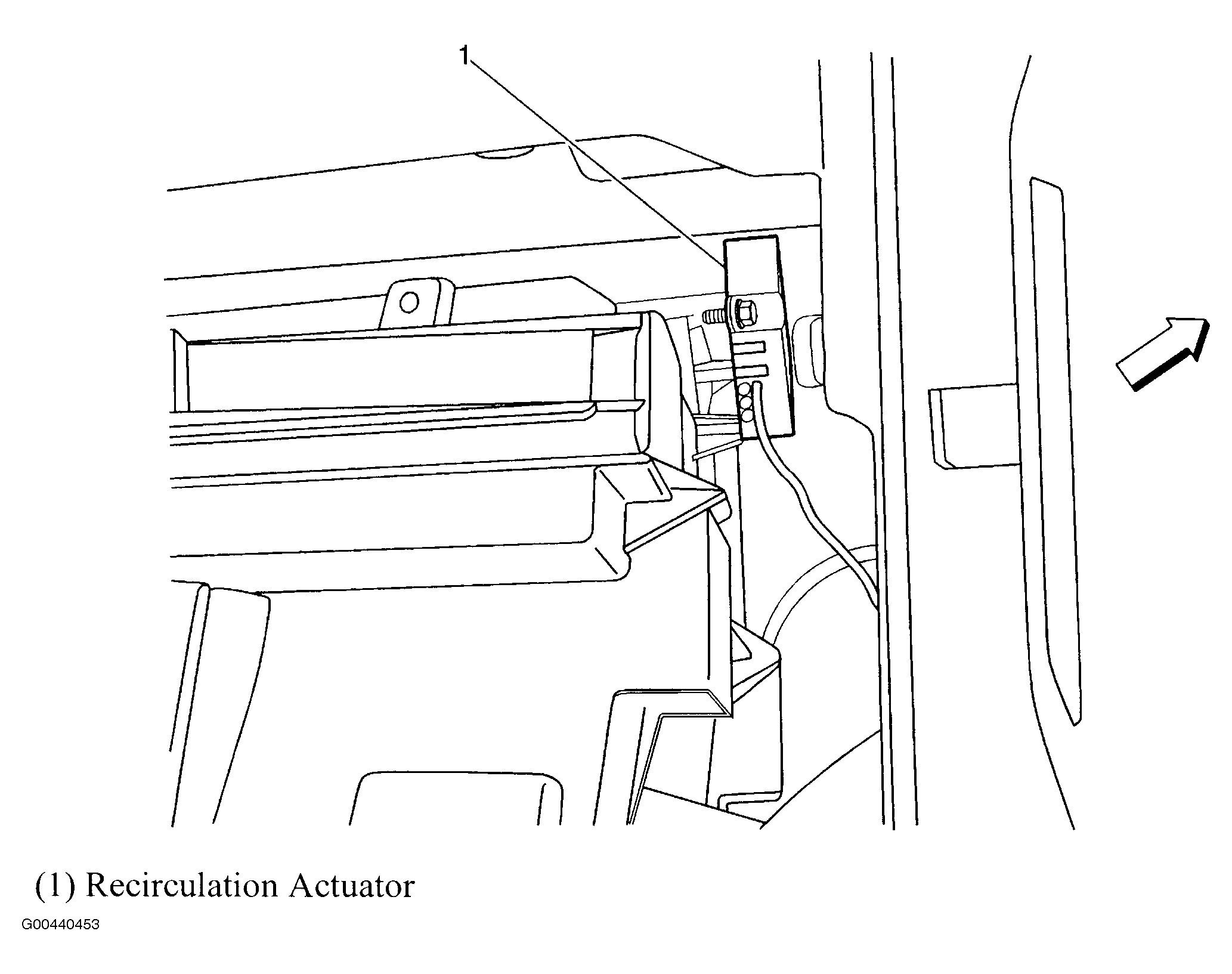

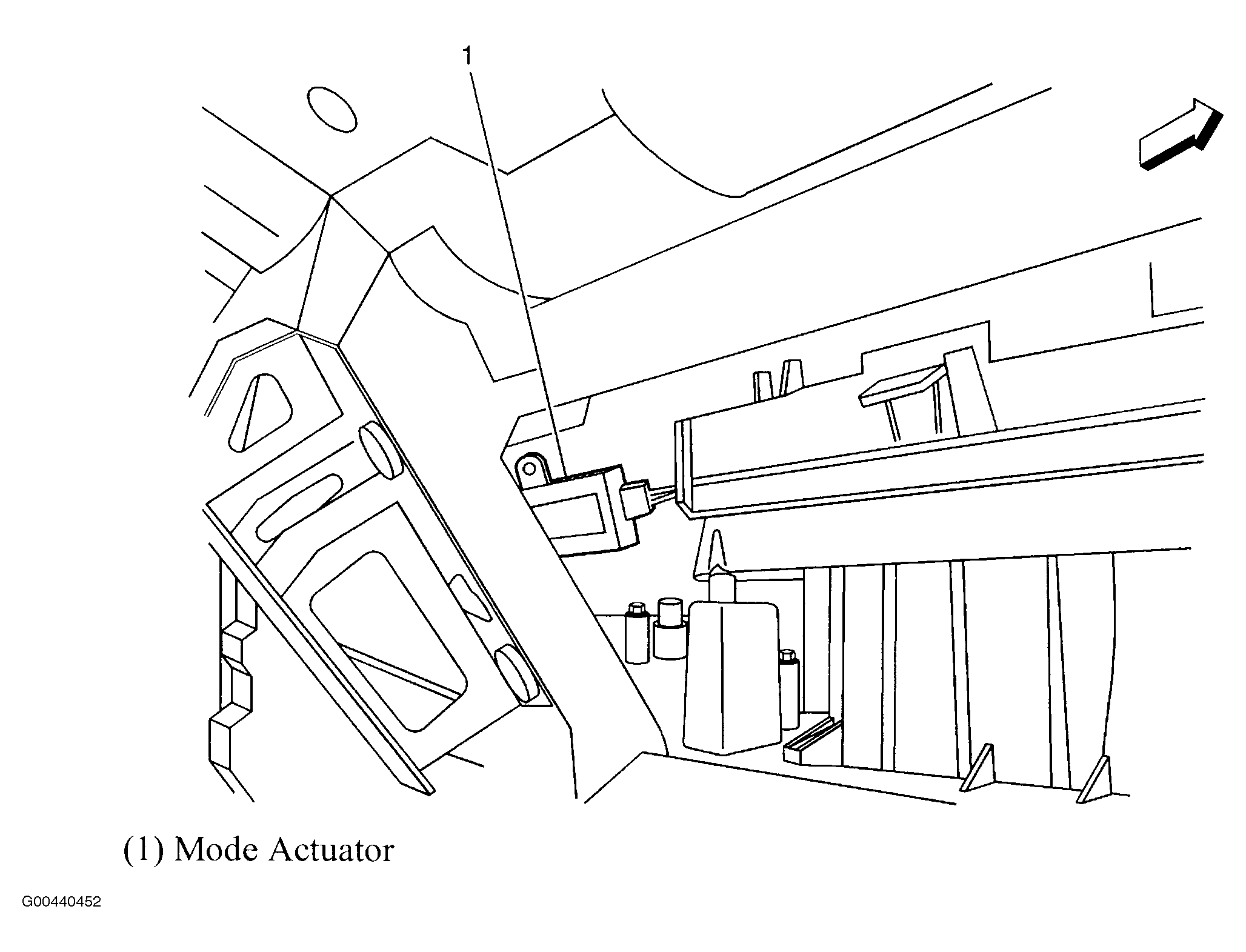

Fig 10: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 11: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 12: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 13: Behind Front Grille
Courtesy of GENERAL MOTORS CORP.
Fig 14: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 15: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 17: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 18: Behind Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 19: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 20: Lower Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Lower Left Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Front Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Right Front Of Engine Compartment (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Rear Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Lower Right Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Under Right Rear Of Vehicle (Extended Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 30: Console Shifter
Courtesy of GENERAL MOTORS CORP.

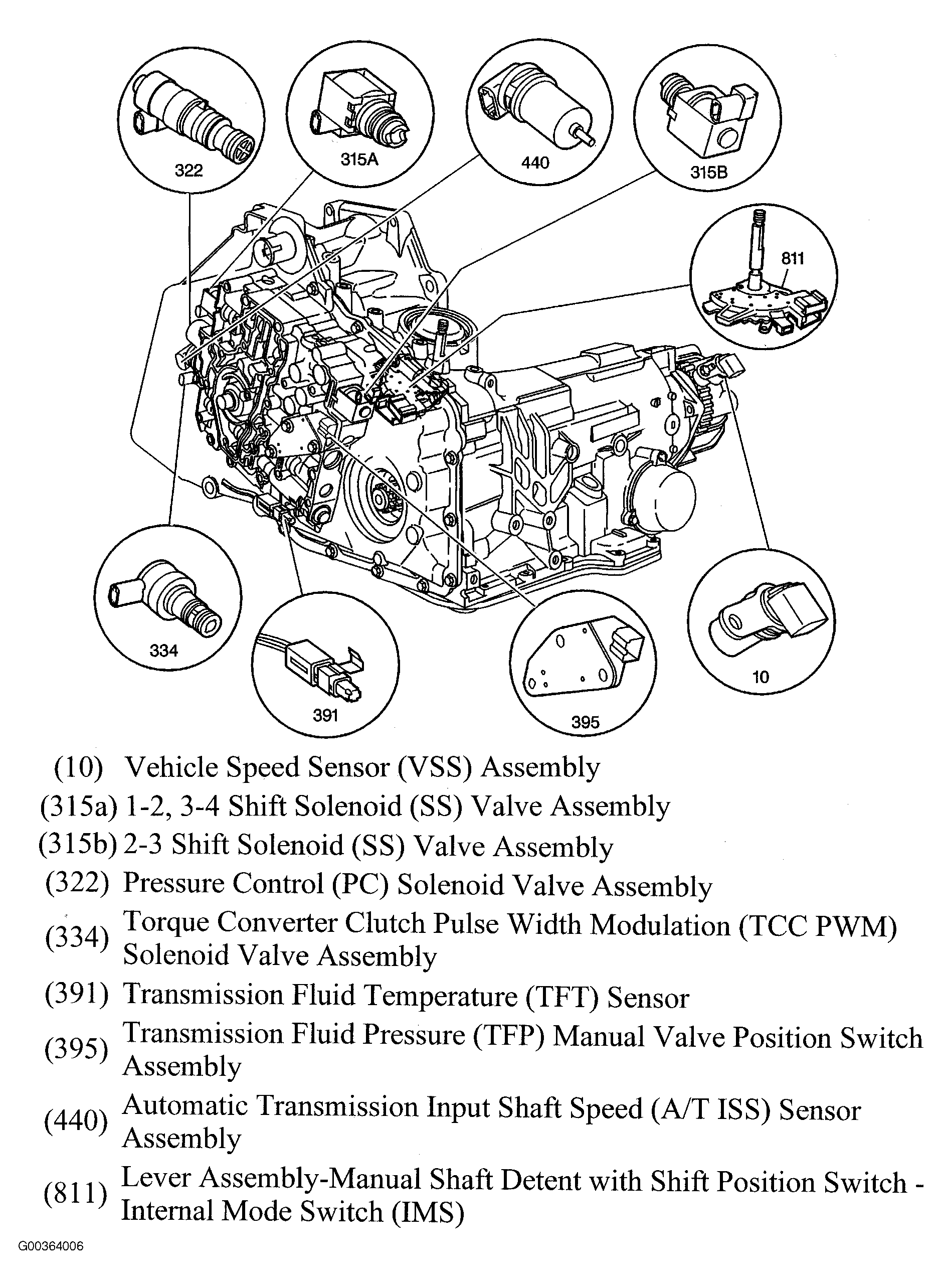

Fig 31: Transmission (4T40/4T45-E)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 33: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 34: Left Door (Right Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 36: Left Rear Of Passenger Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Left Rear Of Passenger Compartment (Extended Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Right Rear Of Passenger Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Right Rear Of Passenger Compartment (Extended Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Vehicle Overview (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Vehicle Overview (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Lower Dash
Courtesy of GENERAL MOTORS CORP.
Fig 43: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 44: Rear Roof Rail (Sedan)
Courtesy of GENERAL MOTORS CORP.

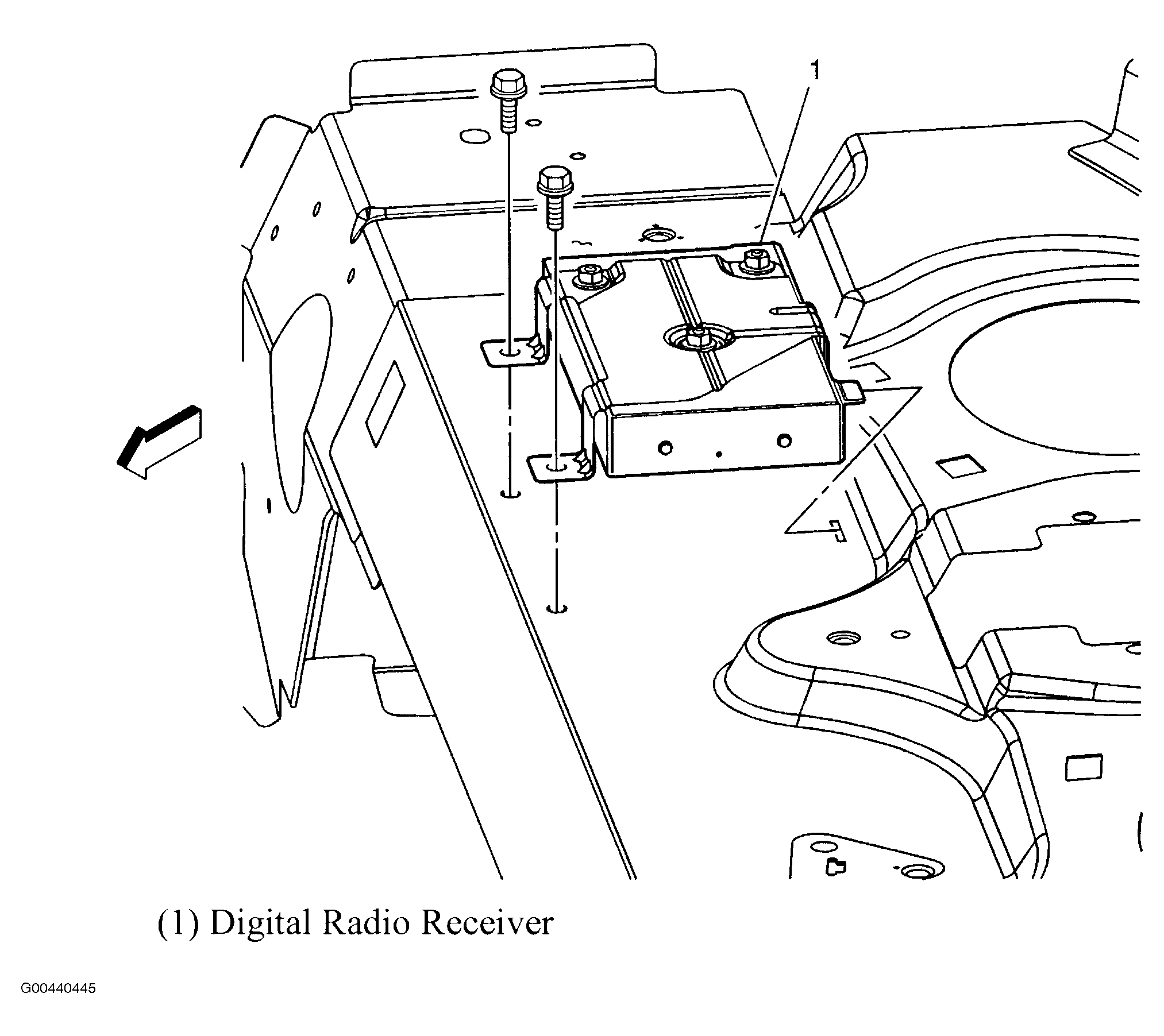

Fig 45: Rear Shelf (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Rear Package Shelf (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Right Side Of Steering Column
Courtesy of GENERAL MOTORS CORP.

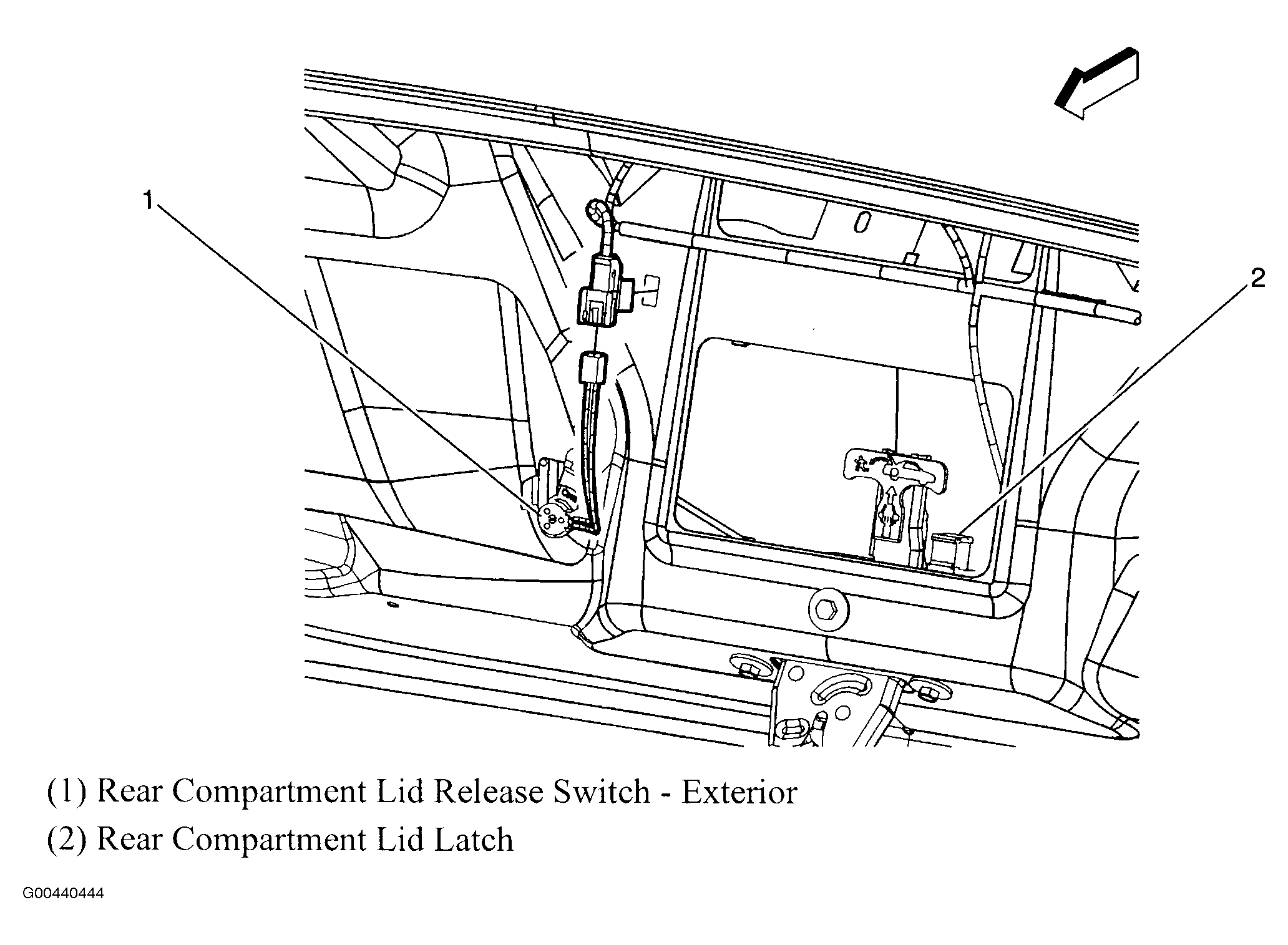

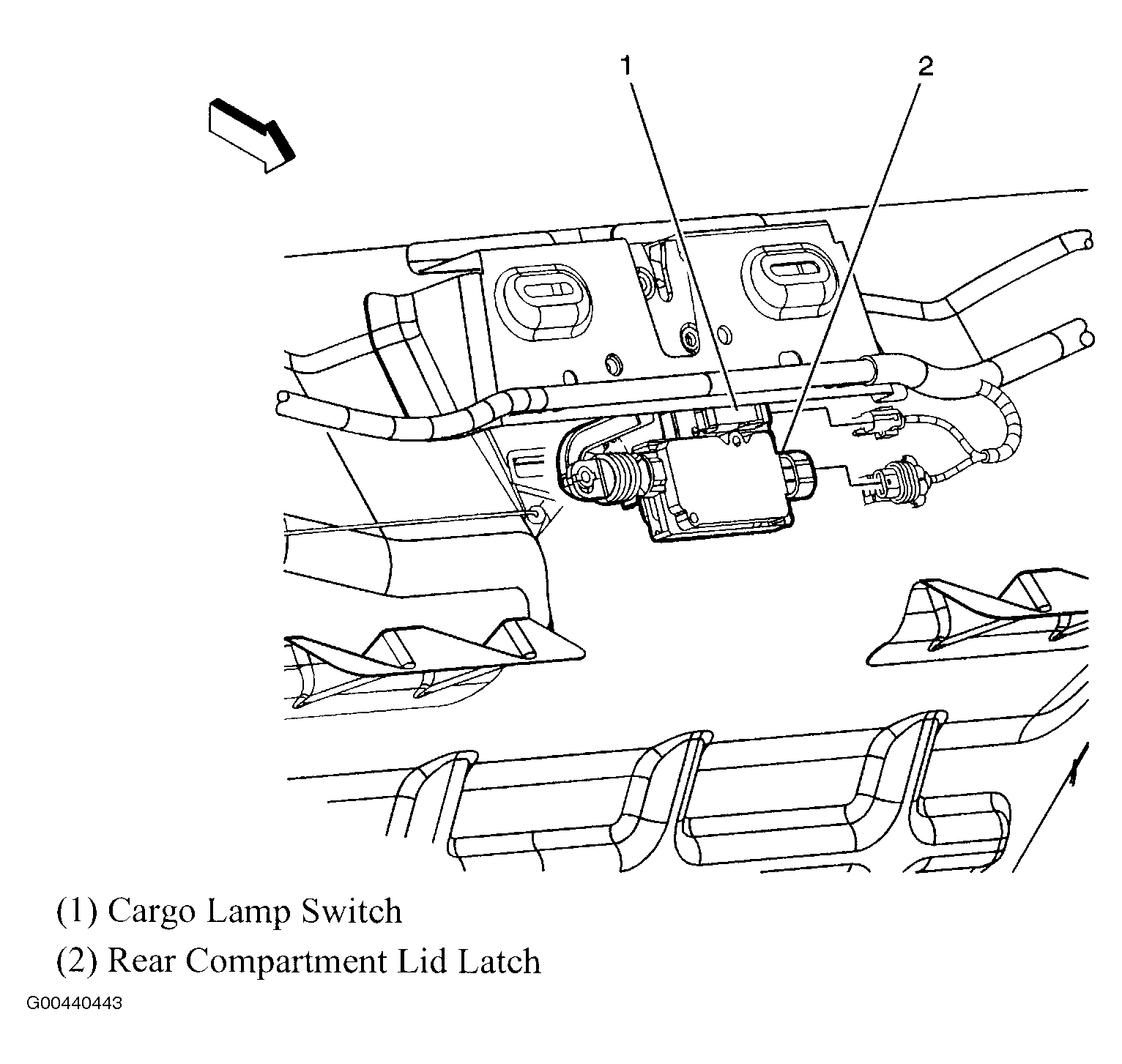

Fig 48: Rear Of Rear Compartment Lid (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Rear Hatch (Extended Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

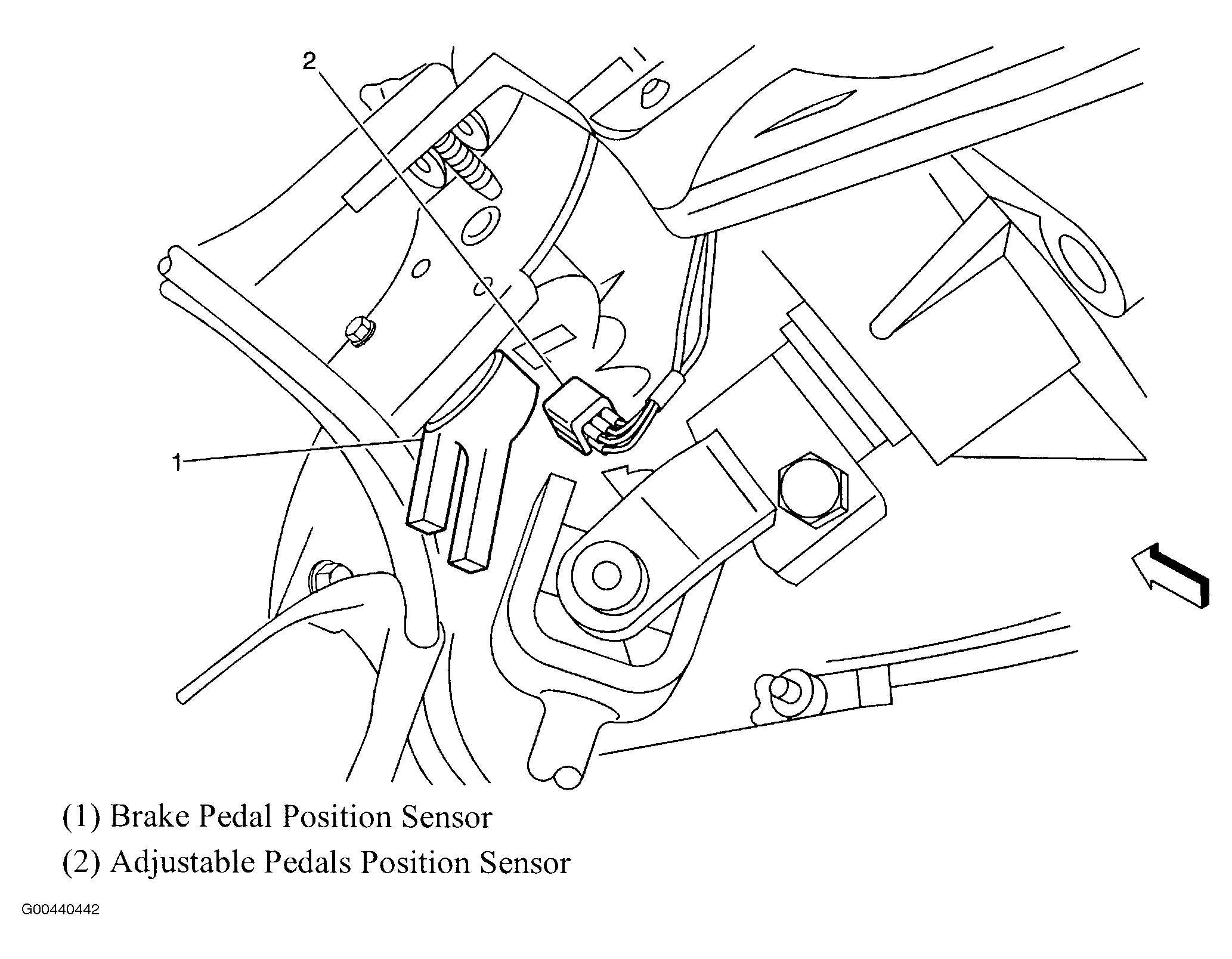

Fig 51: Above Brake Pedal
Courtesy of GENERAL MOTORS CORP.
Fig 52: Rear Of Sunroof
Courtesy of GENERAL MOTORS CORP.
Fig 53: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 54: Left Front Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Top Left Side Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 58: Behind Headlight
Courtesy of GENERAL MOTORS CORP.

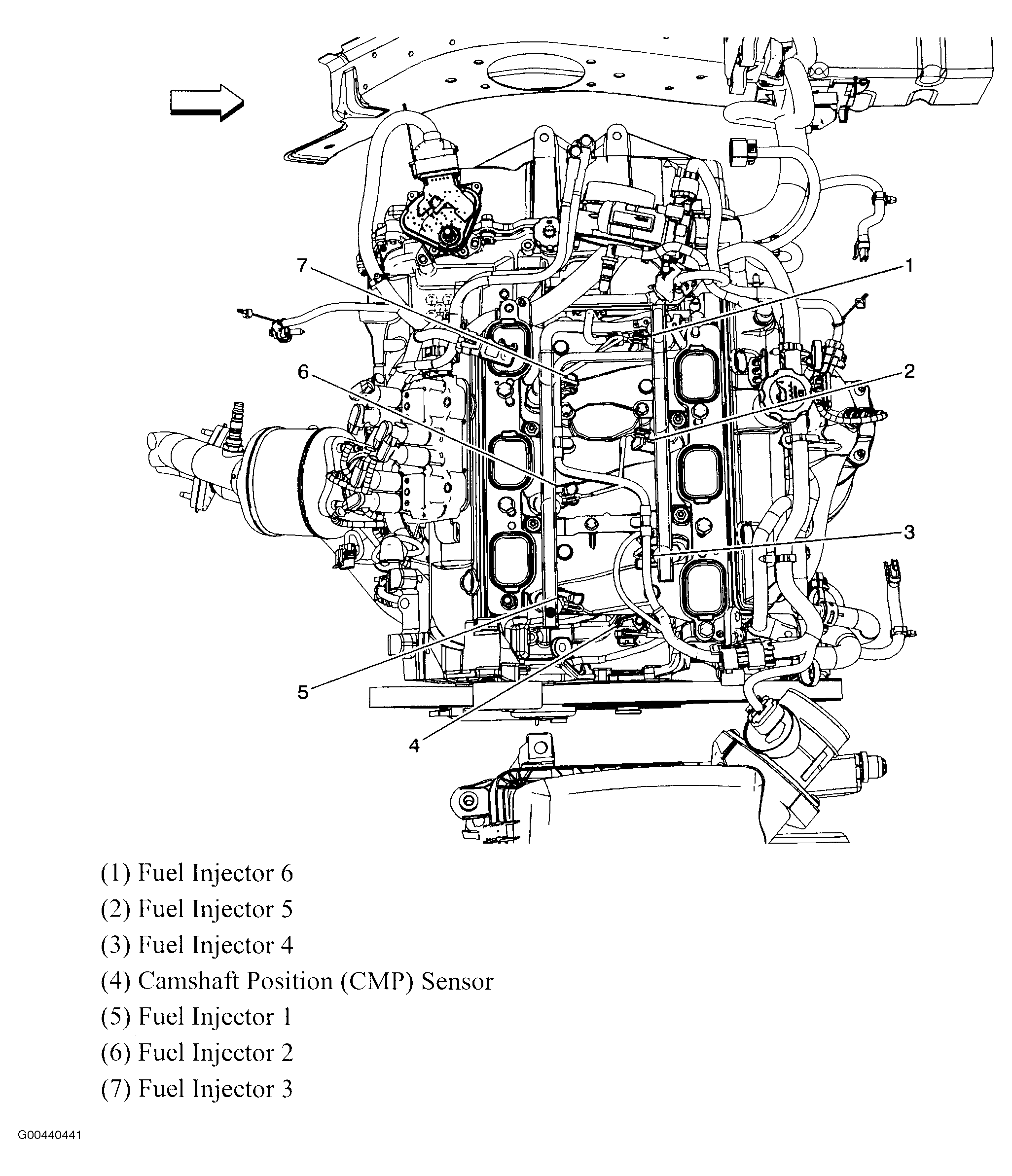

Fig 59: Top Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 61: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 62: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 63: Left Front Door Jamb
Courtesy of GENERAL MOTORS CORP.
Fig 64: Right Front Door Jamb
Courtesy of GENERAL MOTORS CORP.
Fig 65: Left Front Sill Plate
Courtesy of GENERAL MOTORS CORP.
Fig 66: Right Front Sill Plate
Courtesy of GENERAL MOTORS CORP.
Fig 67: Left Rear Door Jamb
Courtesy of GENERAL MOTORS CORP.
Fig 68: Right Rear Door Jamb
Courtesy of GENERAL MOTORS CORP.
Fig 69: Behind Right Headlamp
Courtesy of GENERAL MOTORS CORP.
Fig 70: Behind Left Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 71: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

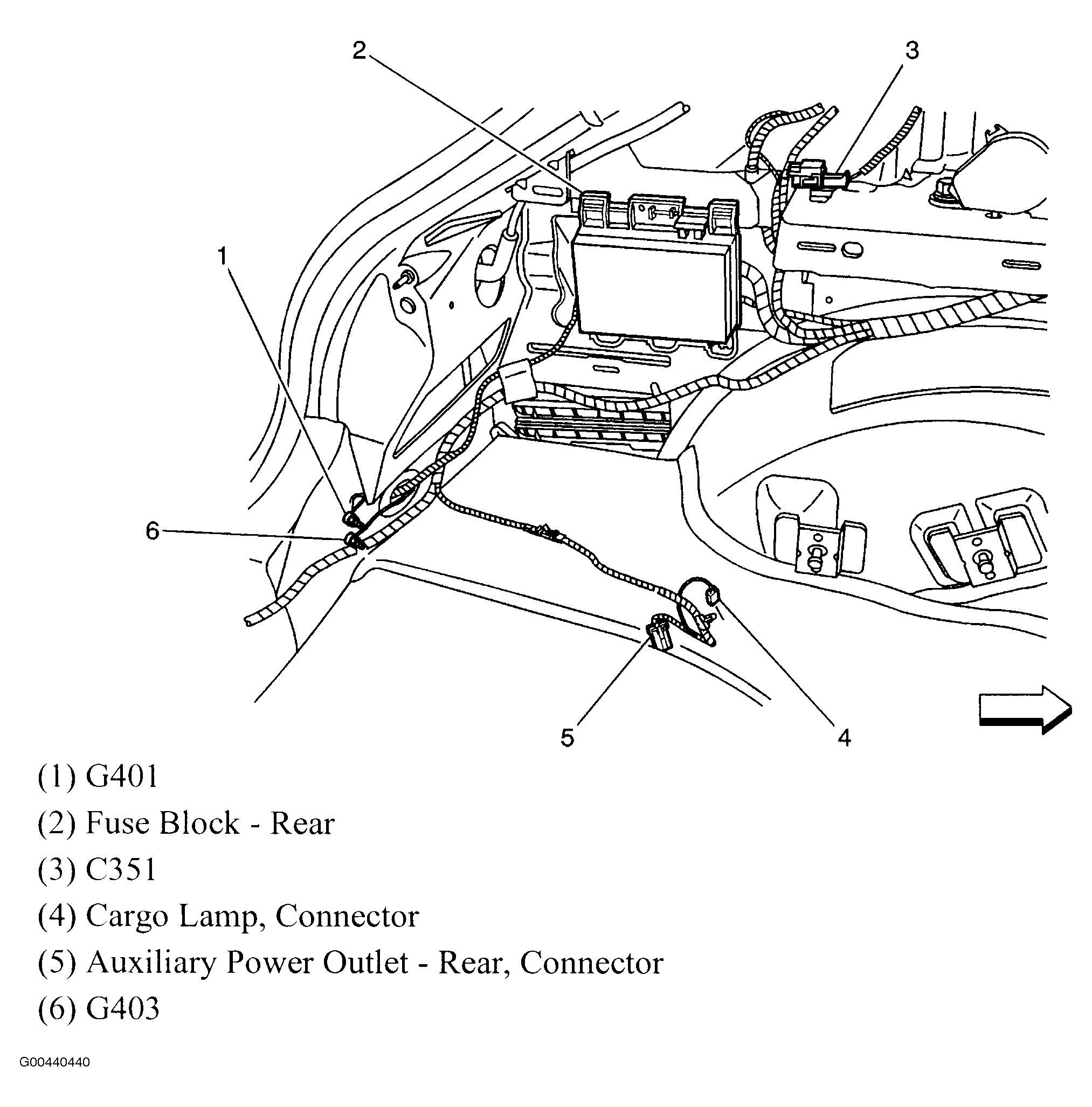

Fig 72: Left Rear Quarterpanel (Extended Sedan)
Courtesy of GENERAL MOTORS CORP.

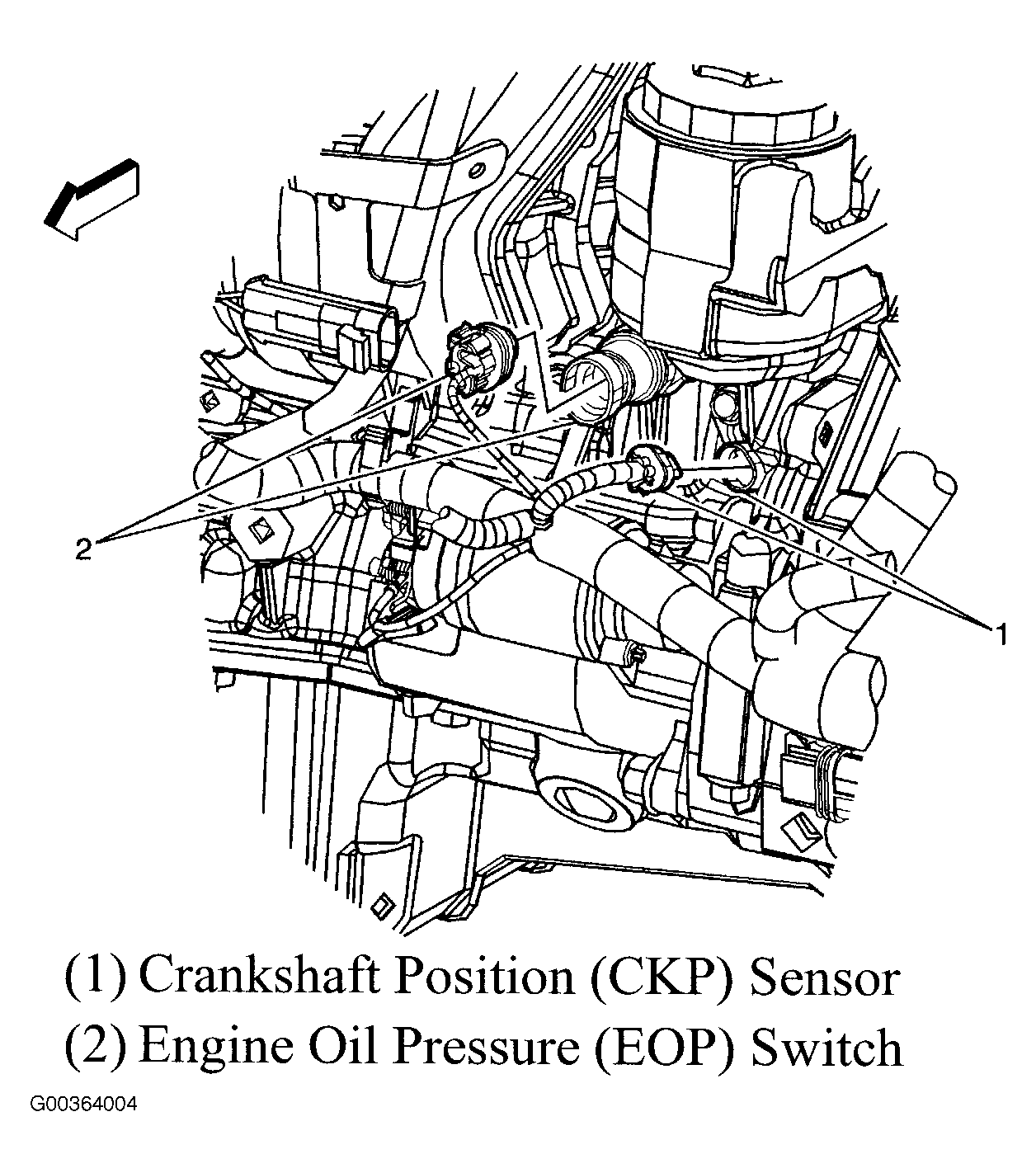

Fig 73: Left Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.

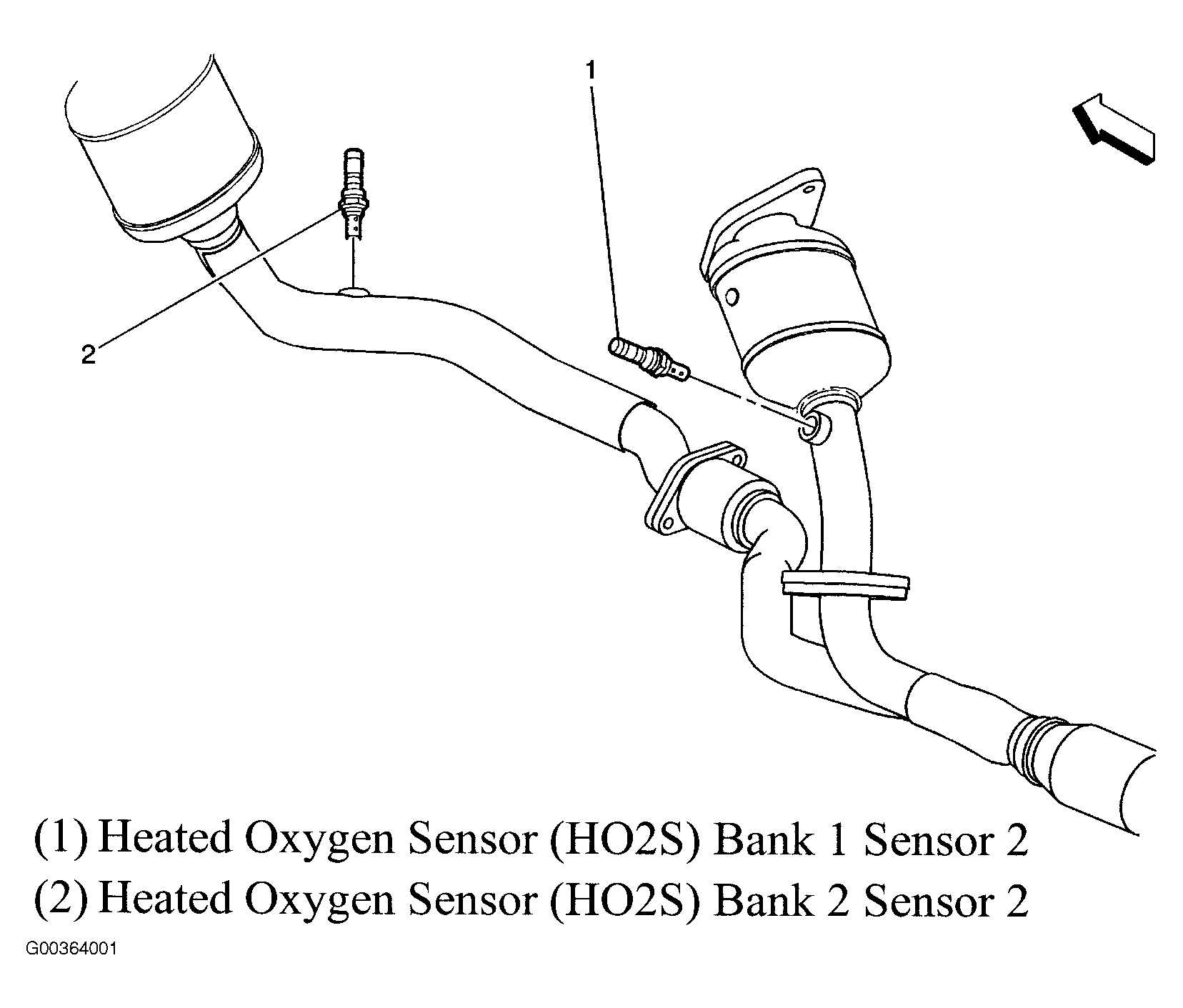

Fig 74: Rear Of Catalytic Converters (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 75: Right Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 77: Rear Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Transmission (4T65-E)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Under Driver's Seat
Courtesy of GENERAL MOTORS CORP.

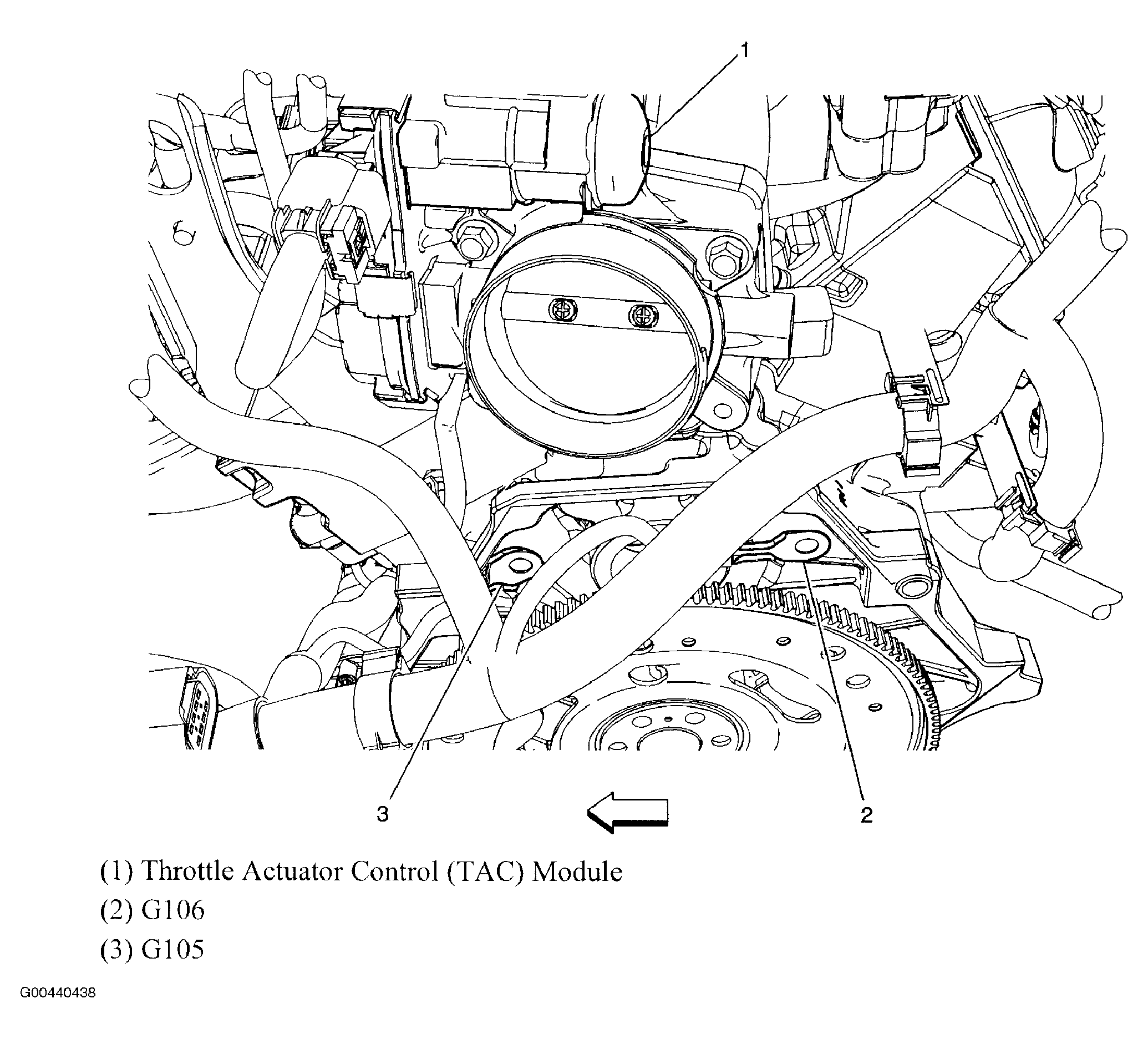

Fig 80: Top Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 81: Right Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

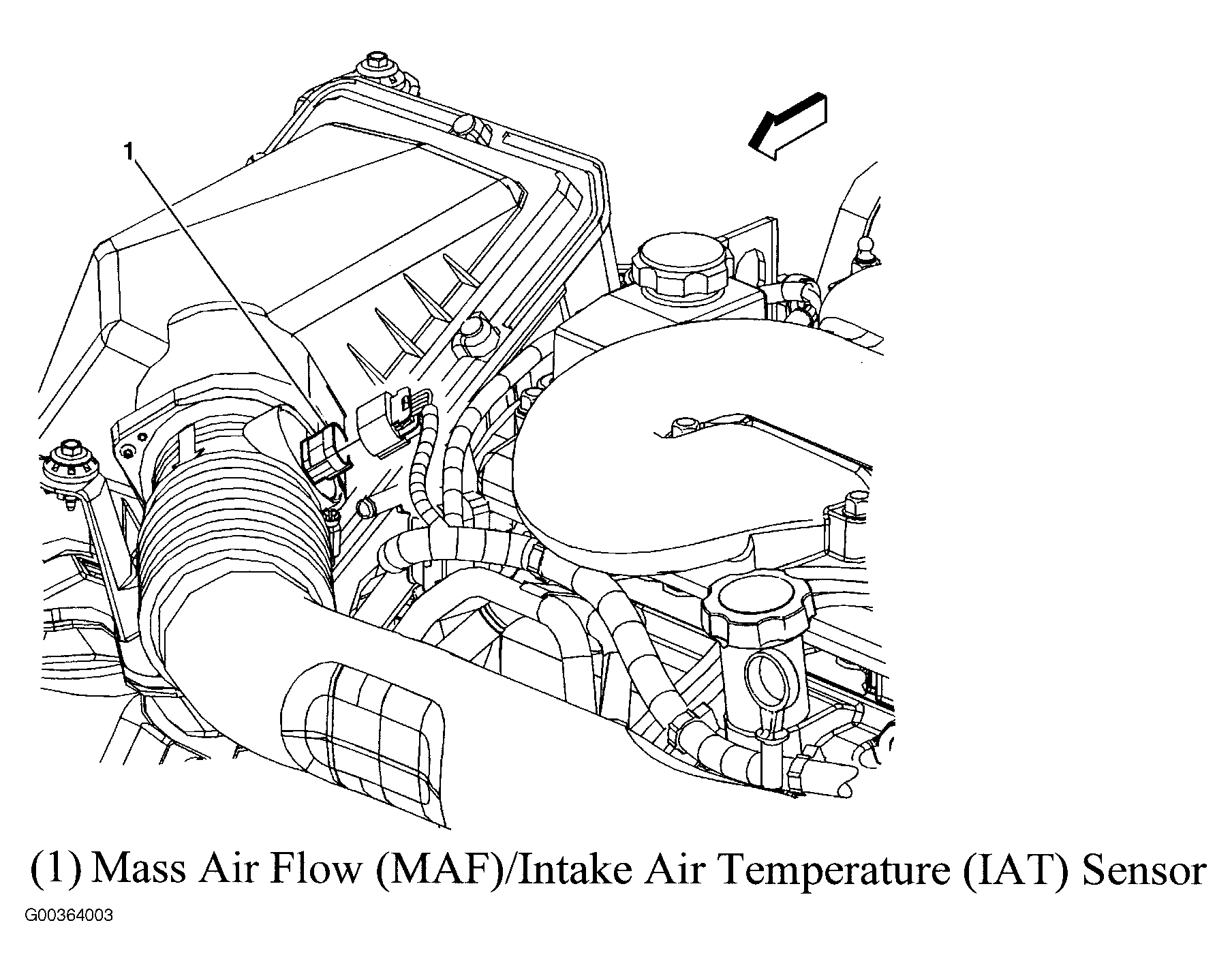

Fig 82: Engine Compartment - Left Front
Courtesy of GENERAL MOTORS CORP.
