Installation Procedure

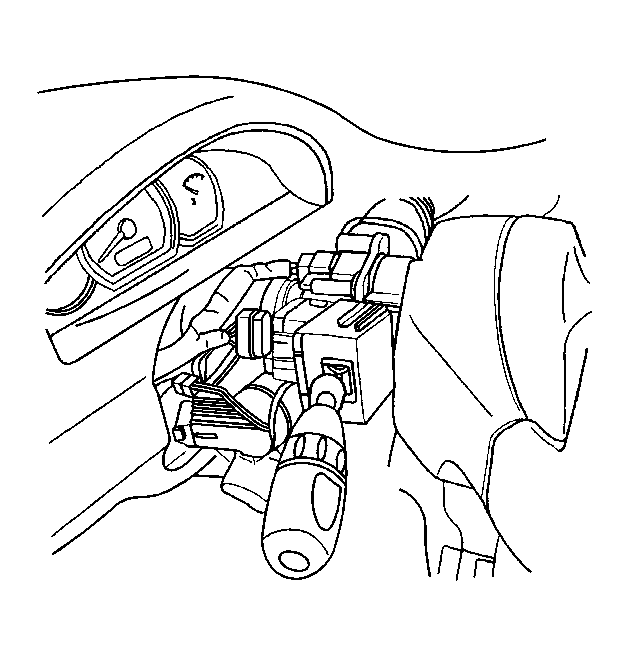

    Fig 1: View Of Turn Signal Switch
    GM1308111Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connections to the turn signal switch.
  2. Install the turn signal switch by snapping it into the switch housing.

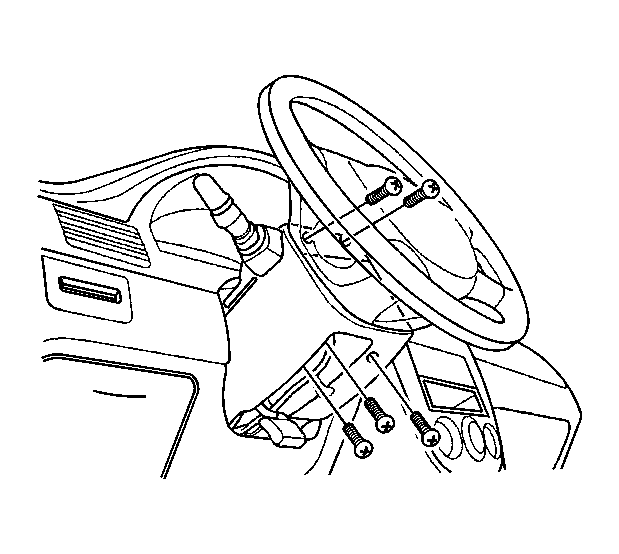

    3. Fig 2: Identifying Steering Column Cover Panel Screws
    GM1308107Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the upper and the lower steering column cover panels. Install the upper and the lower steering column cover panel screws.

    Tighten:  Tighten the upper and the lower steering column cover panel screws to 2.5 N.m (22 lb in)  .

  4. Connect the negative battery cable.
