Antilock Brake System Component Views (Notchback)

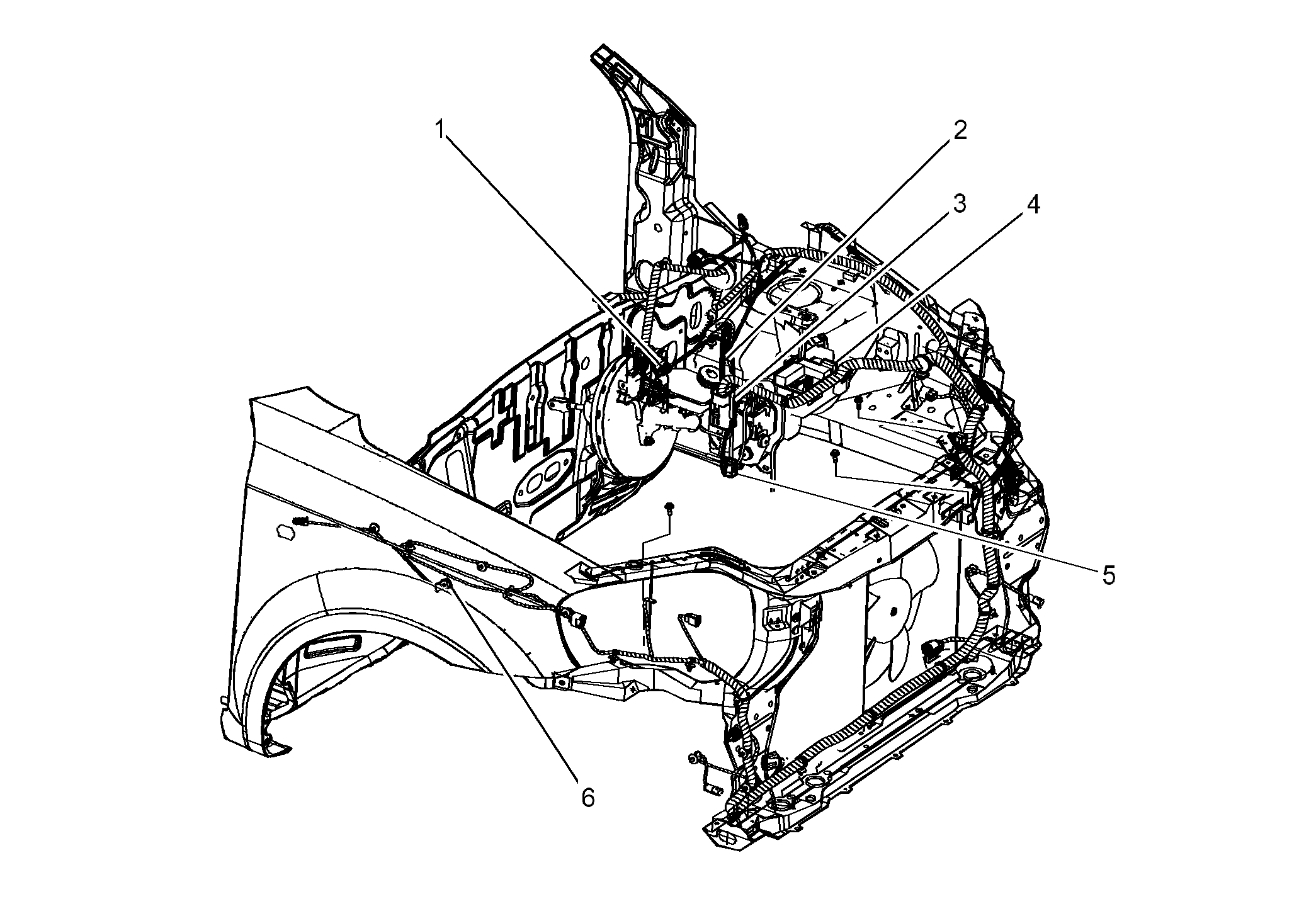

Fig 1: Antilock Brake System Component Views (Notchback)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Sensor
2	Front Wheel Speed Sensor - Left
3	Electronic Brake Control Module (EBCM) and Brake Pressure Modulator Valve (BPMV)
4	Engine Compartment Fuse Block
5	Lamp Driver Module
6	Front Wheel Speed Sensor - Right
