Installation Procedure

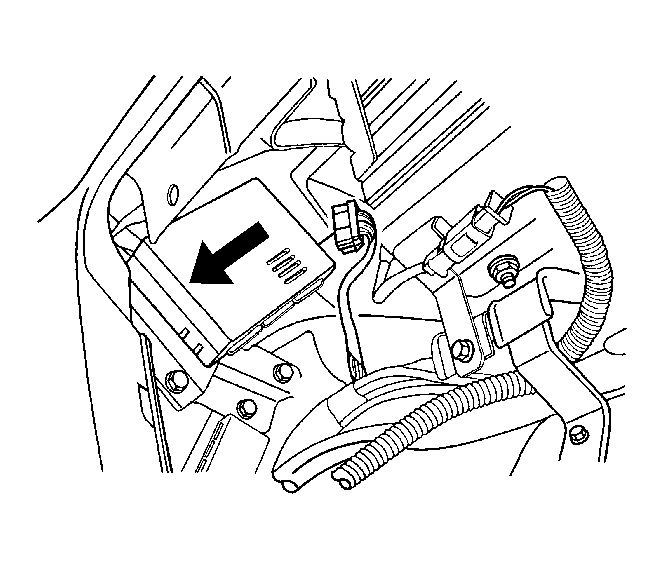

    Fig 1: View Of SSPS Control Module And Electrical Connector
    GM1290133Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the SSPS control module.
  2. Slide the SSPS control module onto the control module bracket.
  3. Install the glove box. Refer to Instrument Panel Storage Compartment Replacement .
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
