Body Control System Schematics

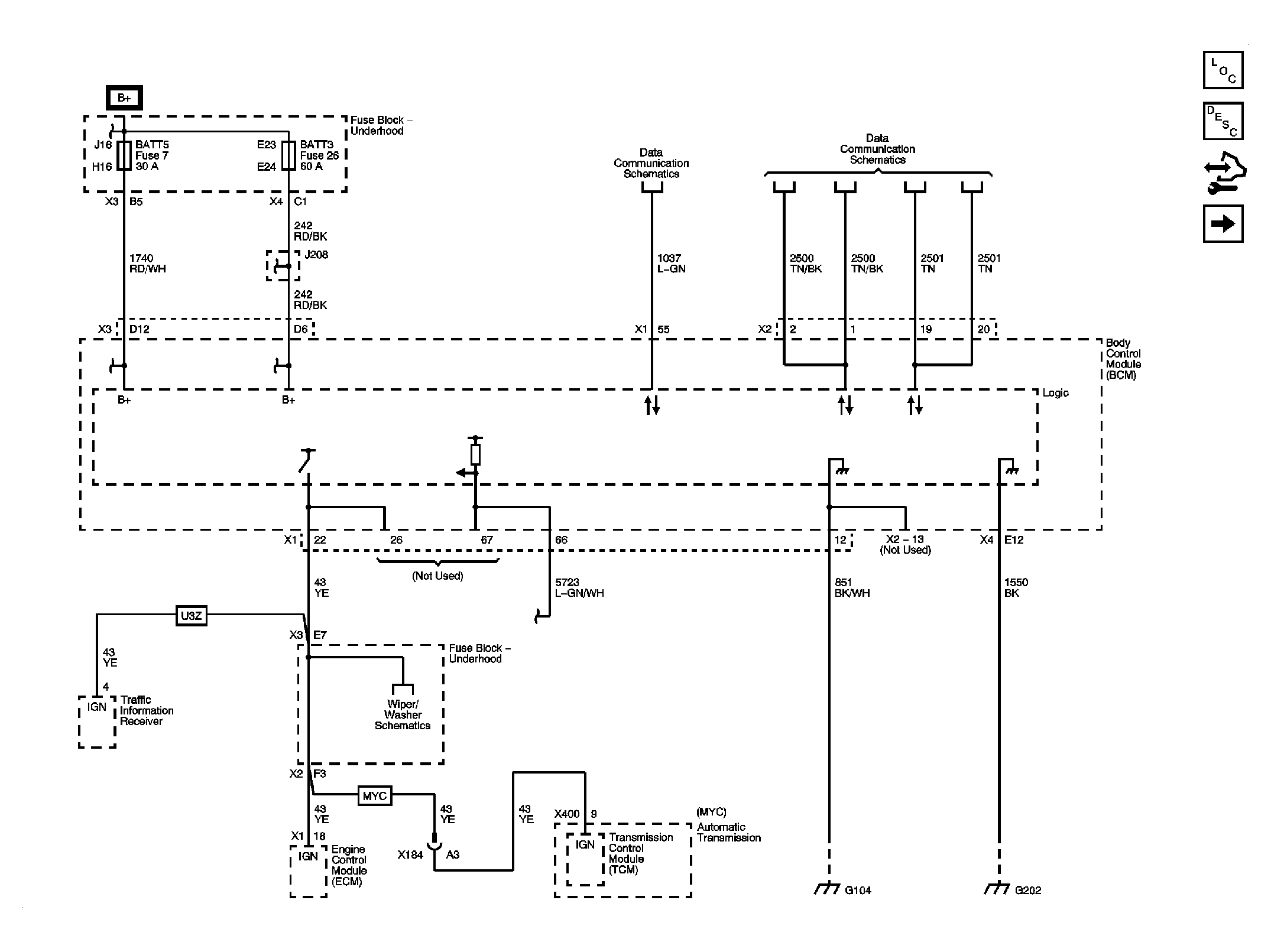

Fig 1: Power, Ground & Serial Data Circuit Schematic
GM2053268Courtesy of GENERAL MOTORS CORP.

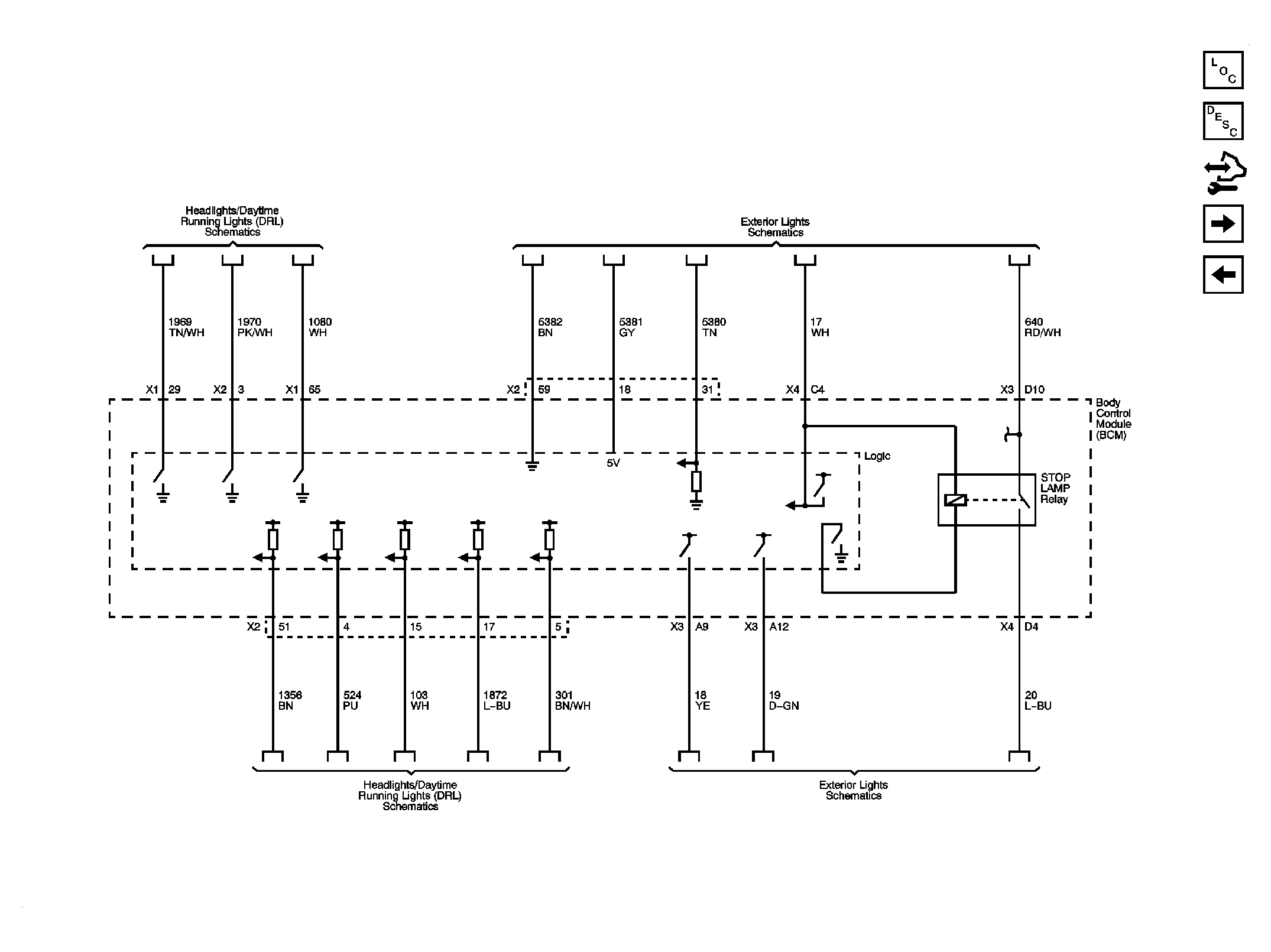

Fig 2: Lighting References Circuit Schematic (1 Of 2)
GM2053270Courtesy of GENERAL MOTORS CORP.

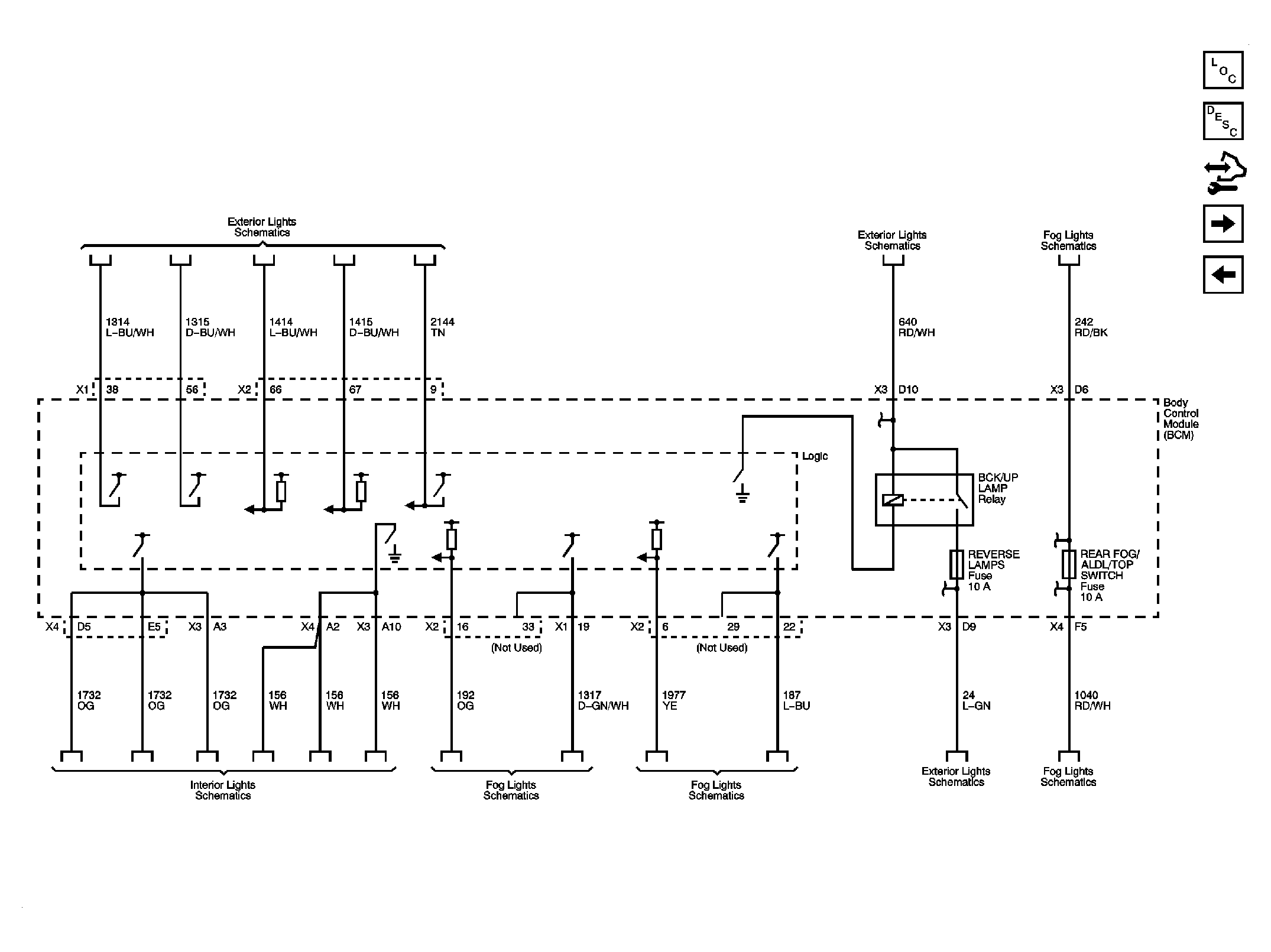

Fig 3: Lighting References Circuit Schematic (2 Of 2)
GM2053273Courtesy of GENERAL MOTORS CORP.

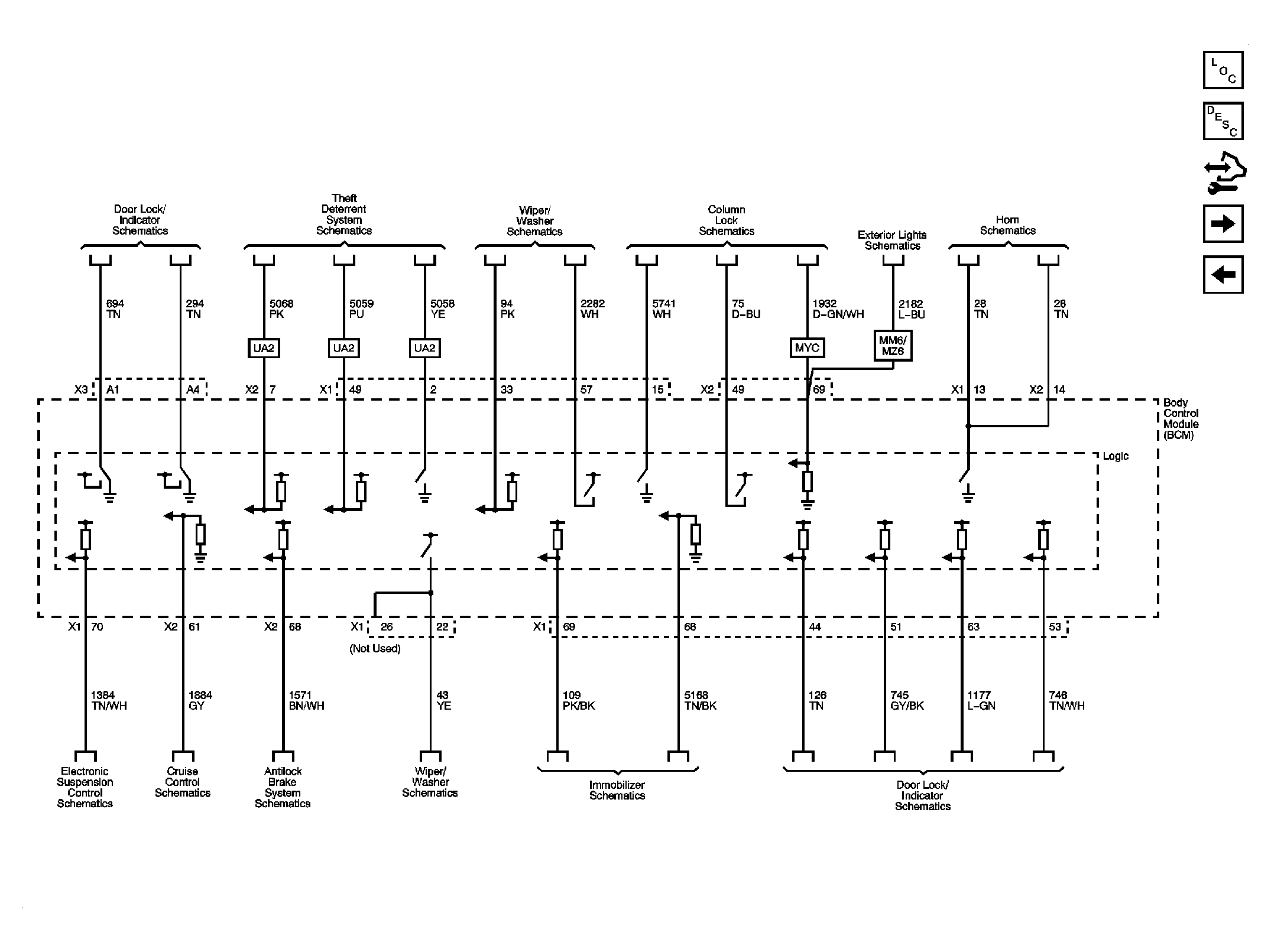

Fig 4: Subsystem References Circuit Schematic (1 Of 2)
GM2053275Courtesy of GENERAL MOTORS CORP.

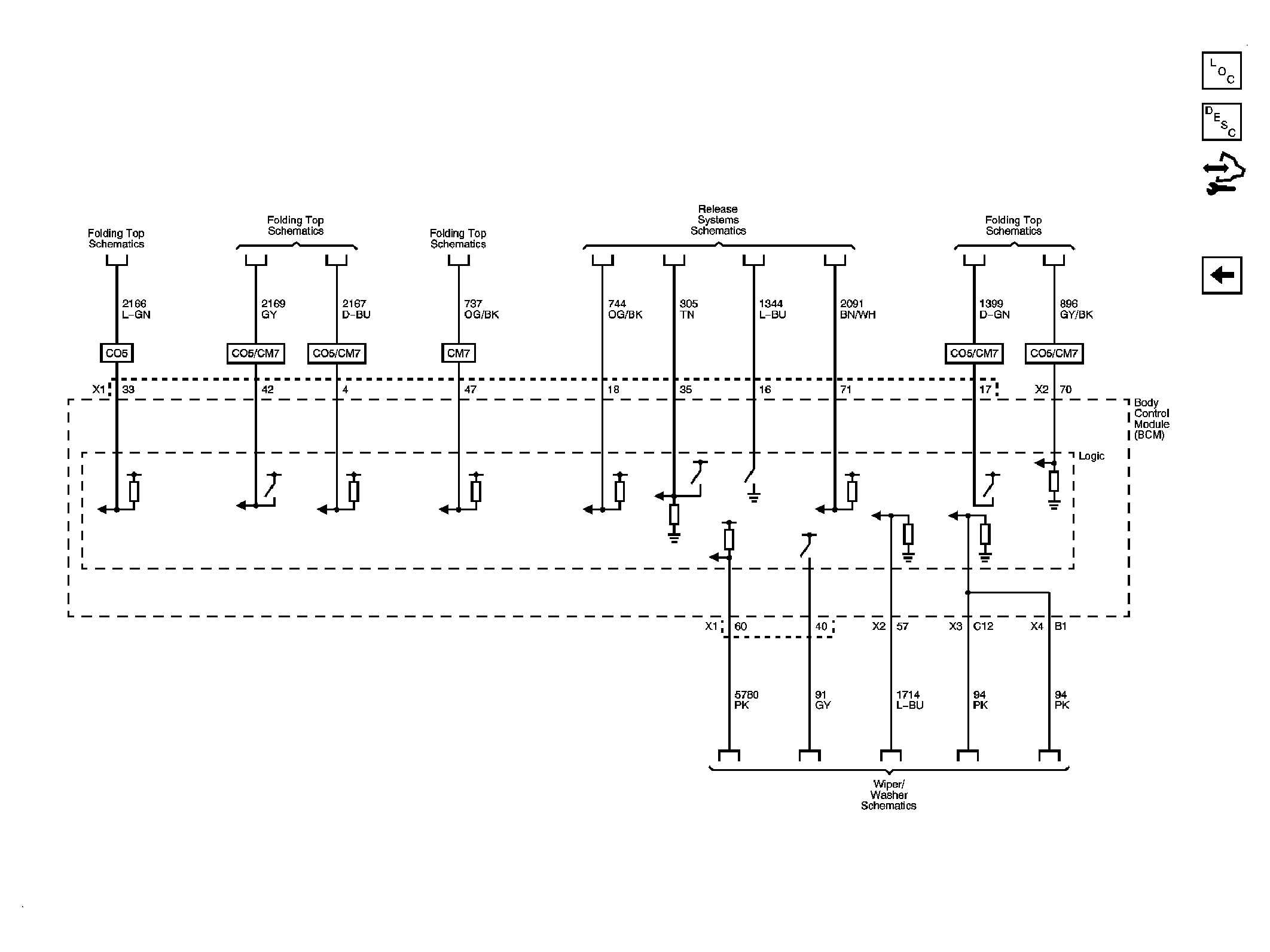

Fig 5: Subsystem References Circuit Schematic (2 Of 2)
GM2053280Courtesy of GENERAL MOTORS CORP.
