Data Communication Schematics

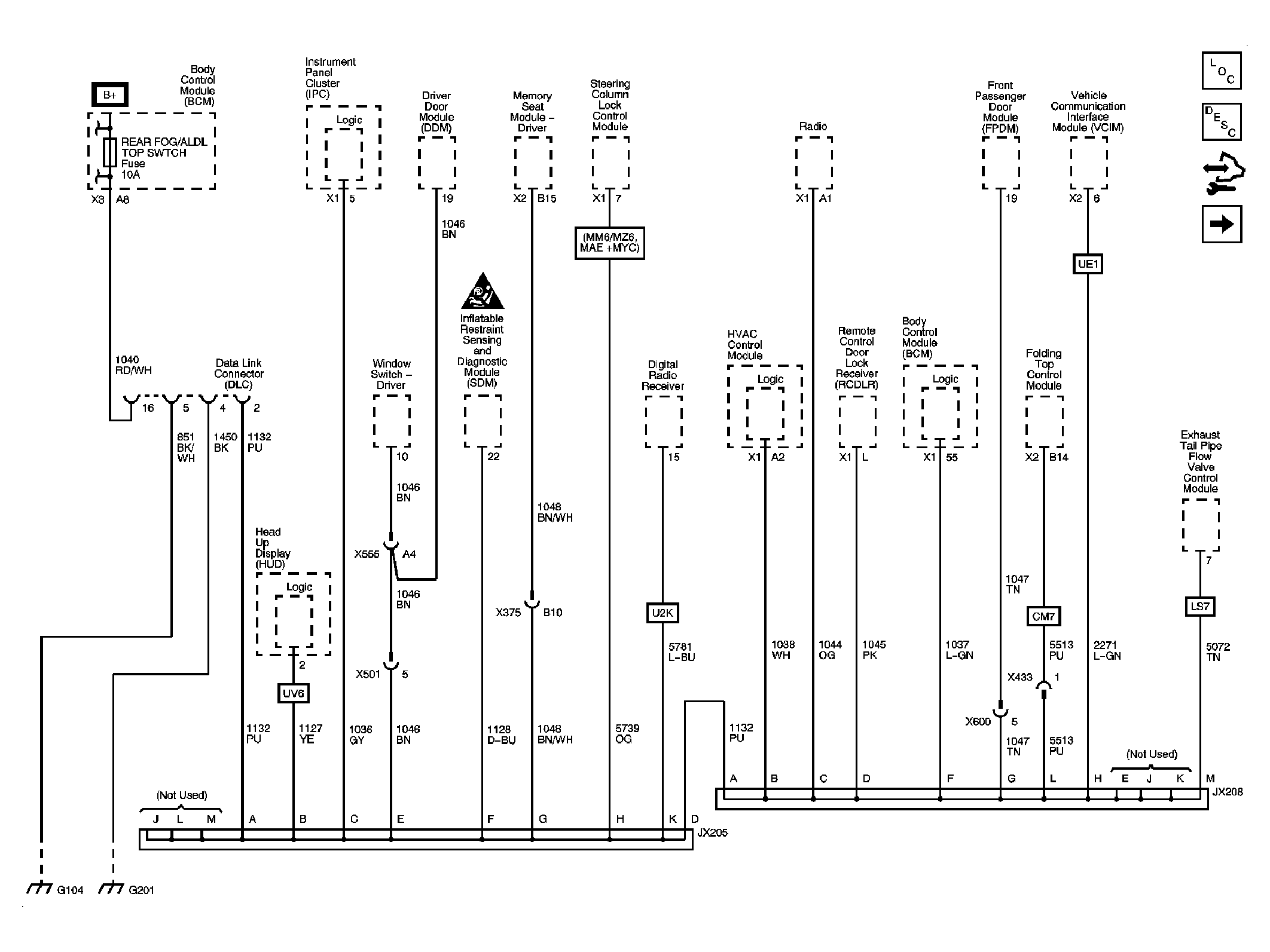

Fig 1: Power, Ground & Class 2 Circuit Schematic
GM2053259Courtesy of GENERAL MOTORS CORP.

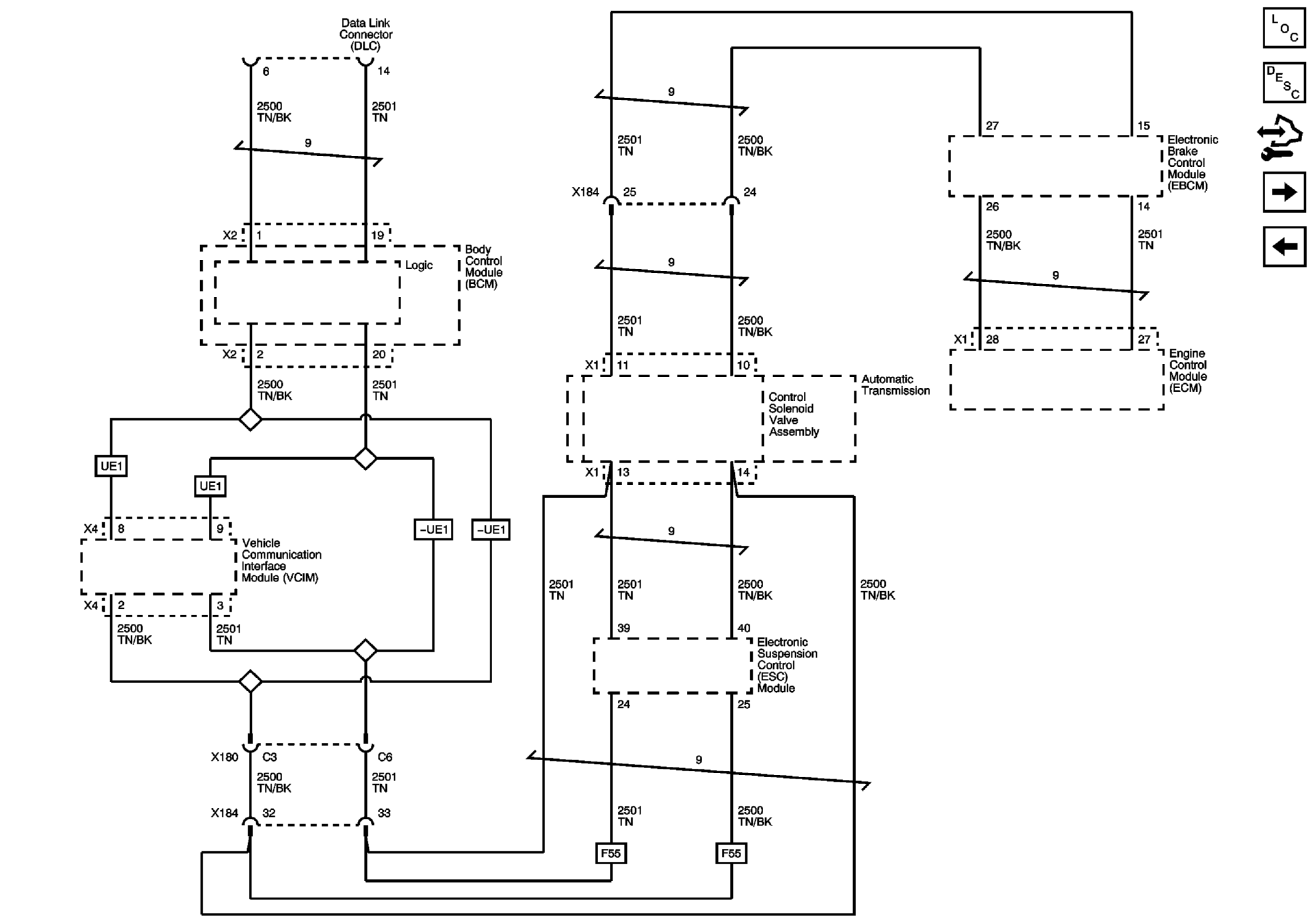

Fig 2: High Speed GMLAN Circuit Schematic - Automatic Transmission
GM2053263Courtesy of GENERAL MOTORS CORP.

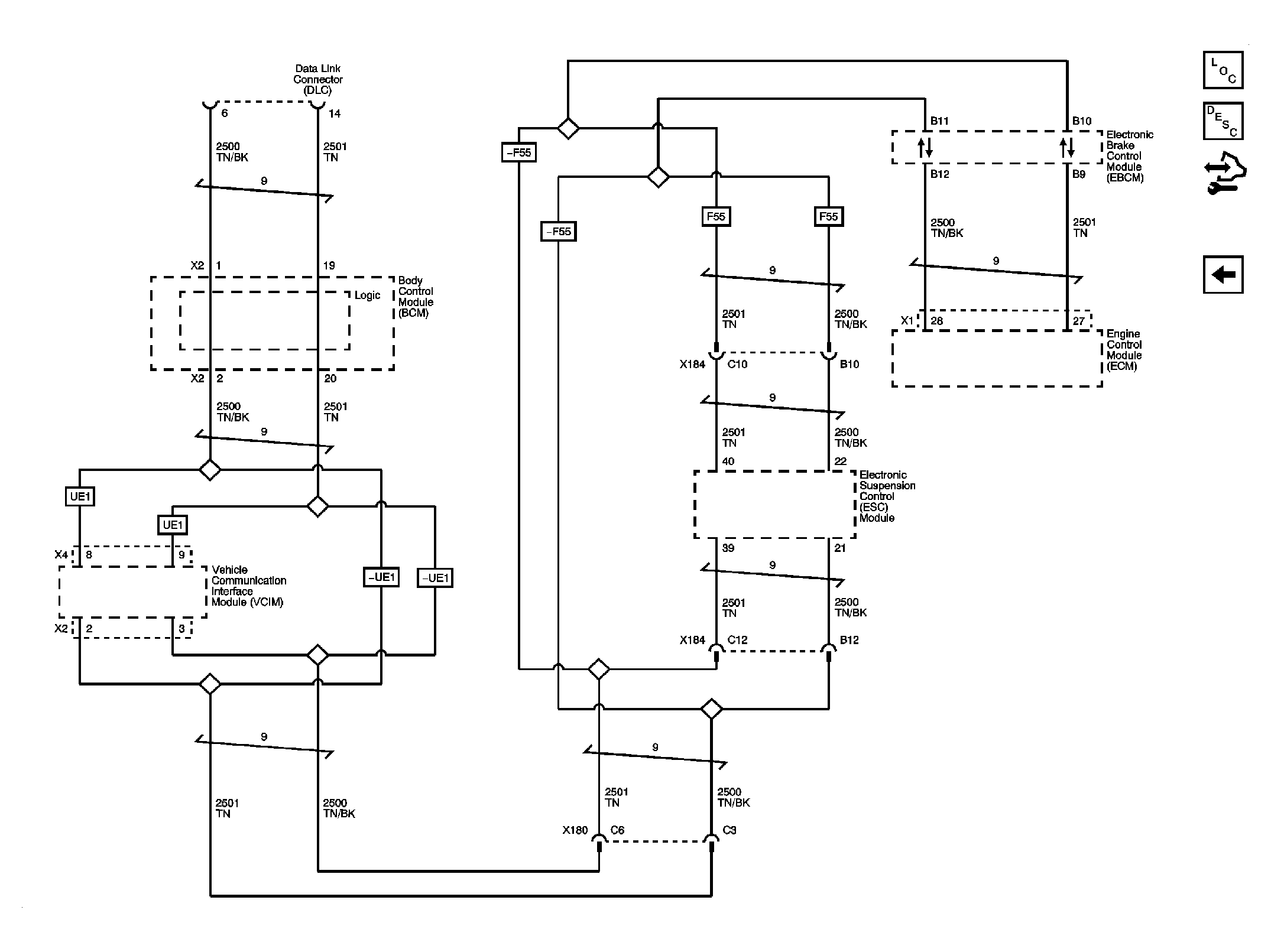

Fig 3: High Speed GMLAN Circuit Schematic - Manual Transmission
GM2053265Courtesy of GENERAL MOTORS CORP.
