Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

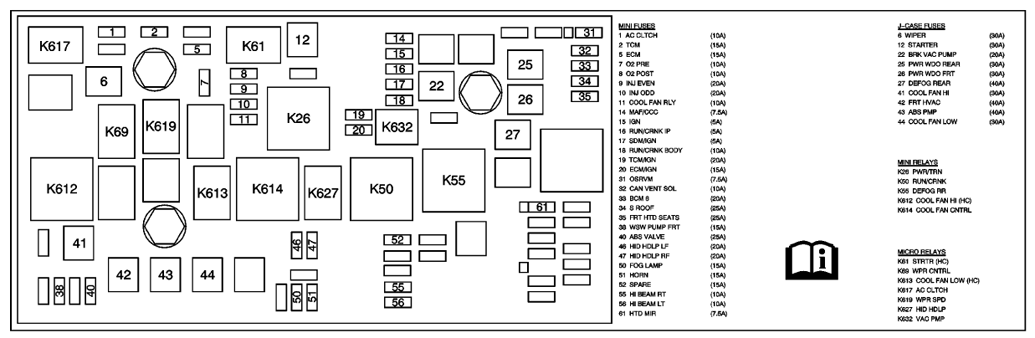

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

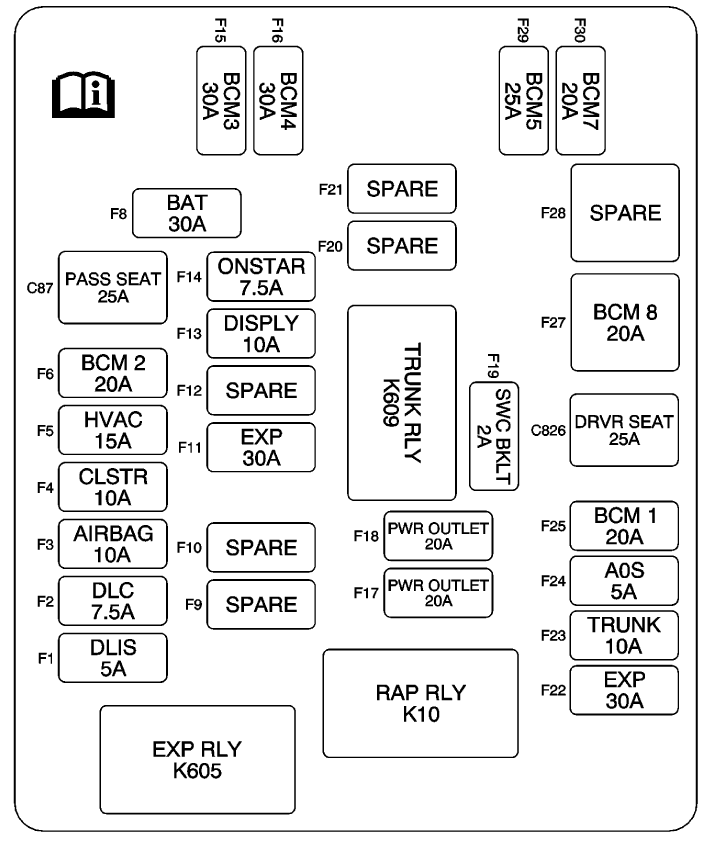

Fig 2: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 3: Instrument Panel
Courtesy of GENERAL MOTORS CORP.

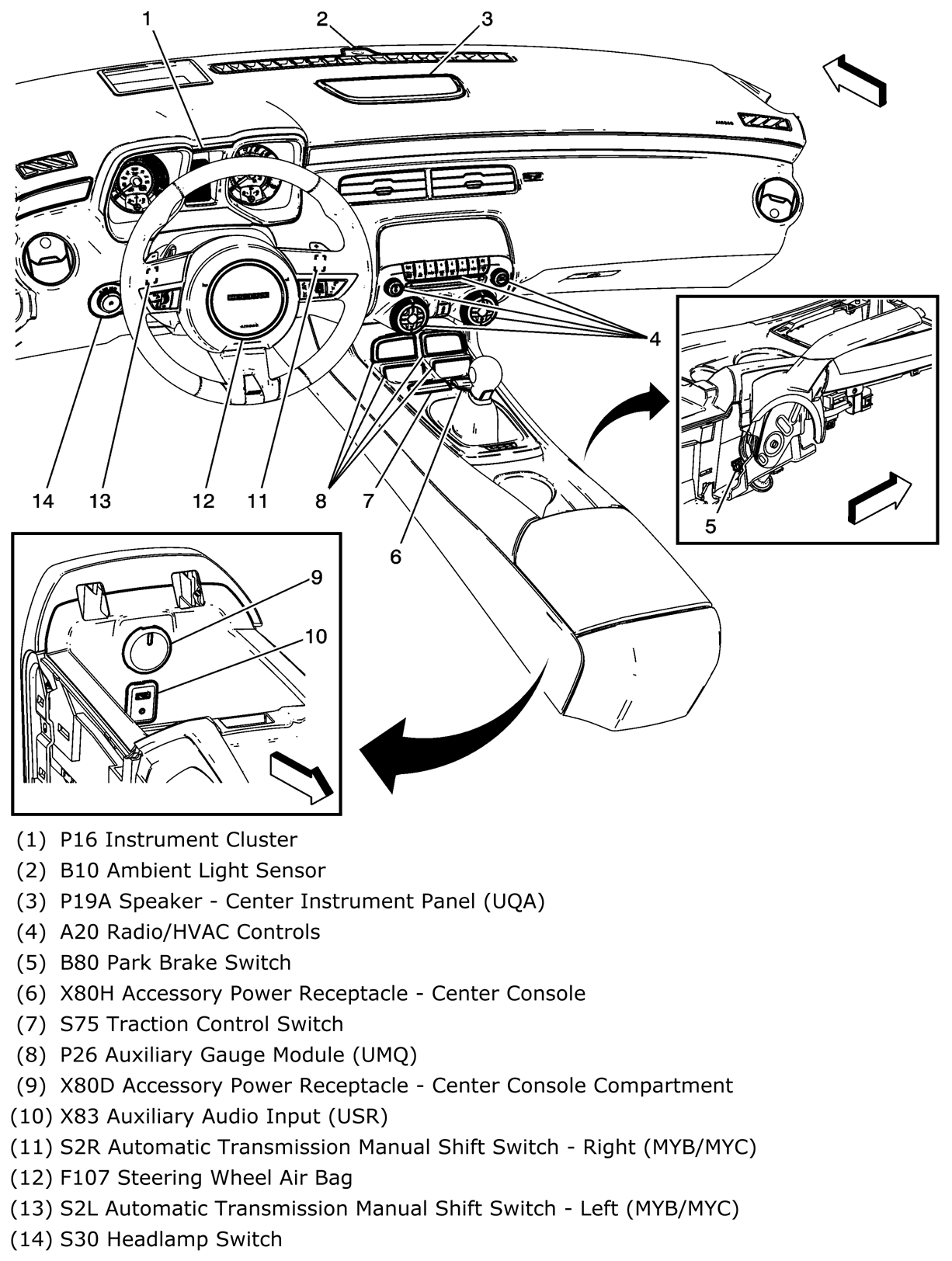

Fig 4: Dash & Center Console
Courtesy of GENERAL MOTORS CORP.

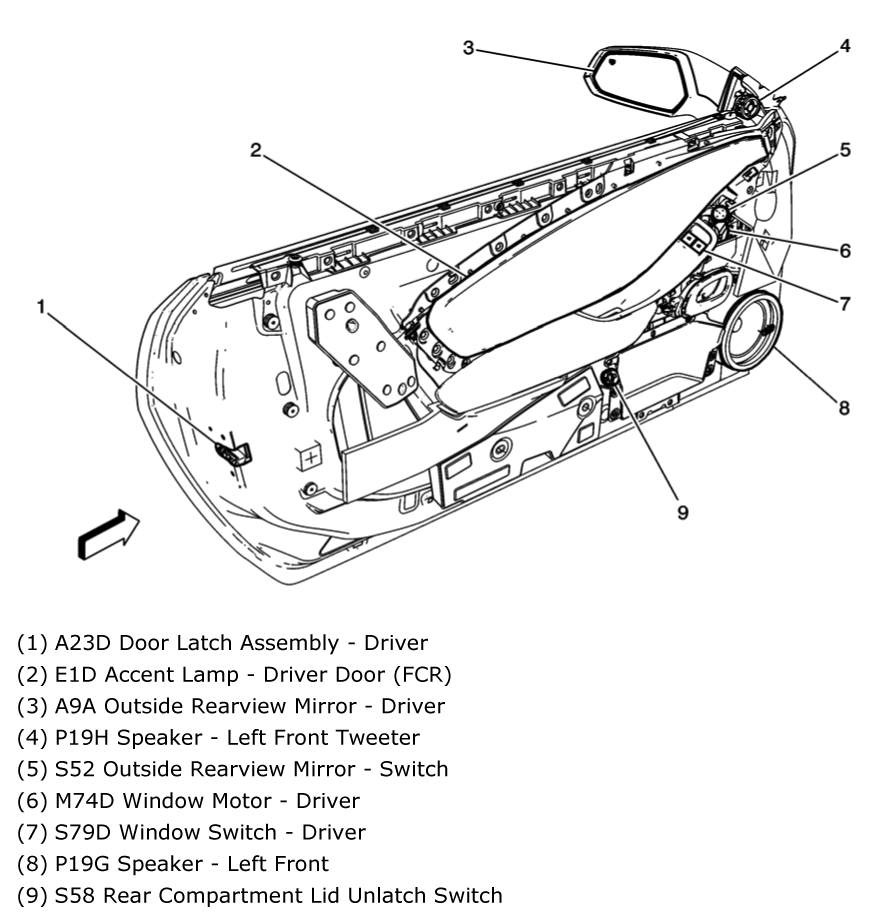

Fig 5: Driver's Door
Courtesy of GENERAL MOTORS CORP.

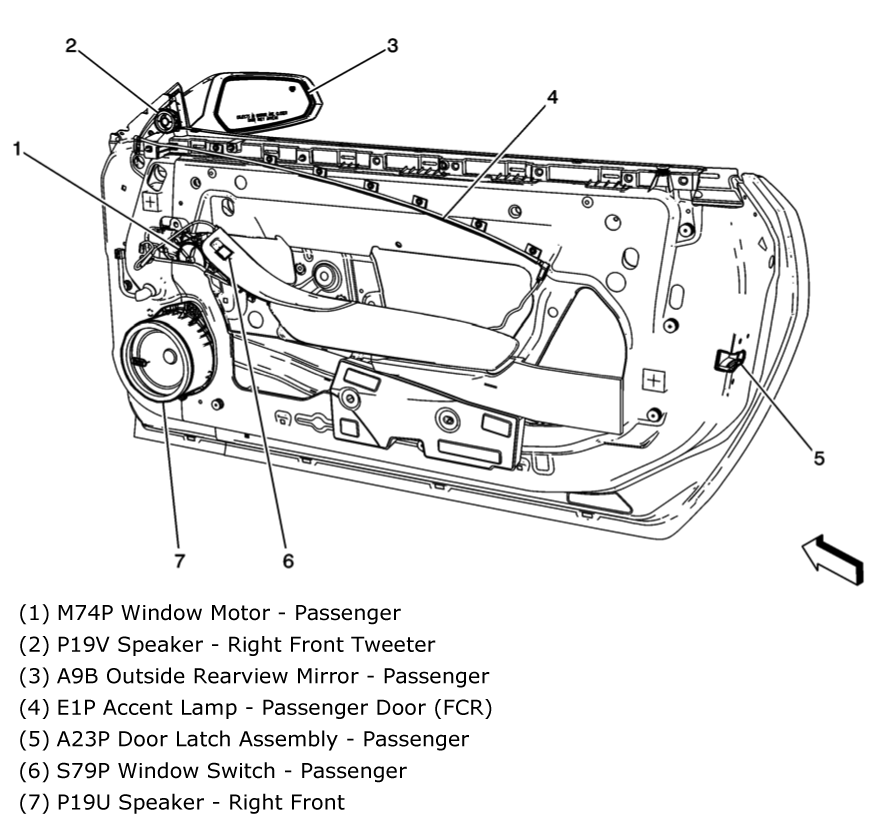

Fig 6: Passenger's Door
Courtesy of GENERAL MOTORS CORP.

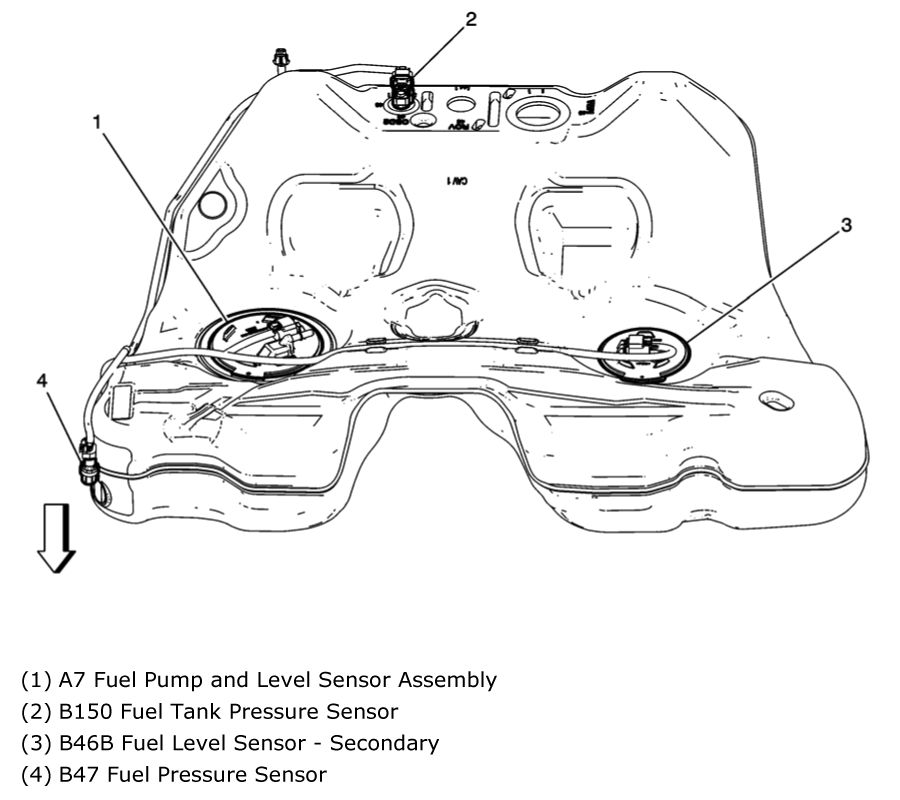

Fig 7: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

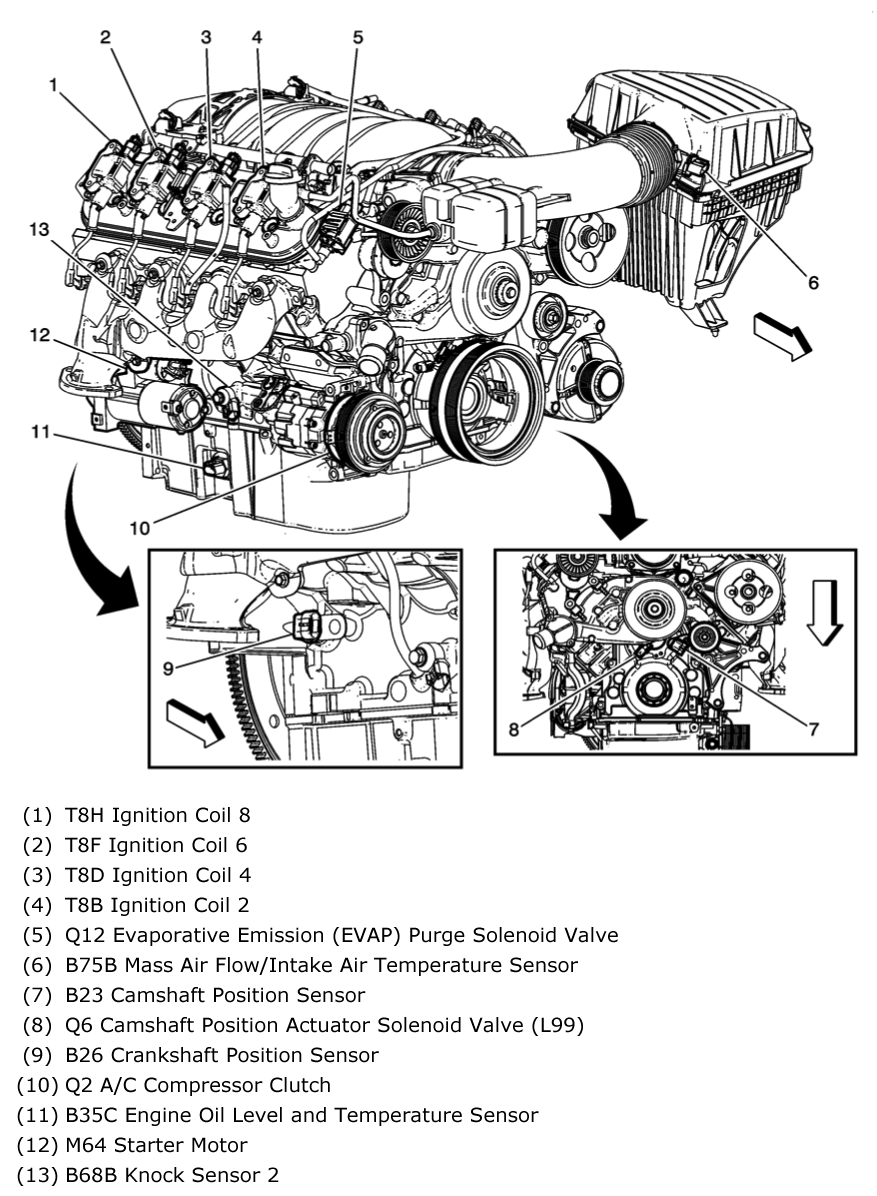

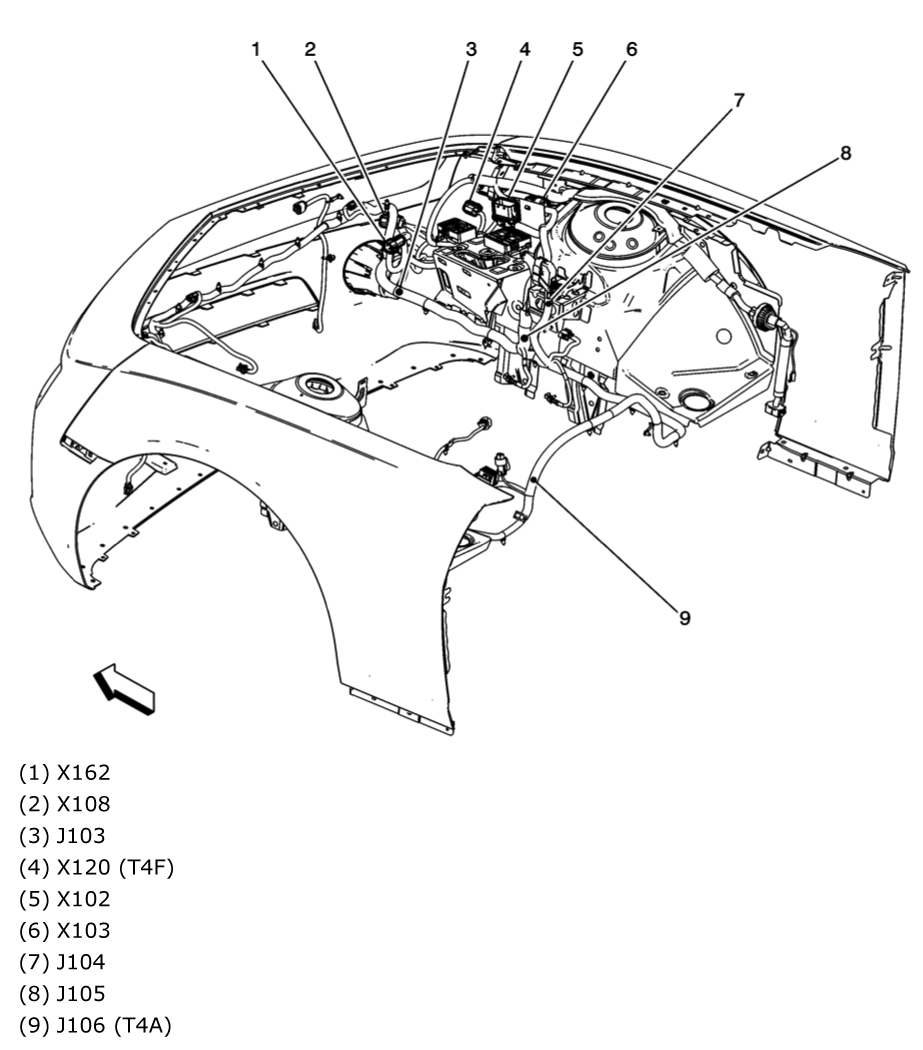

Fig 8: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 9: Left Center Of Instrument Panel & Steering Column
Courtesy of GENERAL MOTORS CORP.

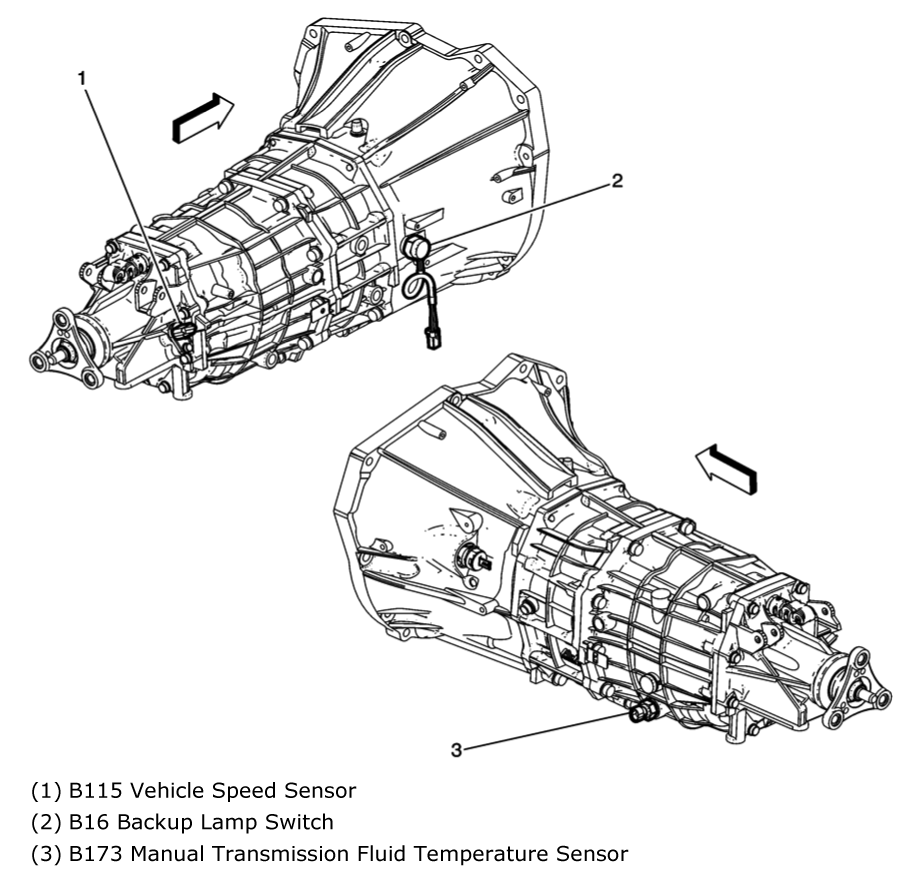

Fig 10: Transmission (6 Speed M/T - Aisin)
Courtesy of GENERAL MOTORS CORP.

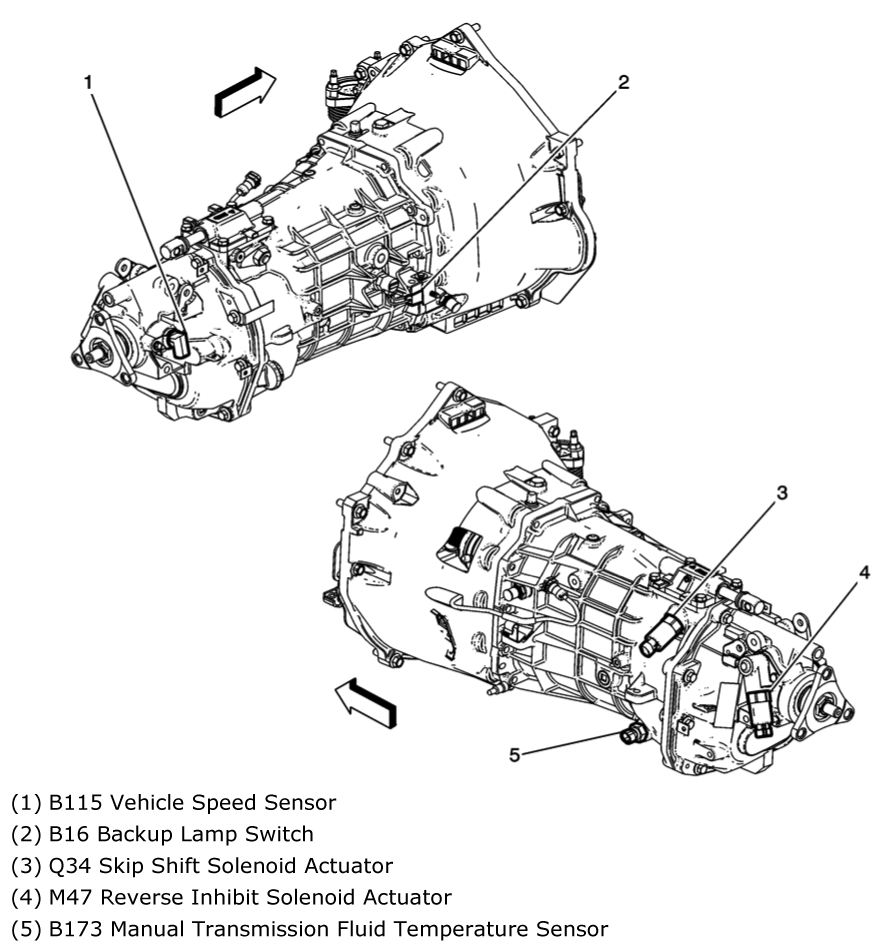

Fig 11: Transmission (6 Speed M/T - Tremec)
Courtesy of GENERAL MOTORS CORP.

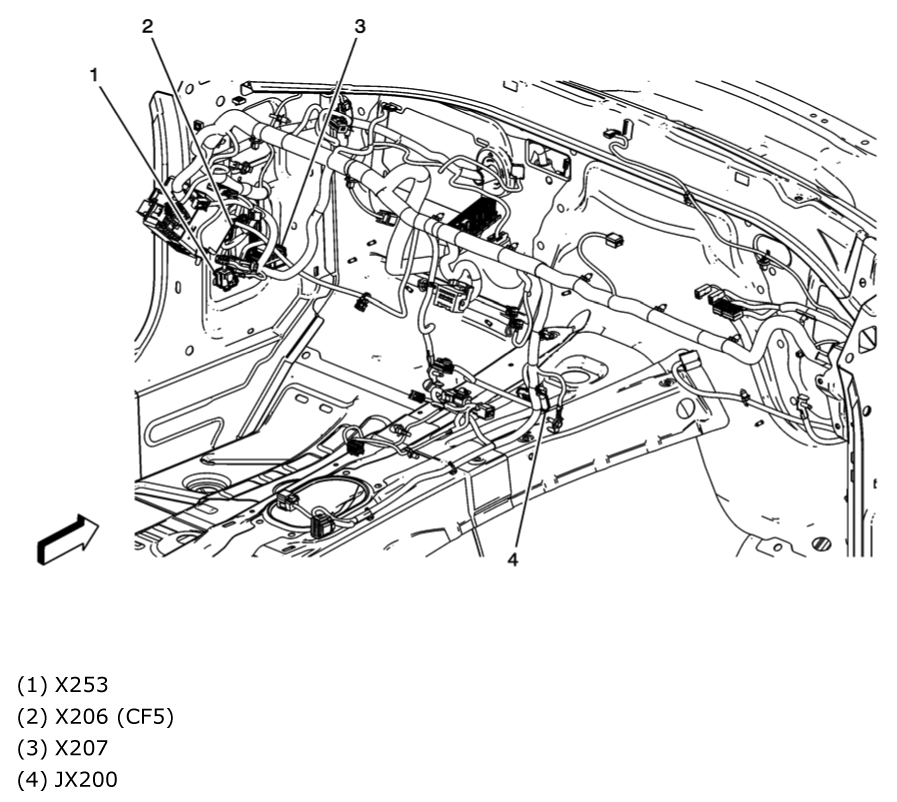

Fig 12: Right Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

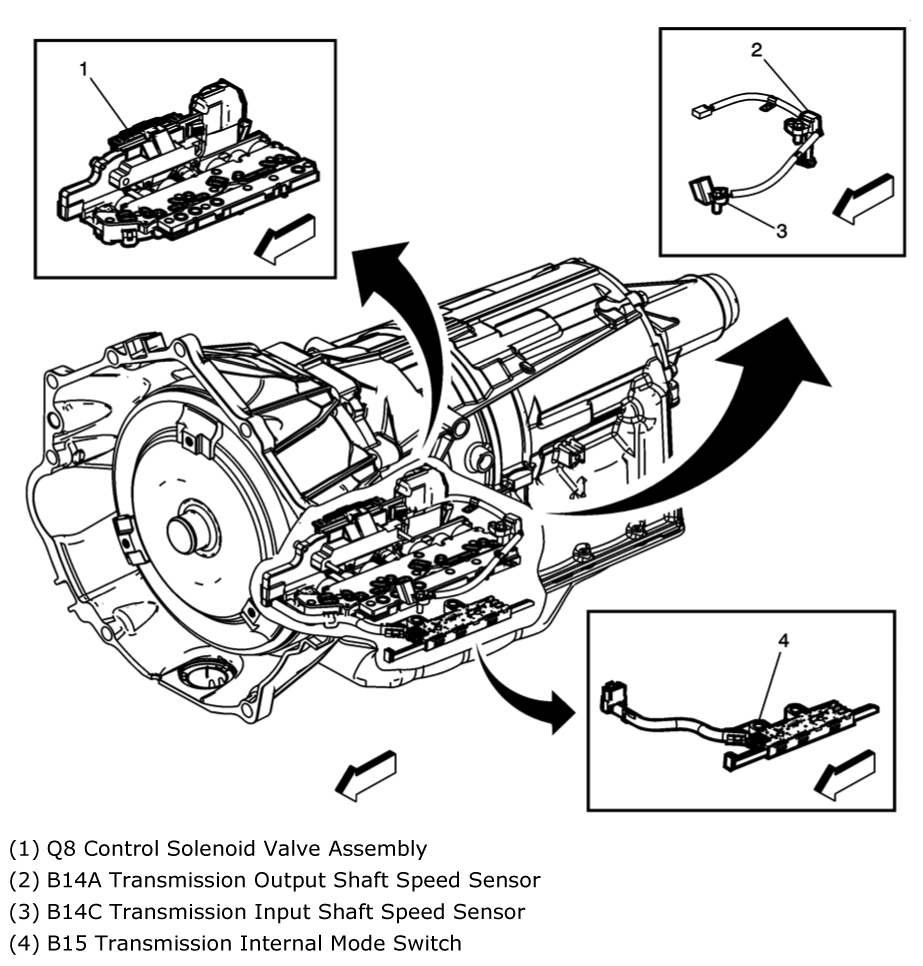

Fig 13: Automatic Transmission (6L50 Or 6L80)
Courtesy of GENERAL MOTORS CORP.

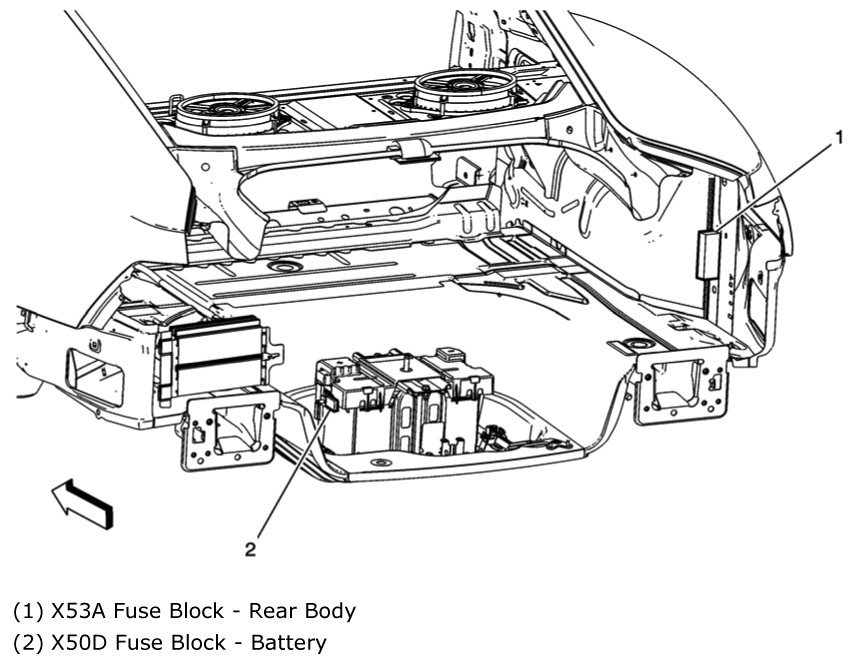

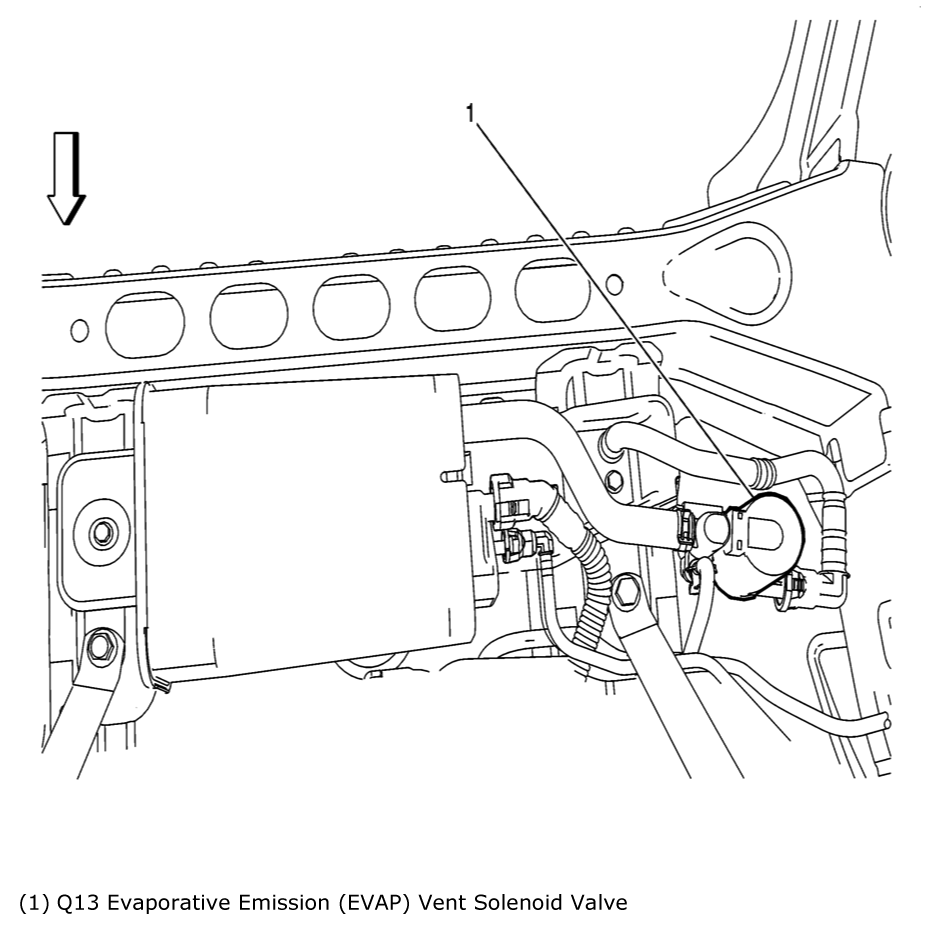

Fig 14: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

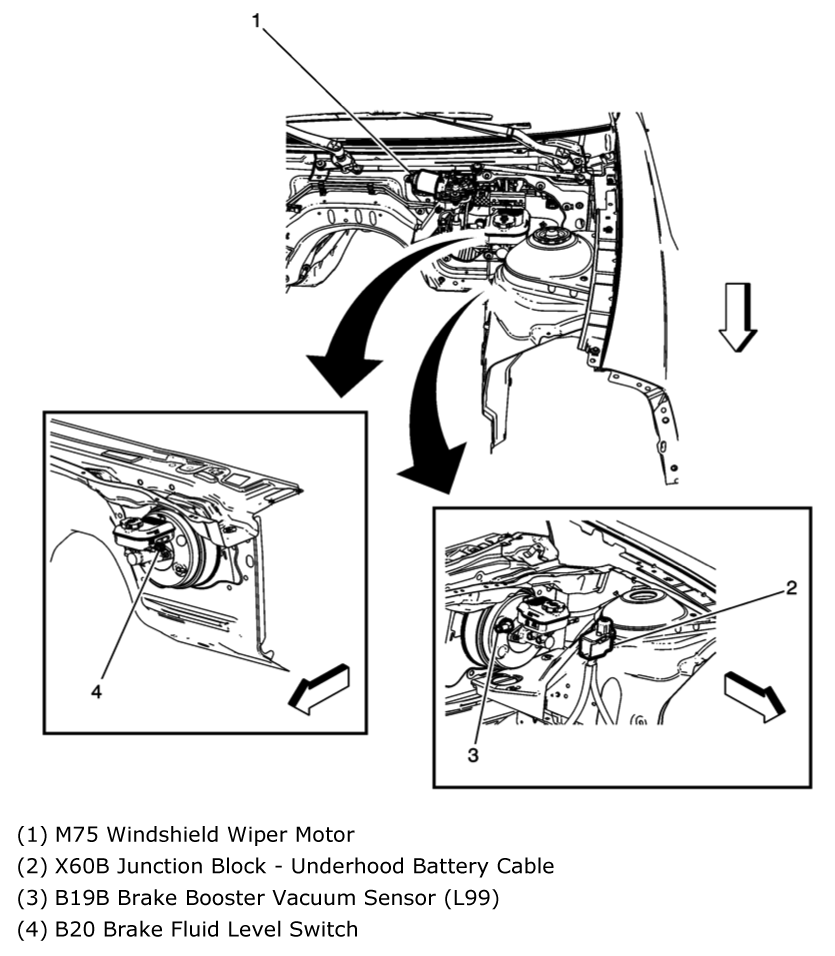

Fig 15: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 16: Right Side Of Engine (V8)
Courtesy of GENERAL MOTORS CORP.

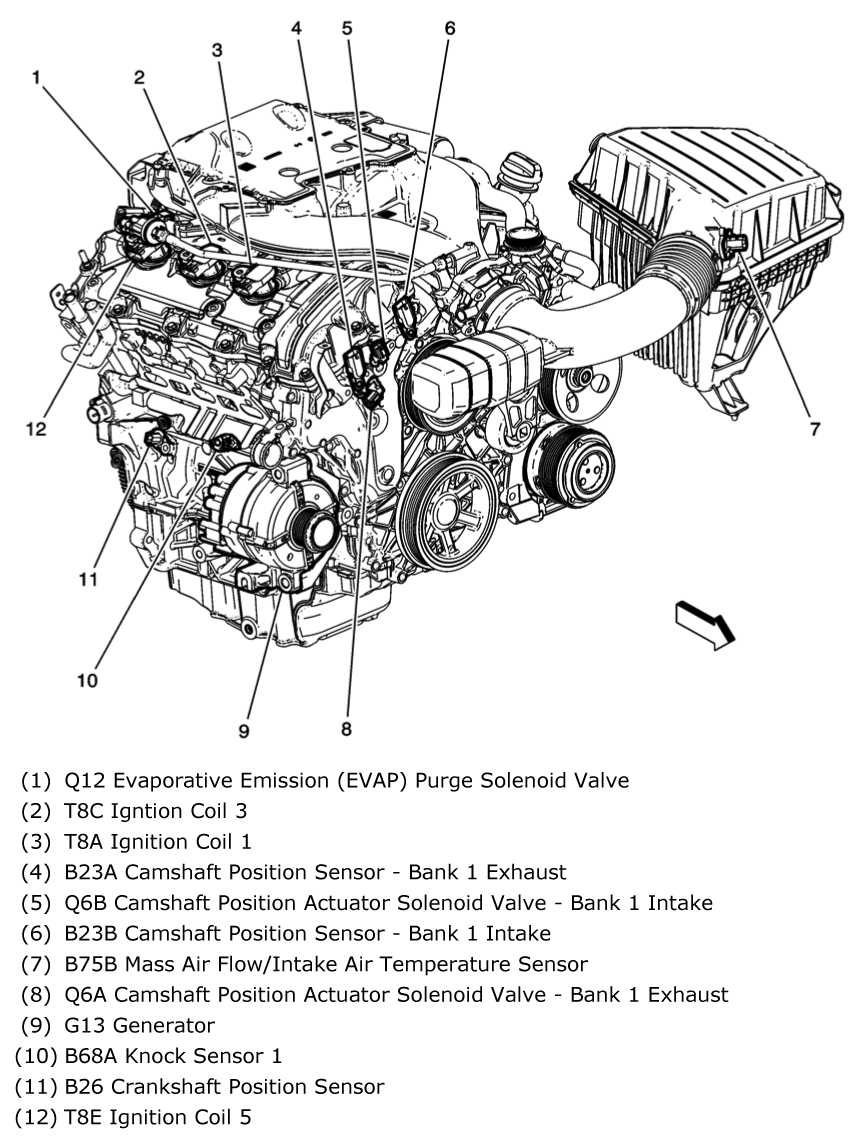

Fig 17: Right Side Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.

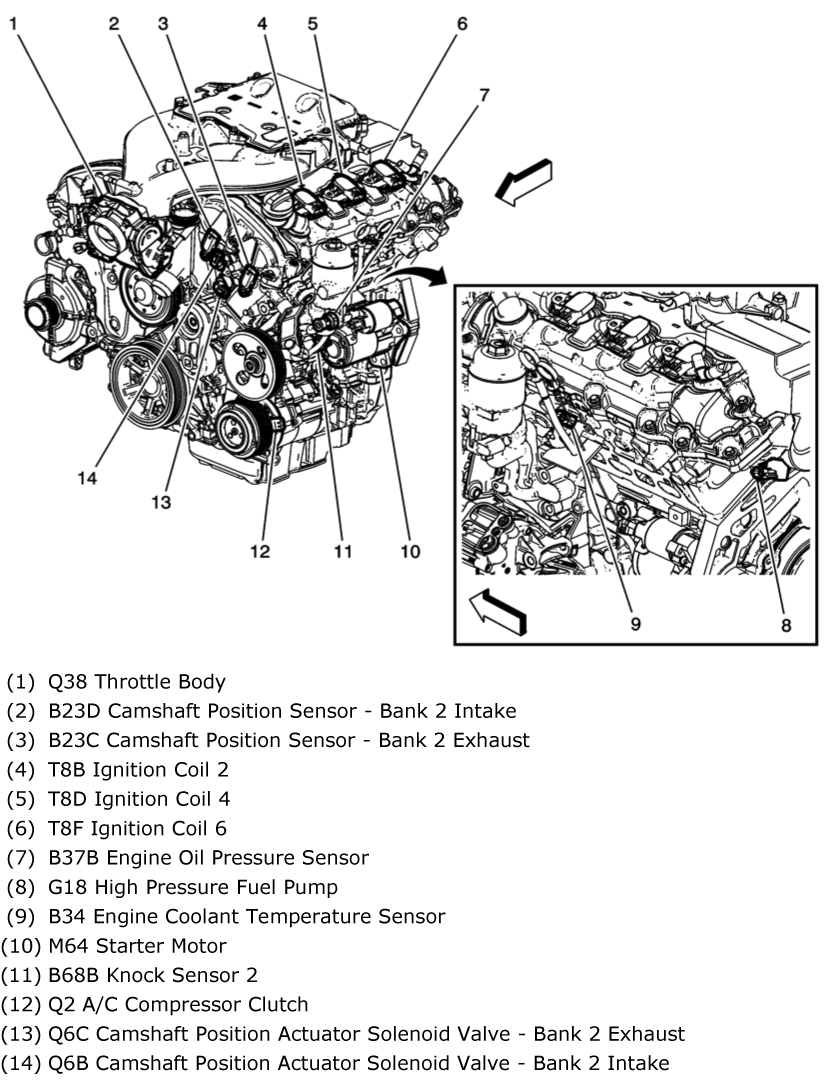

Fig 18: Left Side Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.

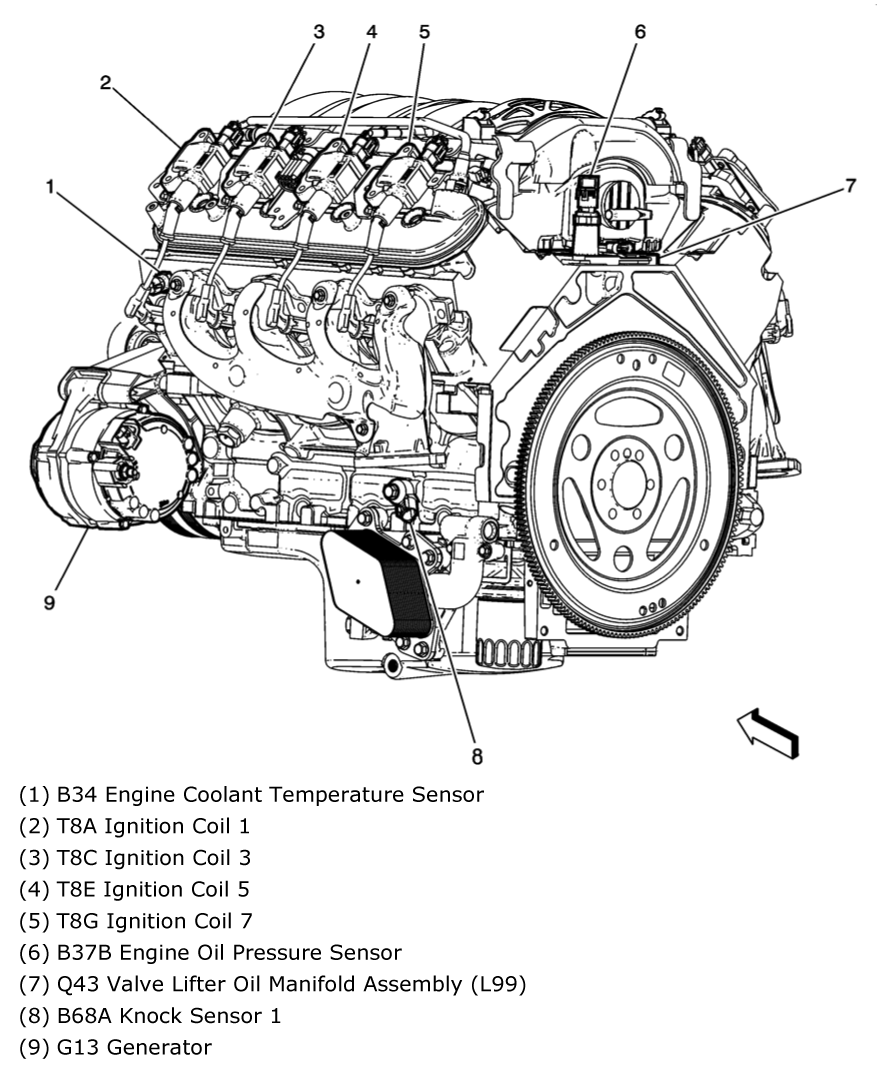

Fig 19: Left Rear Of Engine (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Top Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.

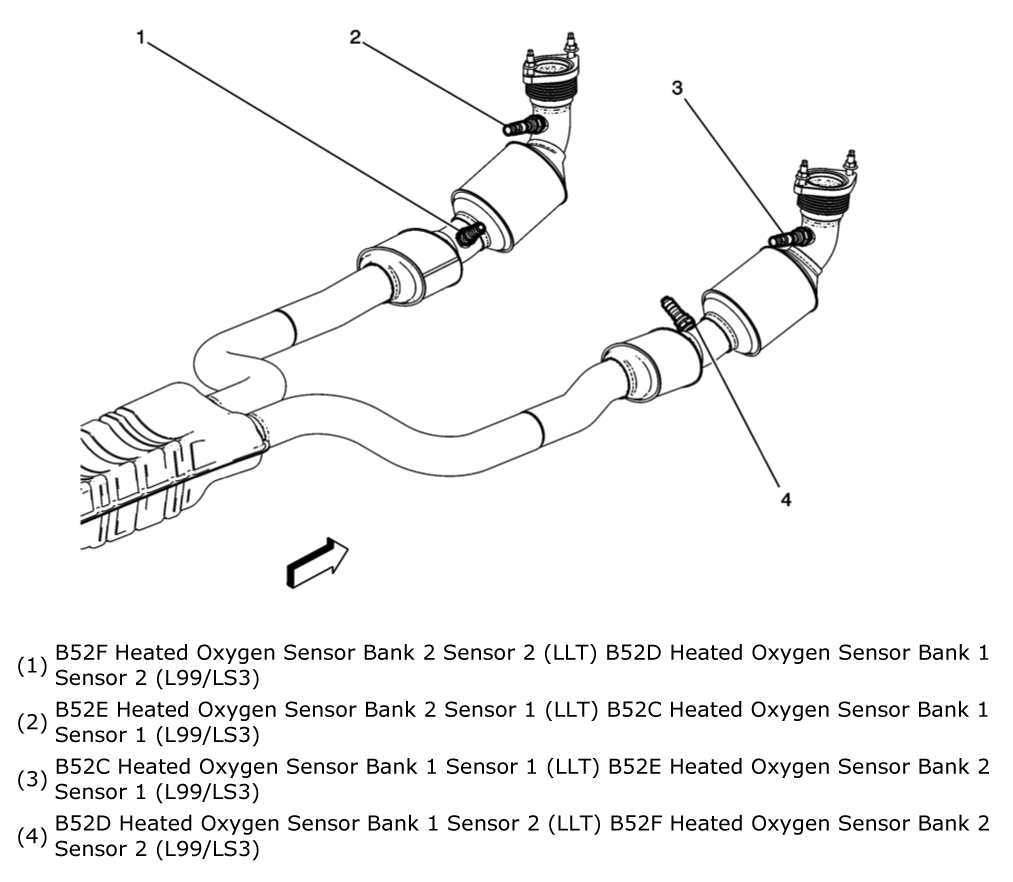

Fig 21: Front Of Exhaust System
Courtesy of GENERAL MOTORS CORP.

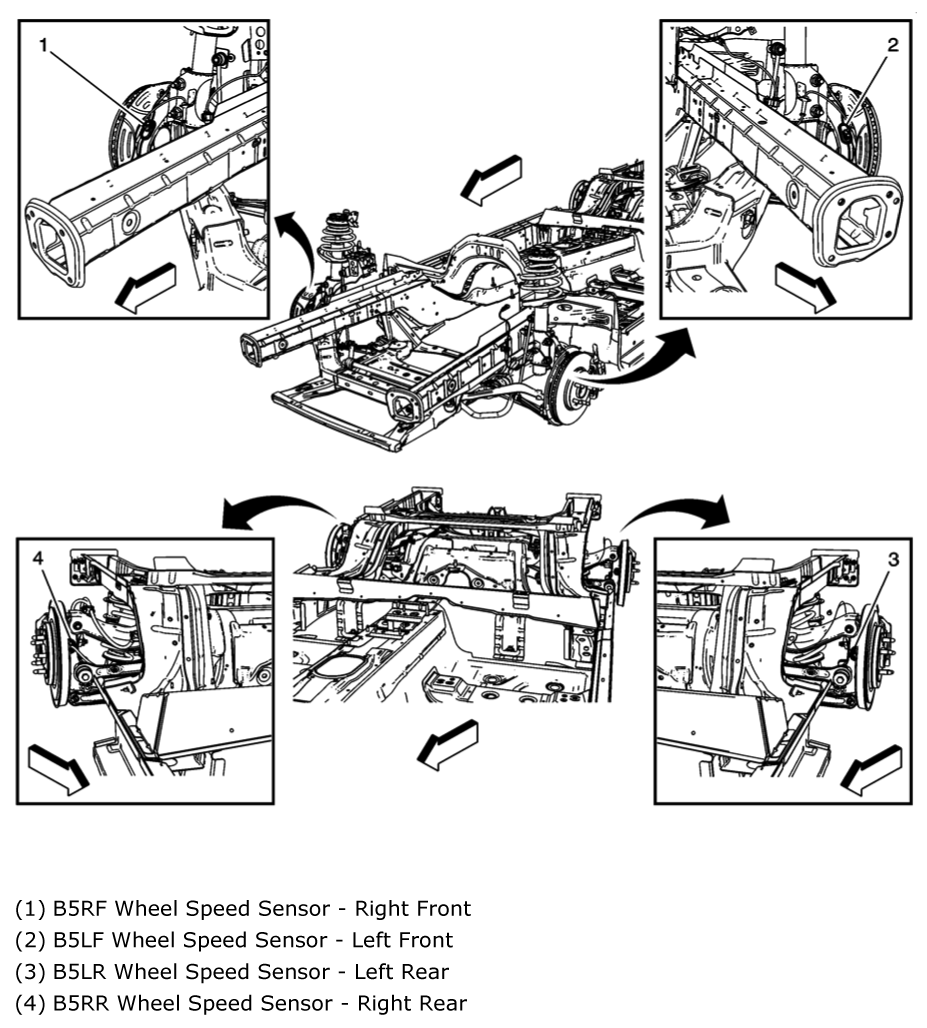

Fig 22: Wheel Components
Courtesy of GENERAL MOTORS CORP.
Fig 23: Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.

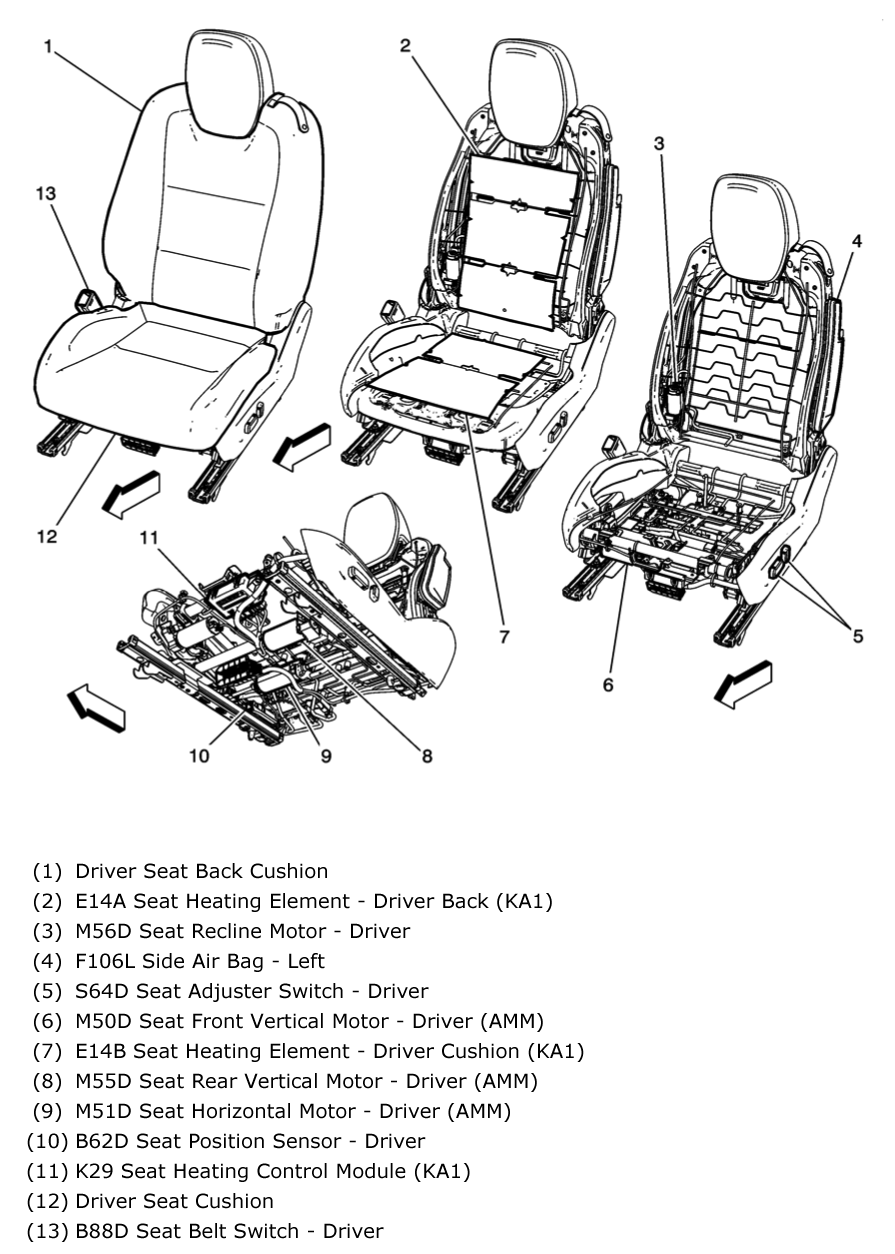

Fig 24: Driver's Seat
Courtesy of GENERAL MOTORS CORP.

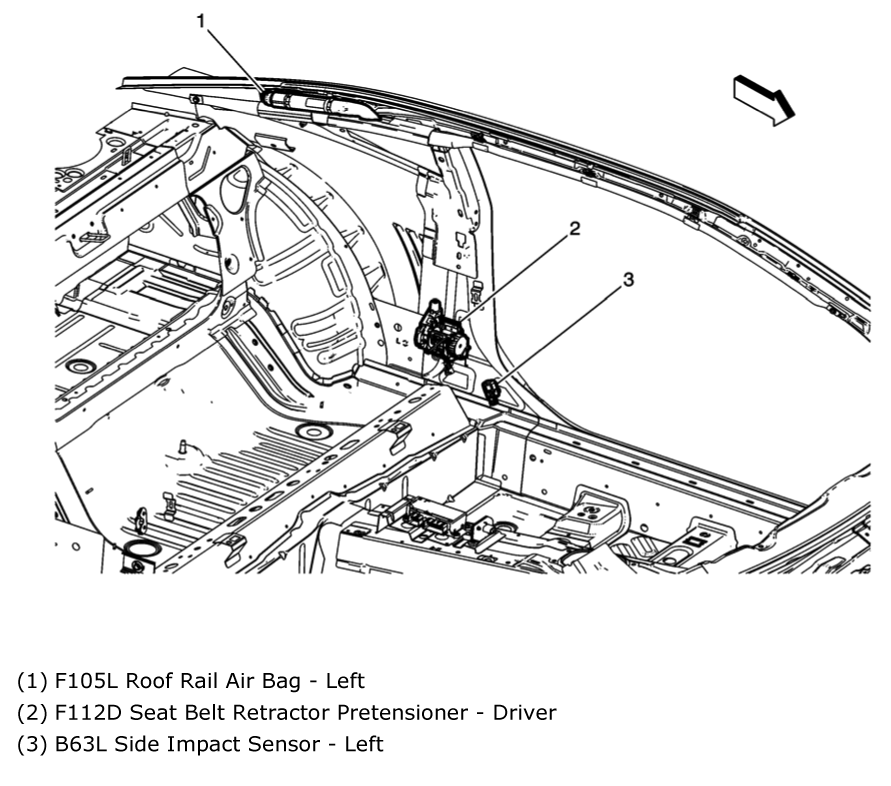

Fig 25: Left Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

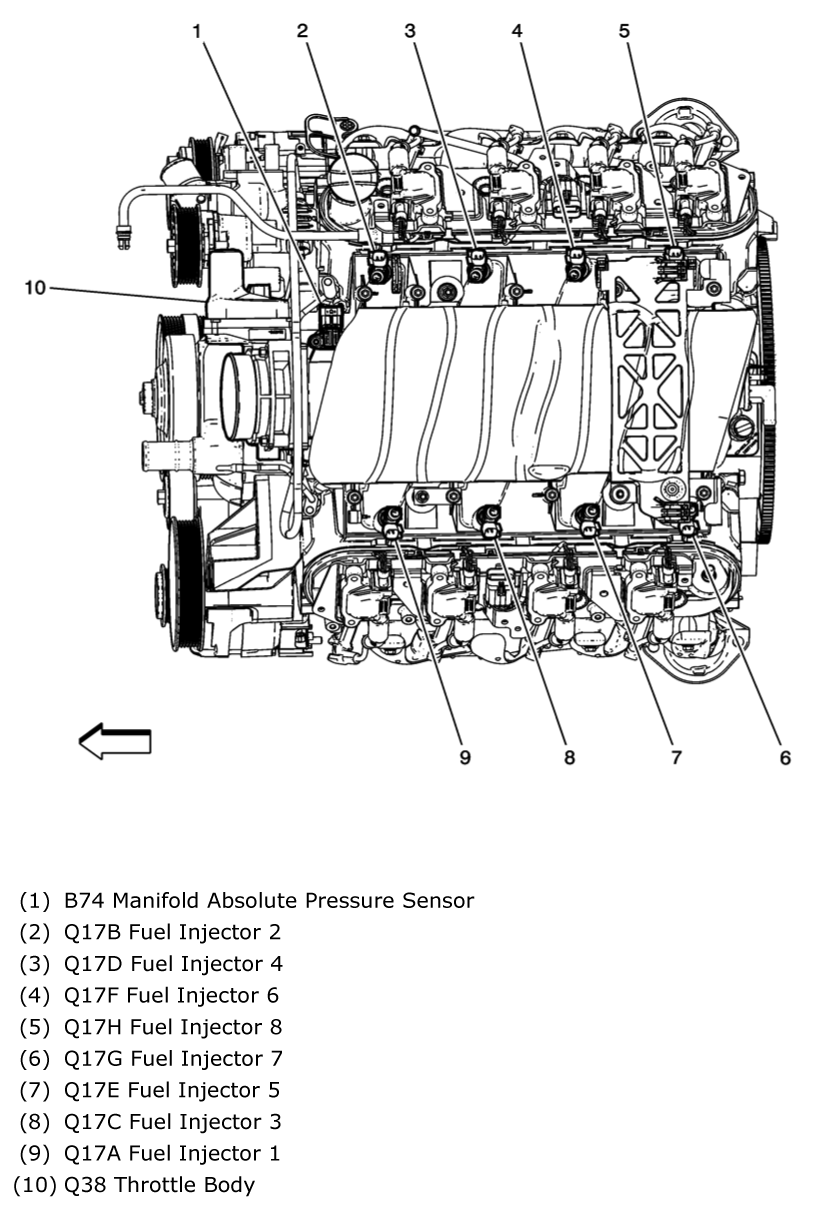

Fig 26: Top Of Engine (V8)
Courtesy of GENERAL MOTORS CORP.

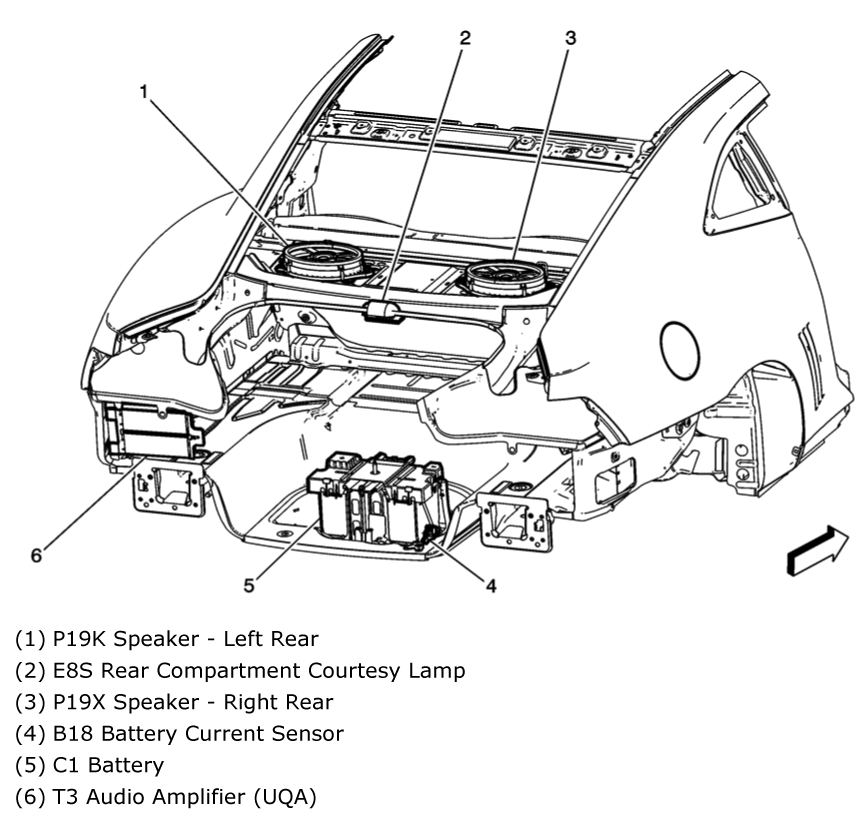

Fig 27: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

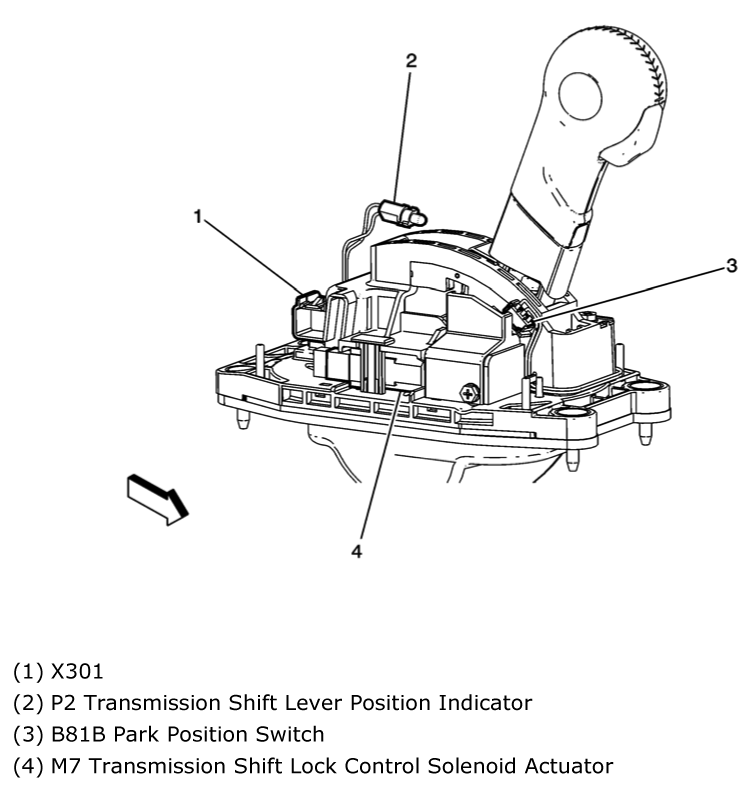

Fig 28: Under Center Console (A/T)
Courtesy of GENERAL MOTORS CORP.

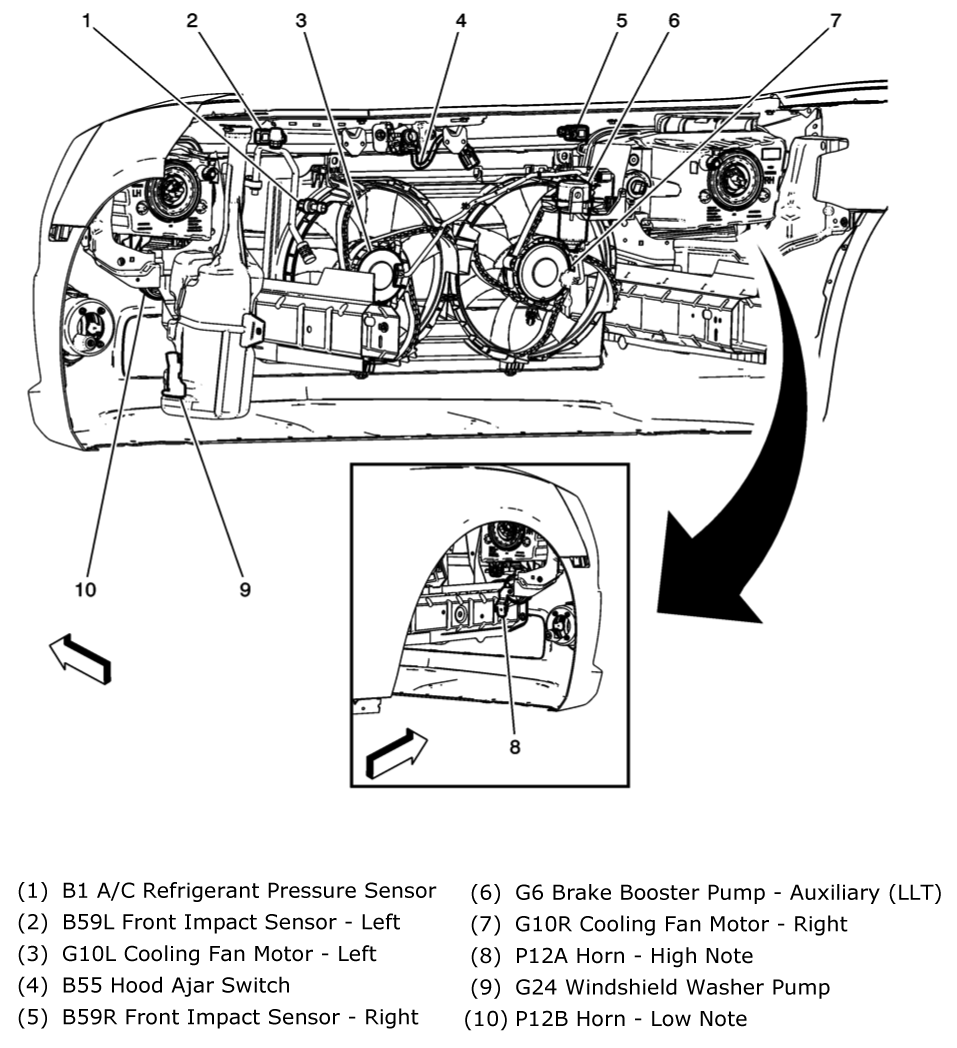

Fig 29: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 30: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 31: HVAC Module Components
Courtesy of GENERAL MOTORS CORP.

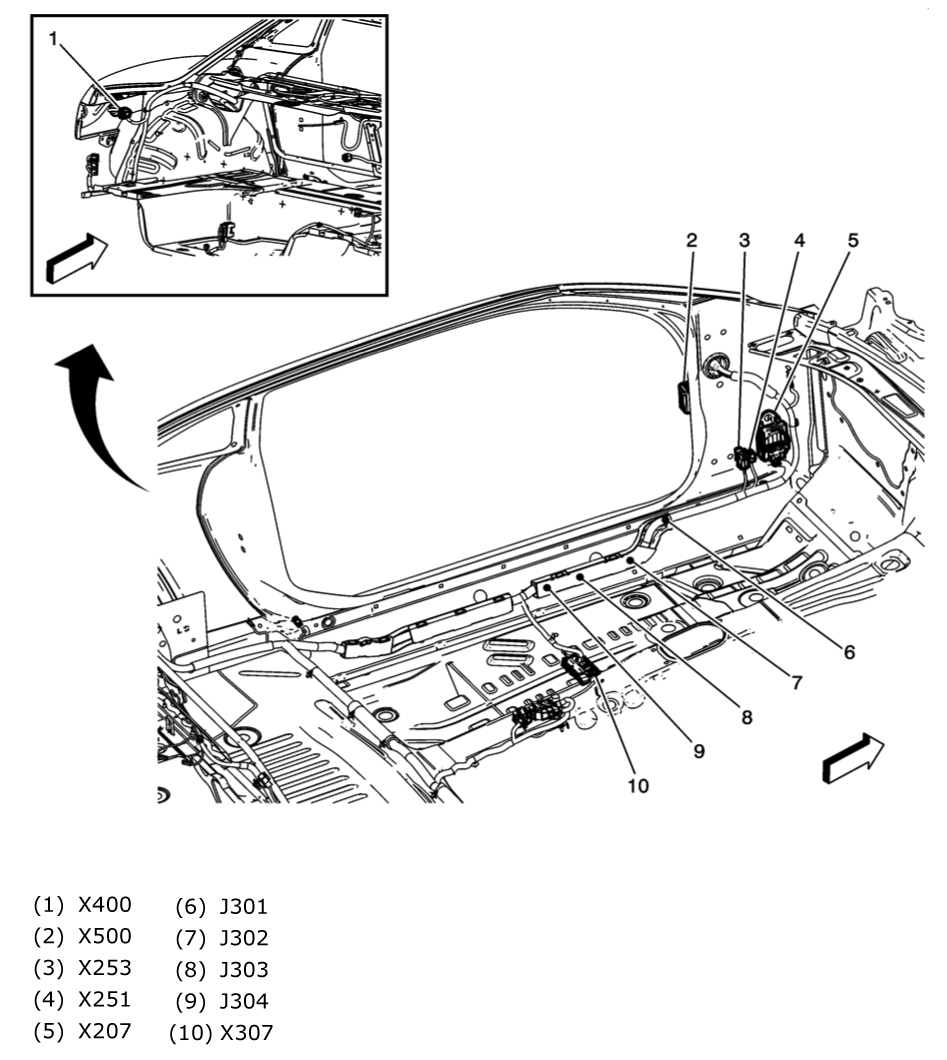

Fig 32: Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

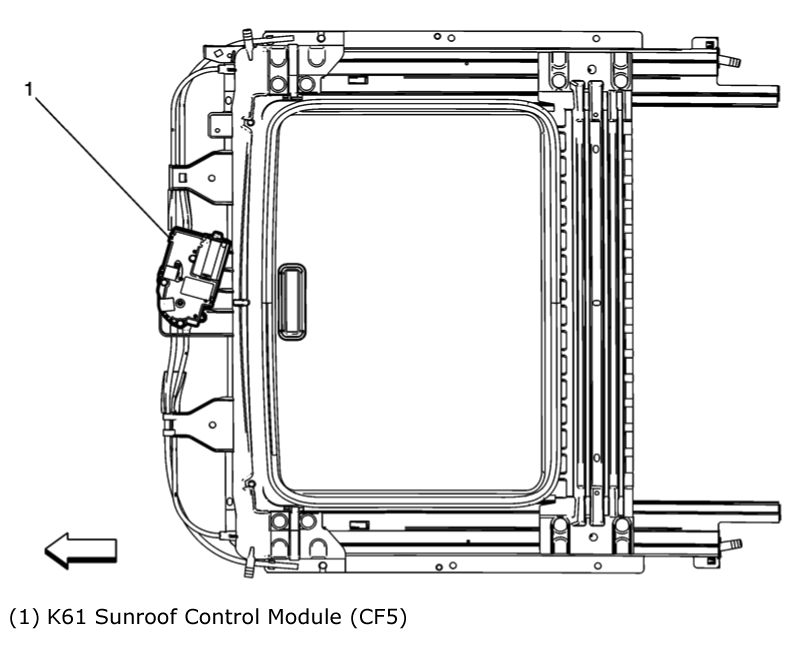

Fig 33: Roof
Courtesy of GENERAL MOTORS CORP.

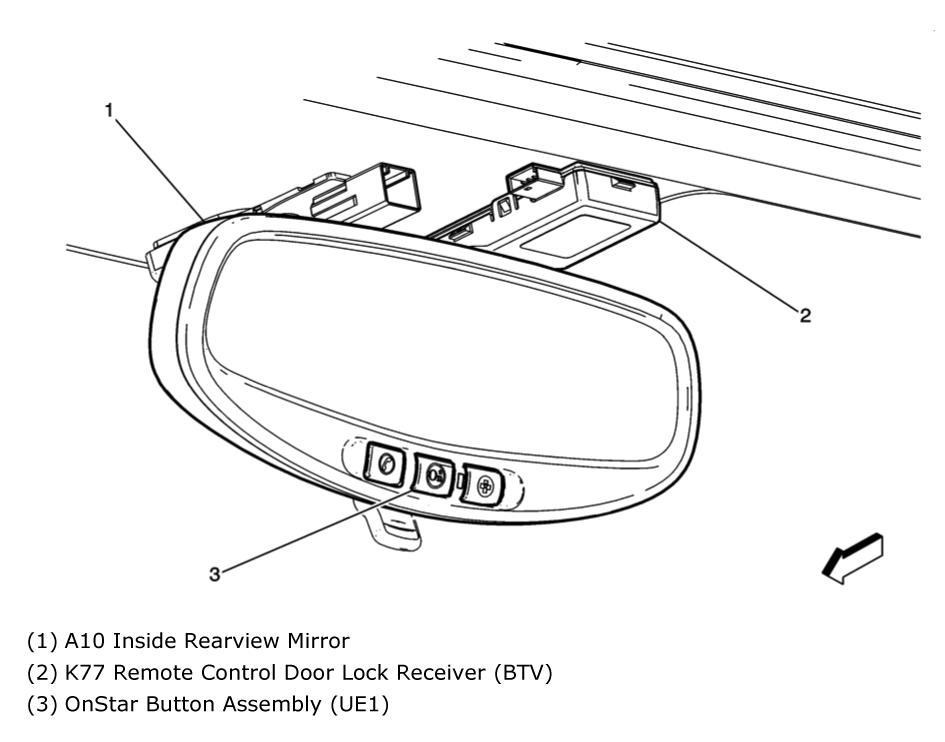

Fig 34: Top Center Of Windshield
Courtesy of GENERAL MOTORS CORP.

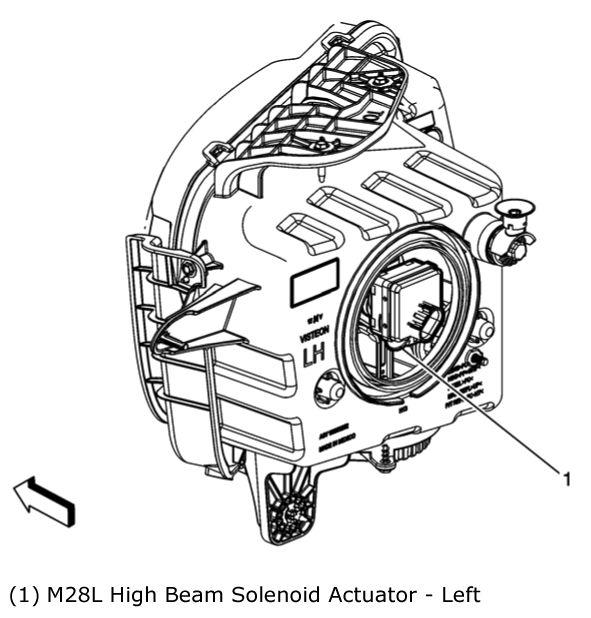

Fig 35: Left Headlight Assembly (Right Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Above Rear Differential
Courtesy of GENERAL MOTORS CORP.

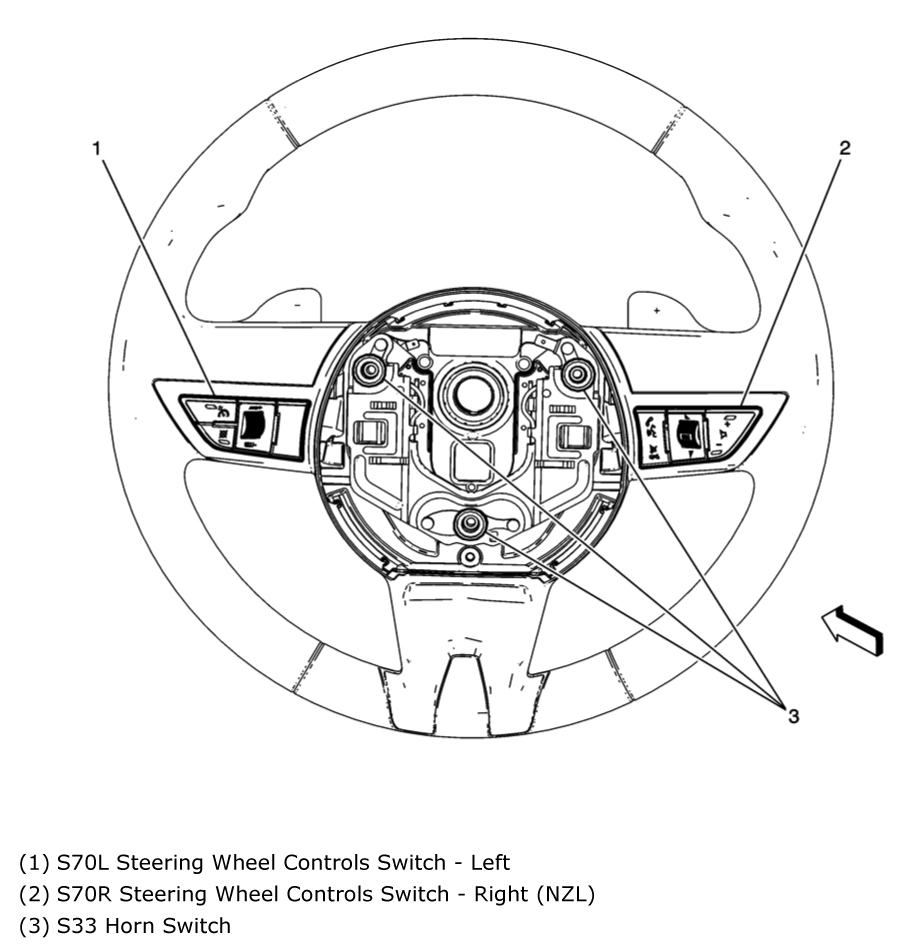

Fig 37: Steering Wheel
Courtesy of GENERAL MOTORS CORP.

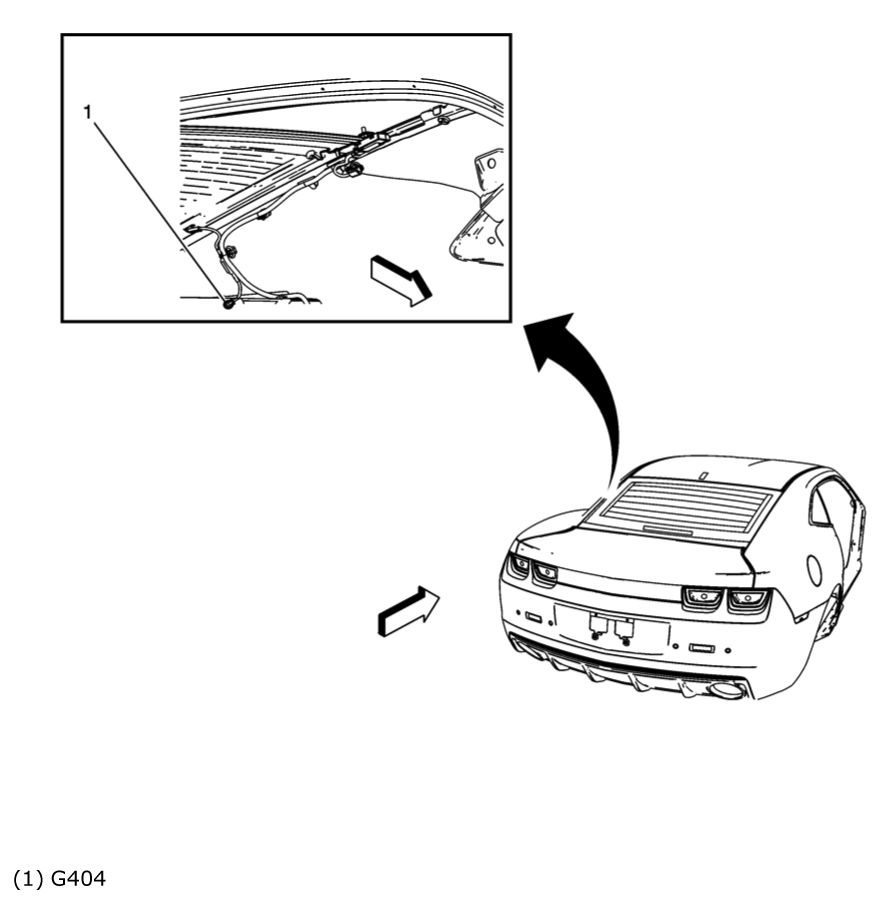

Fig 38: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

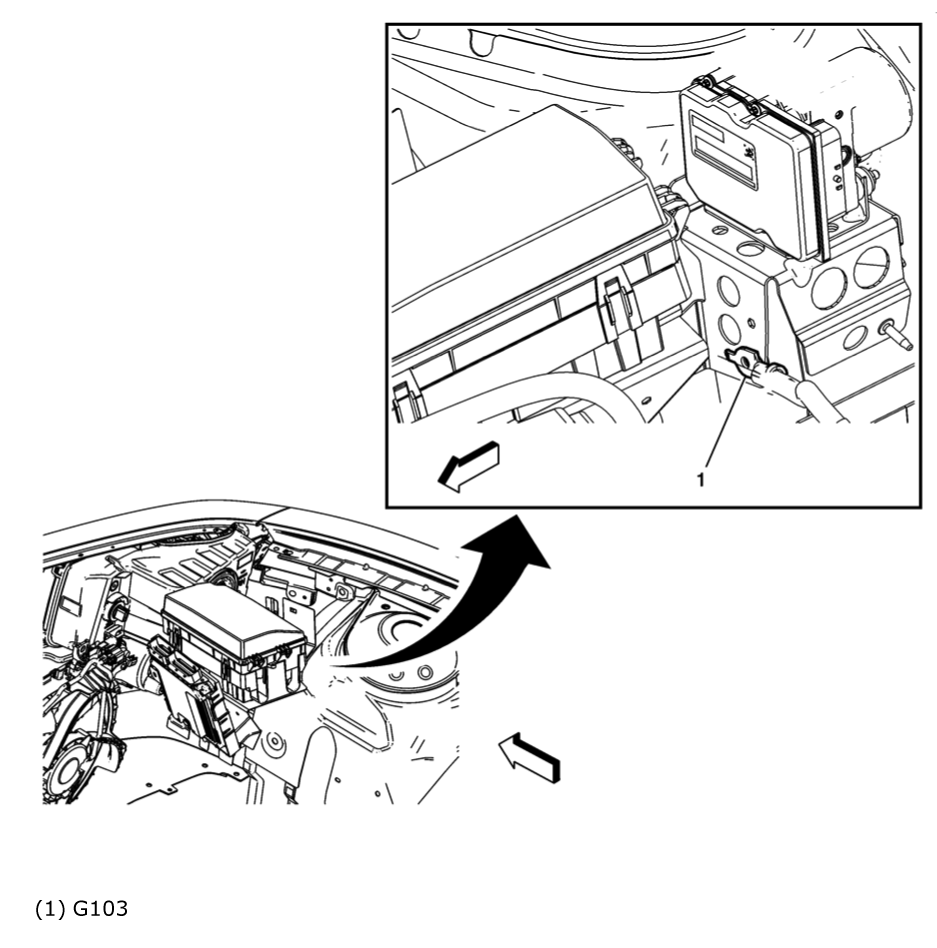

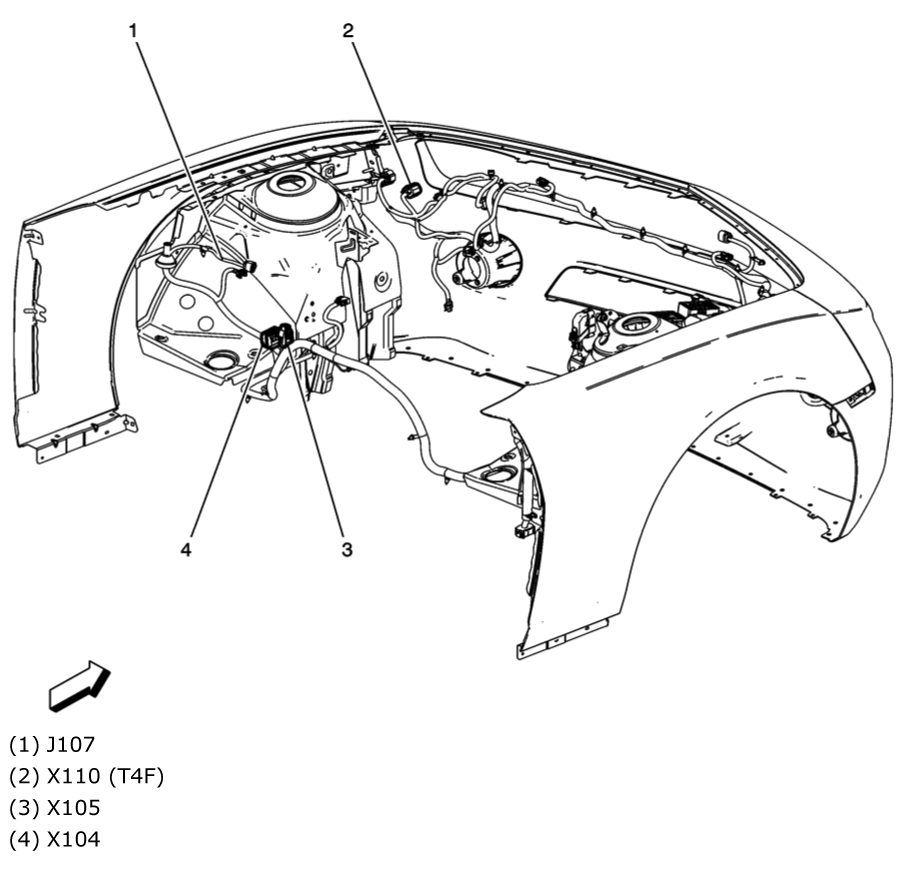

Fig 39: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 40: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

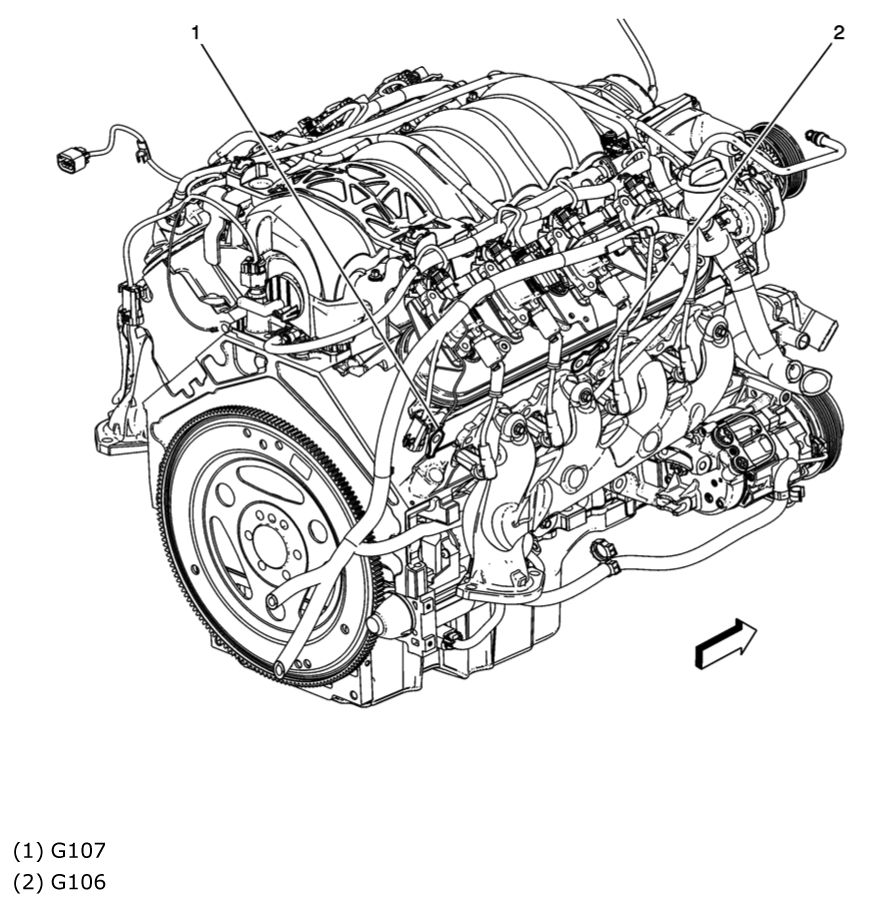

Fig 41: Left Side Of Engine (V8)
Courtesy of GENERAL MOTORS CORP.

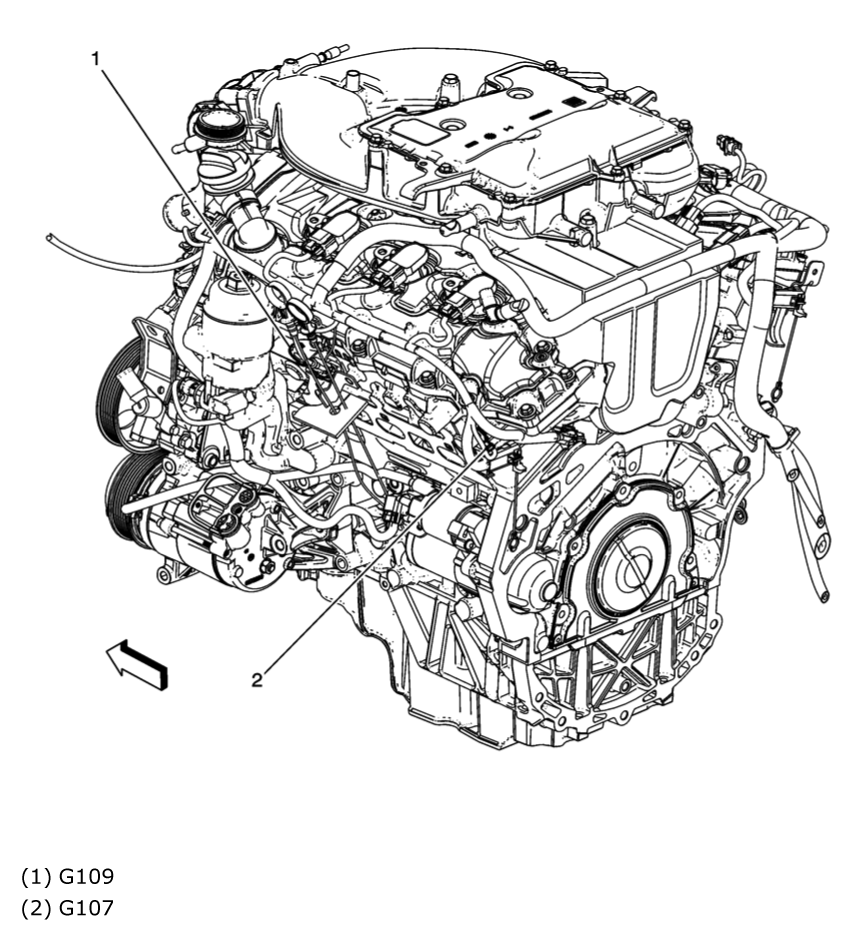

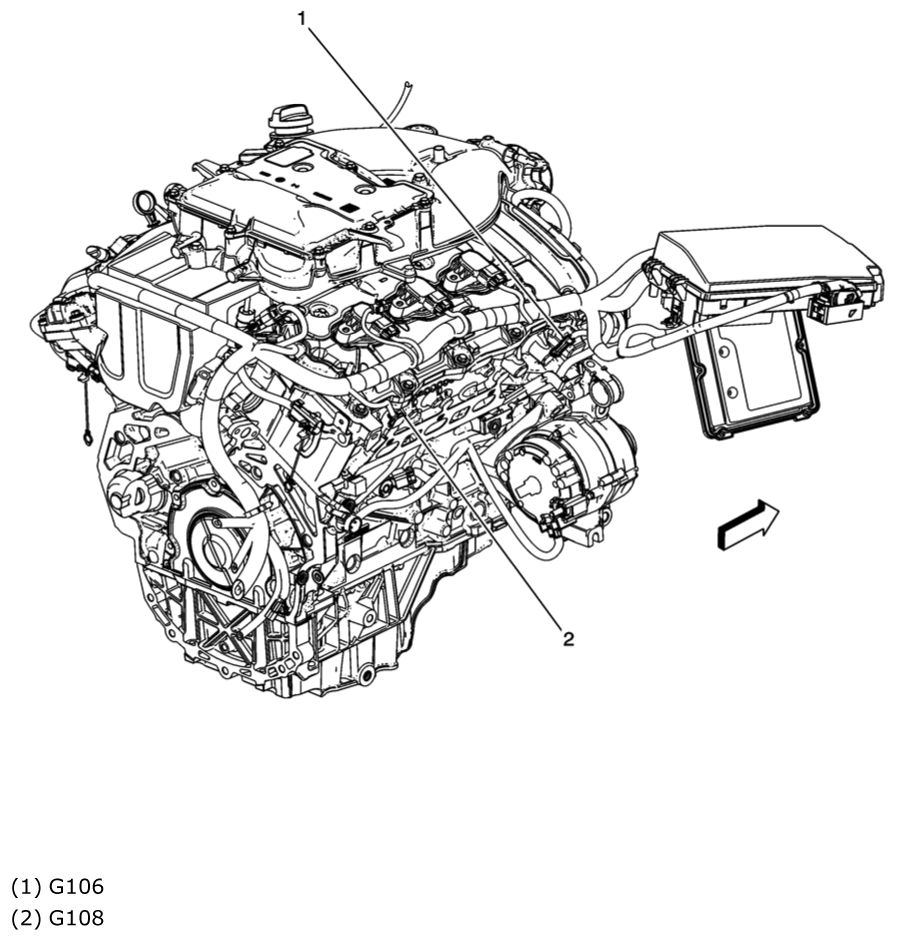

Fig 42: Right Side Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Right Side Of Engine (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Right Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

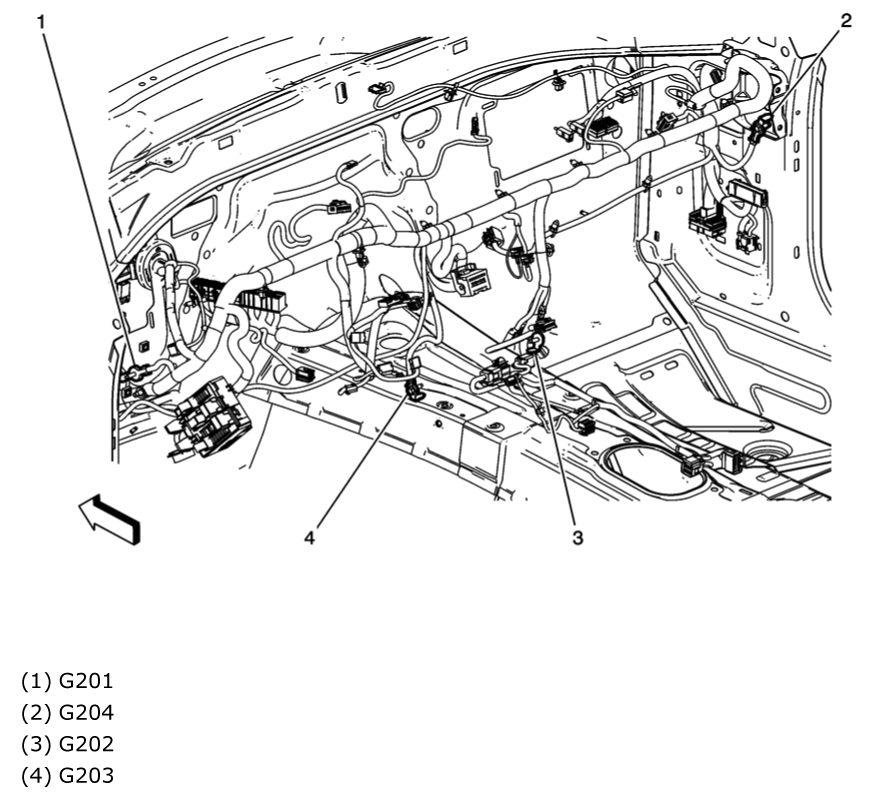

Fig 45: Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 46: Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 48: Right Side Of Luggage Compartment & Underbody
Courtesy of GENERAL MOTORS CORP.

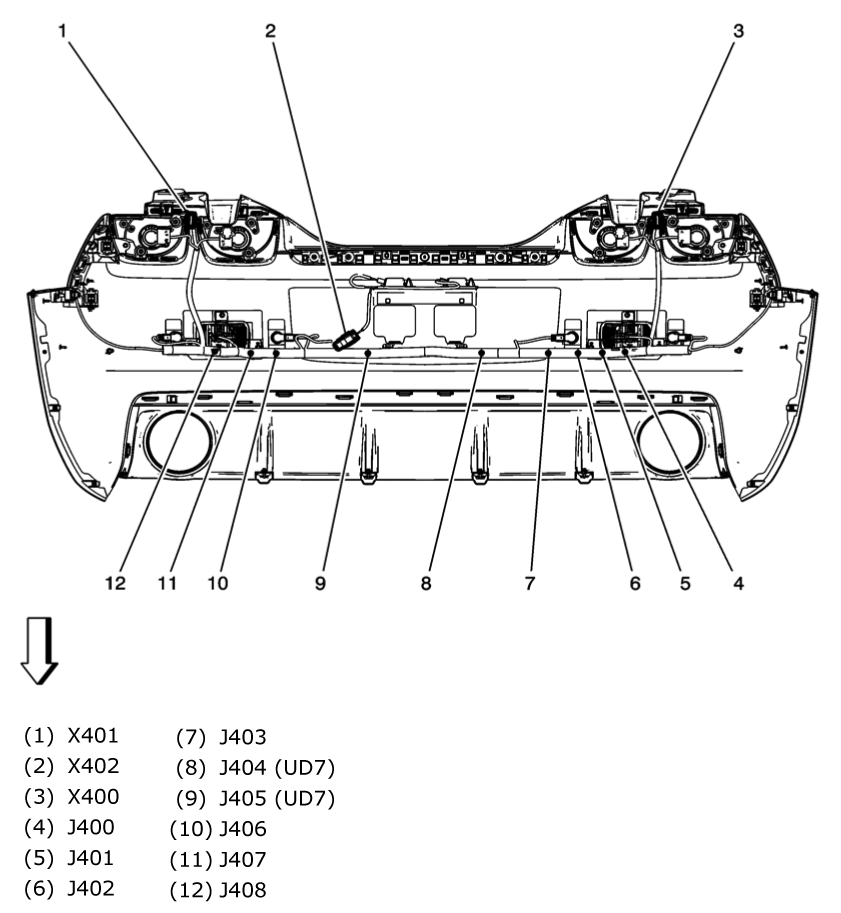

Fig 49: Rear Fascia
Courtesy of GENERAL MOTORS CORP.

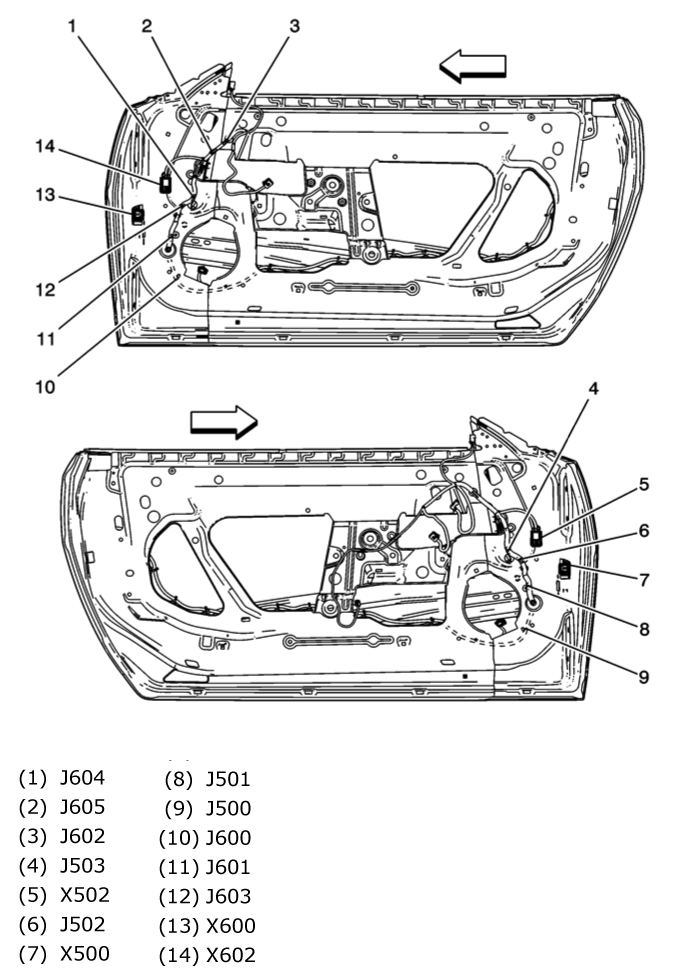

Fig 50: Doors
Courtesy of GENERAL MOTORS CORP.
Fig 51: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

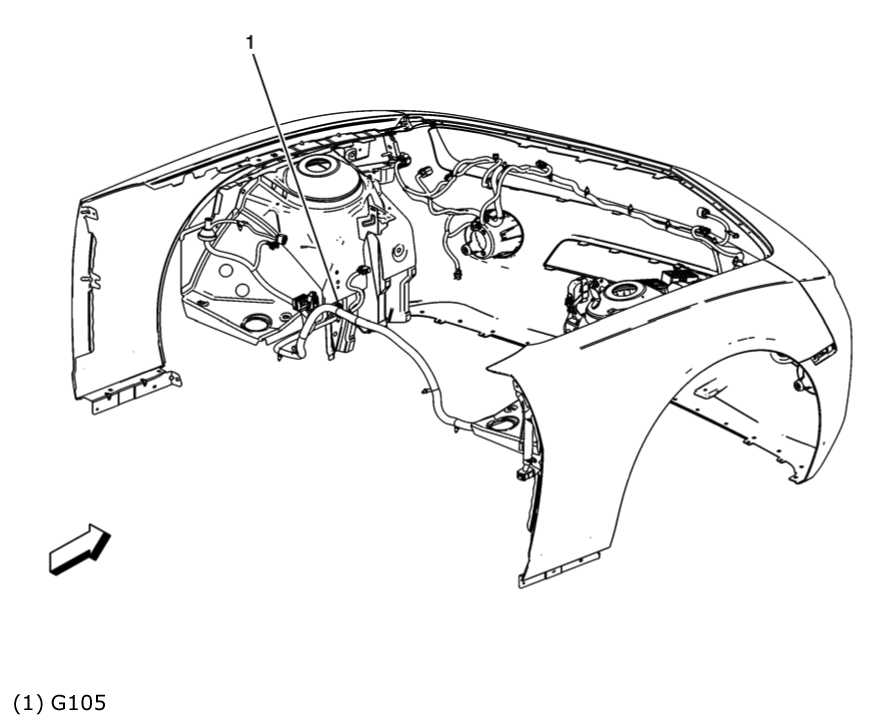

Fig 52: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

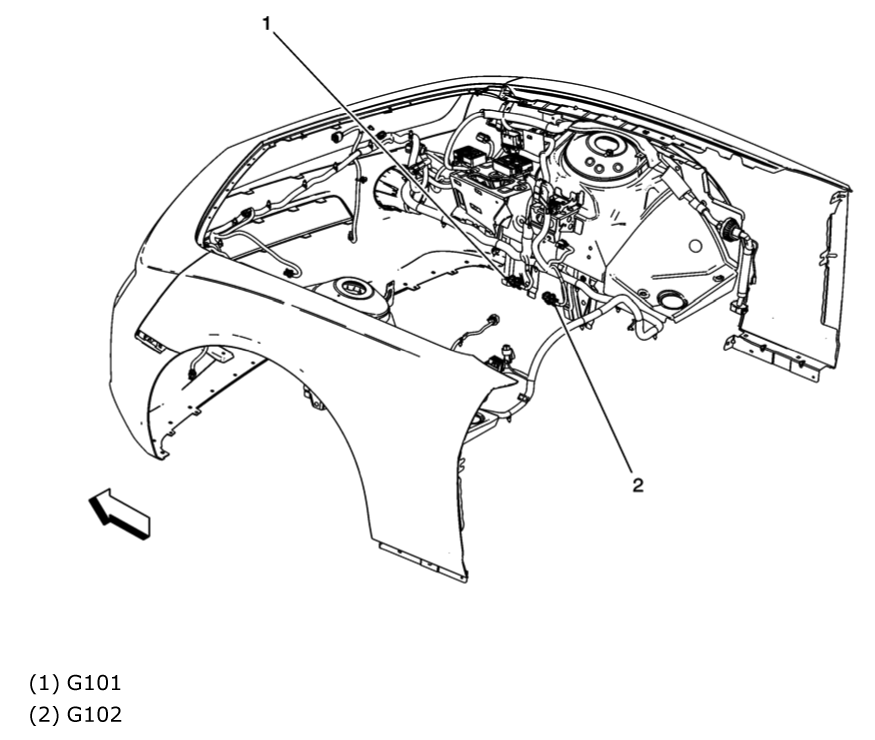

Fig 53: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Side Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Right Side Of Engine (V8)
Courtesy of GENERAL MOTORS CORP.

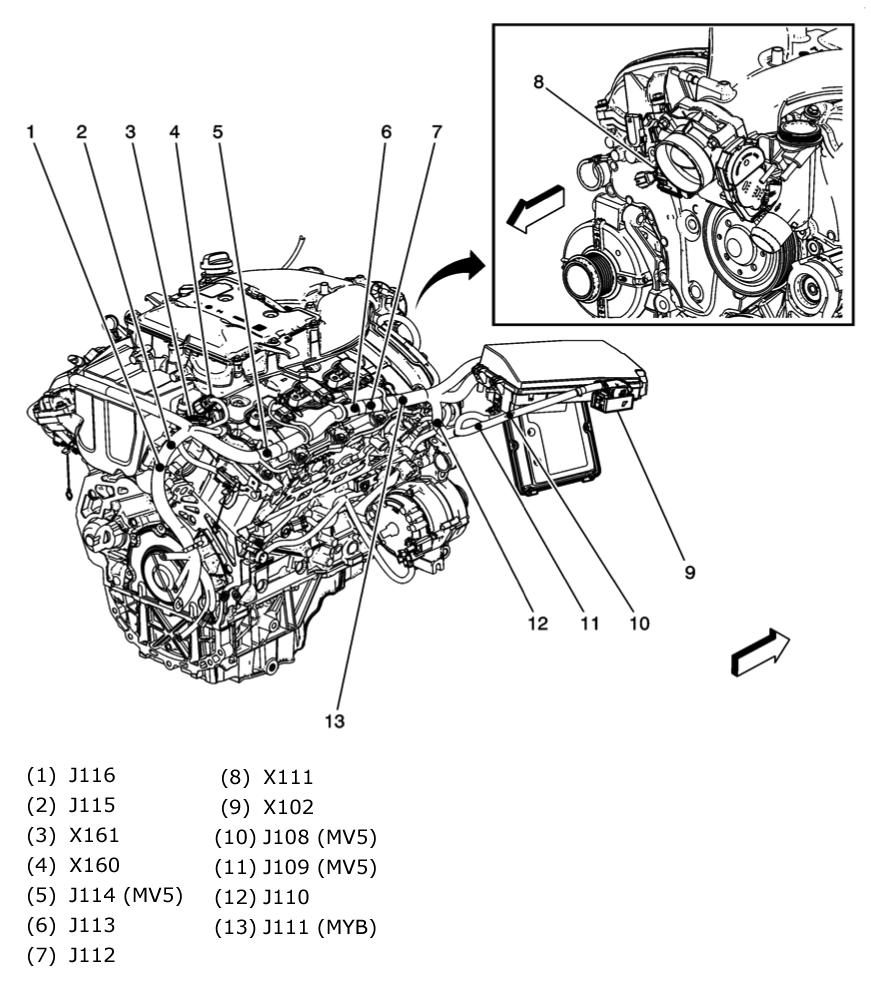

Fig 56: Left Side Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.

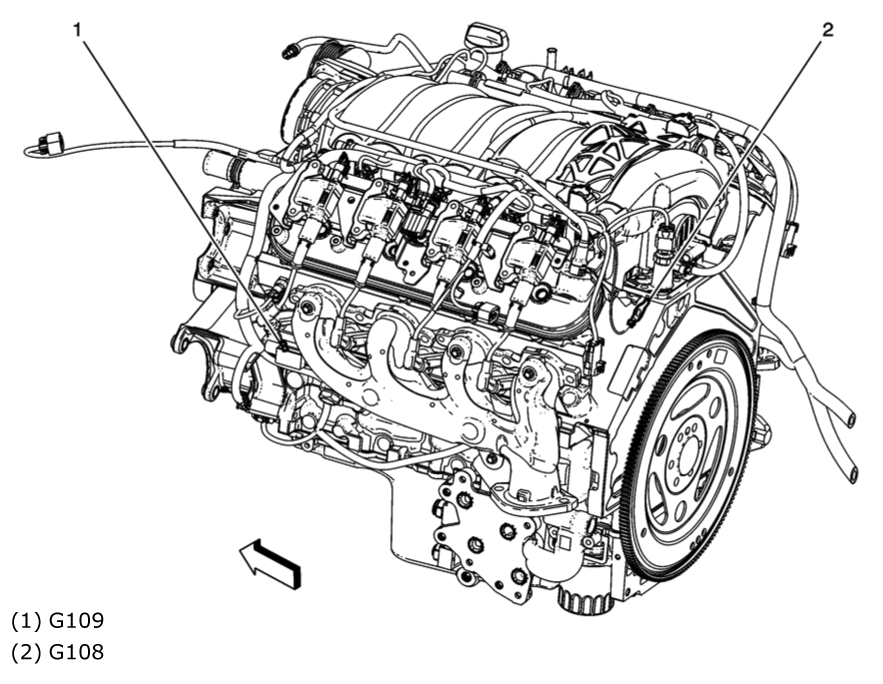

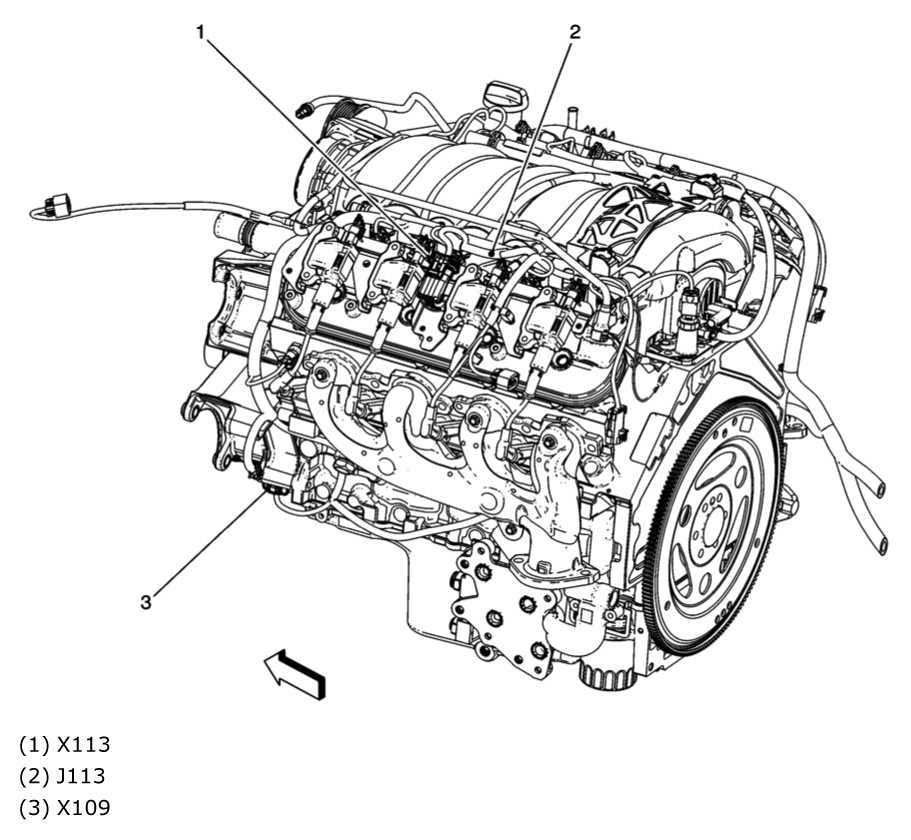

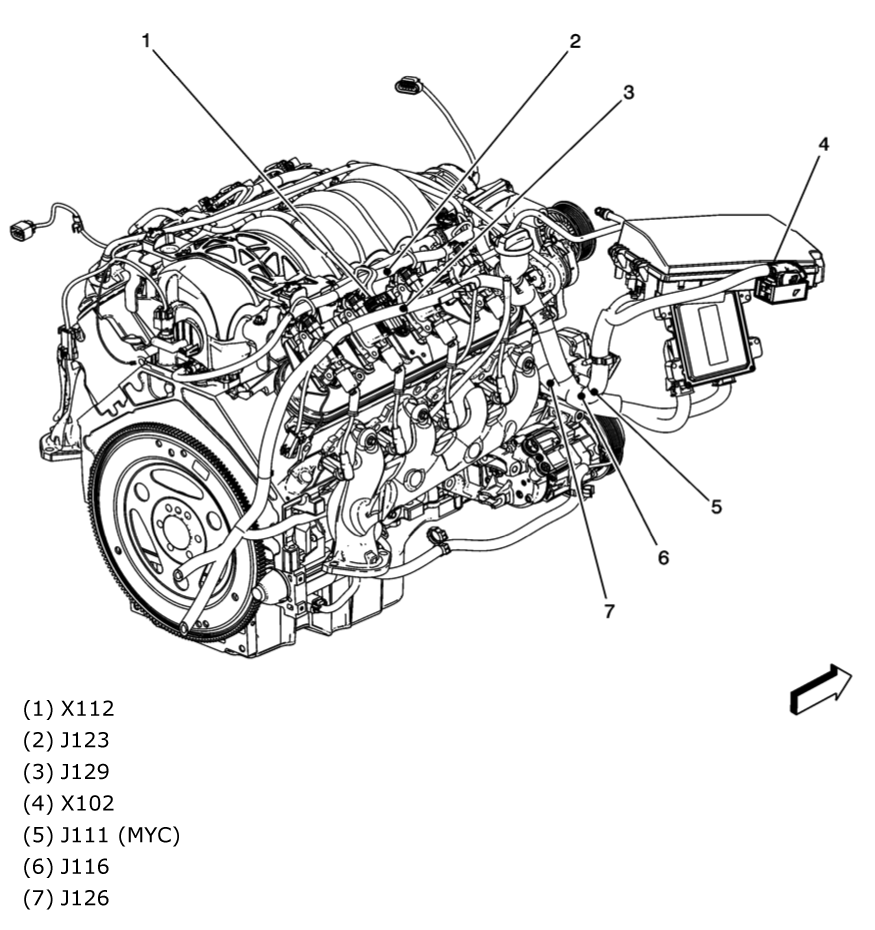

Fig 57: Left Side Of Engine (V8)
Courtesy of GENERAL MOTORS CORP.

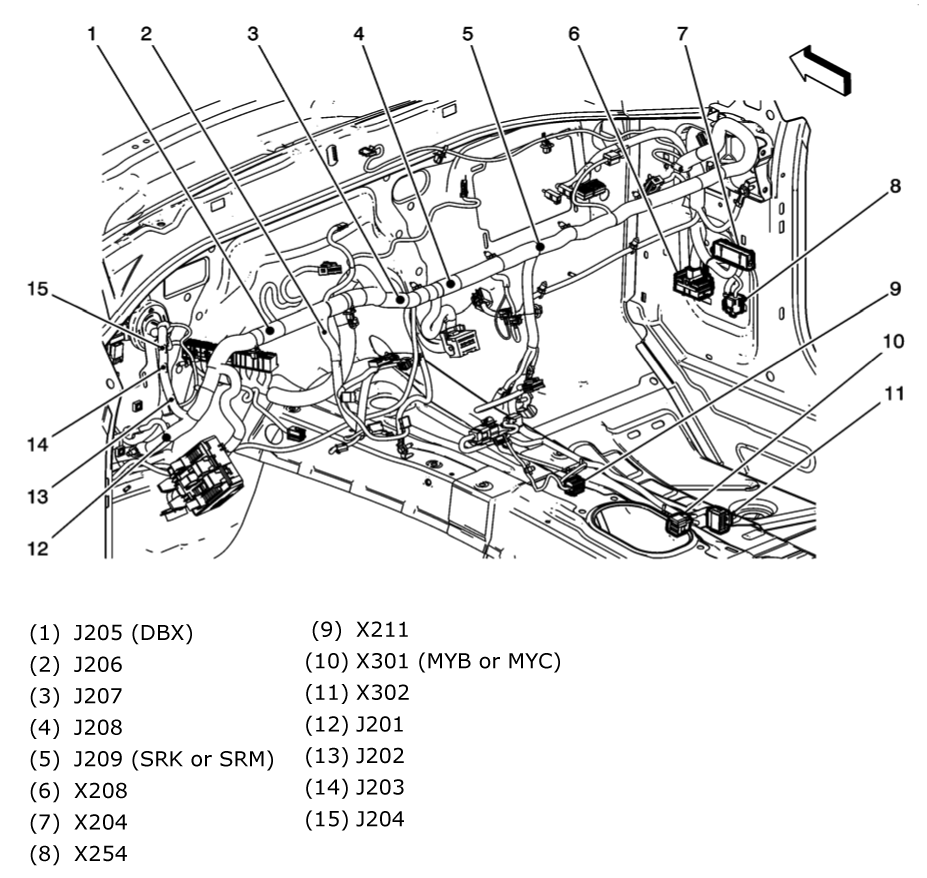

Fig 58: Instrument Panel
Courtesy of GENERAL MOTORS CORP.

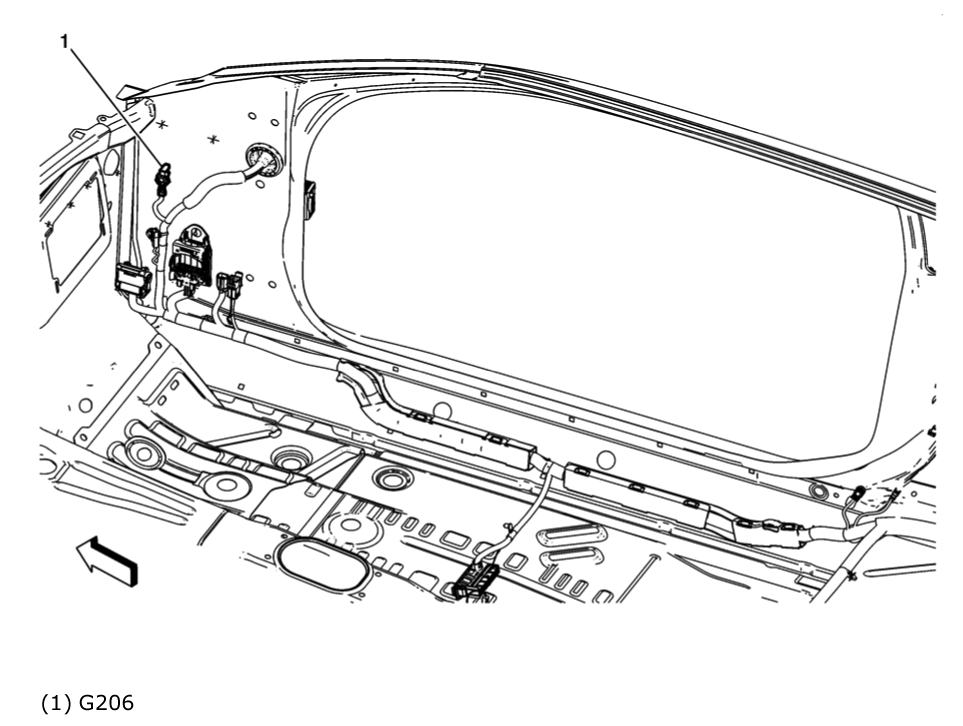

Fig 59: Left Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

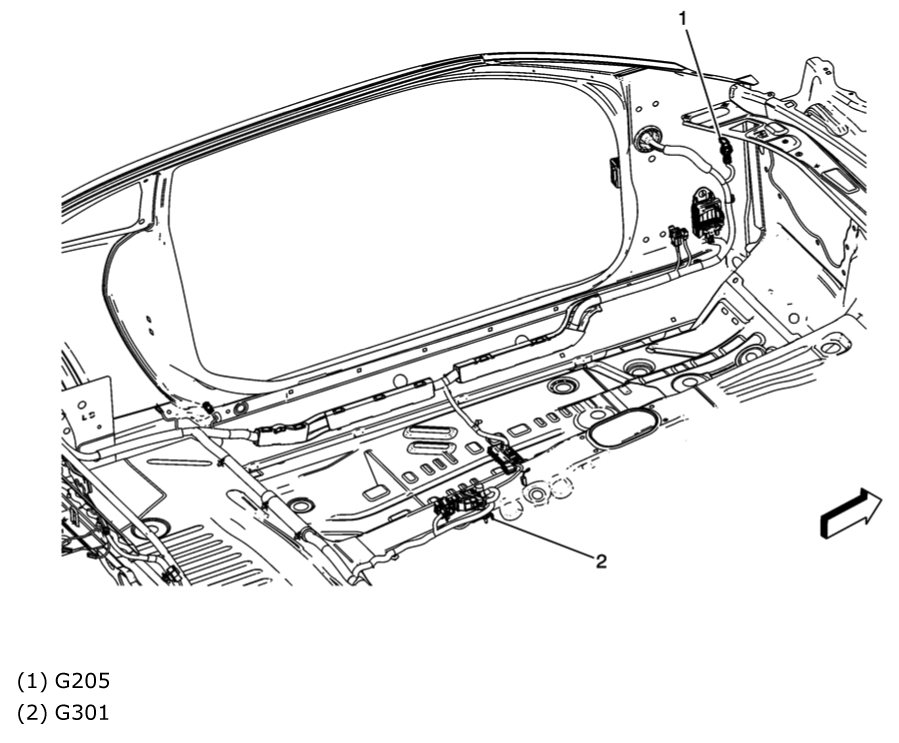

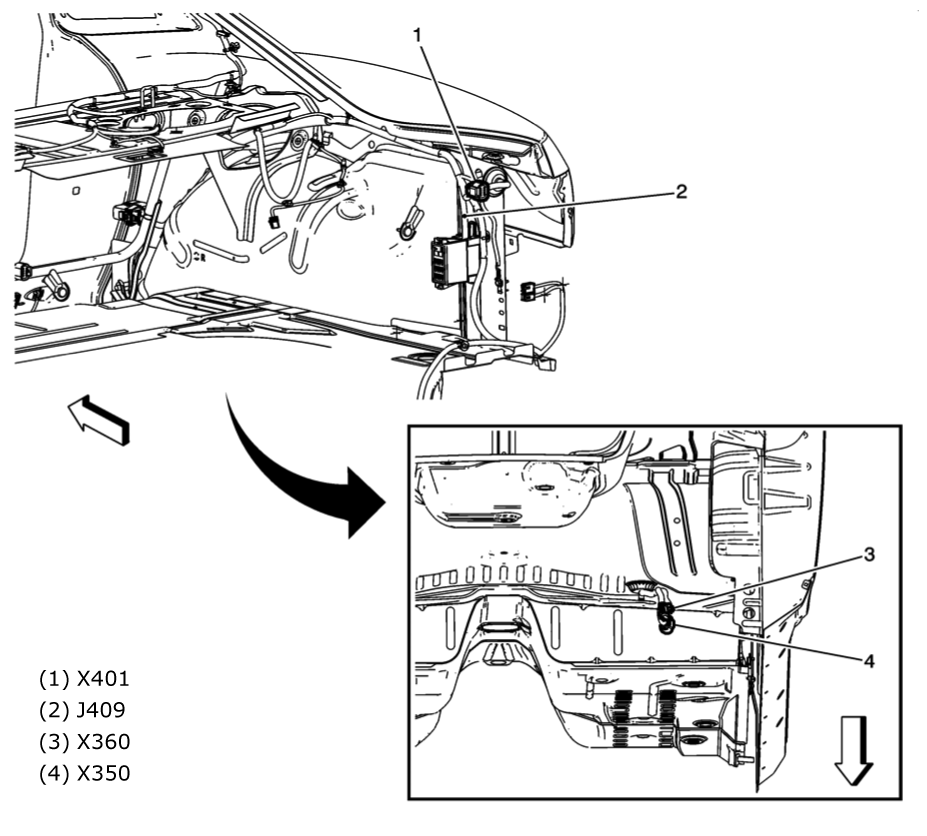

Fig 60: Right Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

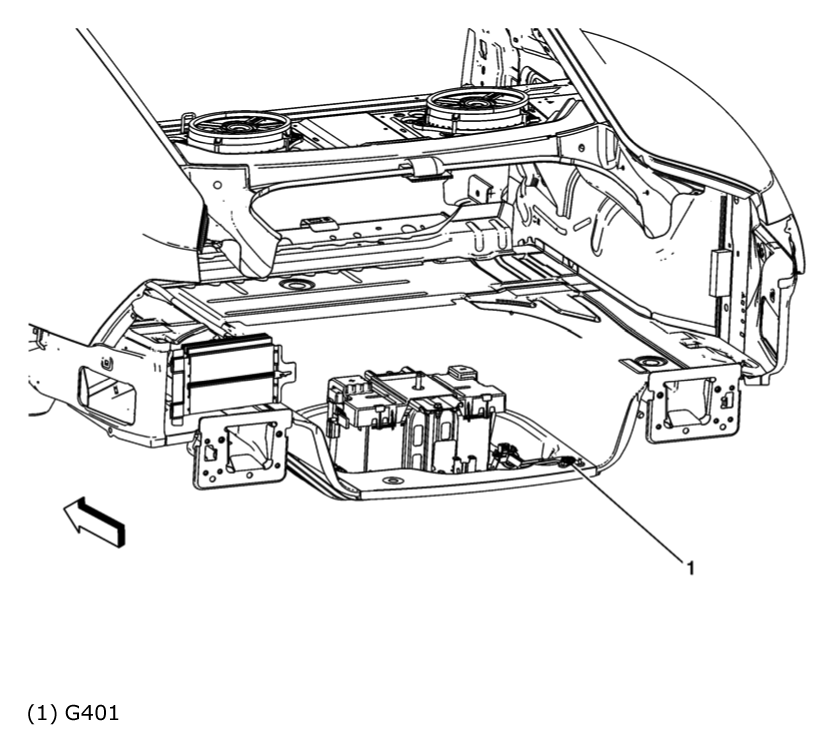

Fig 61: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

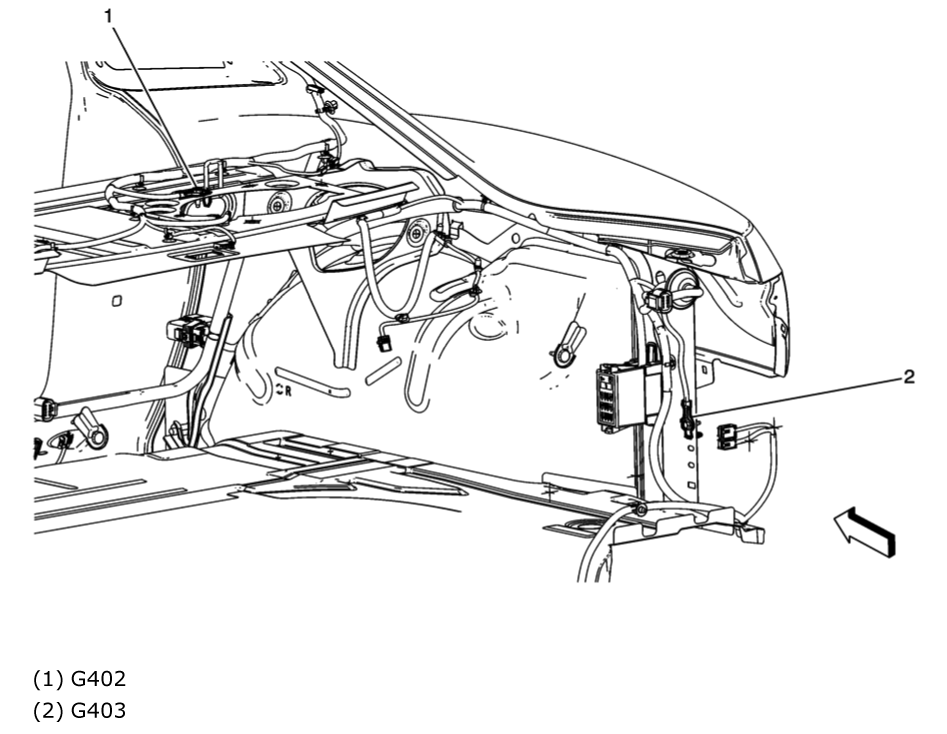

Fig 62: Right Rear Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

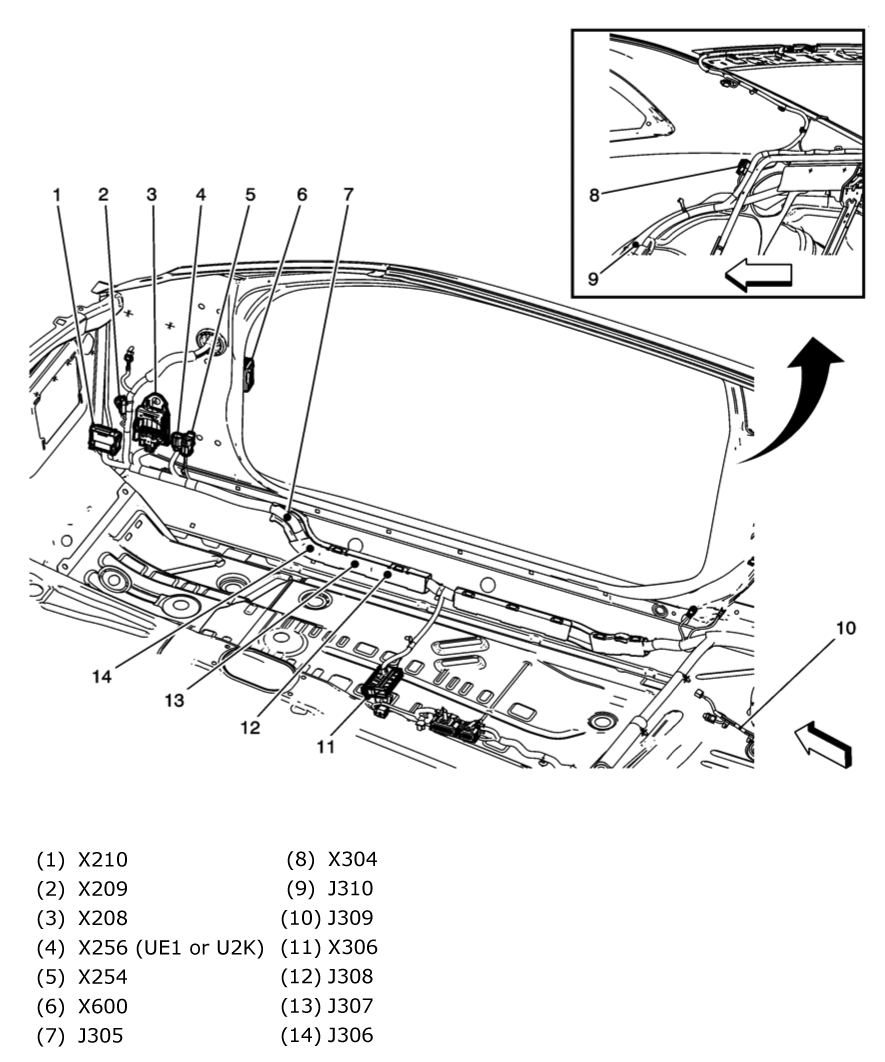

Fig 63: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

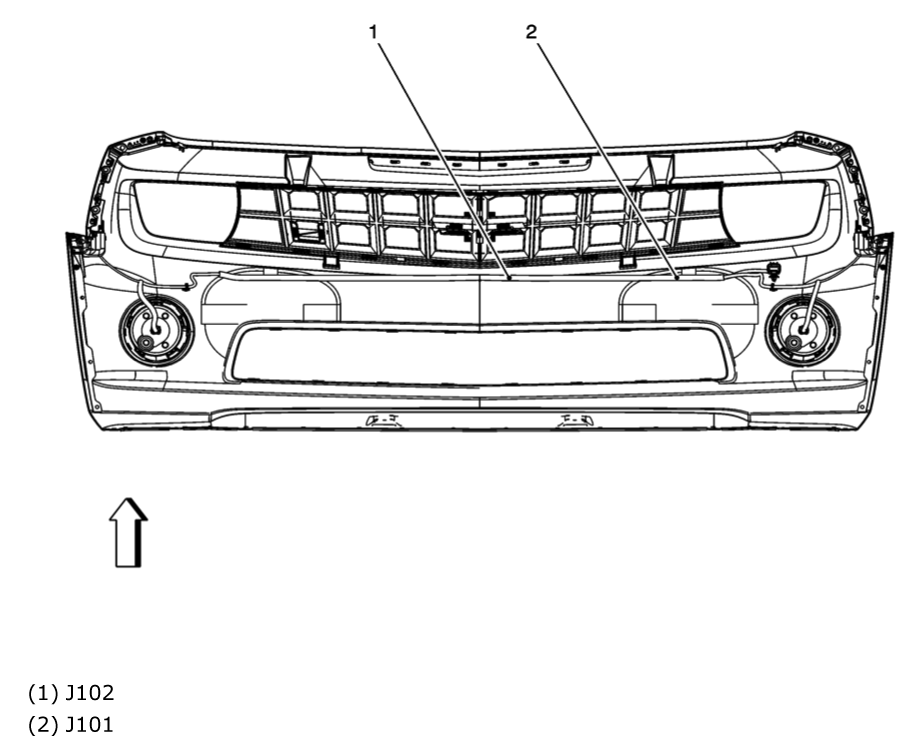

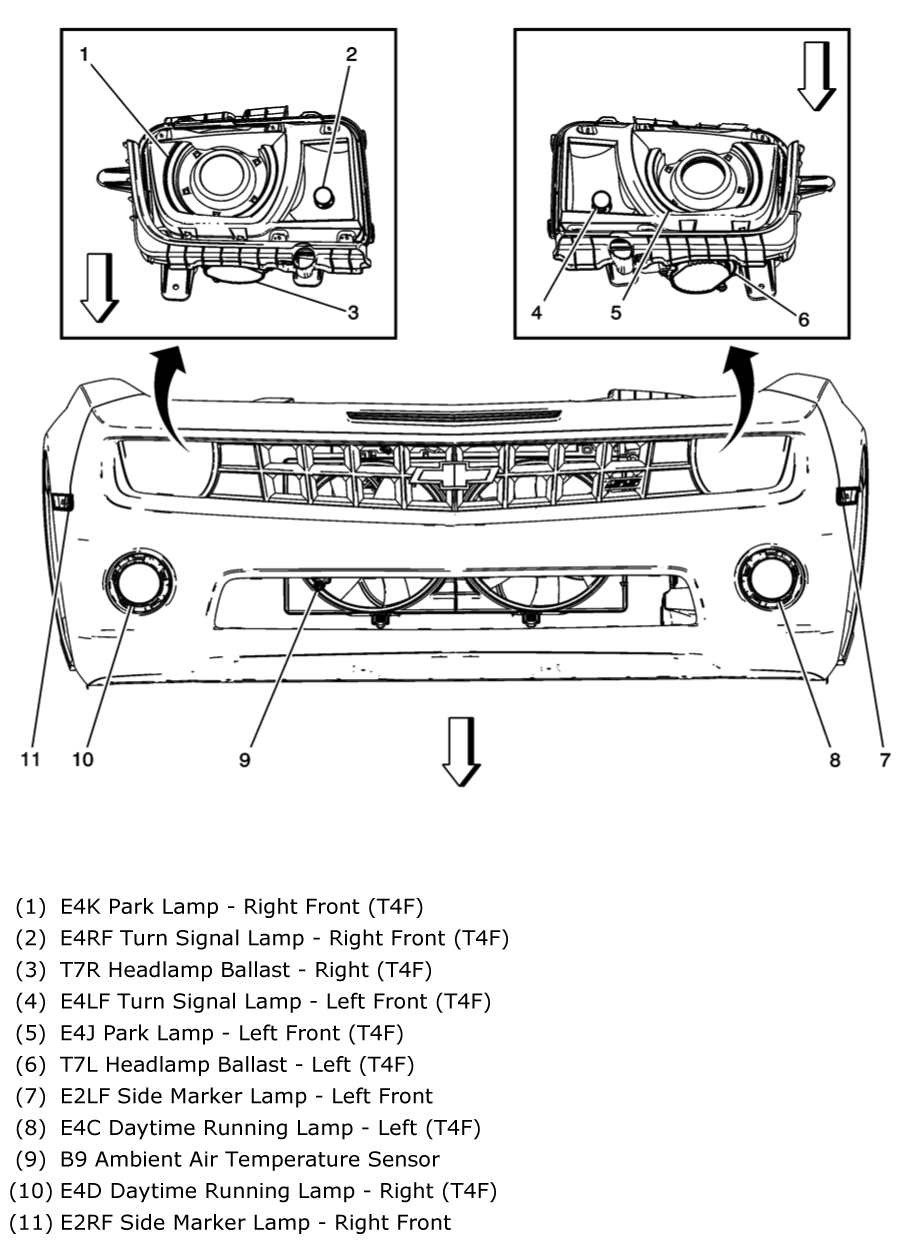

Fig 64: Front Fascia
Courtesy of GENERAL MOTORS CORP.

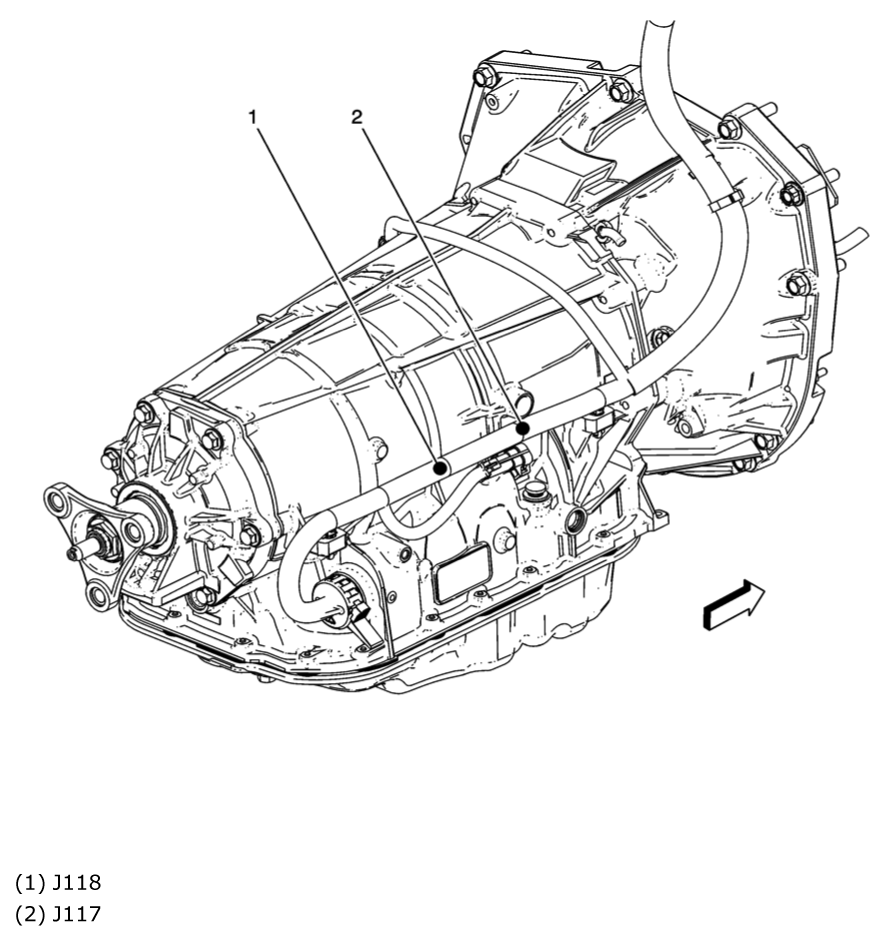

Fig 65: Transmission
Courtesy of GENERAL MOTORS CORP.

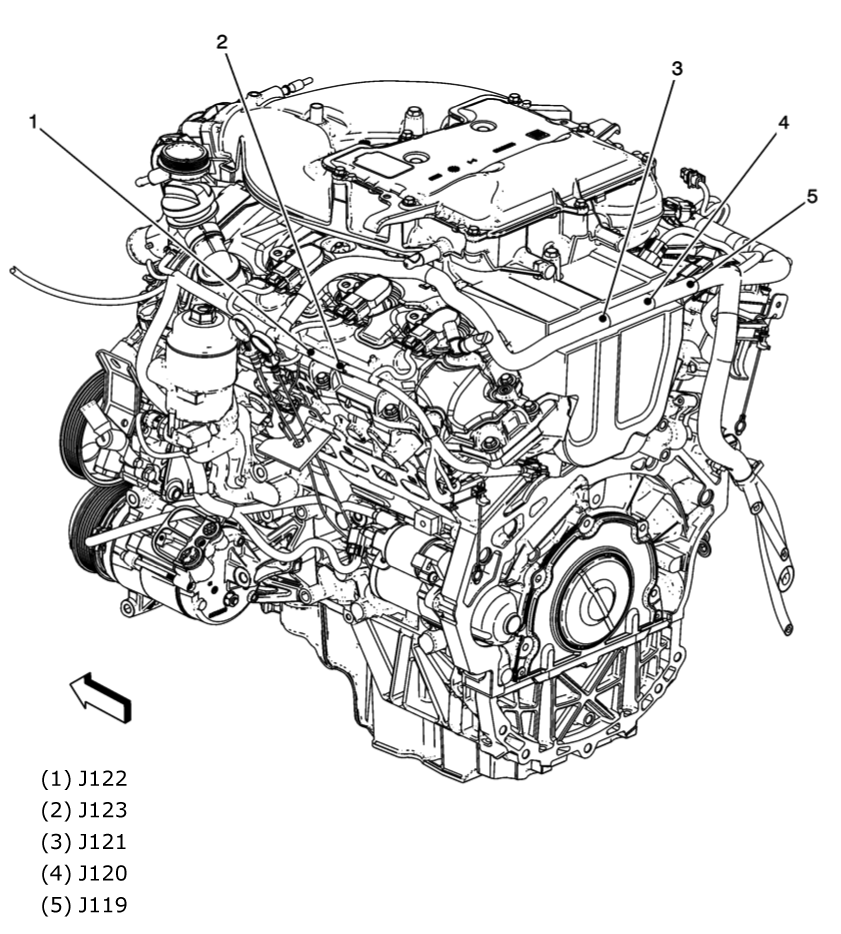

Fig 66: Left Side Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.
