Body Control System Schematics

Fig 1: Module Power, Grounds, and Serial Data References
GM2231510Courtesy of GENERAL MOTORS CORP.

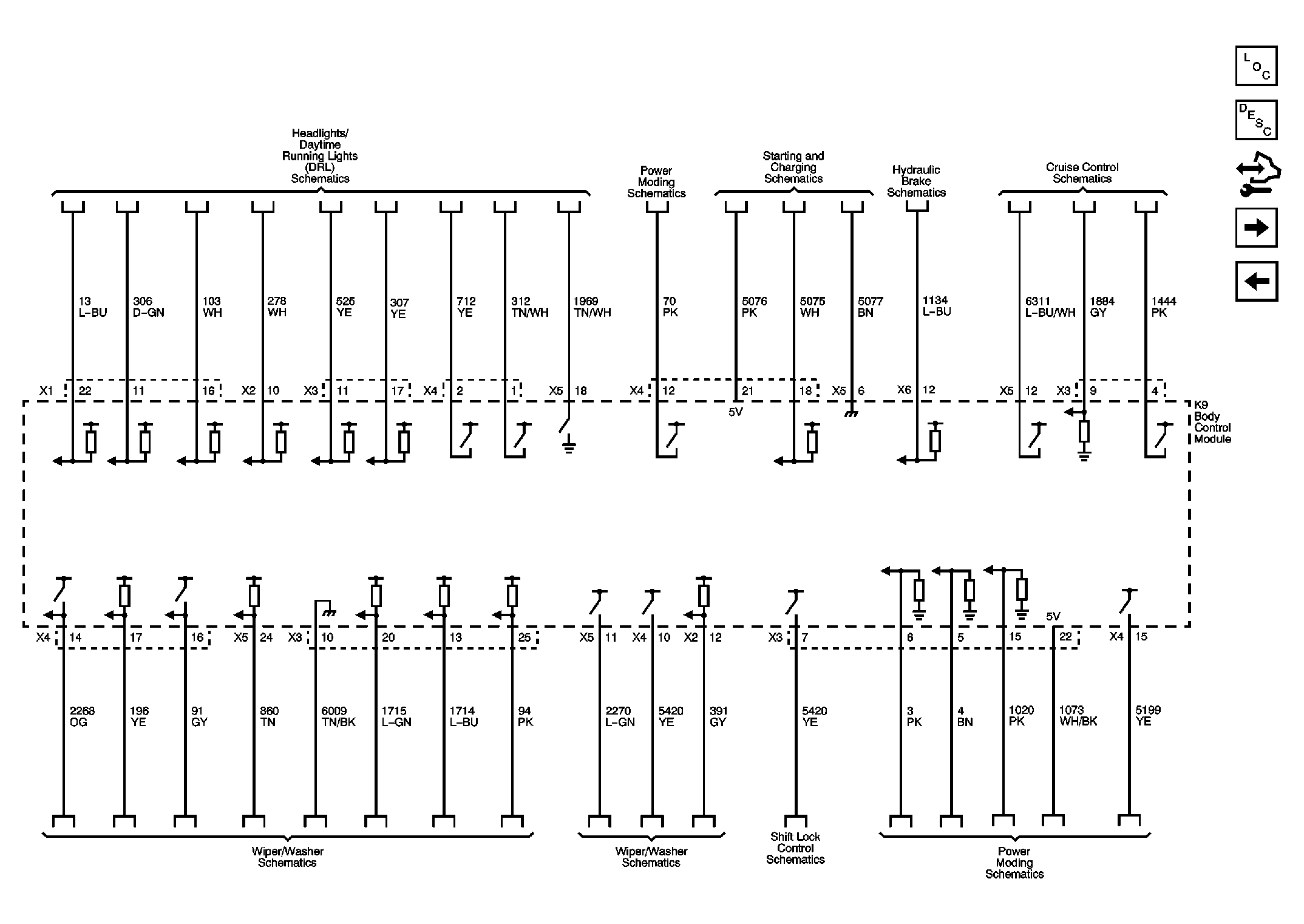

Fig 2: Power Moding, Shift Lock, Headlights, Starting/Charging, Cruise Control, Wipers/Washers, and Hydraulic Brake References
GM2231511Courtesy of GENERAL MOTORS CORP.

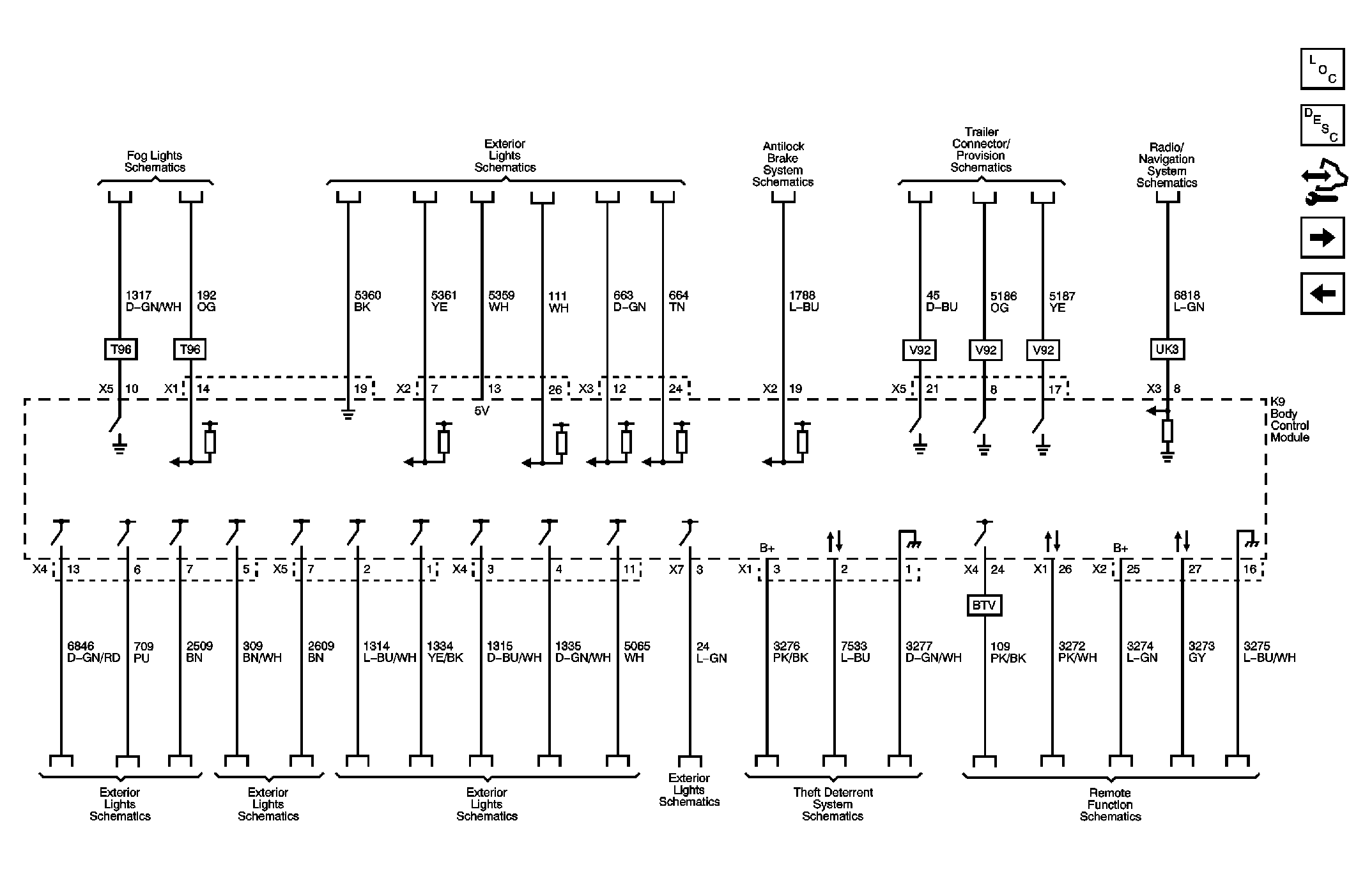

Fig 3: Exterior Lights, Radio, ABS, Theft Deterrent, and Remote Function References
GM2231514Courtesy of GENERAL MOTORS CORP.

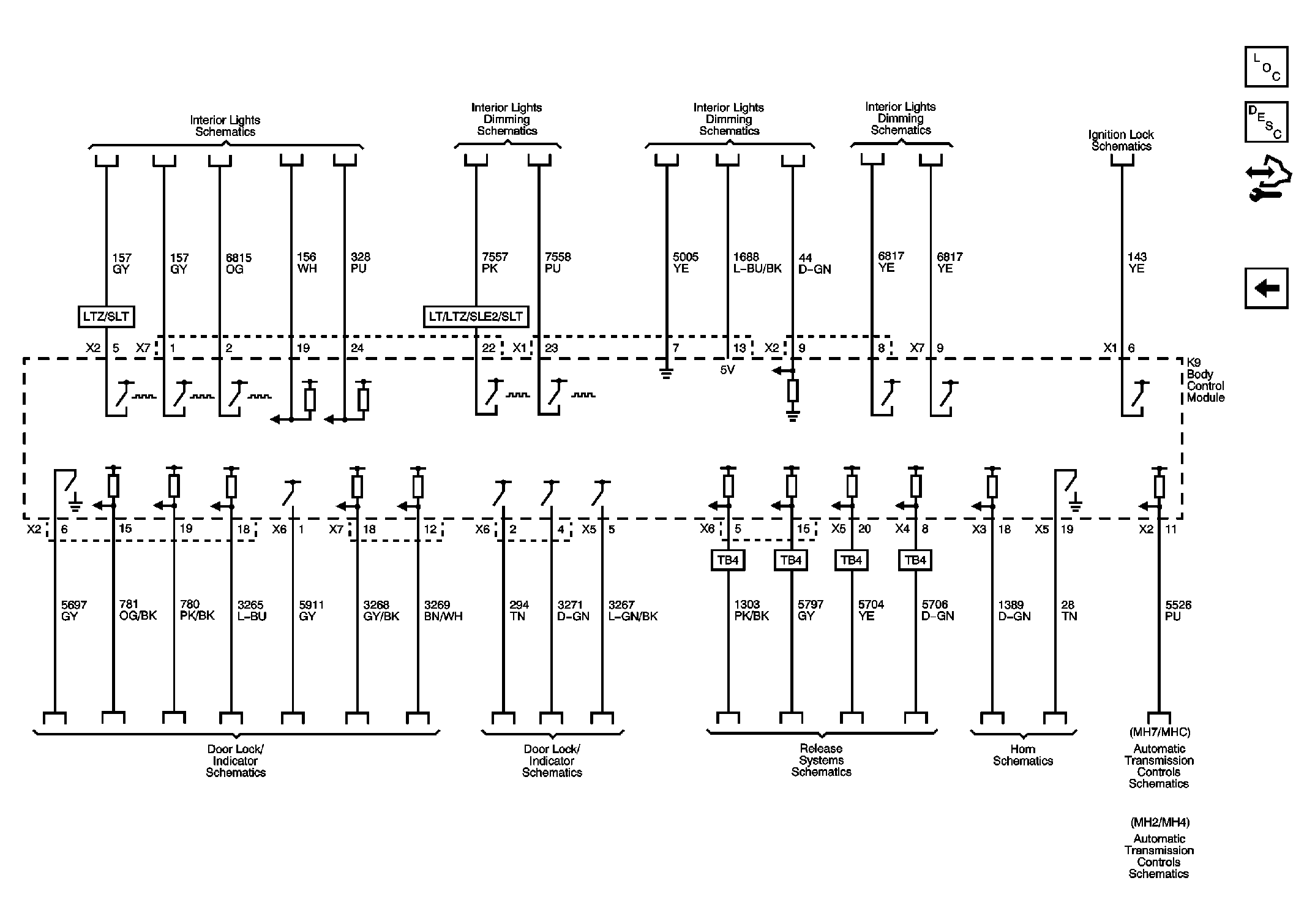

Fig 4: Interior Lights, Door Locks, Brakes, Release Systems, Ignition Lock, and Automatic Transmission References
GM2231516Courtesy of GENERAL MOTORS CORP.
