Instrument Panel/Center Console Component Views

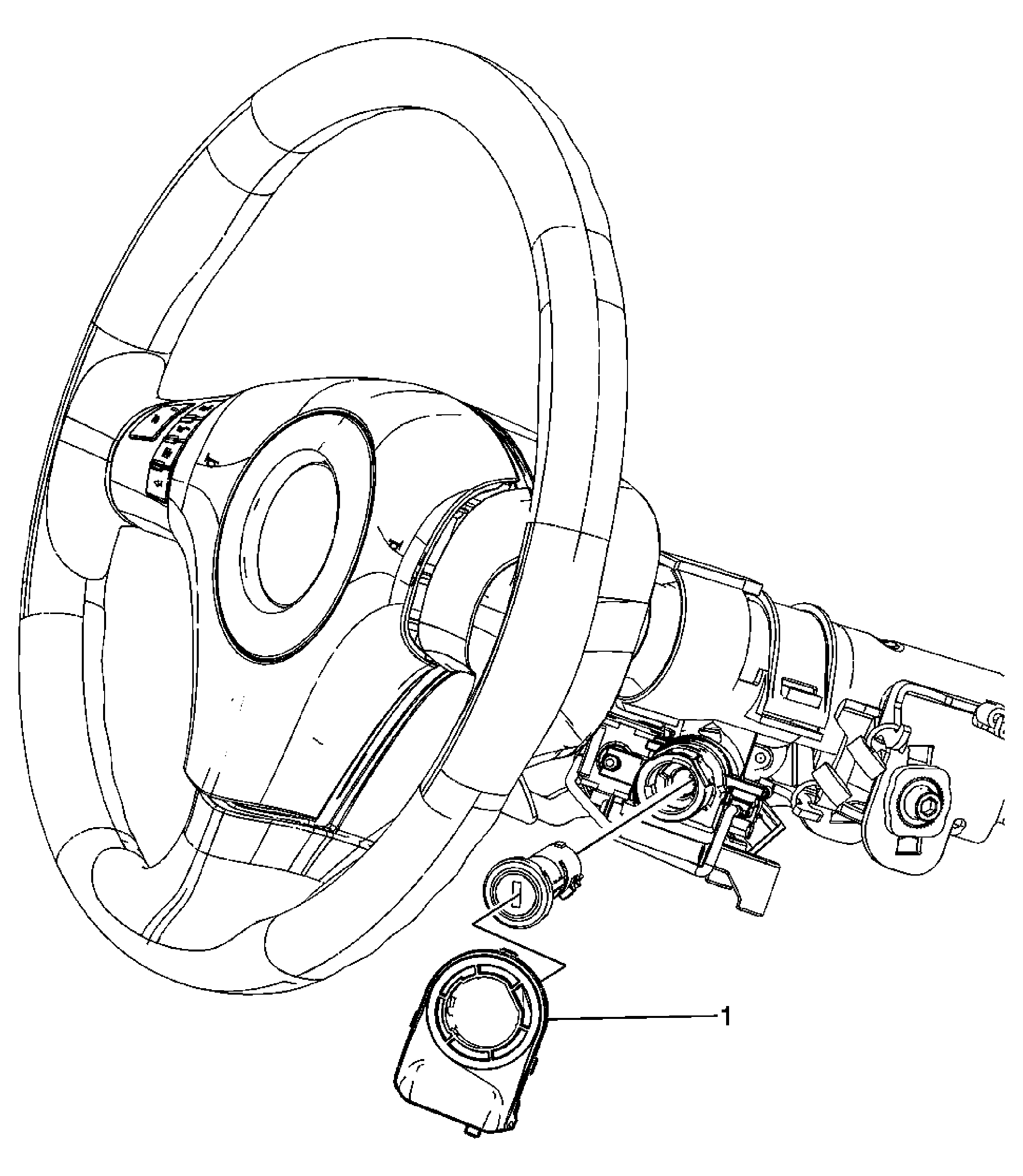

Fig 1: Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Control Module

Fig 2: Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Controls - Left
2	Steering Wheel Controls - Right
3	Horn Switch

Fig 3: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal / Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper / Washer Switch
4	Ignition Lock Control Actuator (MN5)
5	Power Steering Control Module (PSCM)
6	Steering Angle Sensor
7	Electronic Power Steering (EPS) Motor
8	Ignition Switch

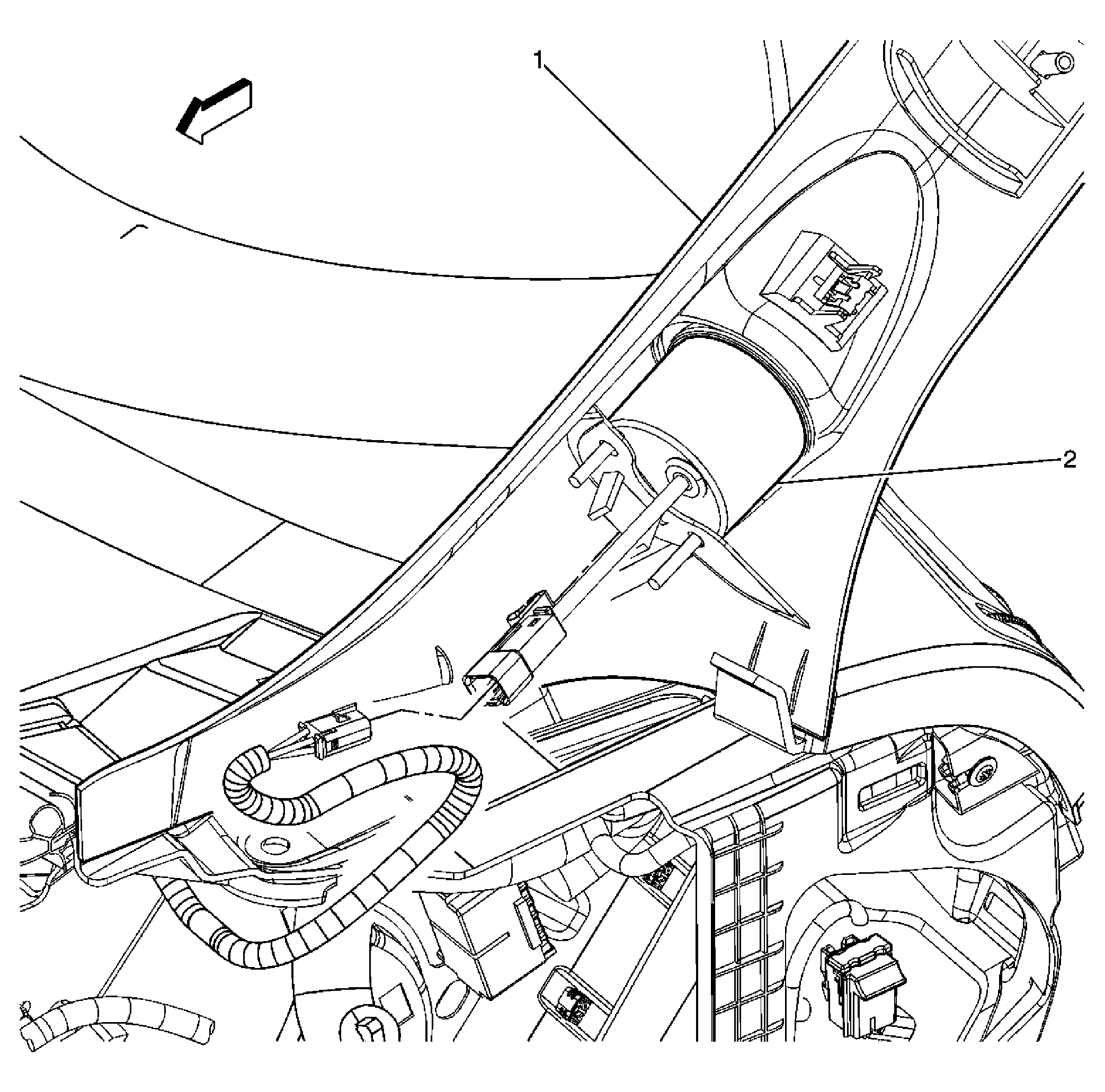

Fig 4: Turbocharger Boost Gage (LNF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A-Pillar Trim
2	Turbocharger Boost Gage (LNF)

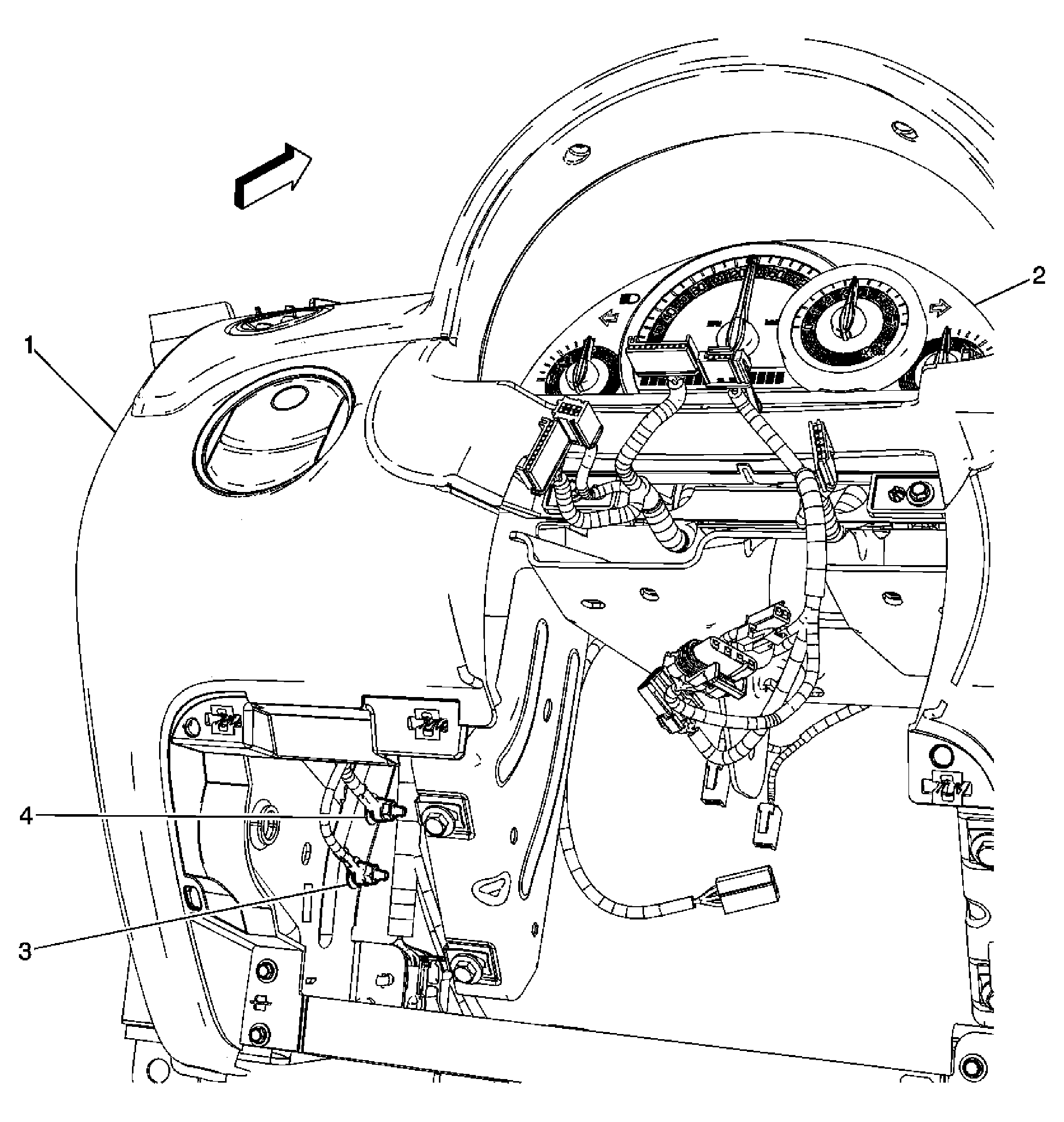

Fig 5: I/P - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim Panel
2	Instrument Panel Cluster (IPC)
3	G201
4	G203

Fig 6: Instrument Panel (I/P) Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Driver Information Center (UAF)
3	Hazard Switch
4	Inflatable Restraint I/P Module
5	Passenger Rear Access Panel Switch - Right Rear Panel (Panel Van)
6	Inflatable Restraint I/P Module Indicator
7	Radio/Navigation Unit
8	HVAC Control Assembly
9	Cigar Lighter (DT4)/Accessory Power Outlet I/P (- DT4)
10	Rear Wiper/Washer Switch
11	Fog Lamp Switch (T37 or T96)
12	Traction Control Switch
13	I/P Dimmer Switch
14	Steering Wheel Controls - Right (UK3)
15	Steering Wheel Controls - Left
16	Driver Rear Access Panel Switch - Left Rear Panel (Panel Van)
17	Driver Rear Access Panel Switch - Right Rear Panel (Panel Van)
18	Turn Signal/Multifunction Switch
19	Inflatable Restraint Steering Wheel Module
20	Instrument Panel Cluster (IPC)
21	WindshieldWiper/Washer Switch

Fig 7: Center Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Body Control Module (BCM)
3	Inflatable Restraint Vehicle Rollover Sensor
4	A/T Shift Lever (MN5)
5	YAW and Lateral Accelreometer Sensor
6	Floor Panel
7	Park Brake Switch
8	Inflatable Restraint Sensing and Diagnostic Module (SDM)
9	Floor Panel

Fig 8: Automatic Transmission Shift Lever

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lever
2	Park Position Switch
3	X307
4	Automatic Transmission Shift Lever Bulb and Socket
5	Automatic Transmission Shift Lock Control Solonoid

Fig 9: Auxiliary Power Outlet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center Console
2	Auxiliary Power Outlet - Console

Fig 10: Interior HVAC Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Box Assembly
2	Blower Motor Resistor Assembly
3	Blower Motor
4	Recirculation Actuator
5	Air Temperature Actuator
6	Mode Actuator
