Body Control System Schematics

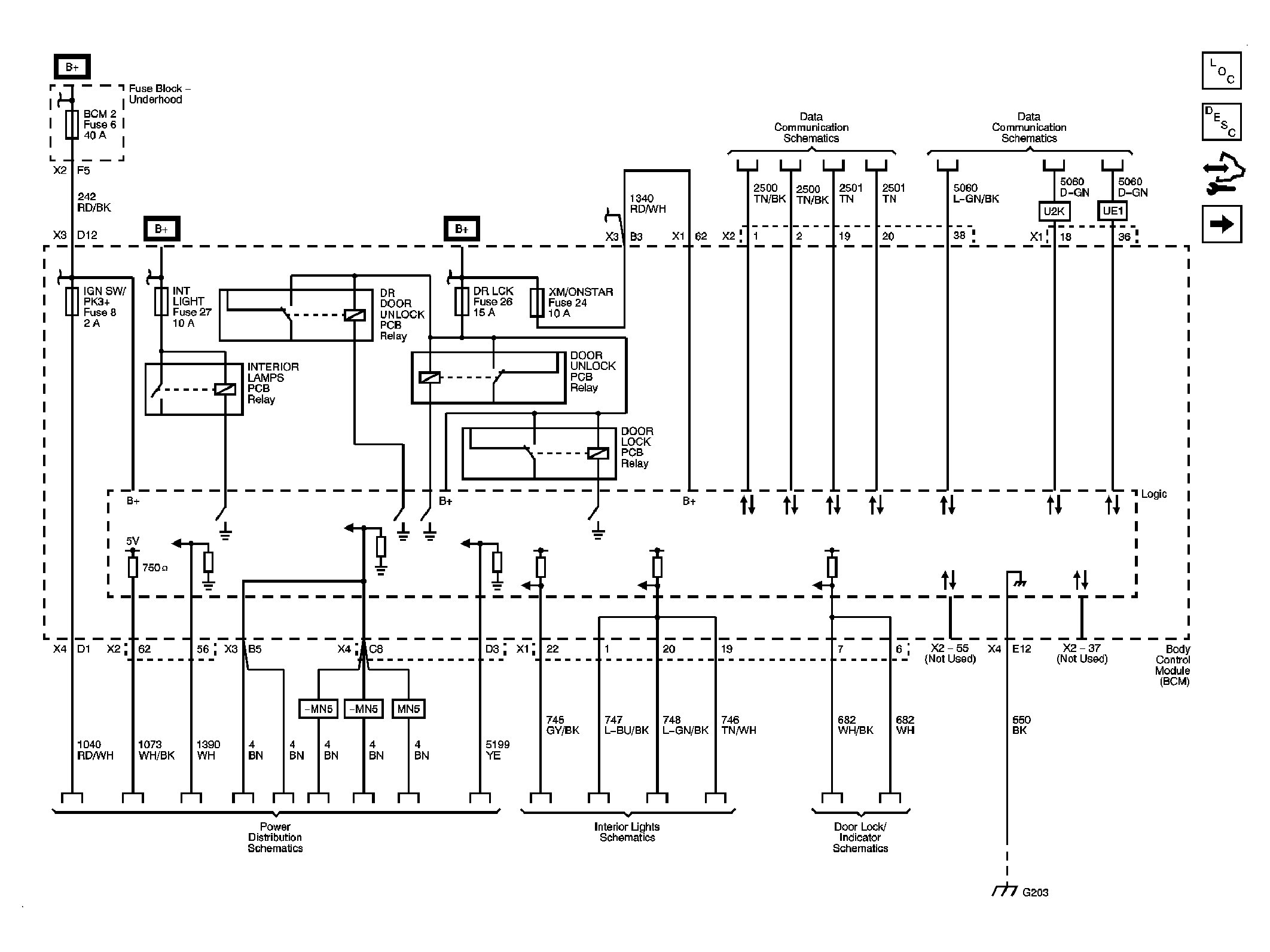

Fig 1: Door Lock Indicators, Power, Ground, Data Link, and Engine References
GM2247698Courtesy of GENERAL MOTORS CORP.

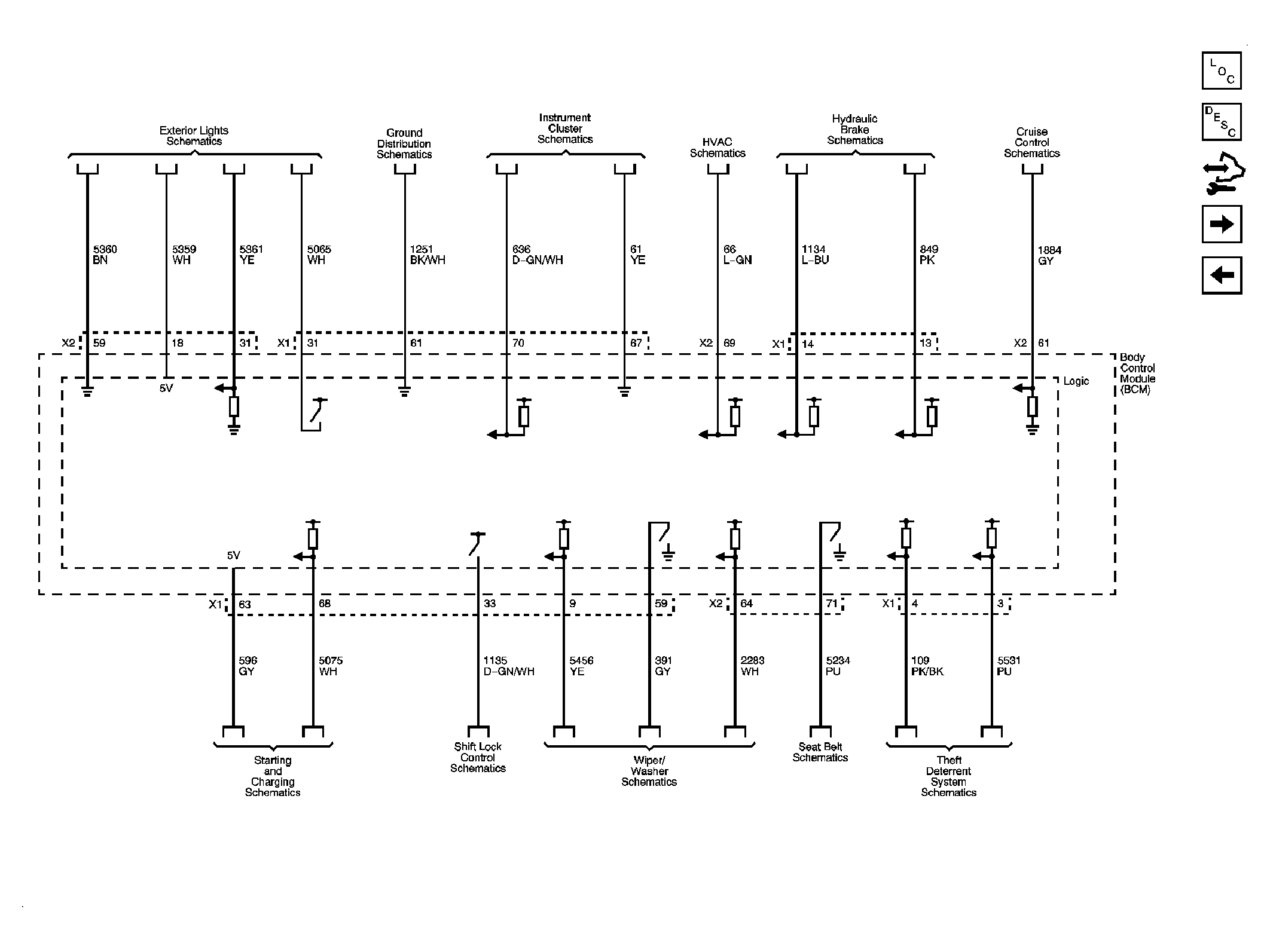

Fig 2: SIR, Shift Lock Control, ABS, Brake Warning, Cruise Control, Keyless Entry, Wiper/Washer, Engine Controls
GM2247699Courtesy of GENERAL MOTORS CORP.

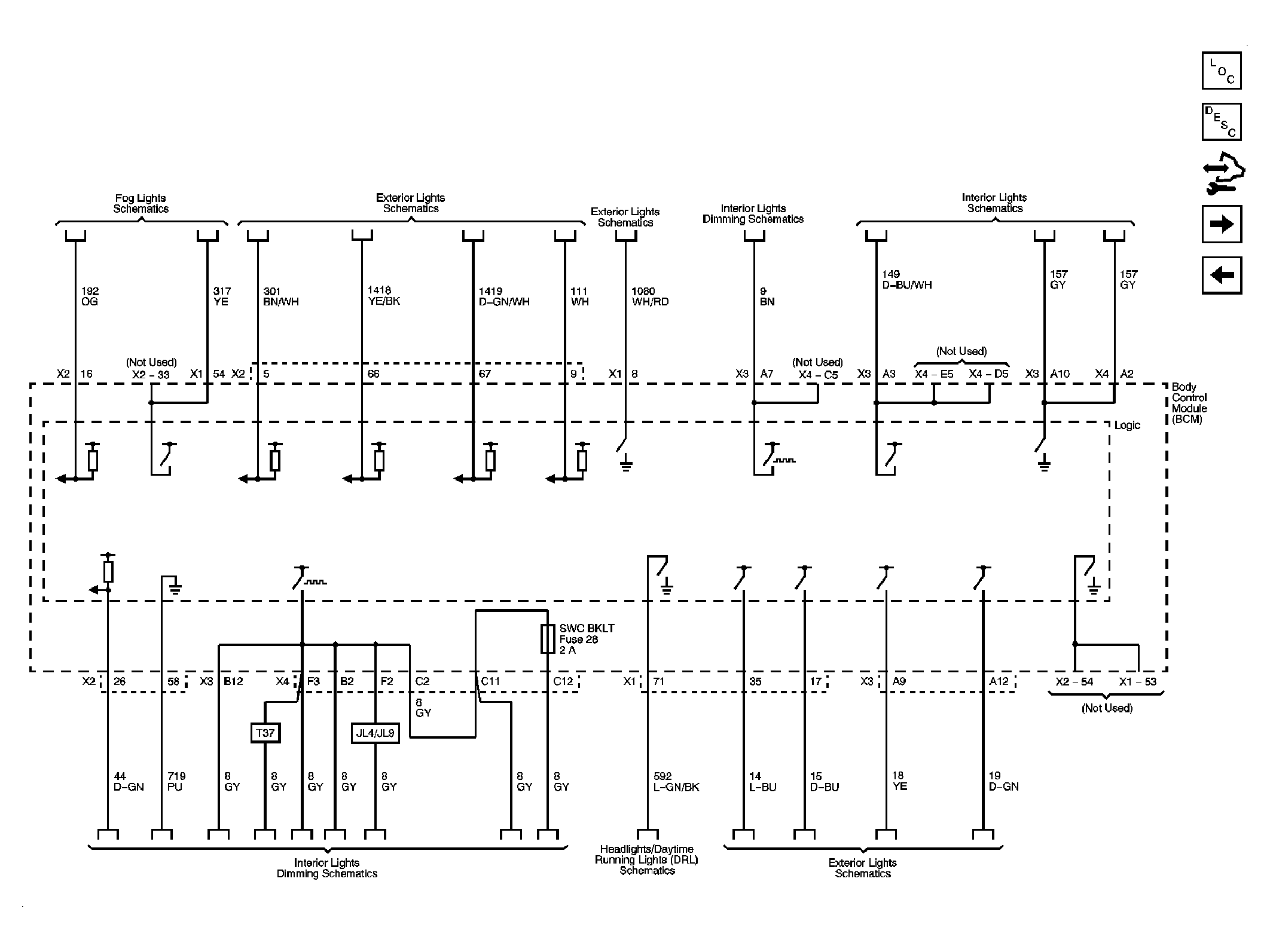

Fig 3: Lighting System References
GM2247701Courtesy of GENERAL MOTORS CORP.

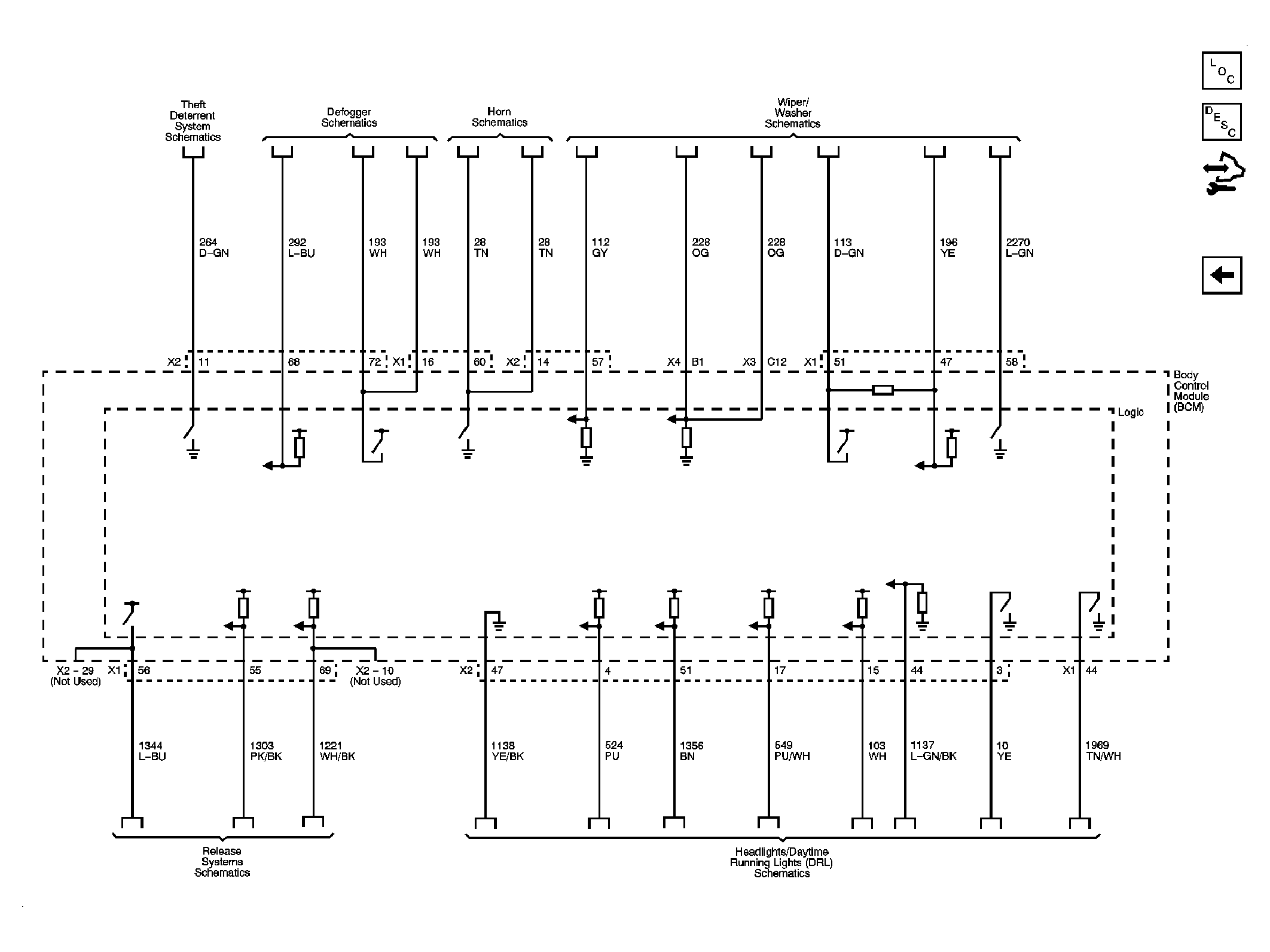

Fig 4: Body Rear End, Defogger, Headlights, DRL, Horns, and Wiper/Washer References
GM2247703Courtesy of GENERAL MOTORS CORP.
