Data Communication Schematics

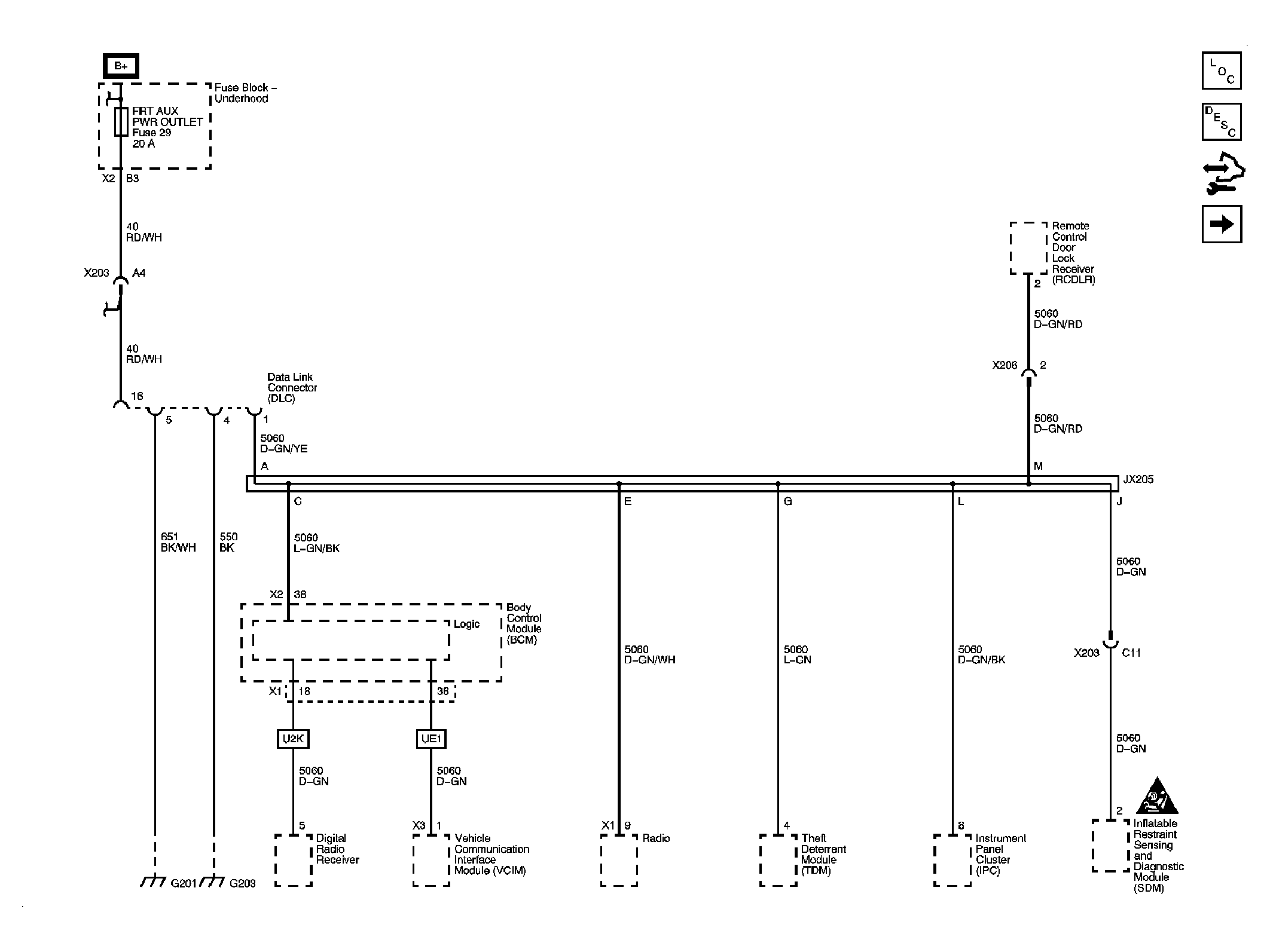

Fig 1: DLC Power, Ground, and Low Speed GMLAN

GM2247695

Courtesy of GENERAL MOTORS CORP.

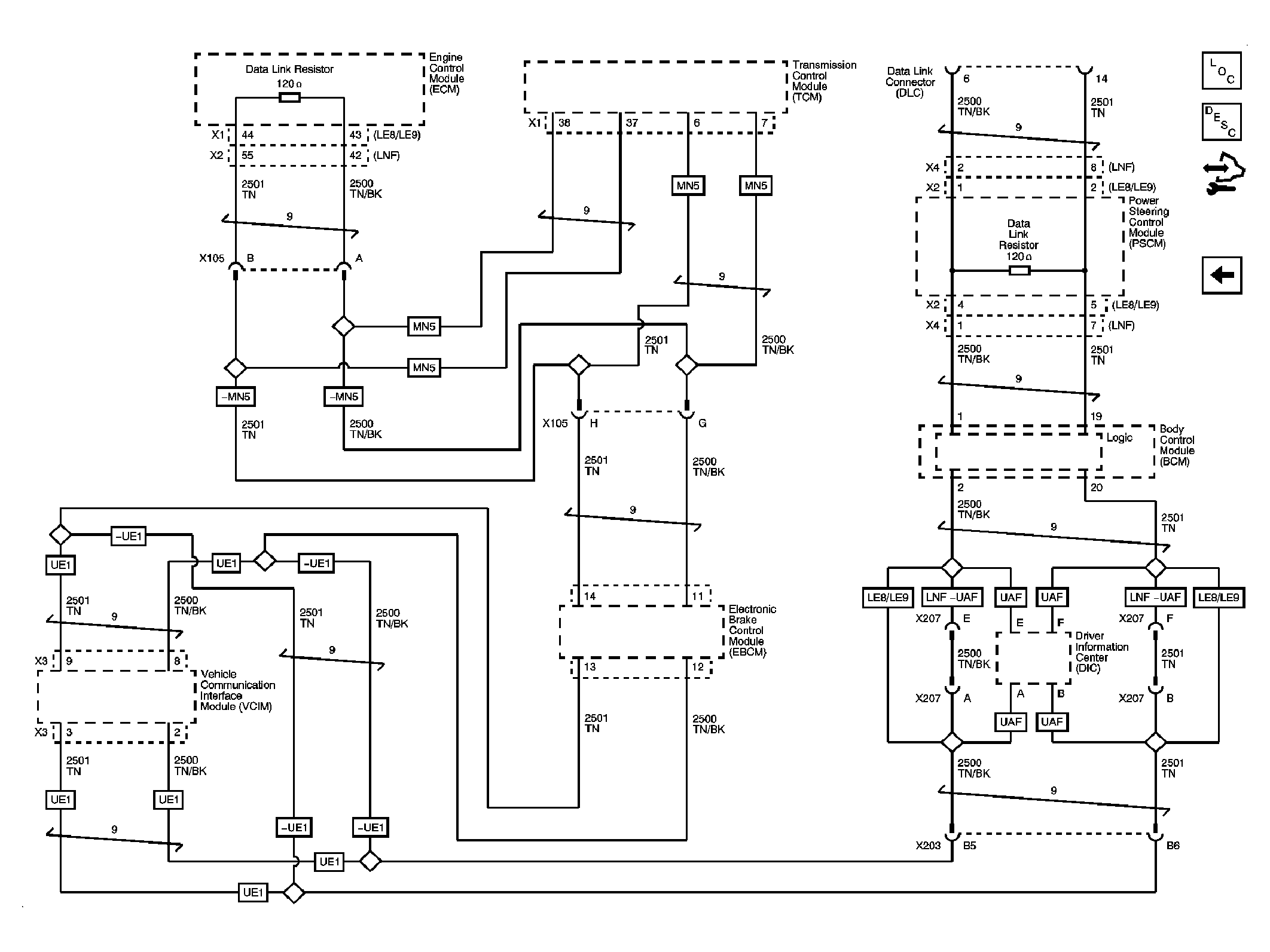

Fig 2: High Speed GMLAN

GM2247696

Courtesy of GENERAL MOTORS CORP.
