Installation Procedure

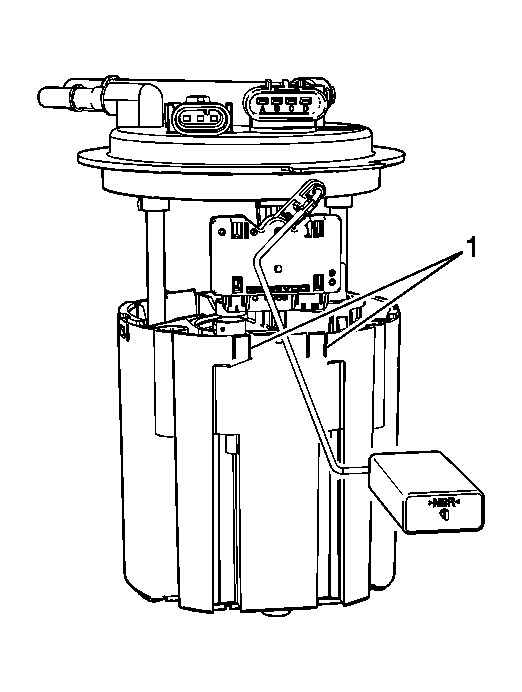

    Fig 1: Fuel Pump Module
    GM1636703Courtesy of GENERAL MOTORS CORP.
  1. Carefully slide the fuel level sensor into the slots on the reservoir.
  2. Slide the sensor down until the retaining tabs (2) engage the sensor.
  3. Install the fuel pump module. Refer to Fuel Pump Module Replacement .
