Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Right Rear Wheel Hub Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 2: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 3: Body Rear End Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 4: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 5: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 6: Front passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 7: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 8: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 9: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 10: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 11: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 12: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 13: Exhaust
Courtesy of GENERAL MOTORS CORP.
Fig 14: Pedal Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 15: Fuel Tank Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 16: Cooling System Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 17: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 19: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 20: Interior Overview
Courtesy of GENERAL MOTORS CORP.
Fig 21: Dash Components
Courtesy of GENERAL MOTORS CORP.
Fig 22: Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 23: Right Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 24: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 25: HVAC Components
Courtesy of GENERAL MOTORS CORP.
Fig 26: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 27: Left Side Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 28: Upper Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 30: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 31: Right Front Of Trunk
Courtesy of GENERAL MOTORS CORP.
Fig 32: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 33: Front Passenger's Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 34: Front Seats
Courtesy of GENERAL MOTORS CORP.
Fig 35: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 36: Driver's Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 37: Steering Column Components
Courtesy of GENERAL MOTORS CORP.
Fig 38: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 39: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 40: Wheel Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 41: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 42: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 43: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 44: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 45: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 46: Top View Of Headliner Components
Courtesy of GENERAL MOTORS CORP.
Fig 47: Front Of Dash Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 48: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 49: Secondary Air Injection (AIR) Components
Courtesy of GENERAL MOTORS CORP.
Fig 50: Left Side Of Trunk
Courtesy of GENERAL MOTORS CORP.
Fig 51: Top Of Engine Block
Courtesy of GENERAL MOTORS CORP.
Fig 52: Right Front Wheel Speed Sensor (Left Front Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 53: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 54: I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 55: Battery Cables
Courtesy of GENERAL MOTORS CORP.

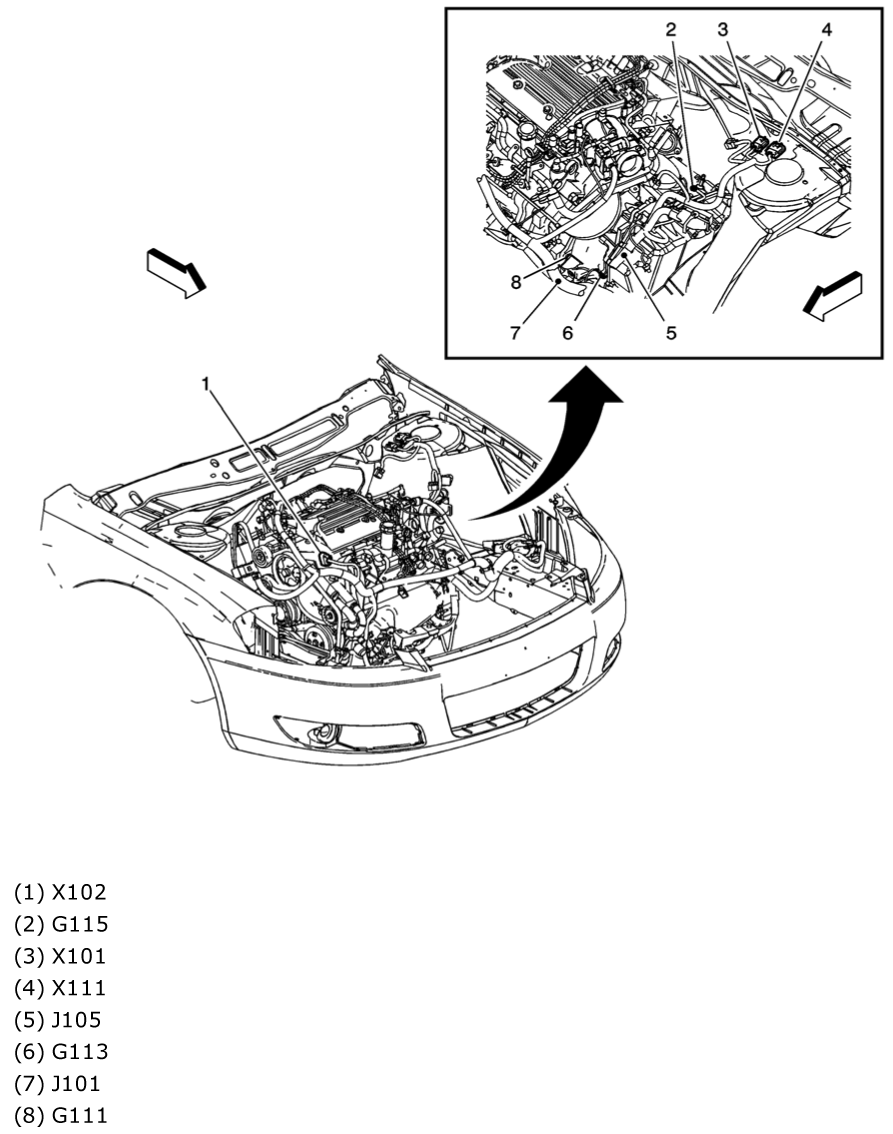

Fig 56: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Left Front Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 58: Right Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 59: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 60: Instrument Panel Harness
Courtesy of GENERAL MOTORS CORP.
Fig 61: Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 62: Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 63: Passenger Compartment Splices
Courtesy of GENERAL MOTORS CORP.
Fig 64: Sunroof/Headliner Harness
Courtesy of GENERAL MOTORS CORP.
Fig 65: Driver's Door Harness
Courtesy of GENERAL MOTORS CORP.
Fig 66: Front Passenger's Door Harness
Courtesy of GENERAL MOTORS CORP.
Fig 67: Rear Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 68: Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

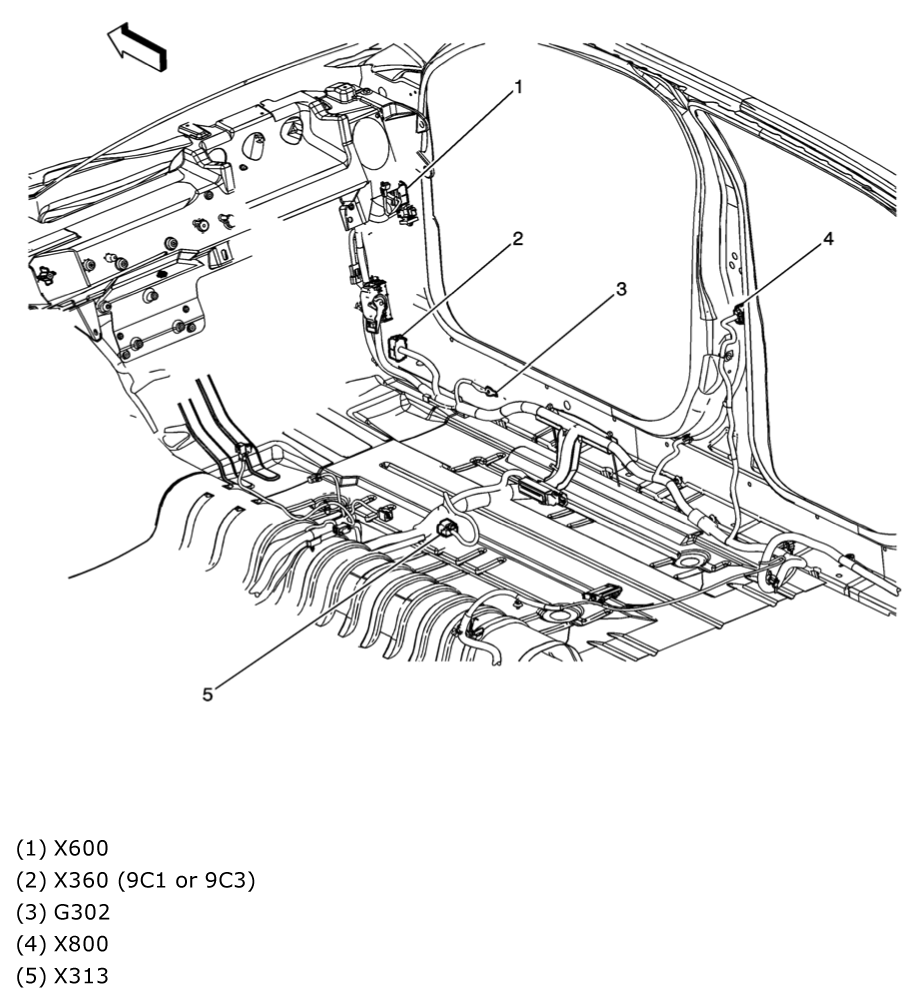

Fig 69: Right Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 70: Front Seats
Courtesy of GENERAL MOTORS CORP.
