Instrument Panel/Center Console Component Views

Fig 1: Upper Center of the Instrument Panel
GM1700234Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Remote Control Door Lock Receiver (RCDLR)
2 Instrument Panel Carrier
Fig 2: Left Front Kick Panel
GM1715330Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G301
2 X223 - Taped to Harness (9C1/9C3)
3 X250
4 X203
5 Data Link Resistor - Taped to Harness (without UE1)

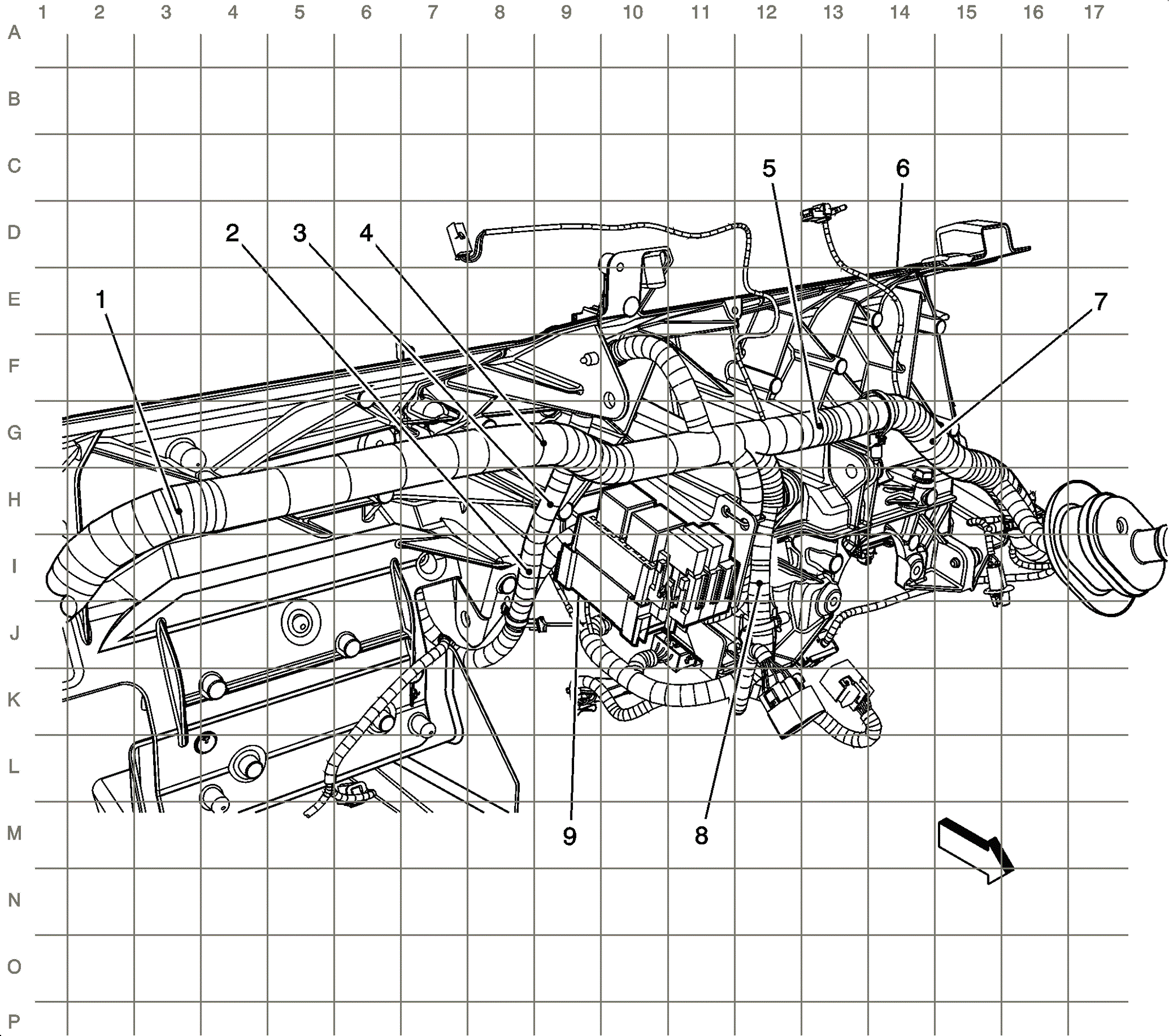

Fig 3: Instrument Panel Harness - Rear of the Instrument Panel Carrier
GM1568600Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J282
2 J203
3 J239
4 J250
5 J218
6 Instrument Panel Carrier
7 J259
8 J269
9 Fuse Block - Auxiliary
Fig 4: I/P Components
GM1653129Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Switch
2 Instrument Panel Cluster (IPC)
3 Inflatable Restraint Steering Wheel Module Coil
4 Driver Information Center (DIC) Switch
5 Ambient Light Sensor
6 Inflatable Restraint Passenger Air Bag On/Off Indicator (without 9C1/9C3)
7 Radio
8 Inflatable Restraint I/P Module
9 Instrument Panel Trim Panel
10 Heated Seat Switch - Passenger (KA1)
11 HVAC Control Module
12 Heated Seat Switch - Driver (KA1)
13 Turn Signal/Multifunction Switch
Fig 5: Accessory Power Outlets (without Floor Console)
GM1700264Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Accessory Power Outlet - I/P 2
3 Accessory Power Outlet - I/P 1
4 Accessory Power Outlet - Center Seat
Fig 6: Accessory Power Outlets (Floor Console)
GM1700273Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accessory Power Outlet - Center Console 1
2 Accessory Power Outlet - Center Console 2
3 Accessory Power Outlet - Center Console Compartment
Fig 7: In the Center Console - Floor Shifter
GM1706993Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Floor Shifter
2 Automatic Transmission Shift Lock Control Solenoid
Fig 8: Pedal Assemblies
GM1700245Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Switch
2 Dash Panel
3 Brake Pedal Position (BPP) Sensor
4 Accelerator Pedal Position (APP) Sensor
Fig 9: In Left Front Footwell
GM1694838Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Courtesy Lamp - Left
Fig 10: In Right Front Footwell
GM1694840Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Courtesy Lamp - Right
Fig 11: Steering Wheel Components
GM1653125Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel
2 Steering Wheel Control Switch - Right
3 Steering Wheel Control Switch - Left
4 Horn Switch
Fig 12: Near the Steering Column
GM1700238Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Carrier
2 Inflatable Restraint Steering Wheel Module
3 Steering Column
4 Body Control Module (BCM)
Fig 13: View Of Steering Column Components
GM525021Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Theft Deterrent Module (TDM)
3 Ignition Lock Cylinder Control Actuator
Fig 14: Lower Steering Column Components
GM776904Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Transmission Shift Lock Control Solenoid
2 Steering Column
Fig 15: Interior HVAC Components
GM1653136Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Module
2 Mode Actuator
3 Air Temperature Actuator - Right
4 Recirculation Actuator
5 Blower Motor
6 Blower Motor Control Module
7 Air Temperature Actuator - Left

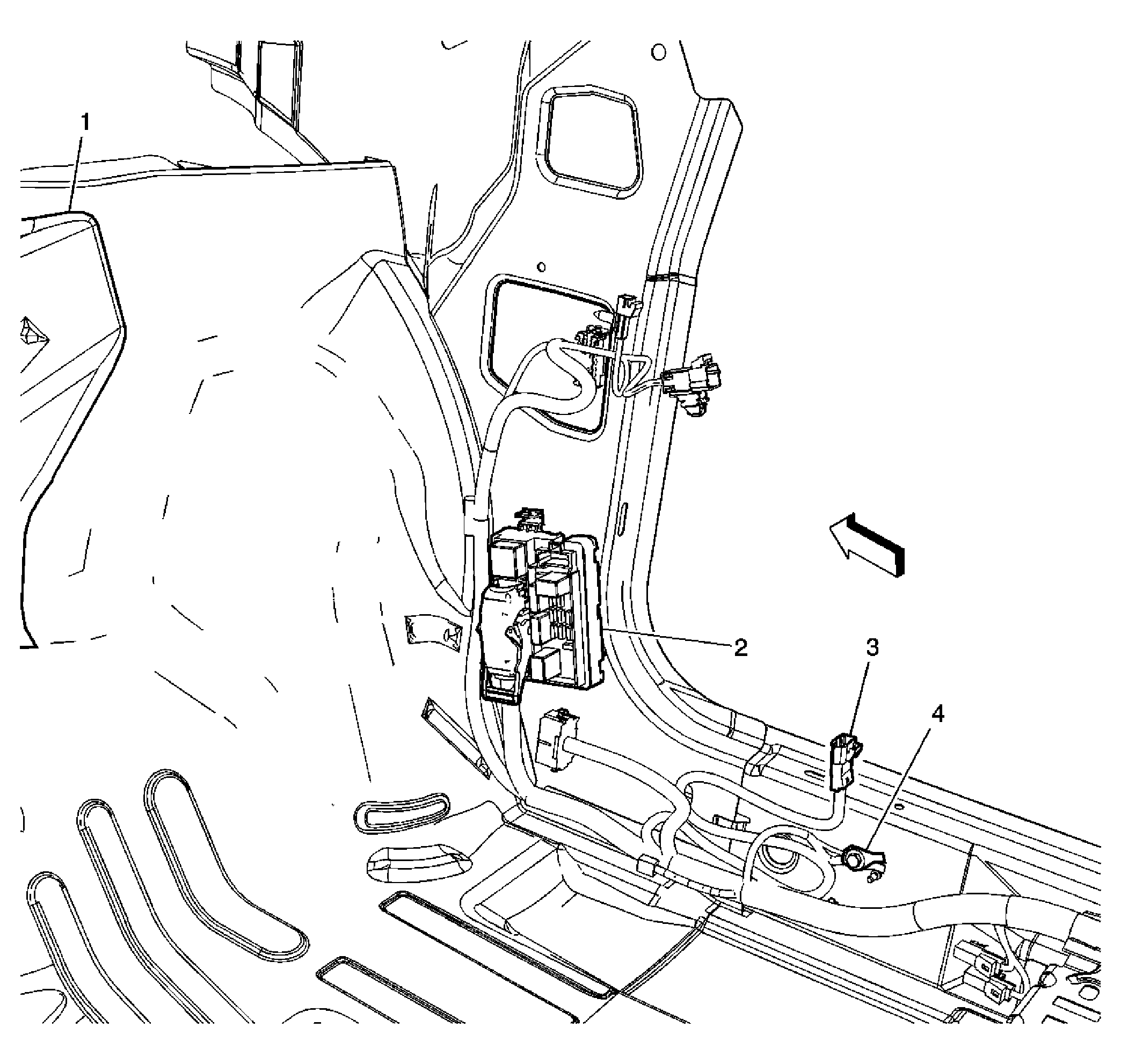

Fig 16: Right Front Of Passenger Compartment
GM1700252Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dash Panel
2 Fuse Block - I/P
3 X303
4 G302
