Body Control System Schematics

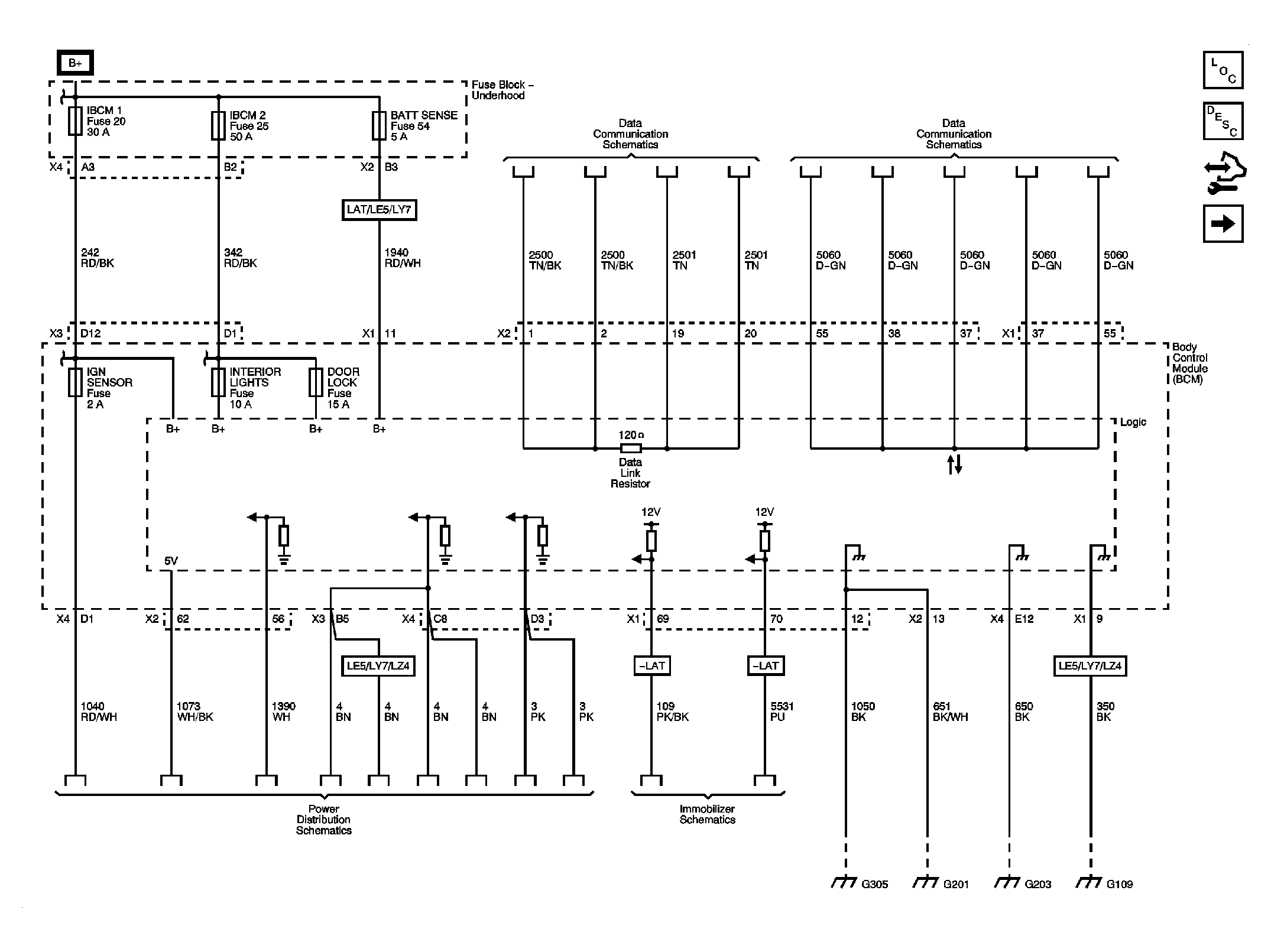

Fig 1: Power, Ground, and DLC
GM2253714Courtesy of GENERAL MOTORS CORP.

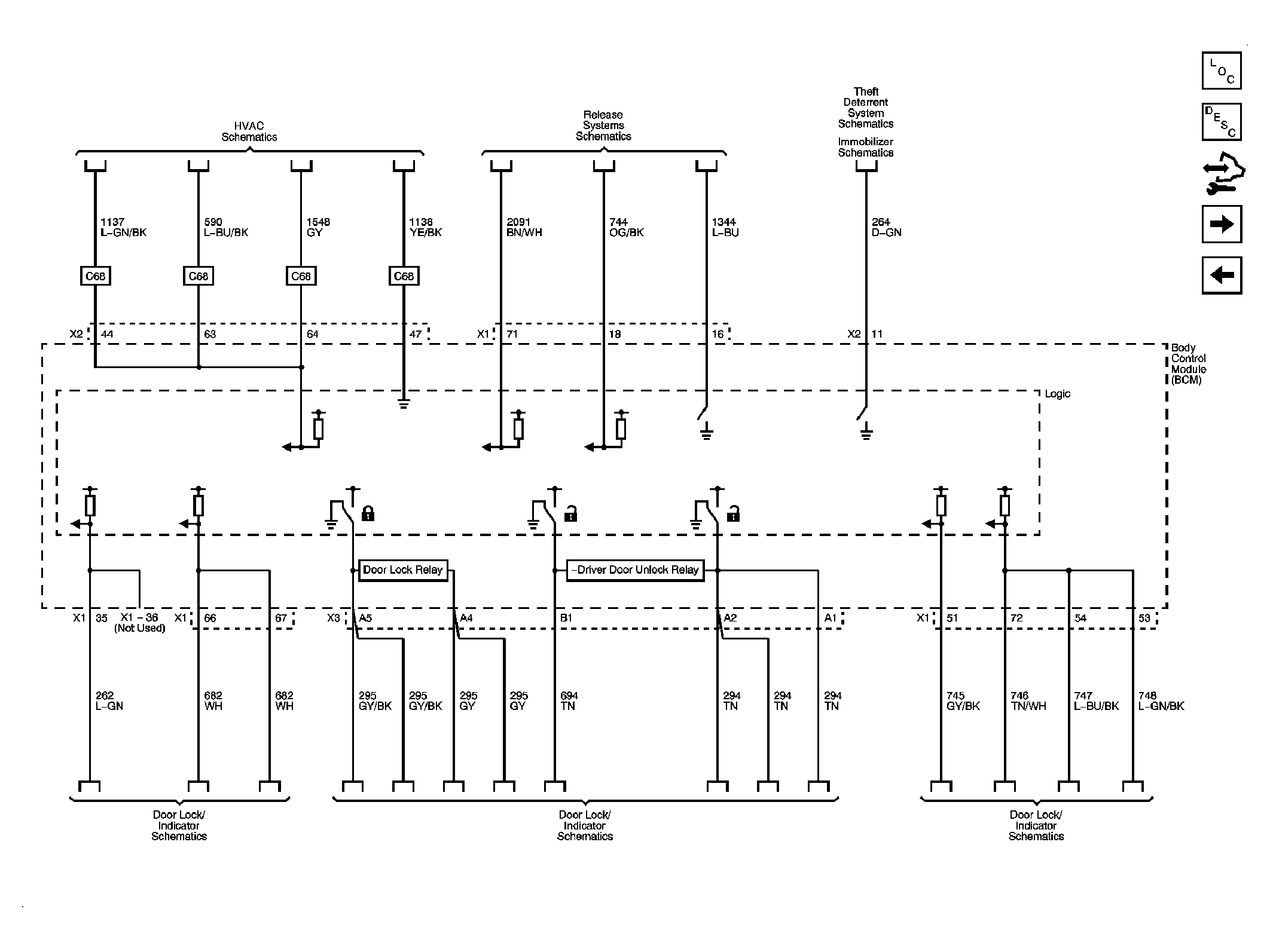

Fig 2: Monitored/Controlled Subsystem References (1 of 3)
GM2253716Courtesy of GENERAL MOTORS CORP.

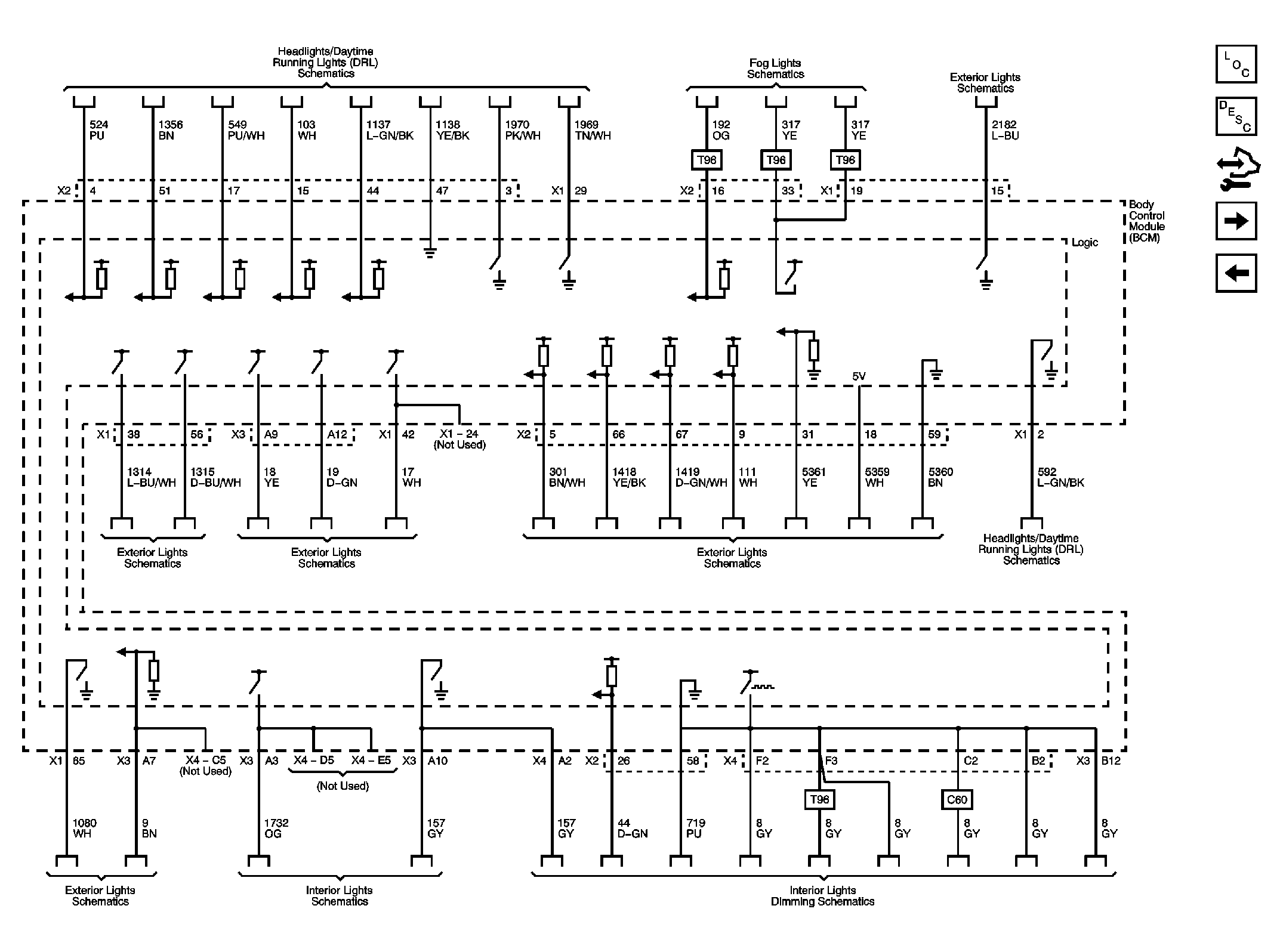

Fig 3: Monitored/Controlled Subsystem References (2 of 3)
GM2253719Courtesy of GENERAL MOTORS CORP.

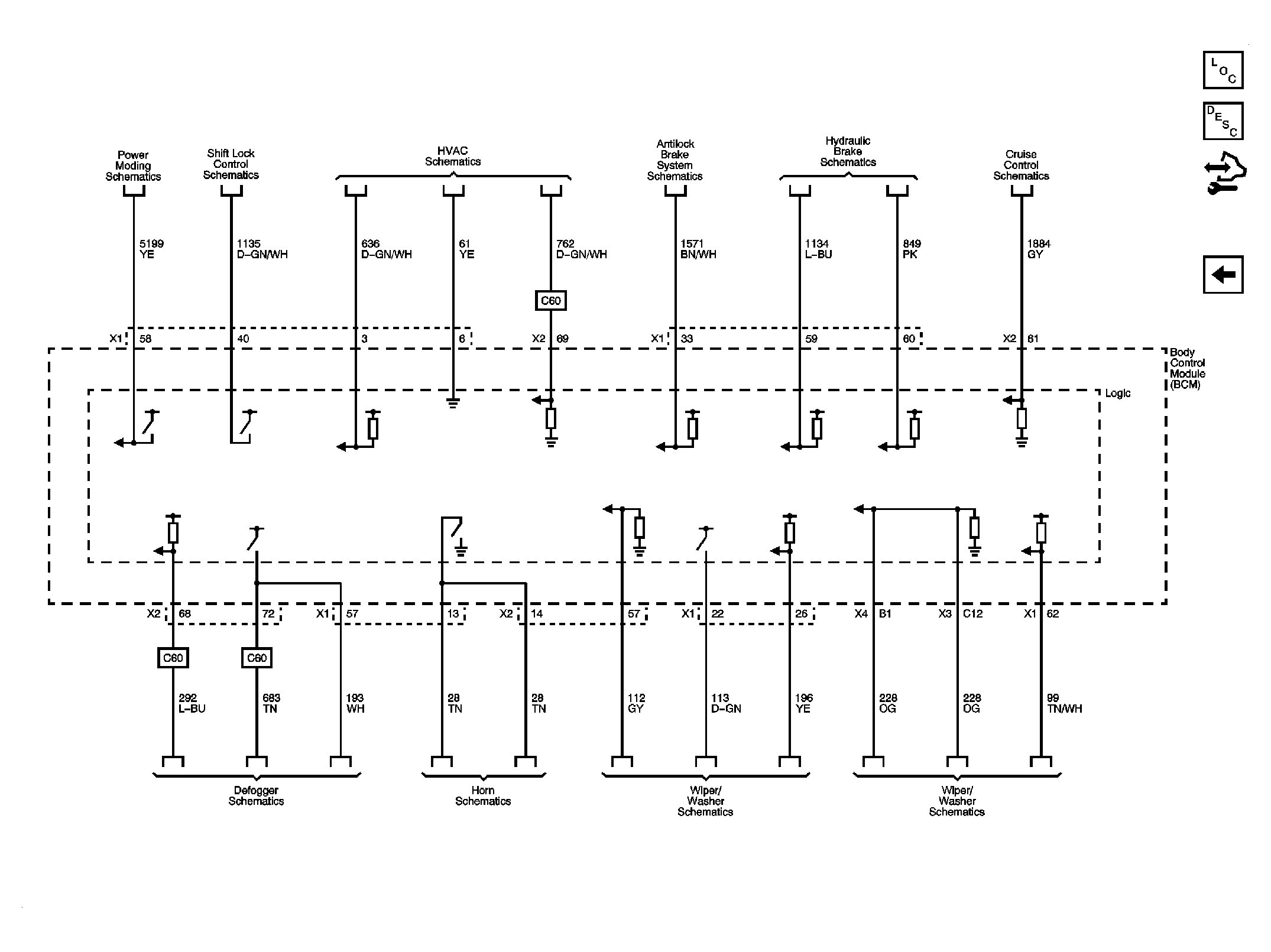

Fig 4: Monitored/Controlled Subsystem References (3 of 3)
GM2253721Courtesy of GENERAL MOTORS CORP.
