Data Communication Schematics

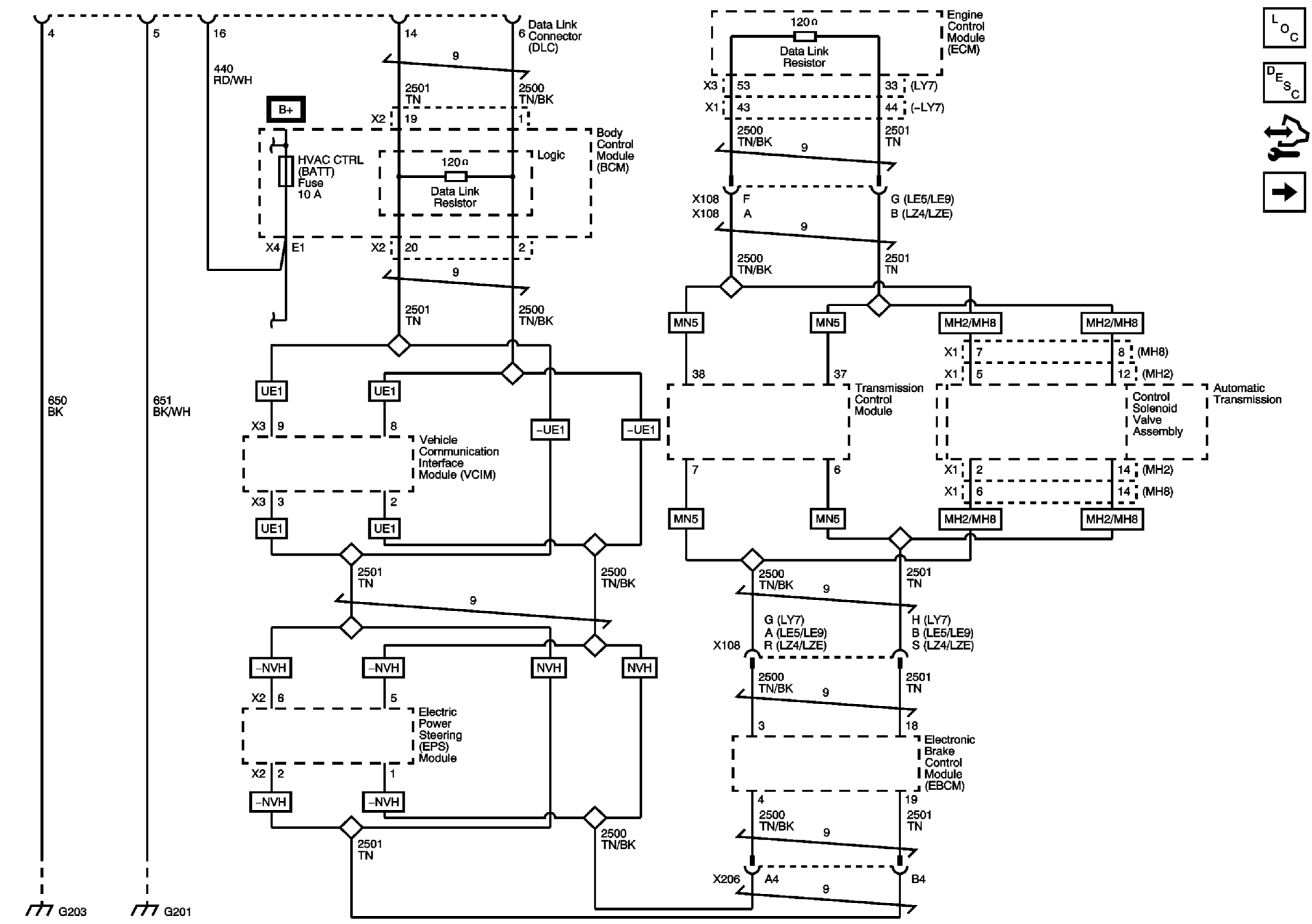

Fig 1: Power, Ground, and High Speed Serial Data (without HP7)
GM2253707Courtesy of GENERAL MOTORS CORP.

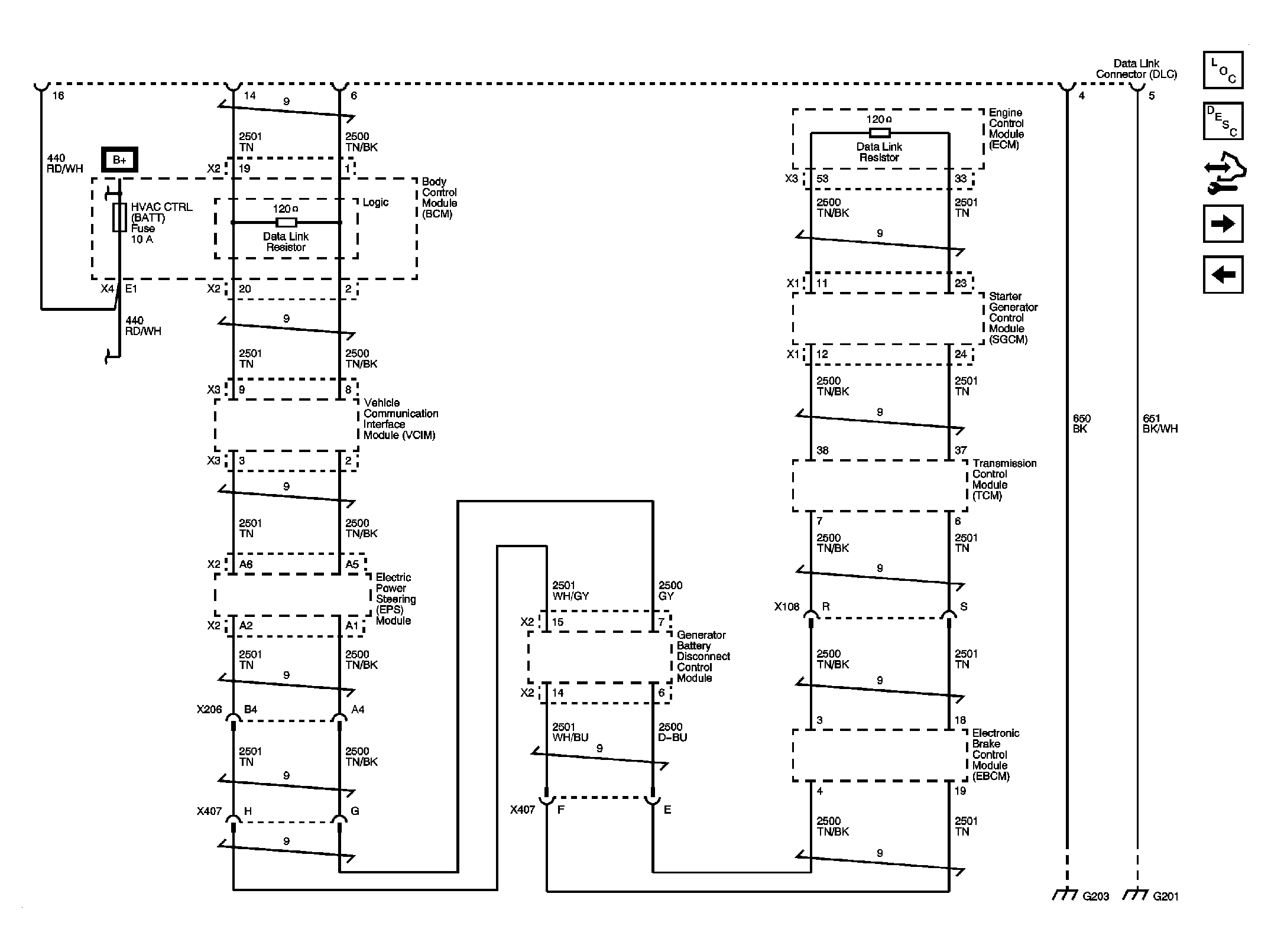

Fig 2: Power, Ground, and High Speed Serial Data (HP7)
GM2253709Courtesy of GENERAL MOTORS CORP.

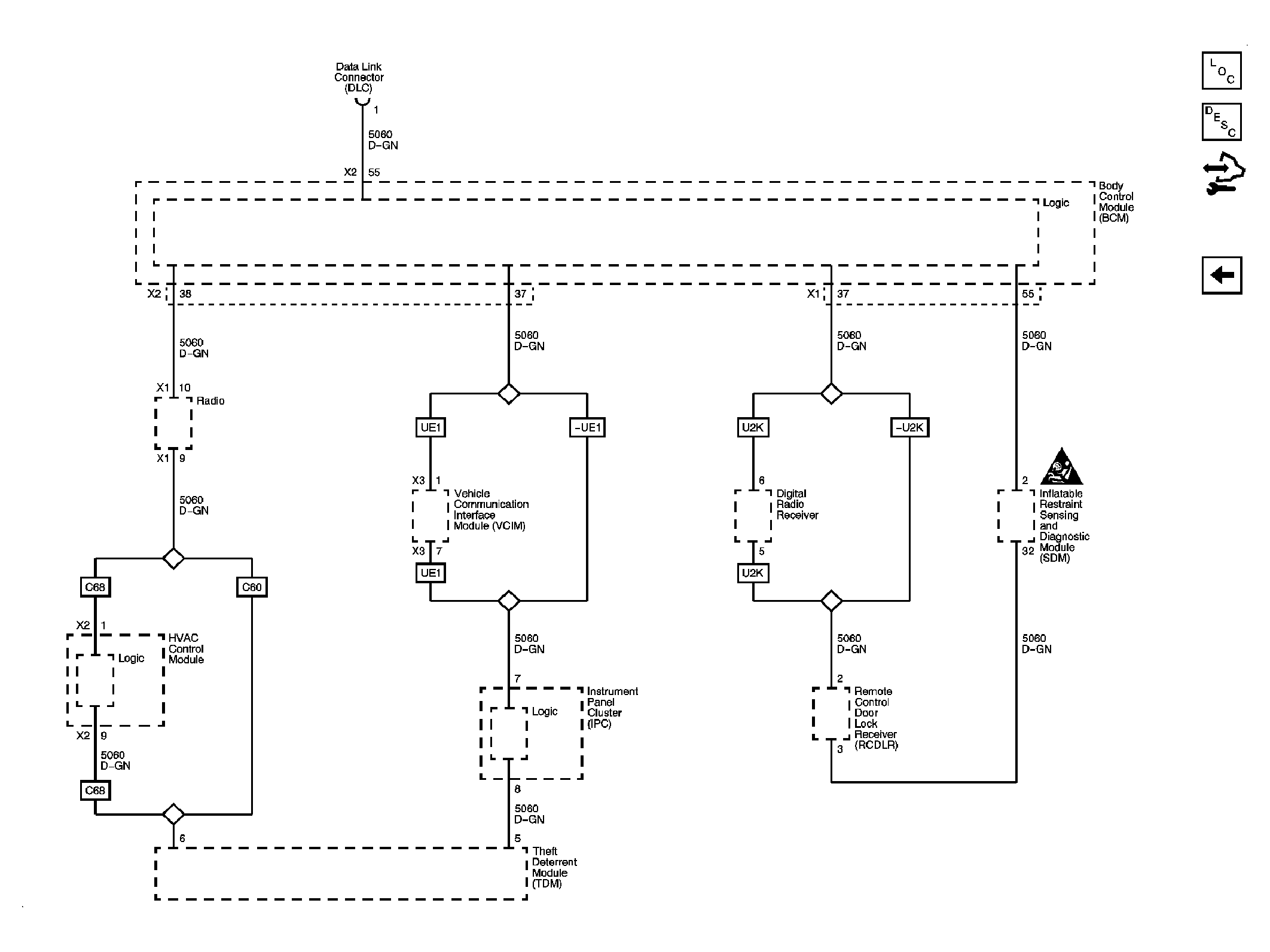

Fig 3: Low Speed Serial Data
GM2253712Courtesy of GENERAL MOTORS CORP.
