Ground Views

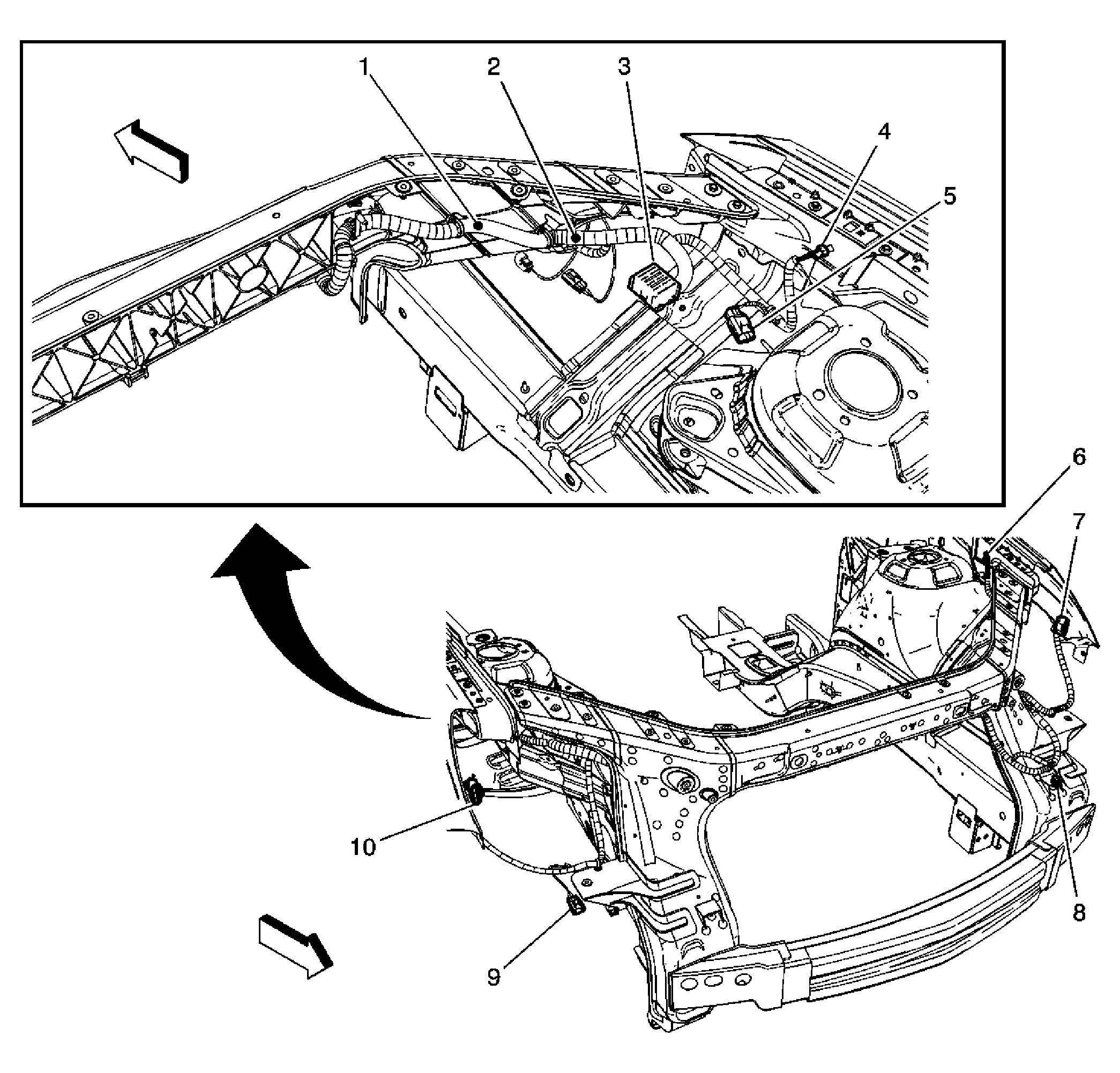

Fig 1: Identifying Forward Lamp Harness
GM1848578Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J122
2 J120
3 Fuse Block - Underhood X1
4 G102
5 X120
6 G103
7 X151
8 X107 (W49 or WDA)
9 X108 (W49 or WDA)
10 X150

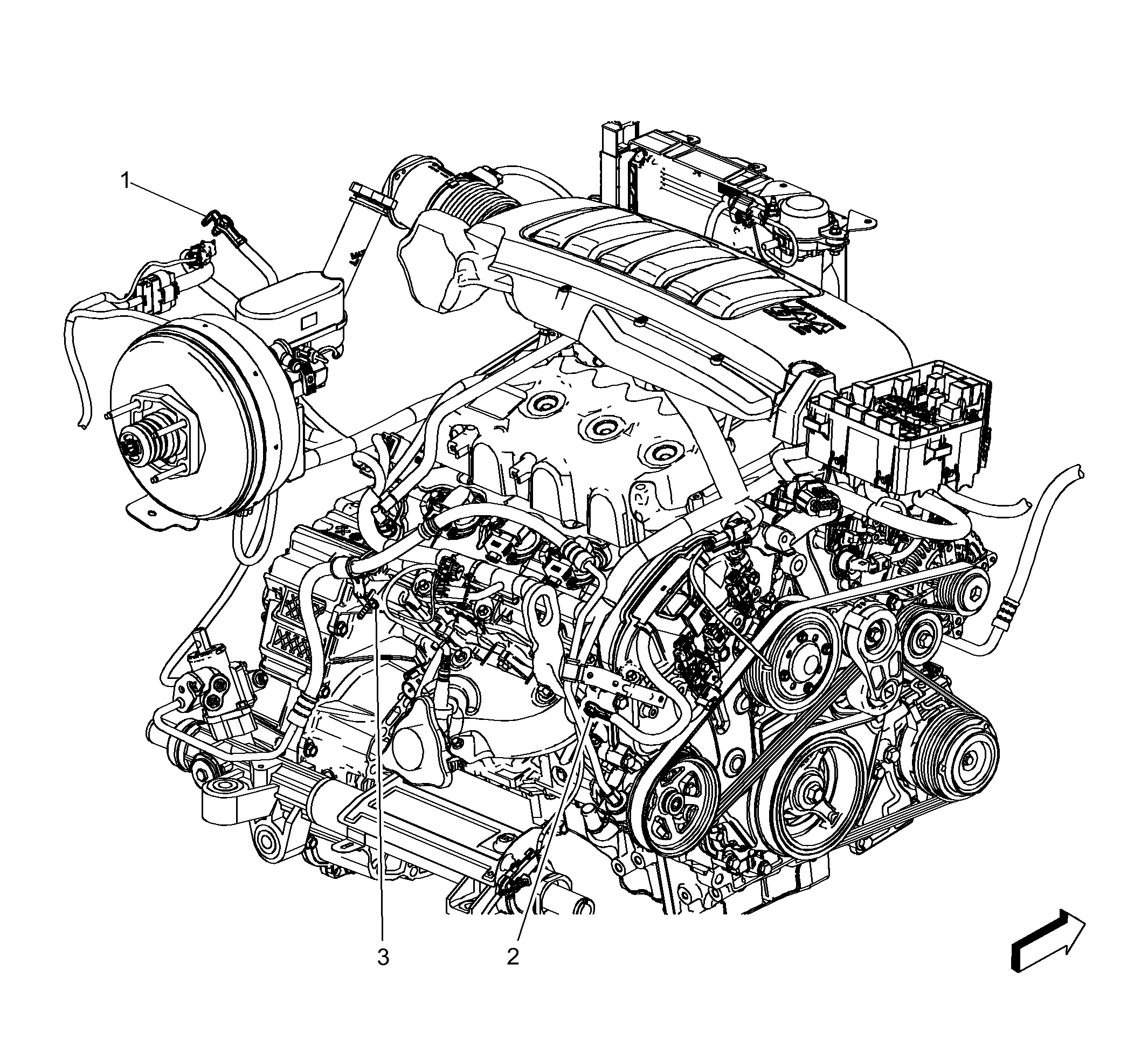

Fig 2: Identifying Engine Compartment Harness (LLT)
GM2125678Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G115
2 G110
3 G112
Fig 3: Identifying Engine Components (LLT) - Front
GM2125685Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil 2
2 Ignition Coil 4
3 Ignition Coil 6
4 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
5 G114
6 High Pressure Fuel Pump
7 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
8 Starter Motor
9 Knock Sensor (KS) 2
10 Engine Coolant Temperature (ECT) Sensor
11 Engine Oil Pressure (EOP) Sensor
12 Generator
Fig 4: Left Front of the Automatic Transmission and Engine
GM1867860Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Cylinder Head
2 Control Solenoid Valve Assembly
3 G113
Fig 5: View Of Brake Booster & Nearby Components
GM1863194Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Fluid Level Switch
2 Left Fender
3 G103
4 G101
5 G115
6 G105
7 Electronic Brake Control Module (EBCM)
8 Brake Booster Vacuum Sensor

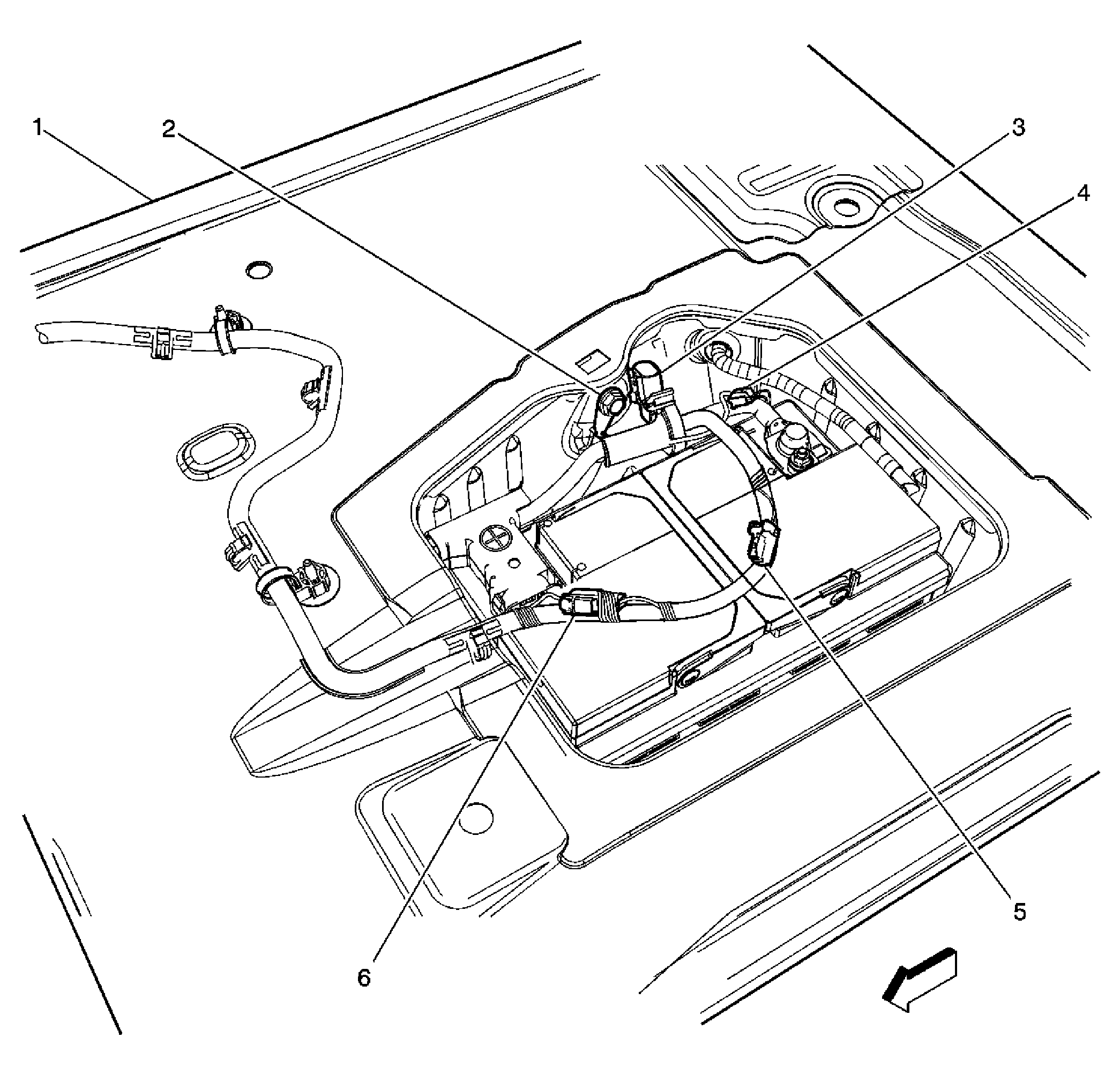

Fig 6: View Of Components Located Near Battery
GM1848558Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Floor Panel
2 G305
3 Battery Current Sensor
4 X324
5 Inline Fuse OnStar (UE1)
6 X325 (UE1)

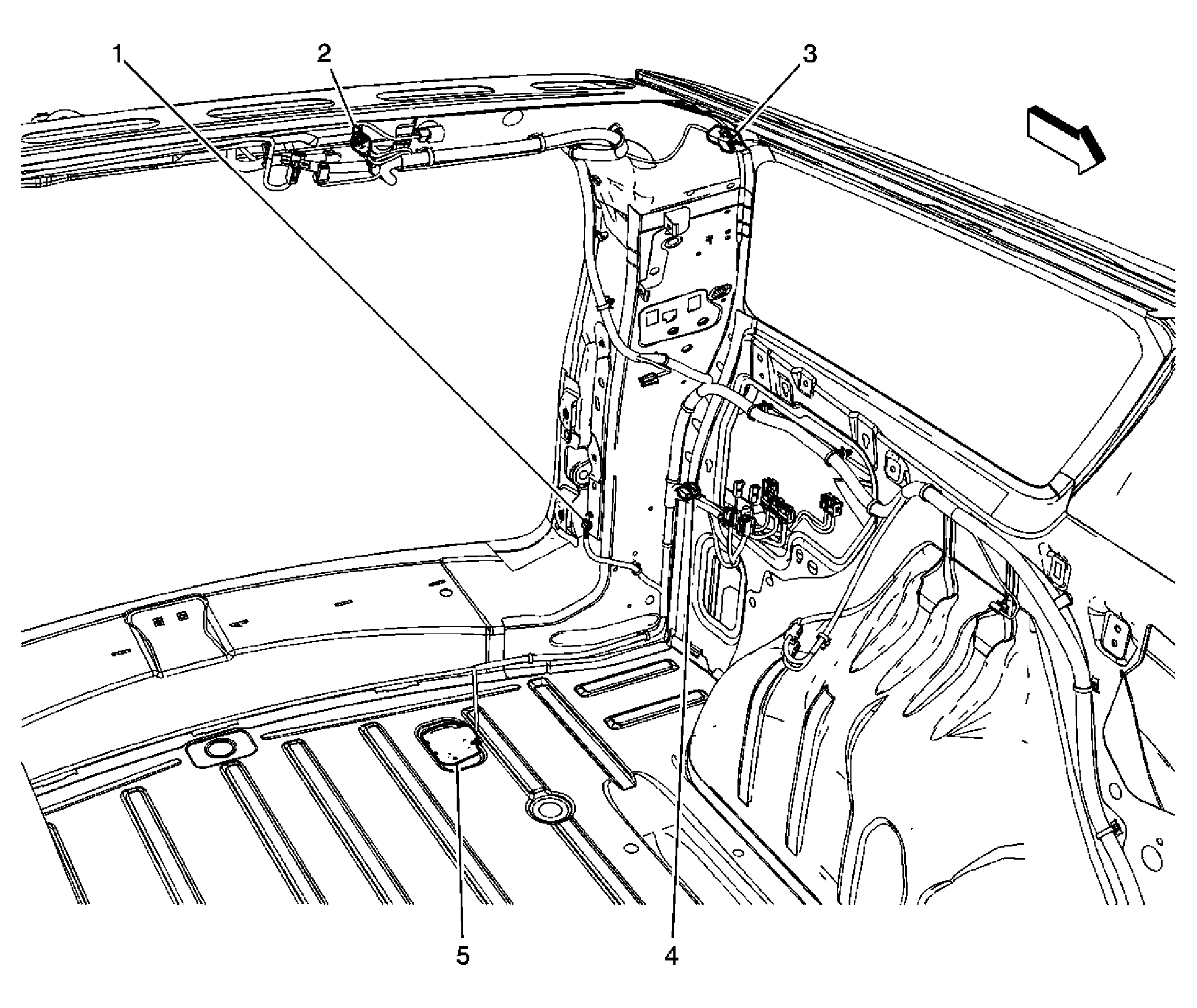

Fig 7: Identifying Body Harness - Left Rear Passenger Compartment
GM1848572Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G401
2 Radio Antenna X1
3 Inflatable Restraint Roof Rail Module - Driver Connector
4 JX405
5 X405

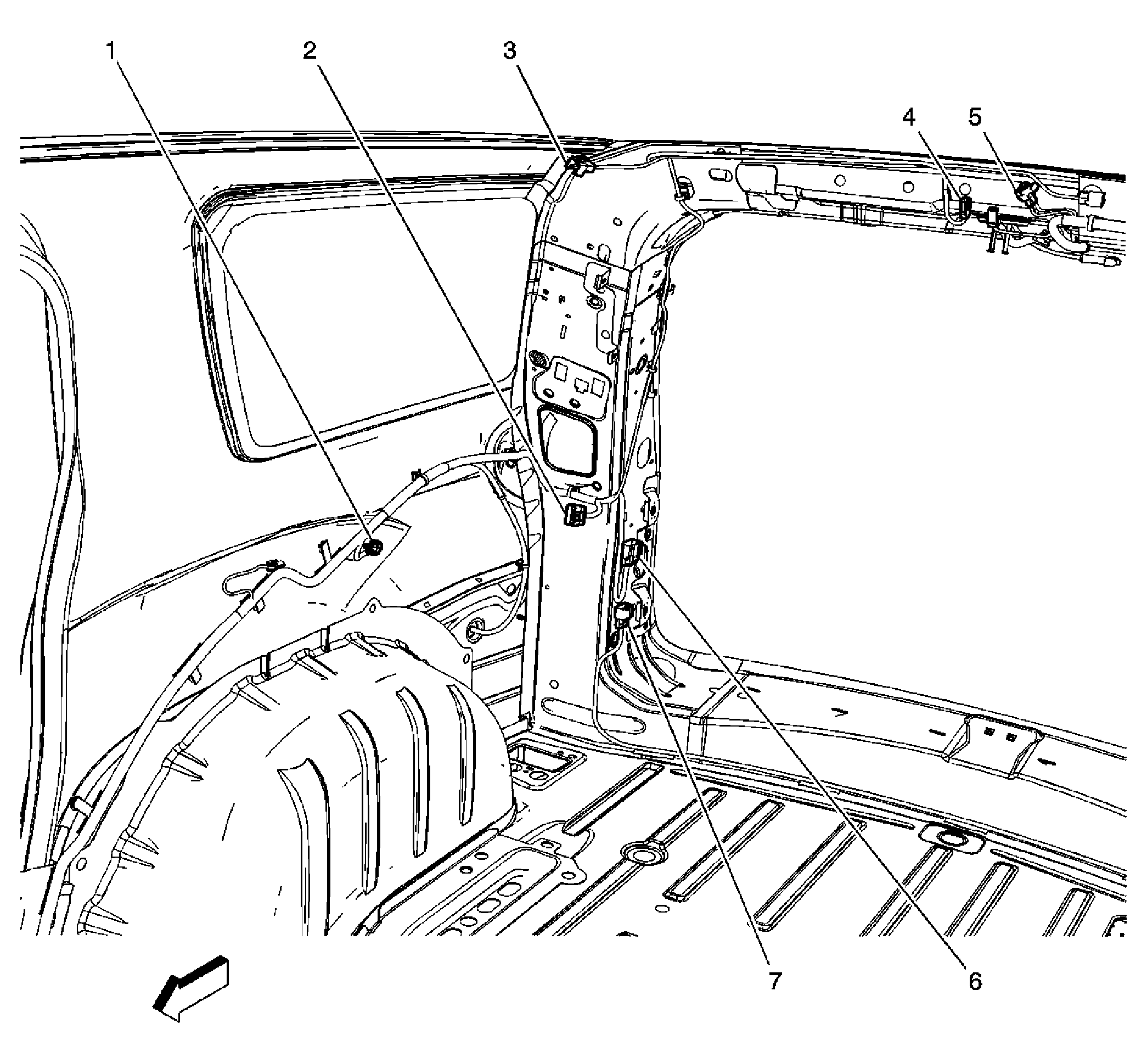

Fig 8: Identifying Body Harness - Right Rear Passenger Compartment
GM1848573Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G402
2 X461
3 Inflatable Restraint Roof Rail Module - Passenger Connector
4 Radio Antenna X2
5 Radio Antenna X1
6 X420 (DNP or UD7 or UE1)
7 X422

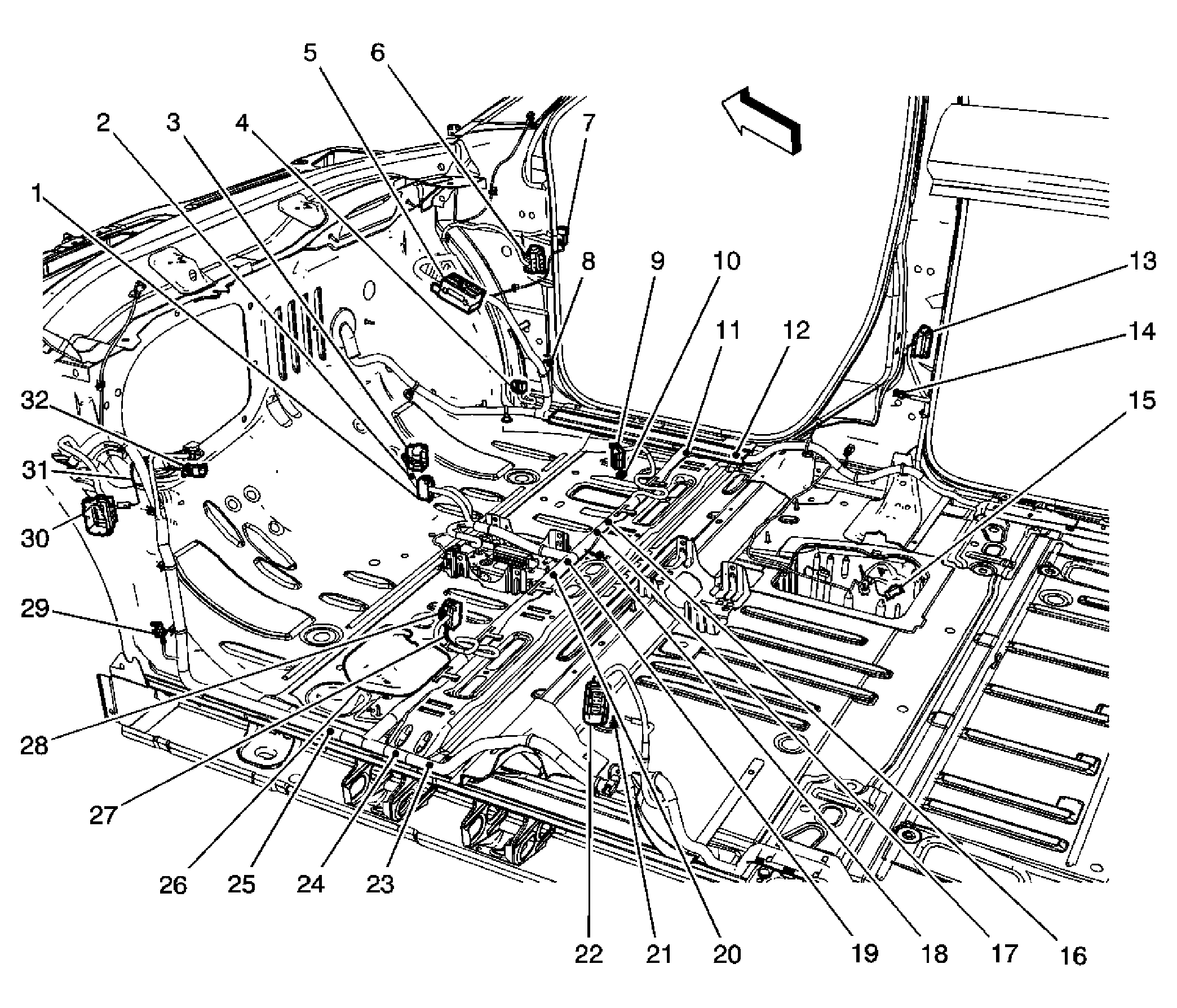

Fig 9: Identifying Body Harness - Front Passenger Compartment
GM2199053Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X202
2 J317
3 X340
4 X200
5 Fuse Block - I/P X1
6 X600
7 Inflatable Restraint I/P Module - Connector
8 G300
9 X314
10 Inflatable Restraint Side Impact Module - Right Connector
11 J308
12 J304
13 X800
14 G302
15 X324
16 J322
17 J302
18 G304
19 J311
20 J313
21 G303
22 X700
23 J335
24 J333
25 J319
26 X305
27 Inflatable Restraint Side Impact Module - Left Connector
28 X315
29 G301
30 X500
31 X209 (V92)
32 JX205
