Exhaust Components

Exhaust Components

Component Name Callout
B52C Heated Oxygen Sensor - Bank 1 Sensor 1 1
B52E Heated Oxygen Sensor - Bank 2 Sensor 1 2
B52F Heated Oxygen Sensor - Bank 2 Sensor 2 3
B52D Heated Oxygen Sensor - Bank 1 Sensor 2 4

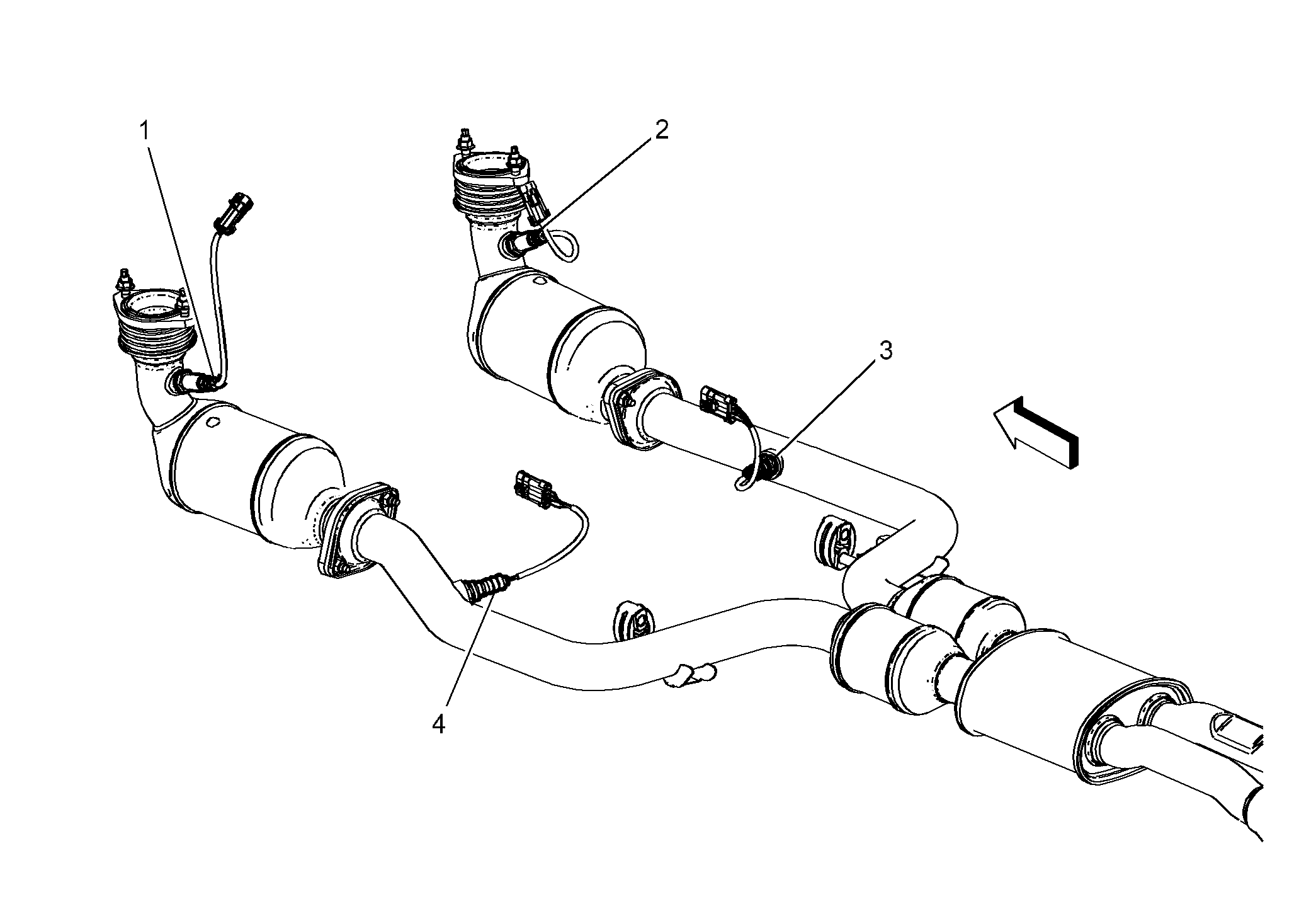

Fig 1: Exhaust Components
GM2542888Courtesy of GENERAL MOTORS CORP.
