Installation Procedure

    Fig 1: Identifying Fuel Feed Pipe
    GM1950797Courtesy of GENERAL MOTORS CORP.
  1. Connect the engine compartment fuel feed pipe (1) to the fuel feed line. Refer to Metal Collar Quick Connect Fitting Service .

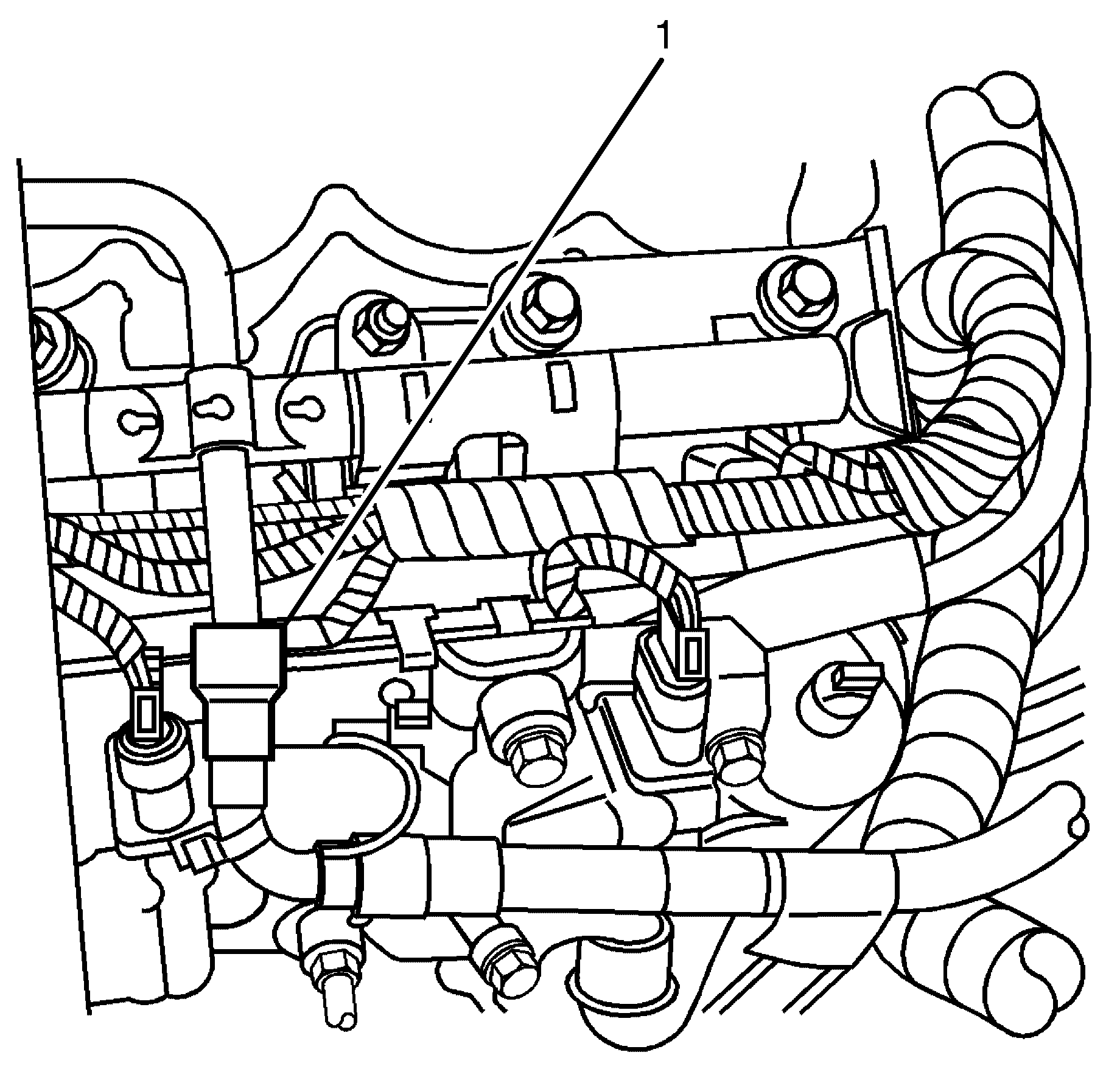

    2. Fig 2: Identifying Engine Compartment Fuel Feed Pipe
    GM1950740Courtesy of GENERAL MOTORS CORP.
  2. Install the engine compartment fuel feed pipe (1) at the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .
  3. Install the fuel filler cap.
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  5. Inspect for fuel leaks using the following method
    1. Turn ON the ignition for 2 seconds.
    2. Turn OFF the ignition for 2 seconds.
    3. Turn ON the ignition.
    4. Inspect the connections of the fuel feed pipe (1) for leaks.
