Installation Procedure

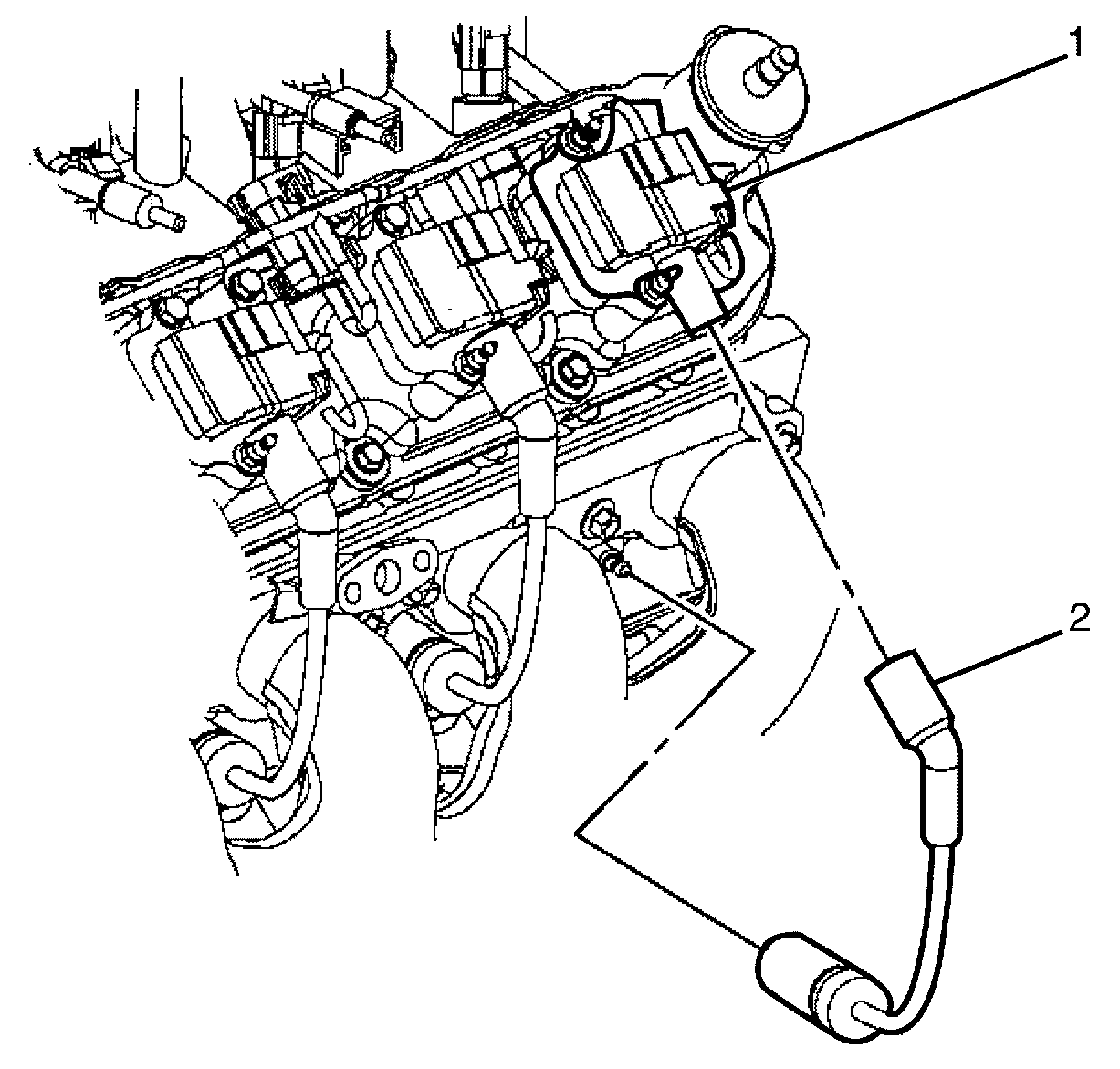

    Fig 1: Identifying Ignition Coil & Spark Plug Wire
    GM1950746Courtesy of GENERAL MOTORS CORP.
  1. Install the spark plug wire to the ignition coil (1).
  2. Install the spark plug wire (2) to the spark plug.
  3. Inspect the spark plug wire for proper installation:
    • Push sideways on each spark plug boot in order to inspect the seating.
    • Reinstall any loose spark plug boot.
