Installation Procedure

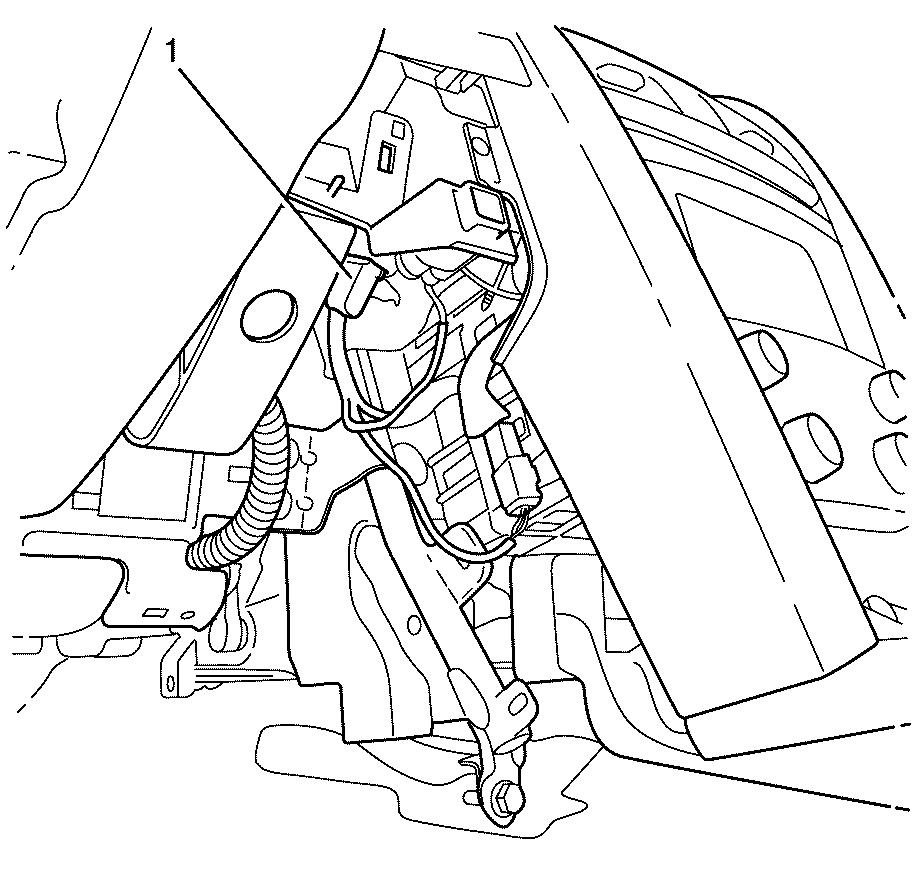

    Fig 1: Identifying Data Link Resistor
    GM2088410Courtesy of GENERAL MOTORS CORP.
  1. Connect the data link resistor (1) to the instrument panel harness.
  2. Tape the data link resistor (1) to the instrument panel harness.
  3. Install the instrument panel extension trim panel. Refer to Instrument Panel Lower Extension Side Trim Panel Replacement - Right Side .
  4. Install the front floor console side cover. Refer to Front Floor Console Side Cover Replacement - Right Side (9C3) , Front Floor Console Side Cover Replacement - Right Side (9C1) .
  5. Install the knee bolster. Refer to Knee Bolster Replacement .
