Keyless Entry System And Remote Function System Wiring Schematics

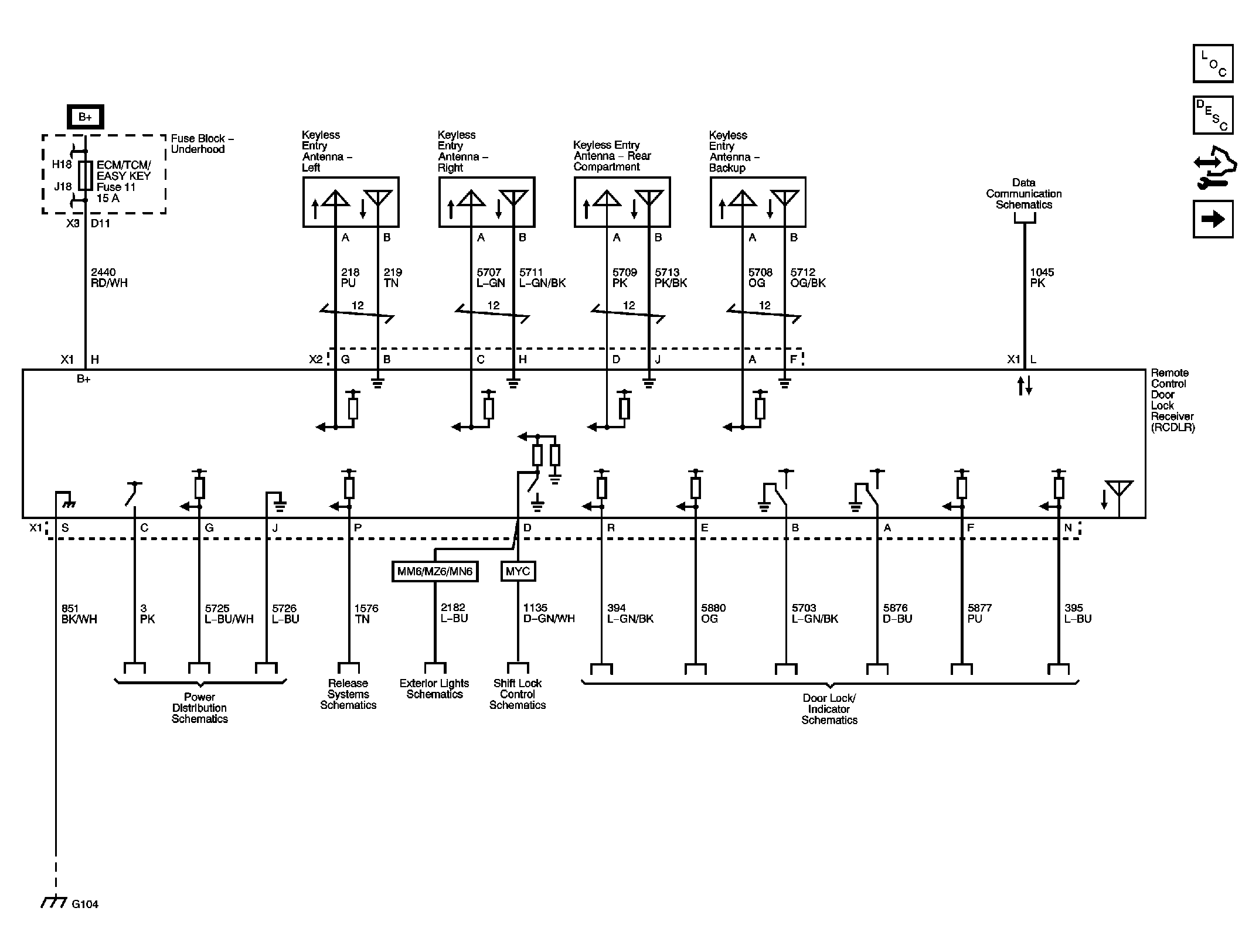

Fig 1: Keyless Entry System Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

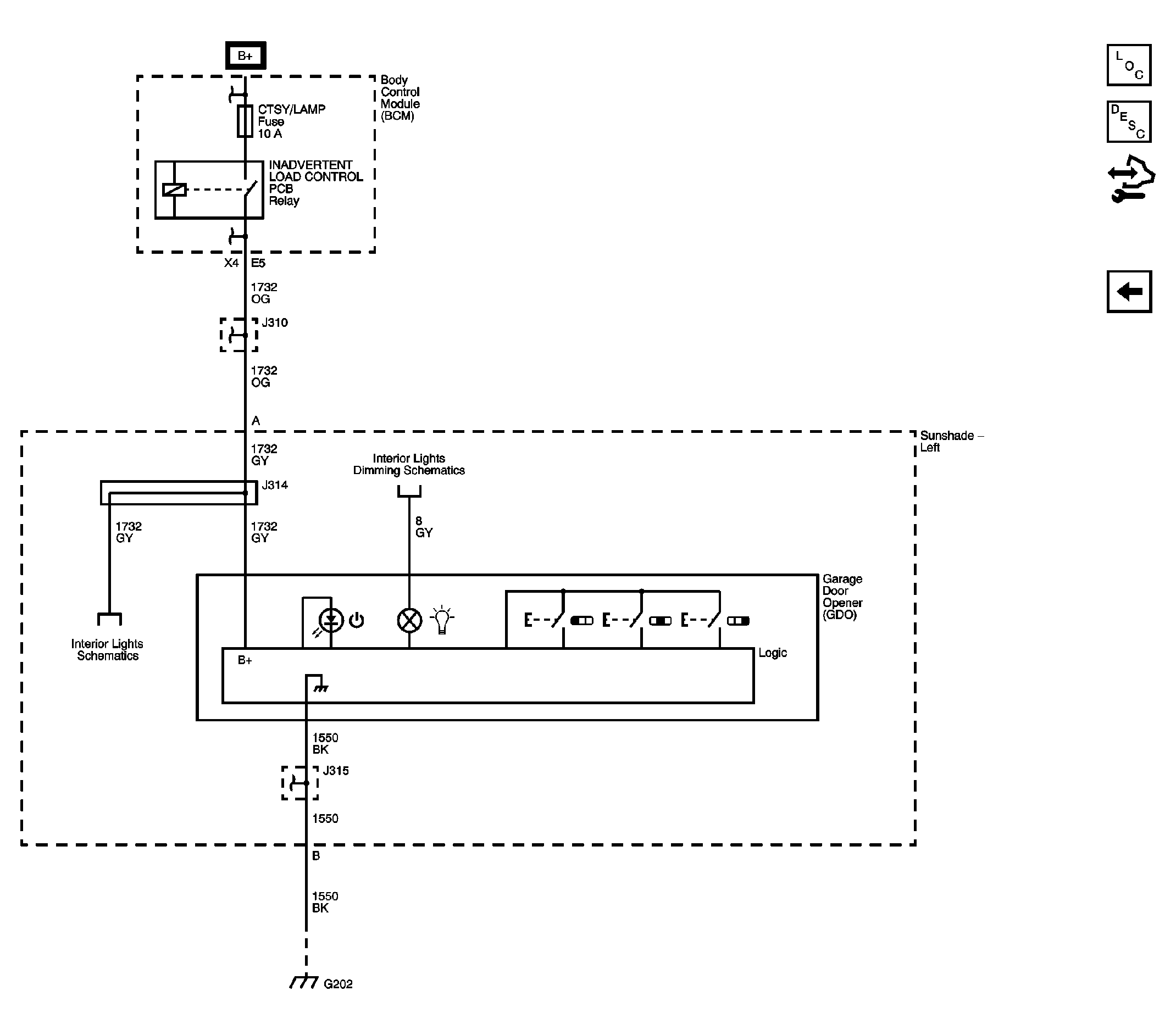

Fig 2: Garage Door Opener Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
