Shift Lock Control System Wiring Schematics

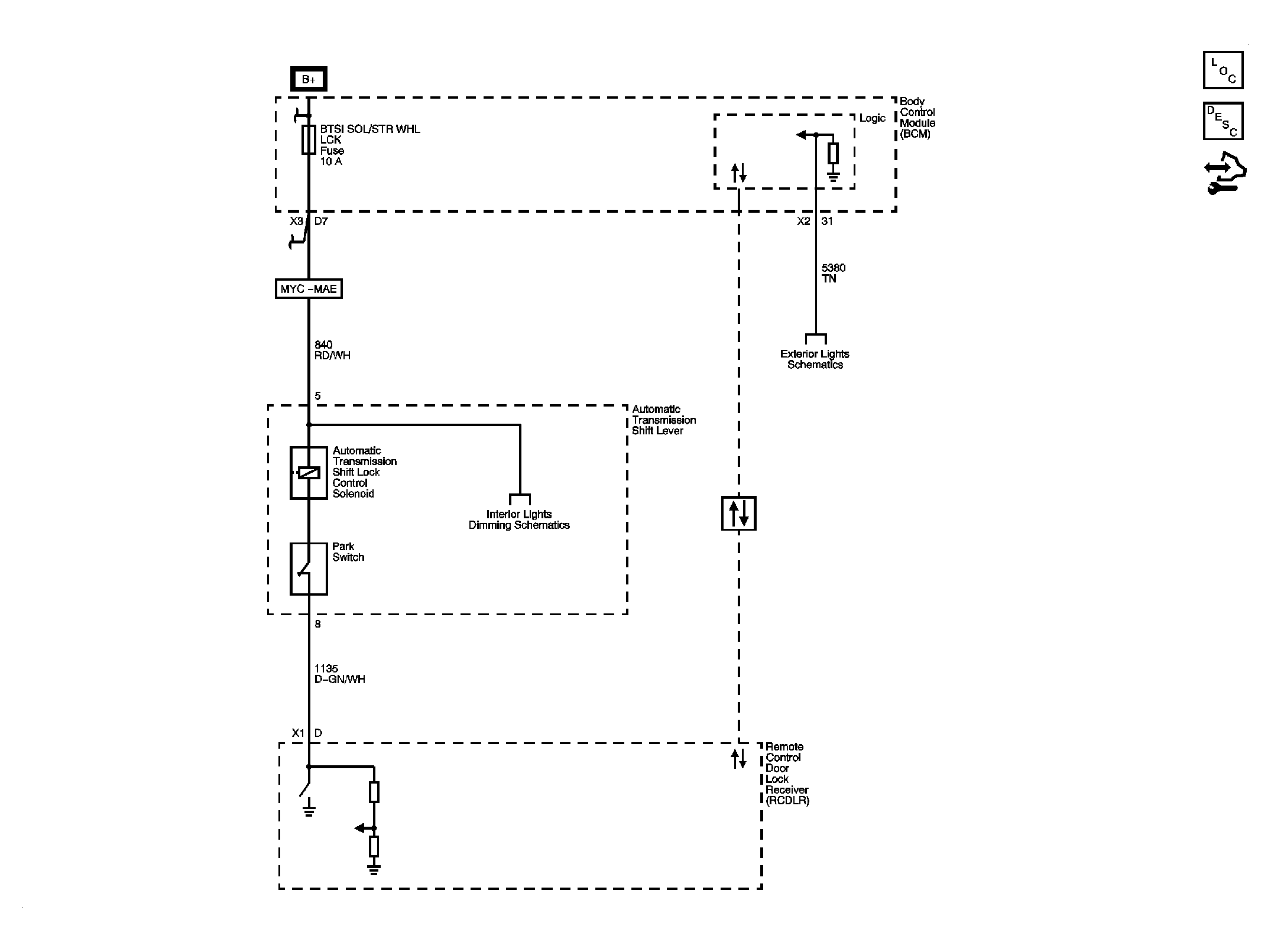

Fig 1: Shift Lock Control Wiring Schematic

GM2400166

Courtesy of GENERAL MOTORS CORP.
