Theft Deterrent Module Replacement

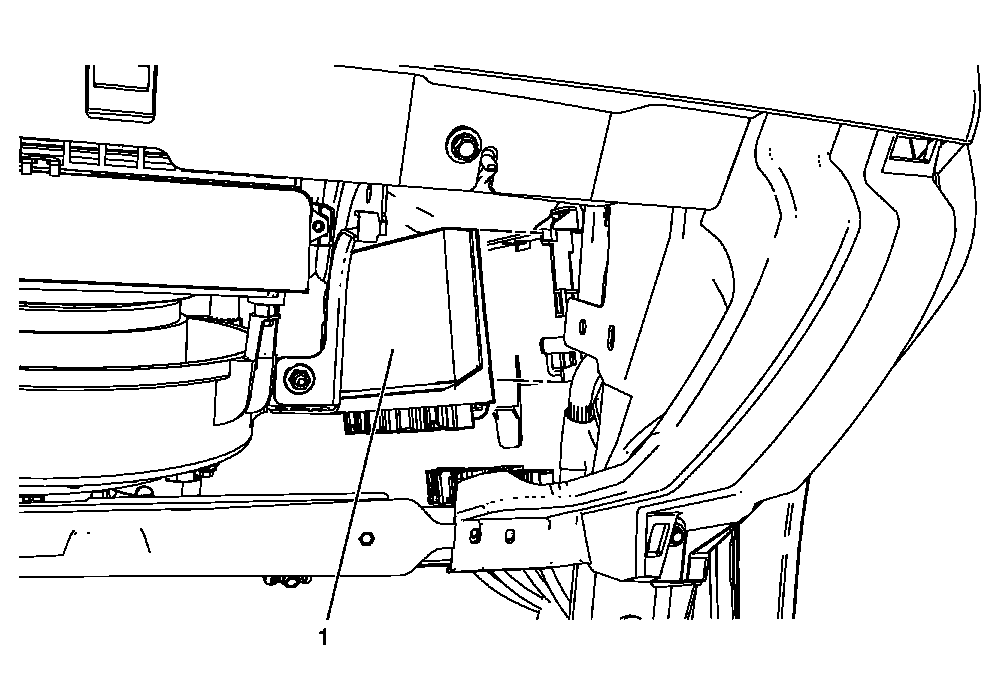

Fig 1: Theft Deterrent Module
GM2027875Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
  2. Remove the mobile telephone control module. Refer to Mobile Telephone Control Module Replacement .
    3. WARNING: Refer to Battery Disconnect Warning .
  3. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1 Theft Deterrent Module

Procedure

  1. Disconnect wiring connectors as needed.
  2. Unclip the module from the bracket.
