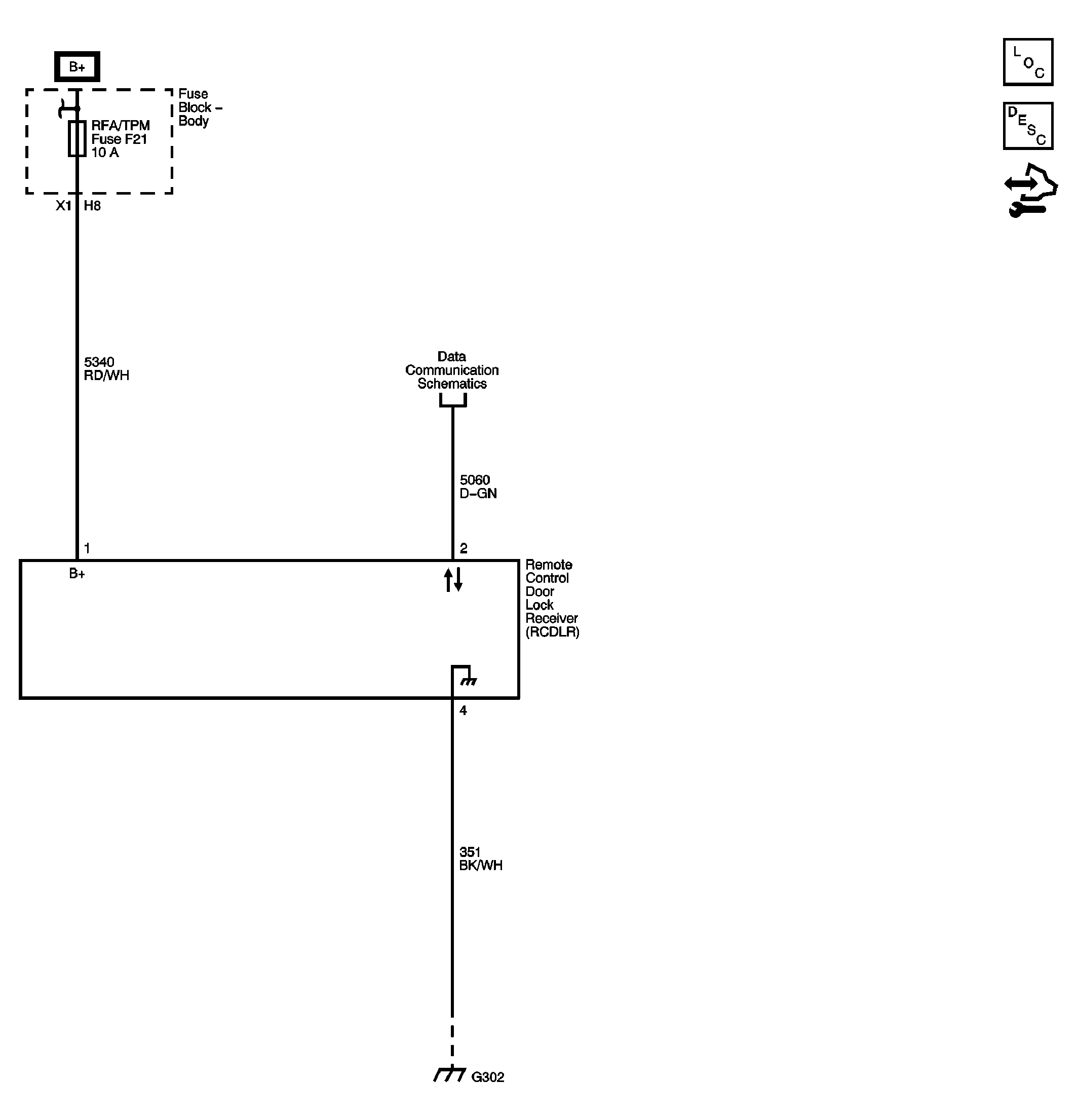

Home >> Chevrolet >> 2011 >> Cutaway 6.6 L >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Wiring Schematics >> Remote Function Wiring Schematics >> Keyless Entry
