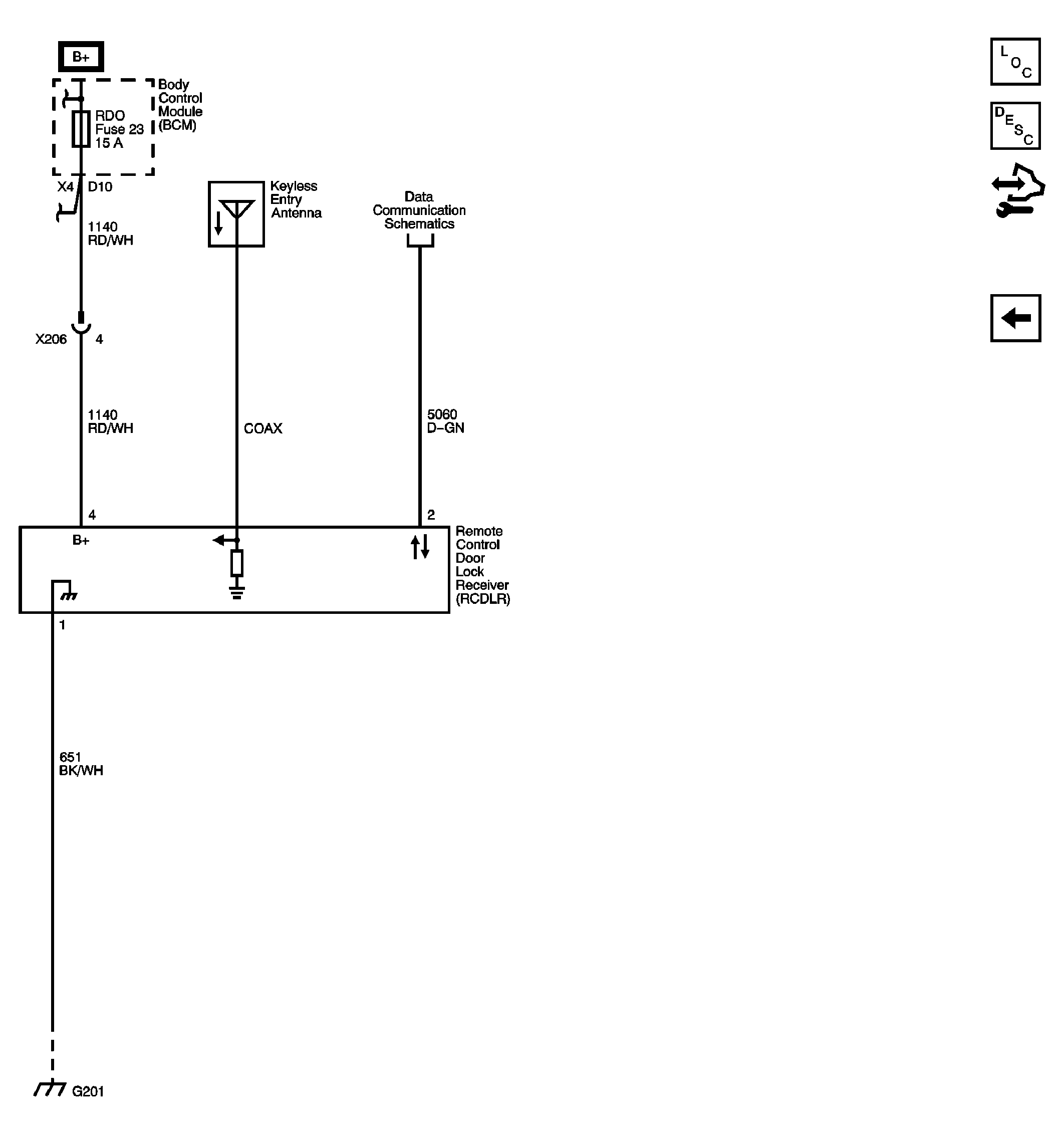

Home >> Chevrolet >> 2011 >> HHR LS, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic and Routing Diagrams >> Keyless Entry System And Remote Functions Wiring Schematics >> Keyless Entry System
