Theft Deterrent Module Replacement

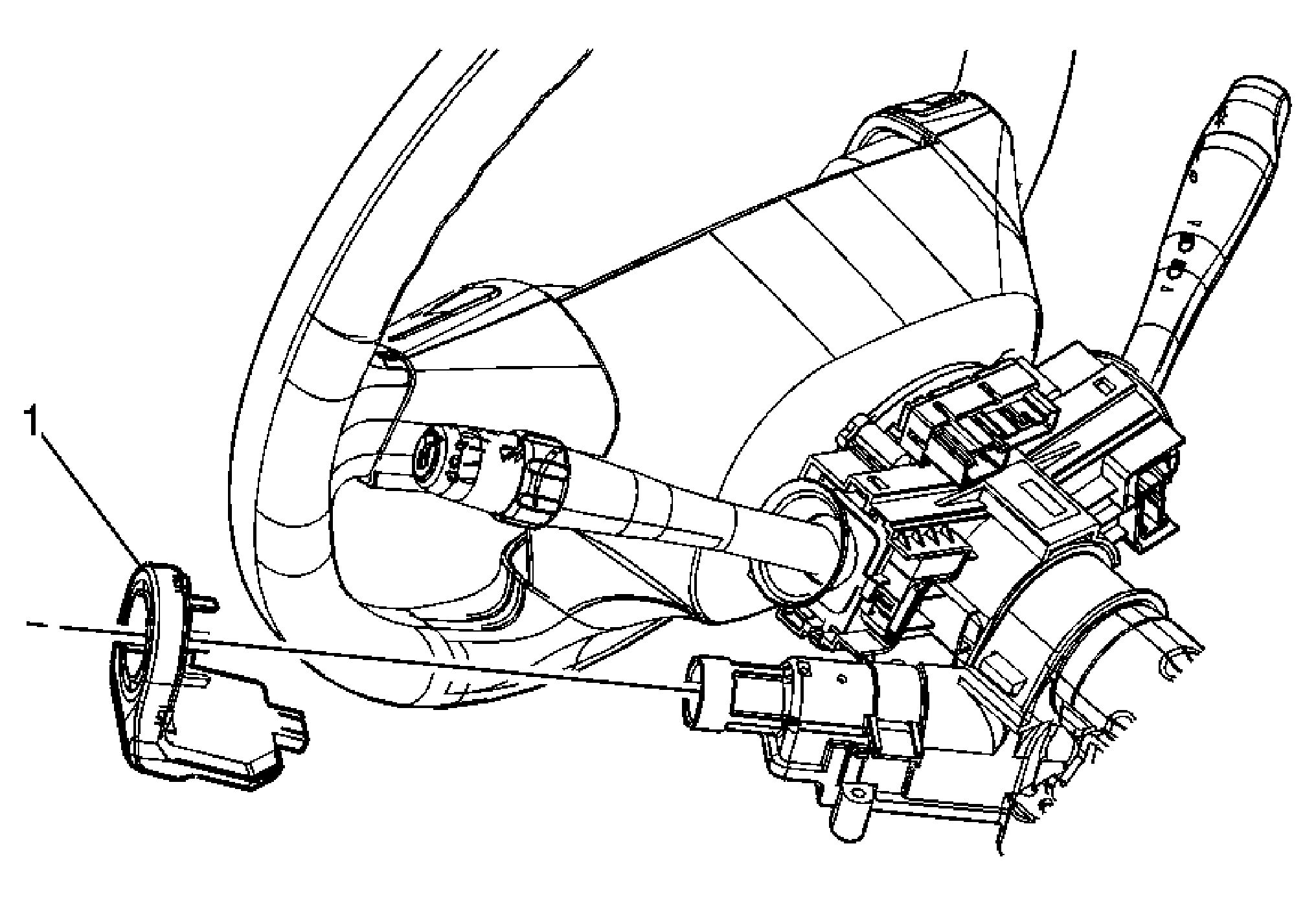

Fig 1: Theft Deterrent Module
GM1650691Courtesy of GENERAL MOTORS COMPANY
Theft Deterrent Module Replacement

Callout Component Name

Preliminary Procedure

  1. Disable the SIR. Refer to SIR Disabling and Enabling .
  2. Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
  3. Remove the ignition key and cylinder. Refer to Ignition Lock Cylinder Replacement .
1 Module Assembly, Theft Deterrent
  1. Disconnect the electrical connector.
  2. Program the theft deterrent control module after replacement. Refer to Control Module References .
