Generator Replacement

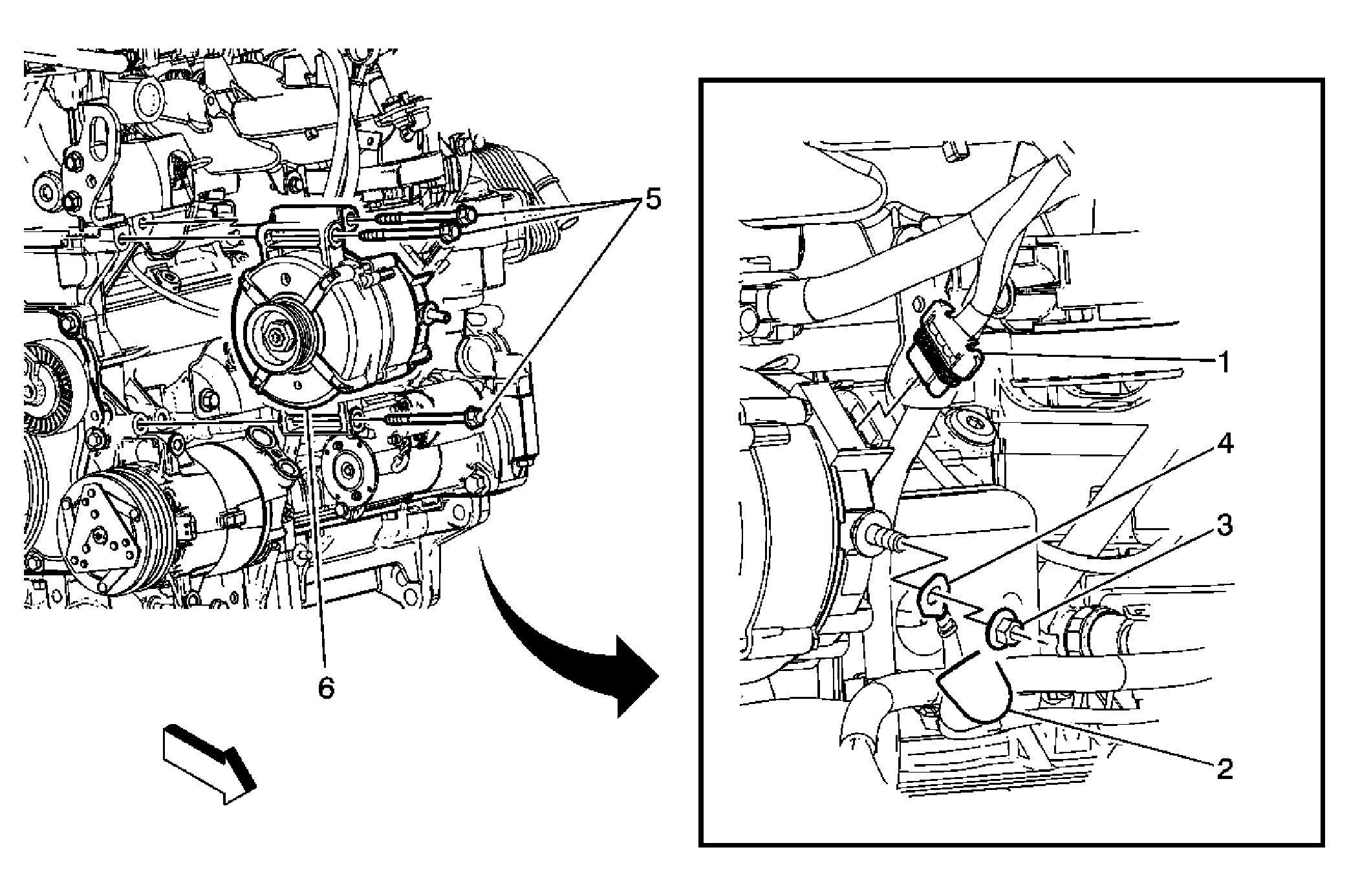

Fig 1: Generator
GM2035456Courtesy of GENERAL MOTORS COMPANY
Generator Replacement

Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the drive belt. Refer to Drive Belt Replacement .
1 Engine Harness Generator Connector
2 Engine Harness Generator Terminal Boot
3 Generator Terminal Nut
CAUTION:

Refer to Fastener Caution .


Tighten
20 N.m (15 lb ft)
4 Engine Harness Generator Connector
5 Generator Bolt (Qty: 3)
Tighten
22 N.m (16 lb ft)
6 Generator
