Fuel Tank Pressure Sensor Replacement

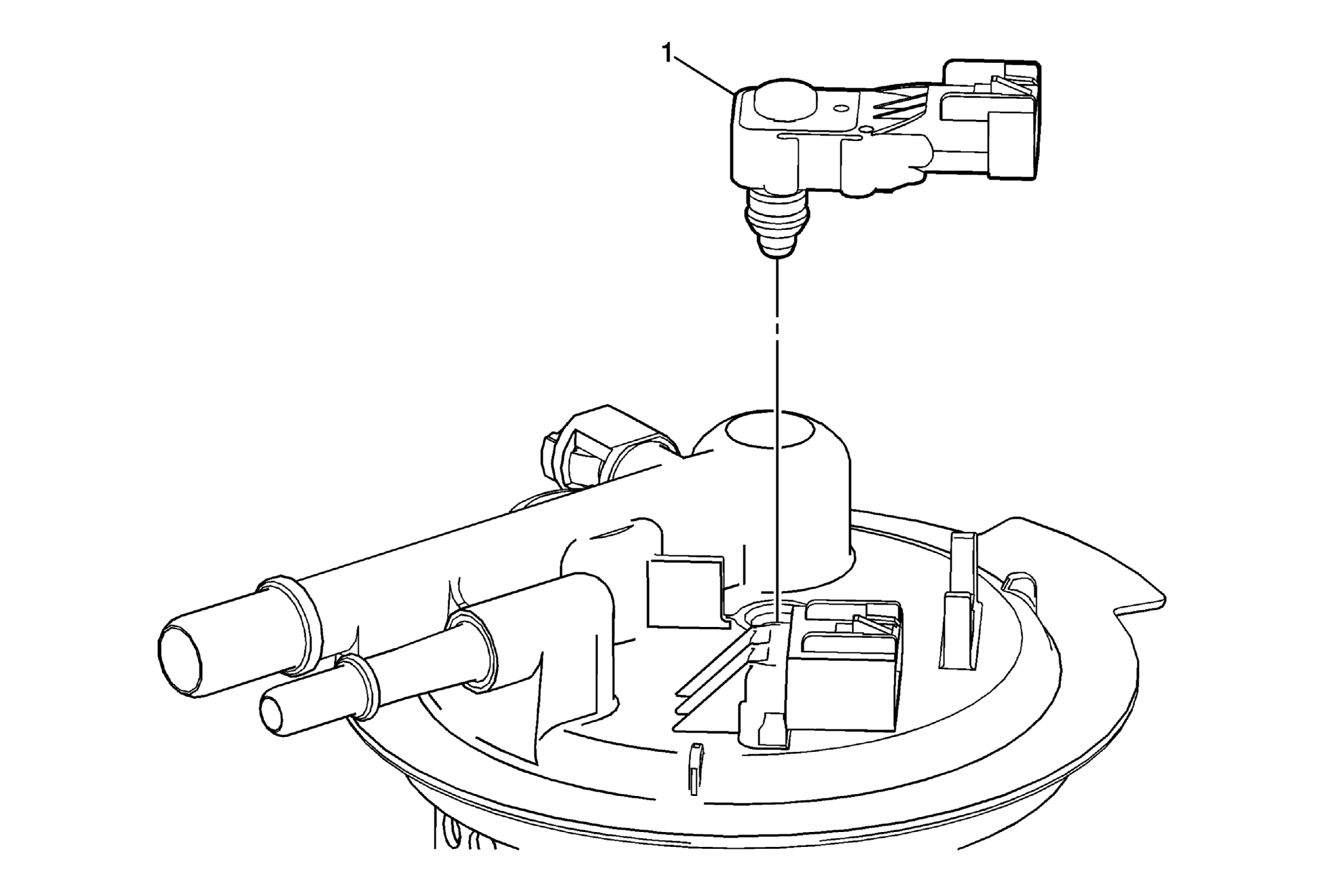

Fig 1: Identifying Fuel Tank Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Tank Pressure Sensor Procedure:  Disconnect the electrical connector.
