Body Control System Wiring Schematics

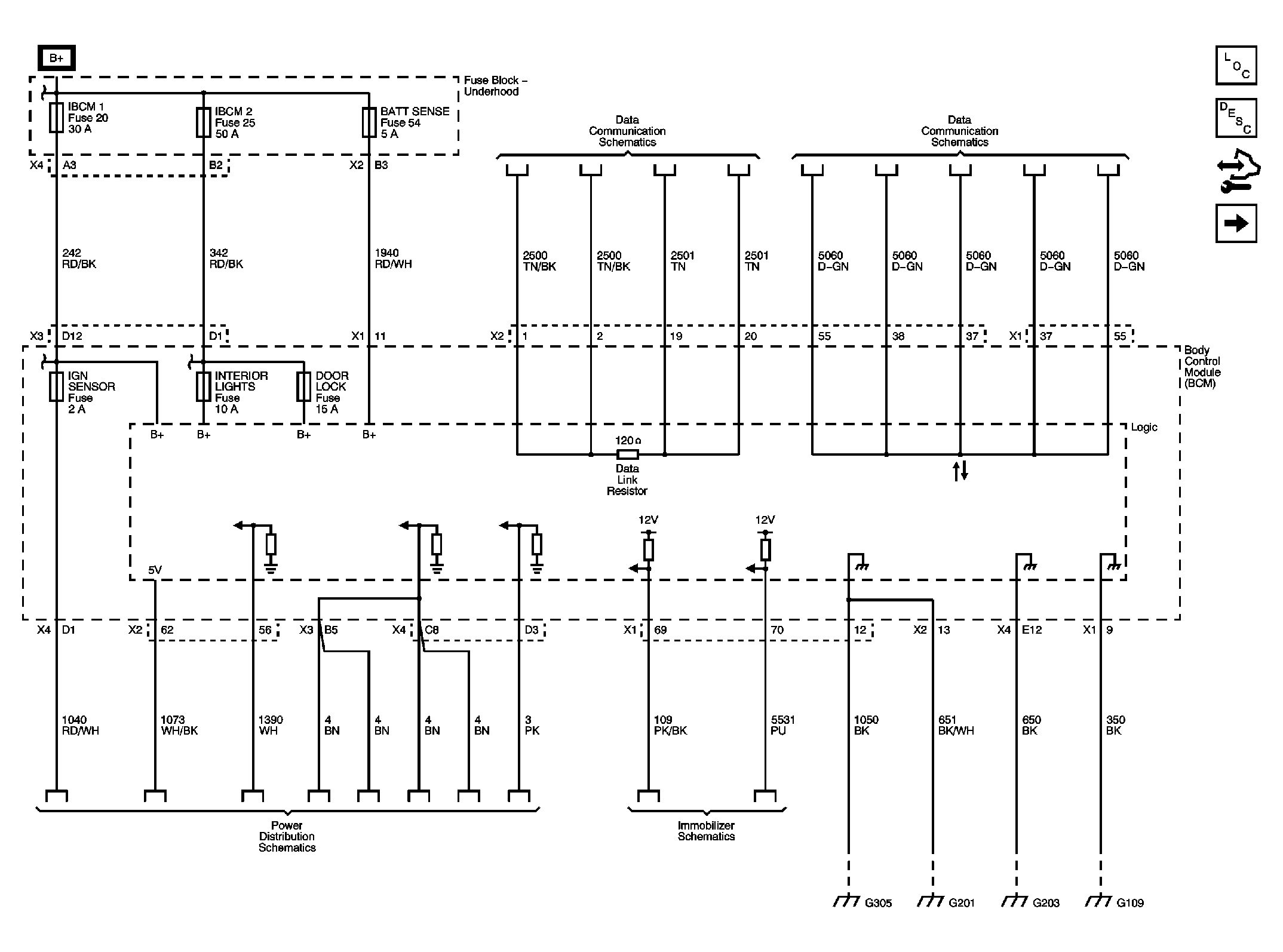

Fig 1: Power, Ground, and DLC Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

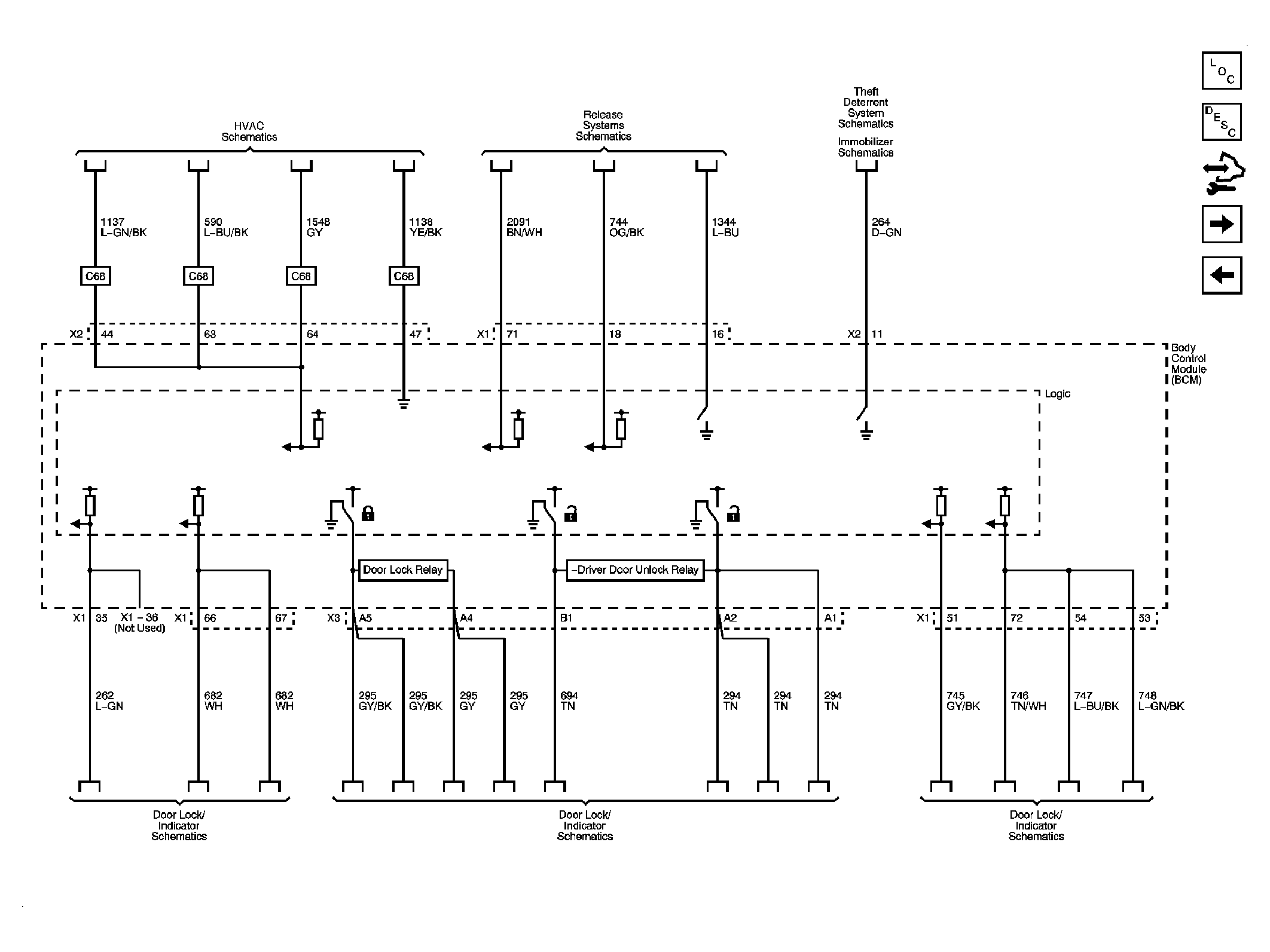

Fig 2: Monitored/Controlled Subsystem References Wiring Schematic (1 of 3)

Courtesy of GENERAL MOTORS CORP.

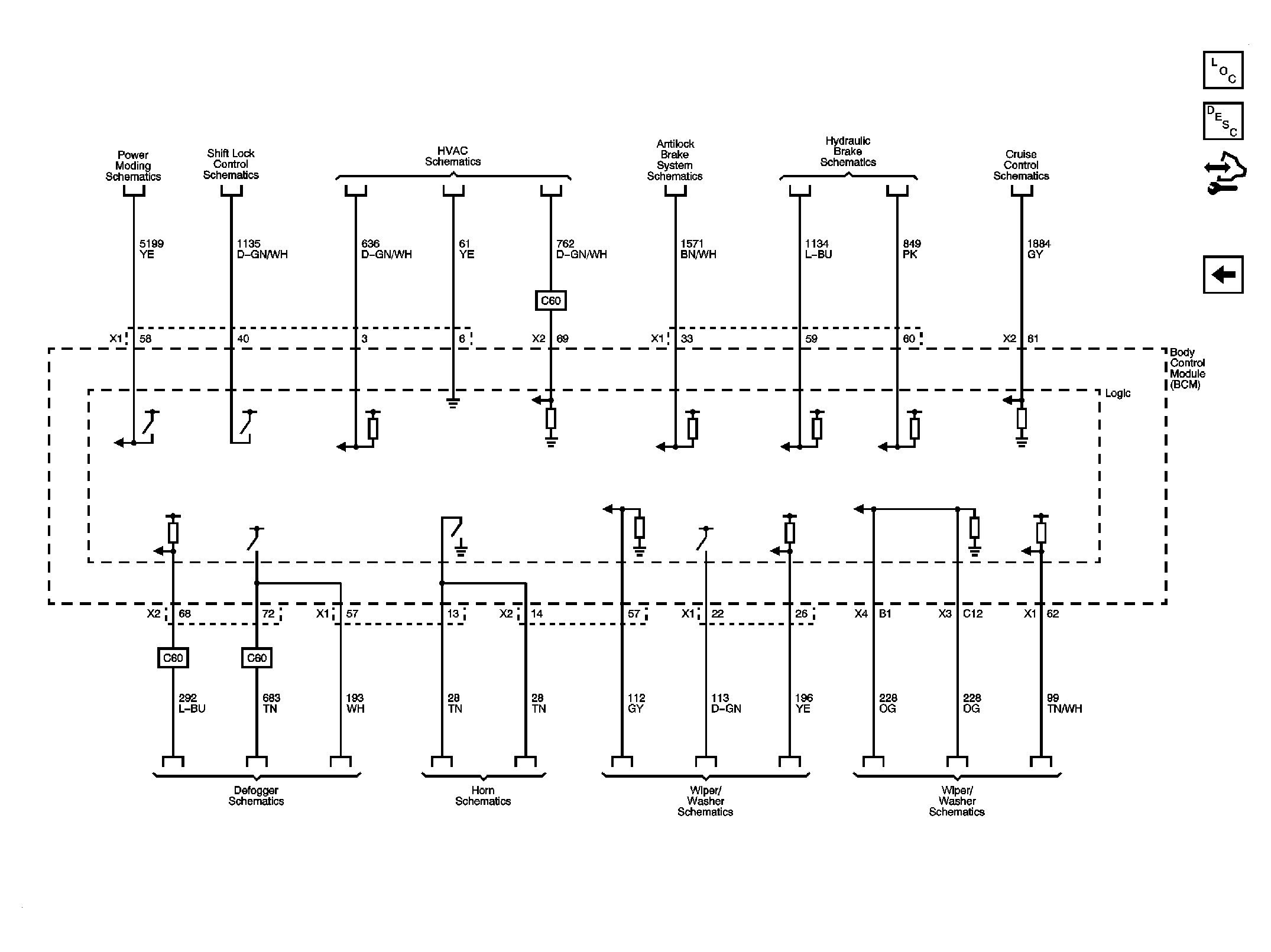

Fig 3: Monitored/Controlled Subsystem References Wiring Schematic (2 of 3)

Courtesy of GENERAL MOTORS CORP.

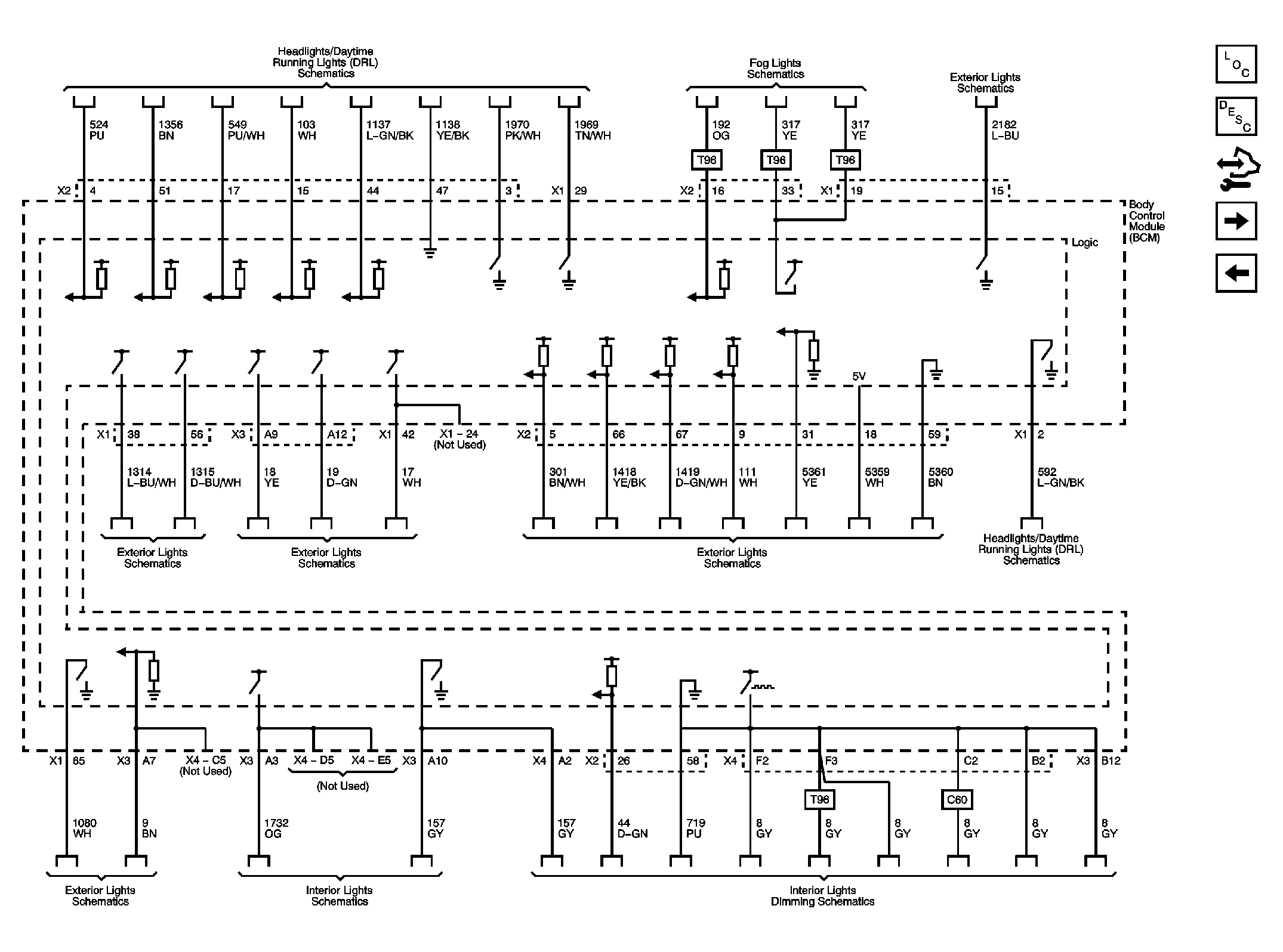

Fig 4: Monitored/Controlled Subsystem References Wiring Schematic (3 of 3)

Courtesy of GENERAL MOTORS CORP.
