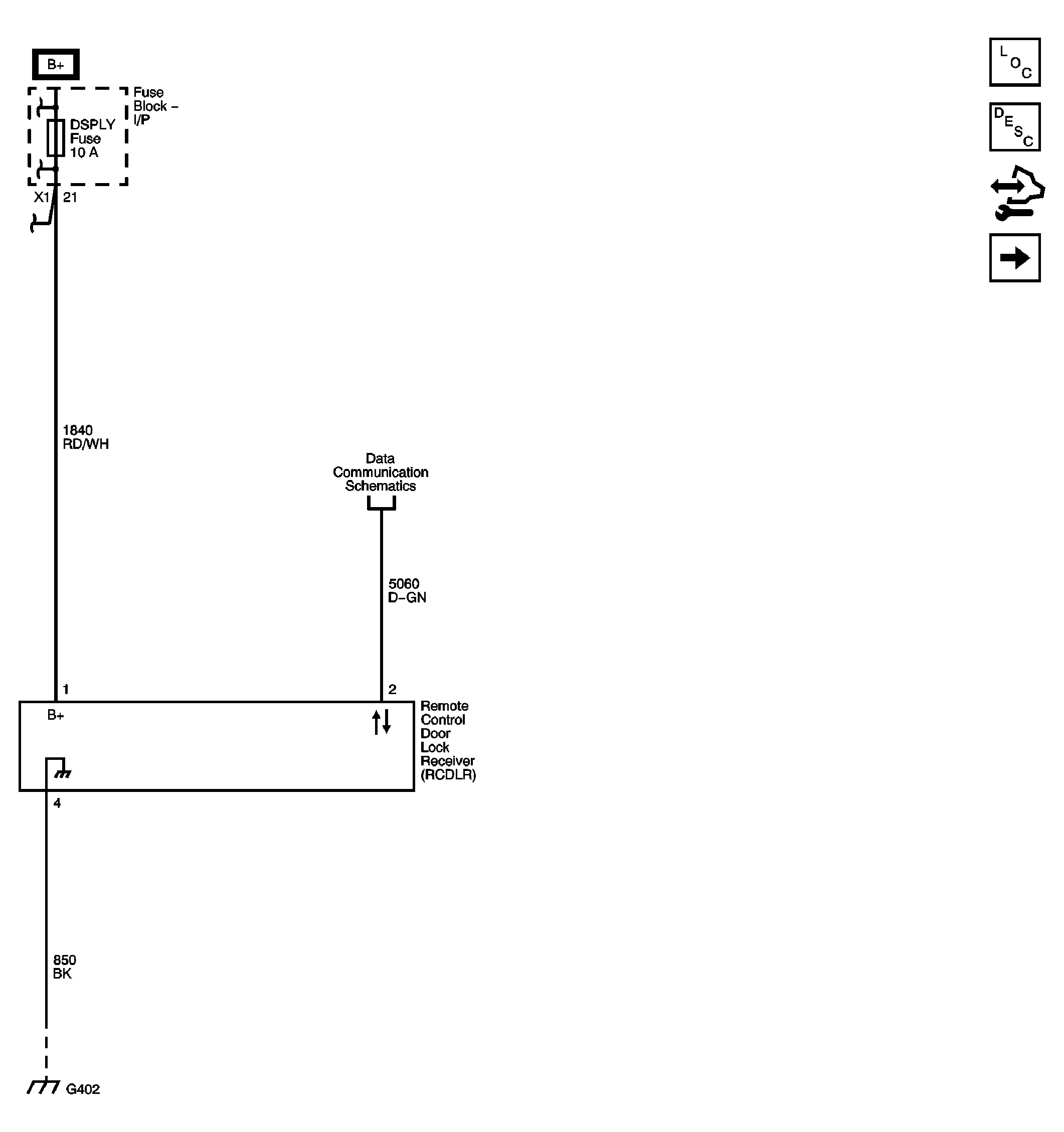

Home >> Chevrolet >> 2011 >> Traverse LS, FWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Wiring Schematics >> Keyless Entry System And Remote Function System Wiring Schematics >> Keyless Entry
