Shift Lock Control Wiring Schematics

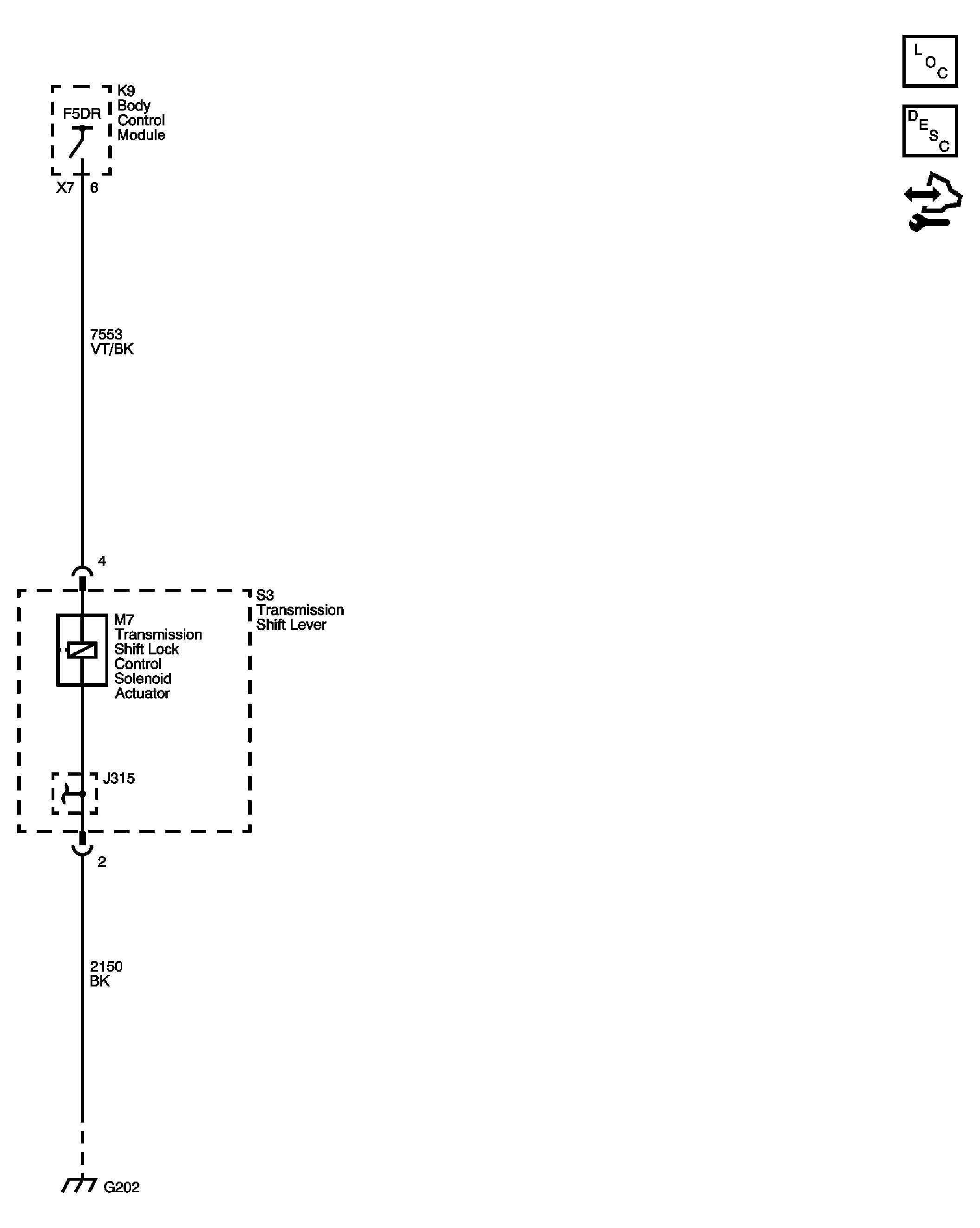

Fig 1: Shift Lock Wiring Schematic

GM2489899

Courtesy of GENERAL MOTORS CORP.
