Theft Deterrent Module Replacement

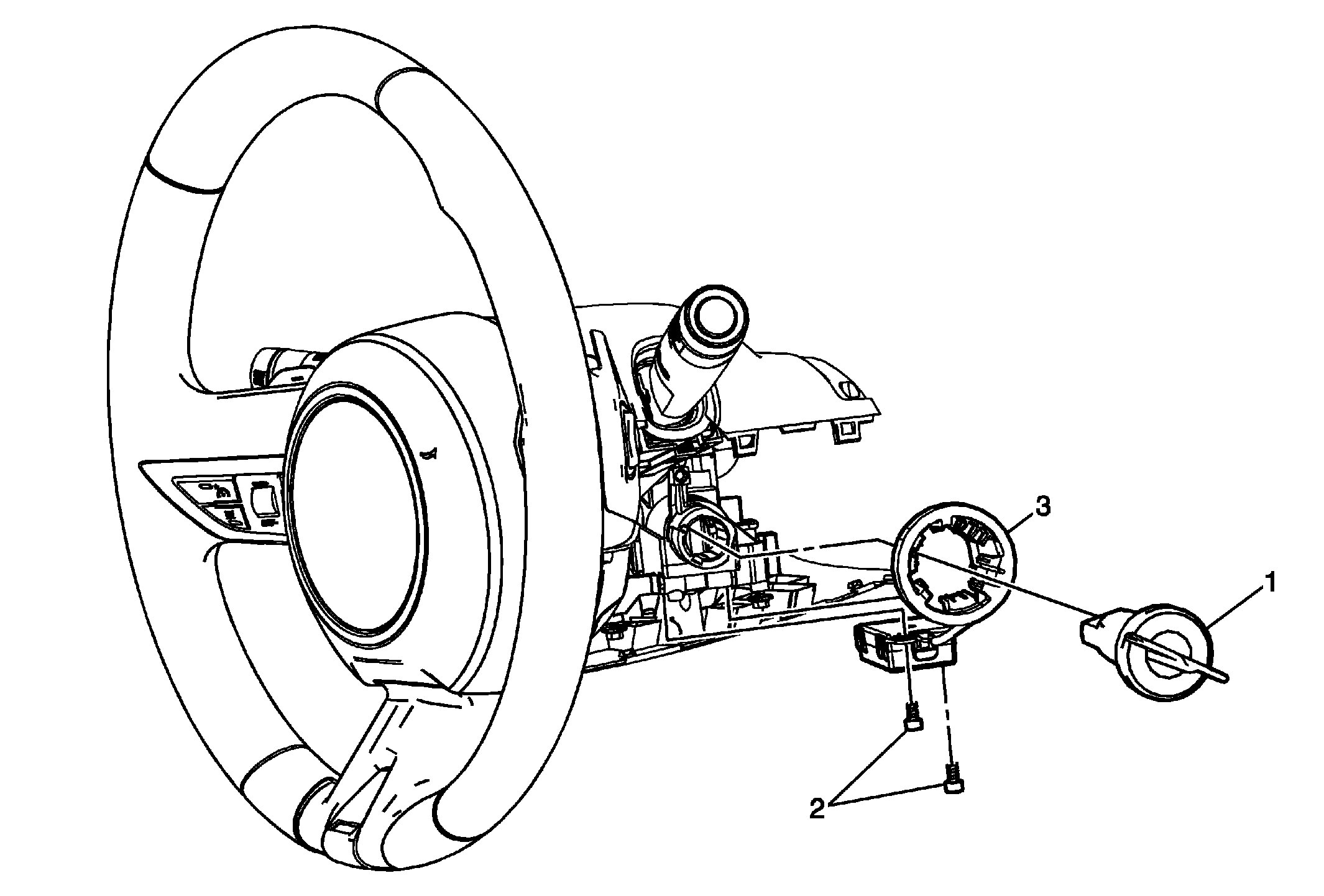

Fig 1: Theft Deterrent Module, Bolts And Ignition Lock Cylinder
GM2201885Courtesy of GENERAL MOTORS COMPANY
Theft Deterrent Module Replacement

Callout Component Name
Preliminary Procedure
Remove the steering column shrouds. Refer to Steering Column Shroud Replacement .
1 Ignition Lock Cylinder
Refer to Ignition Lock Cylinder Replacement
2 Theft Deterrent Module Bolt/Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
3 Theft Deterrent Module

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for programming and set up procedures.
