Installation Procedure

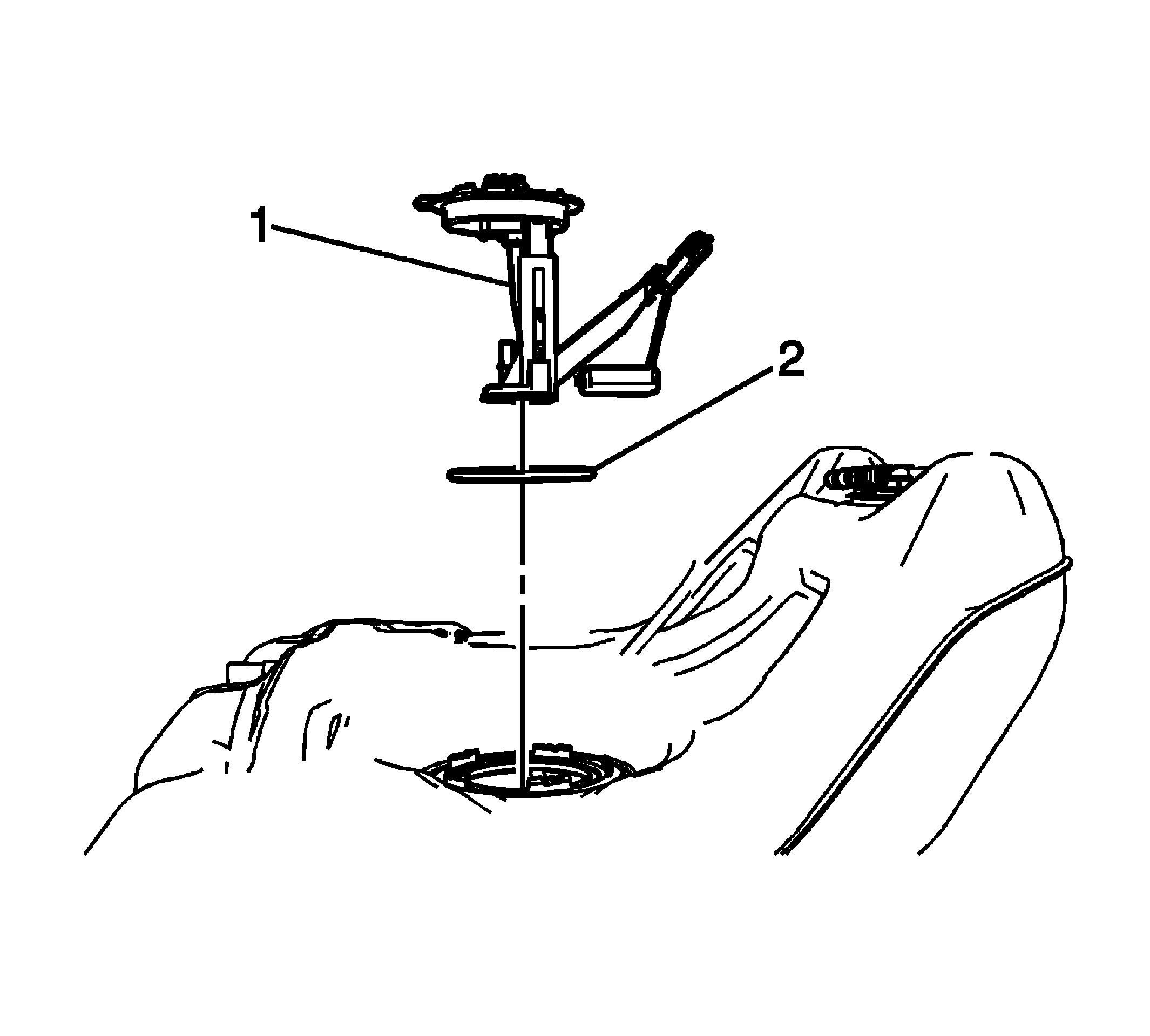

    Fig 1: Secondary Fuel Tank Module & Seal
    GM2195525Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW seal (2).

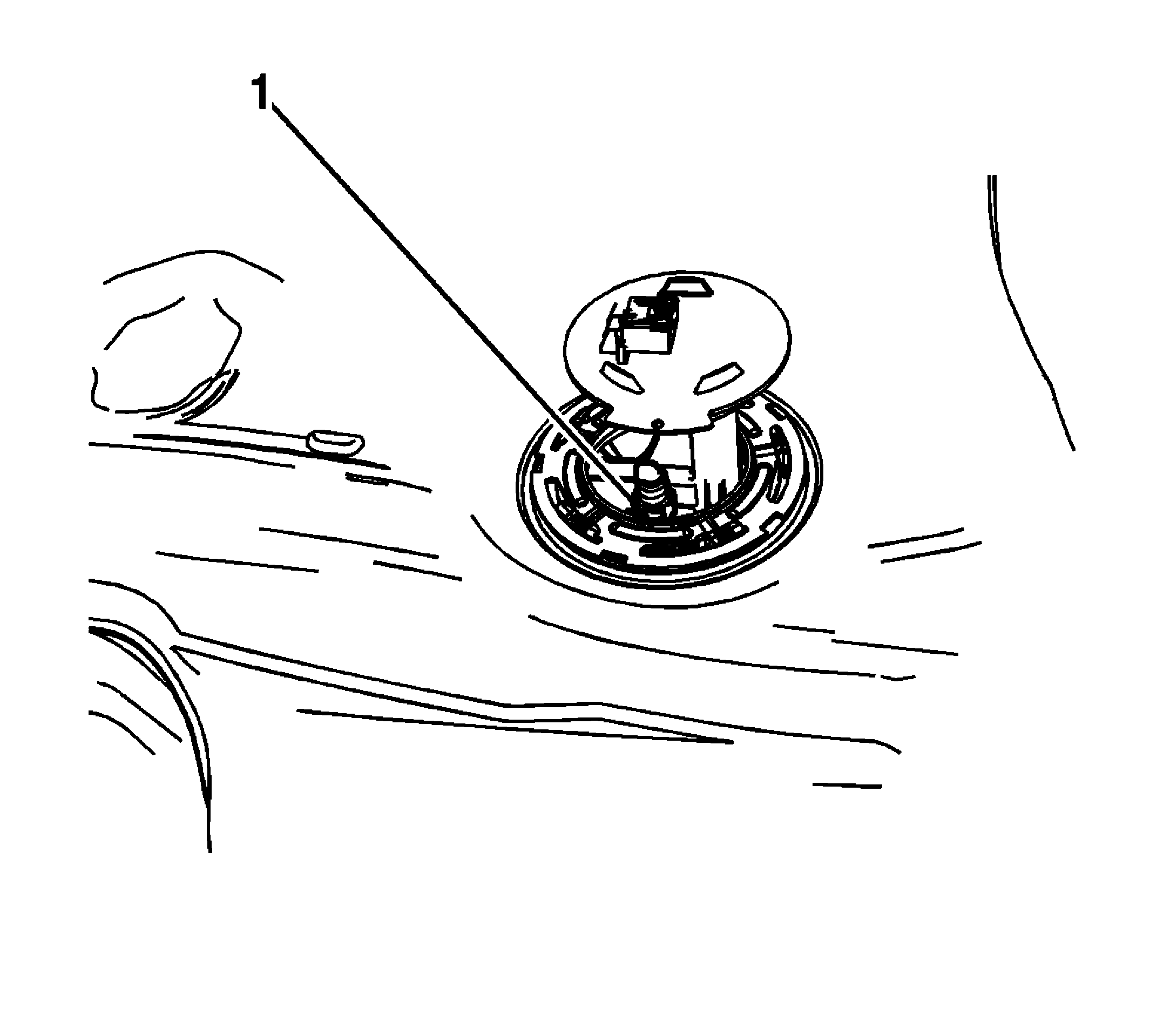

    2. Fig 2: Fuel Transfer Hose Quick Connect Fitting
    GM2195521Courtesy of GENERAL MOTORS COMPANY
  2. Partially install the secondary fuel pump module in order to connect the fuel transfer hose quick connect fitting (1). Refer to Plastic Collar Quick Connect Fitting Service .

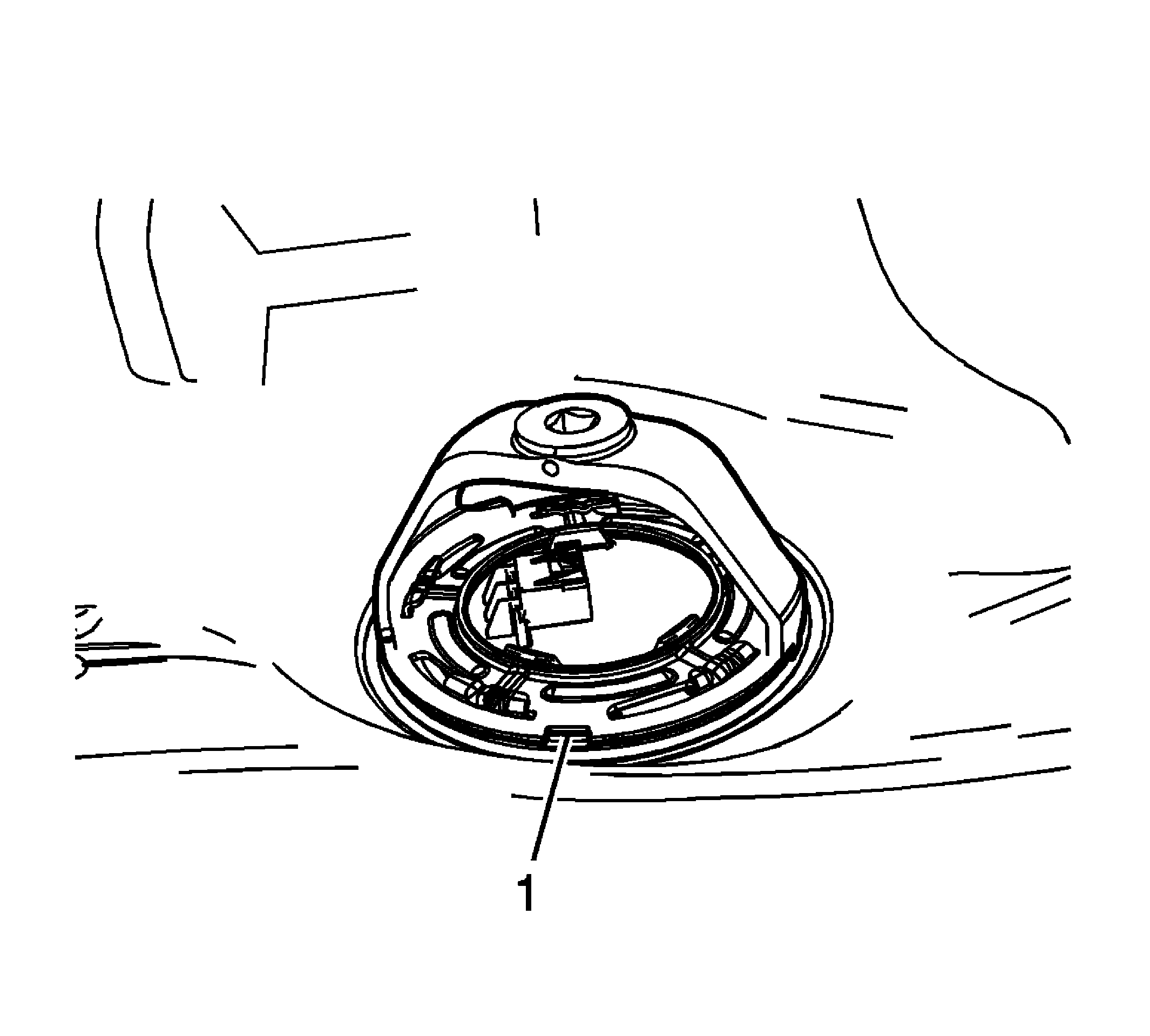

    3. Fig 3: Lock Ring
    GM2195514Courtesy of GENERAL MOTORS COMPANY
  3. Rotate the lock ring (1) clockwise using the CH-48482  wrench and install the lock ring.

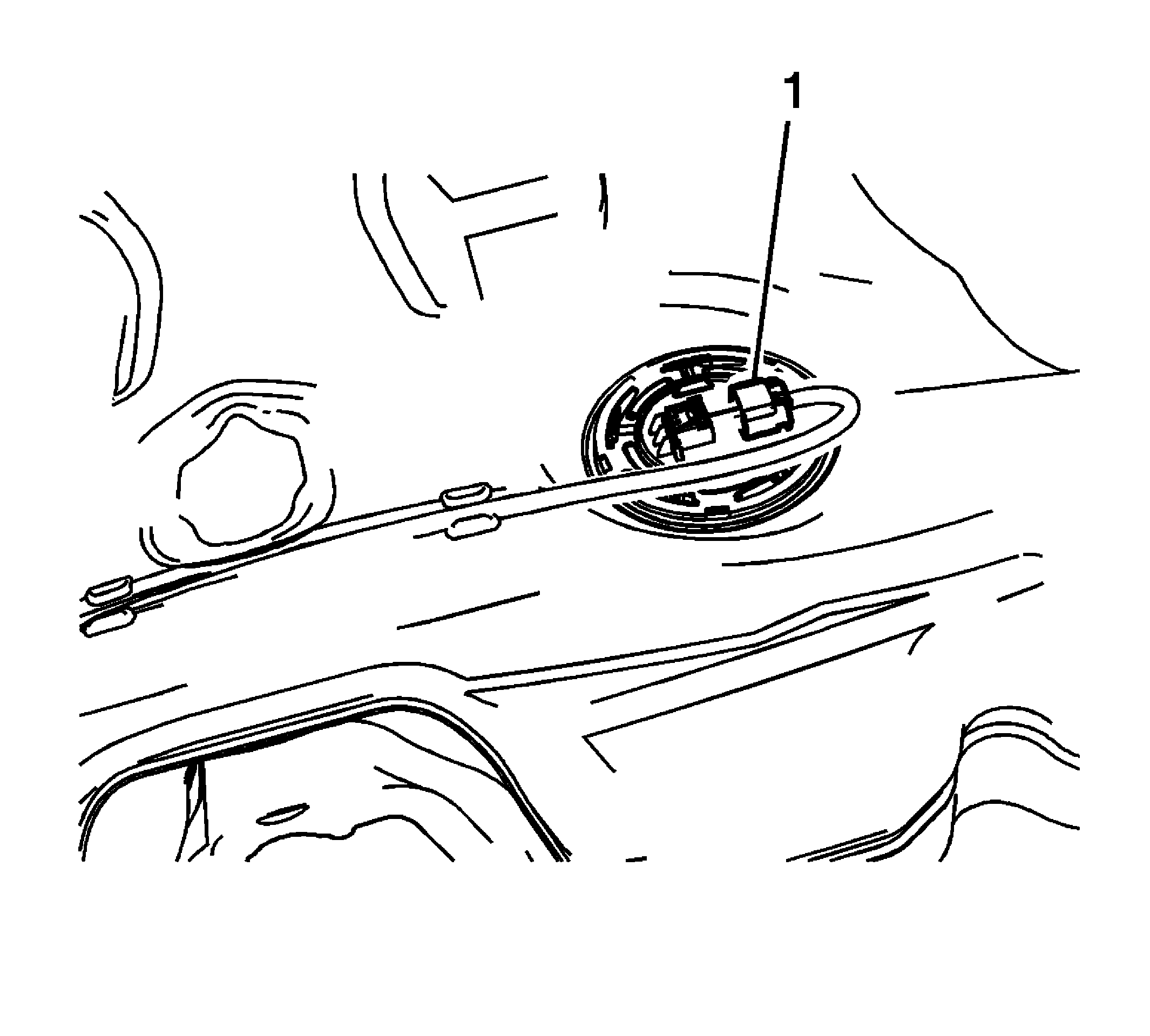

    4. Fig 4: Secondary Fuel Tank Module Electrical Connector
    GM2195512Courtesy of GENERAL MOTORS COMPANY
  4. Connect the secondary fuel tank module electrical connector (1).
  5. Install the fuel tank. Refer to Fuel Tank Replacement .
