Fuel Level Sensor Replacement - Right Side

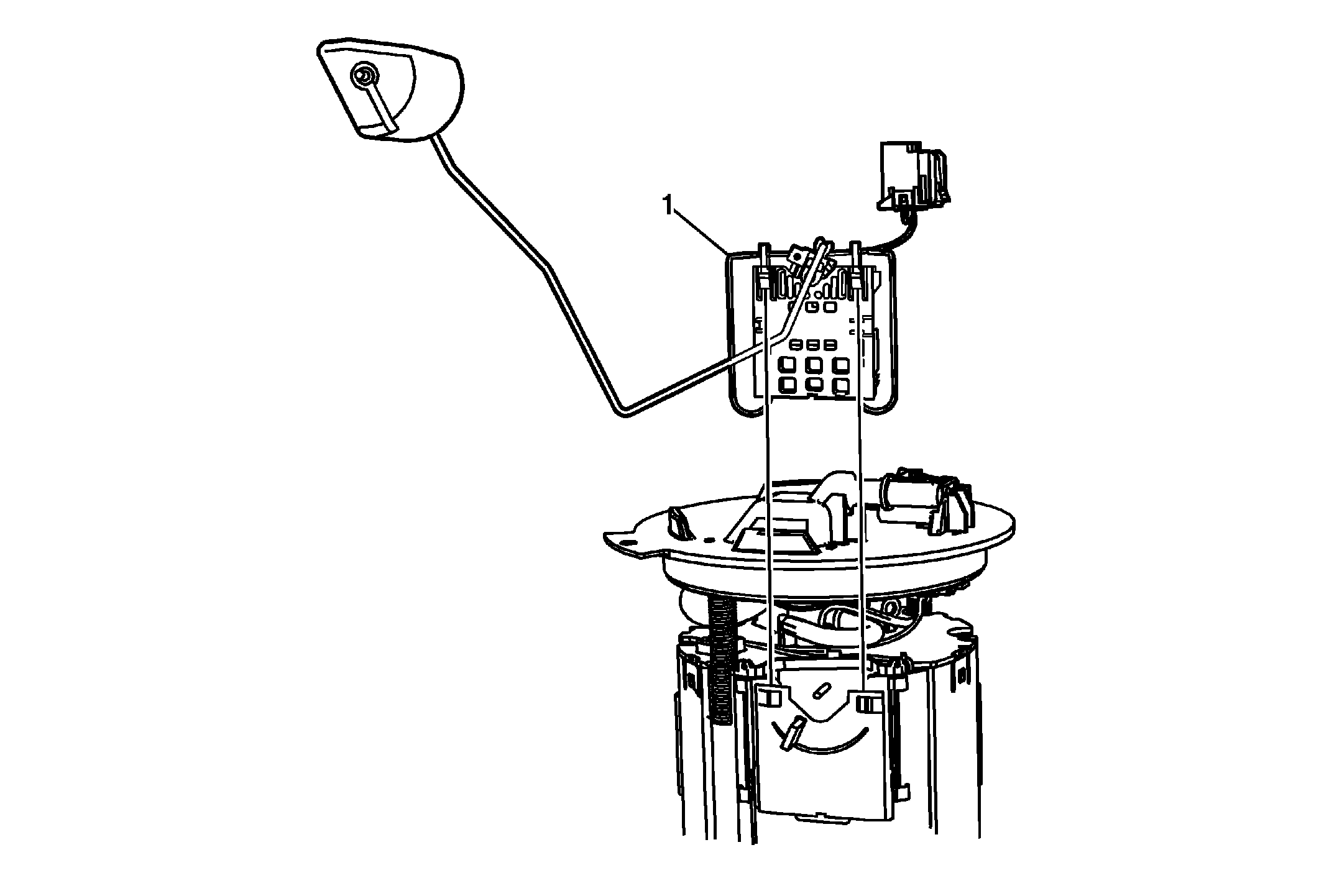

Fig 1: Fuel Level Sensor - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel pump module-right side. Refer to Fuel Tank Fuel Pump Module Replacement - Right Side .
1	Fuel Level Sensor Procedure Push the plastic tabs forward and simultaneously pull upwards. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the fuel pump module-right side. Refer to Fuel Tank Fuel Pump Module Replacement - Right Side .

Fuel Level Sensor

Procedure
