Throttle Body Assembly Replacement

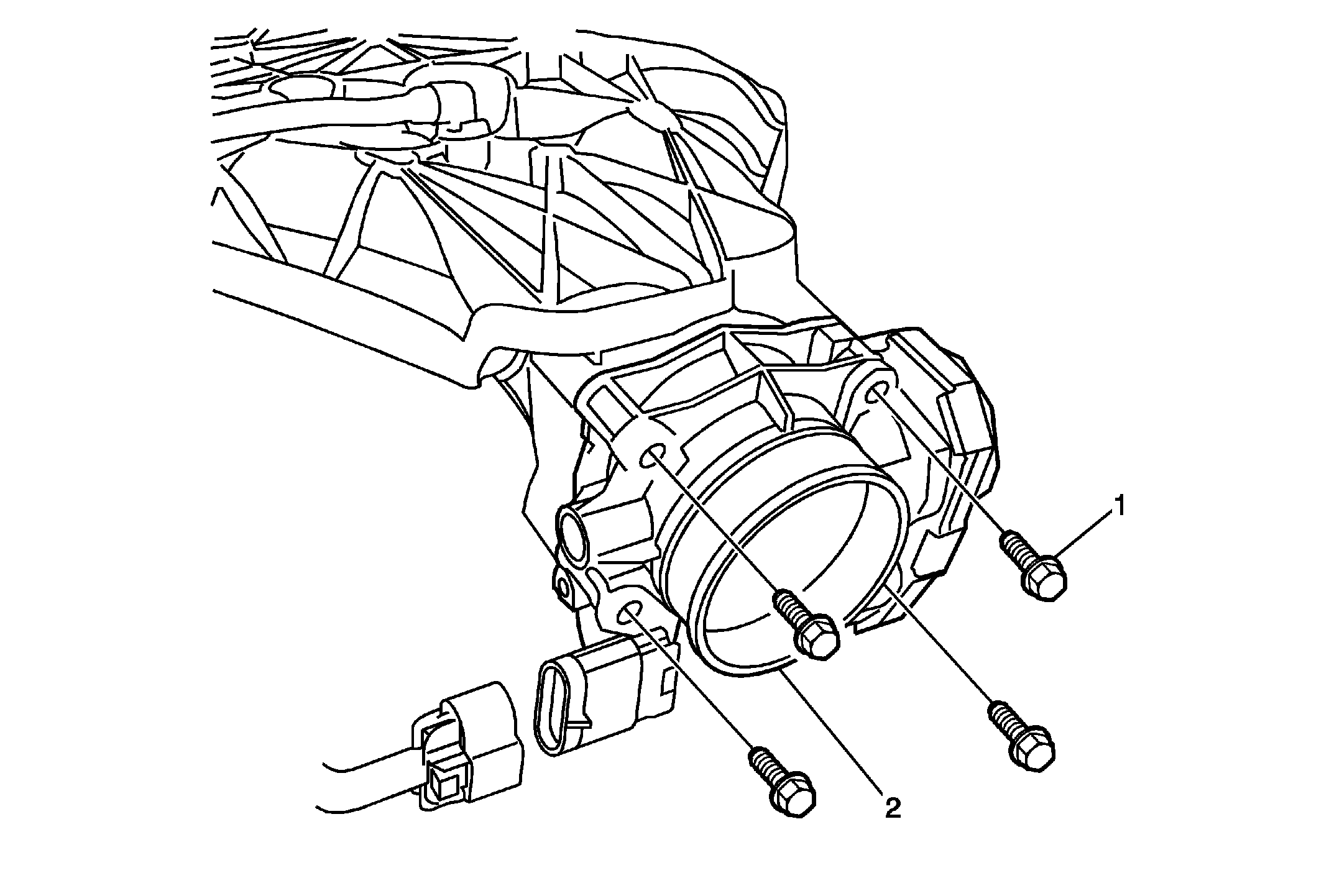

Fig 1: Throttle Body Assembly & Fasteners
GM2350097Courtesy of GENERAL MOTORS COMPANY
Throttle Body Assembly Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the fuel injector sight shield.
  2. Remove the outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1 Throttle Body Assembly Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Throttle Body Assembly

Procedure

  1. Install a NEW throttle body seal.
  2. Disconnect the electrical connectors.
  3. Perform the throttle learn procedure. Refer to Control Module References .
