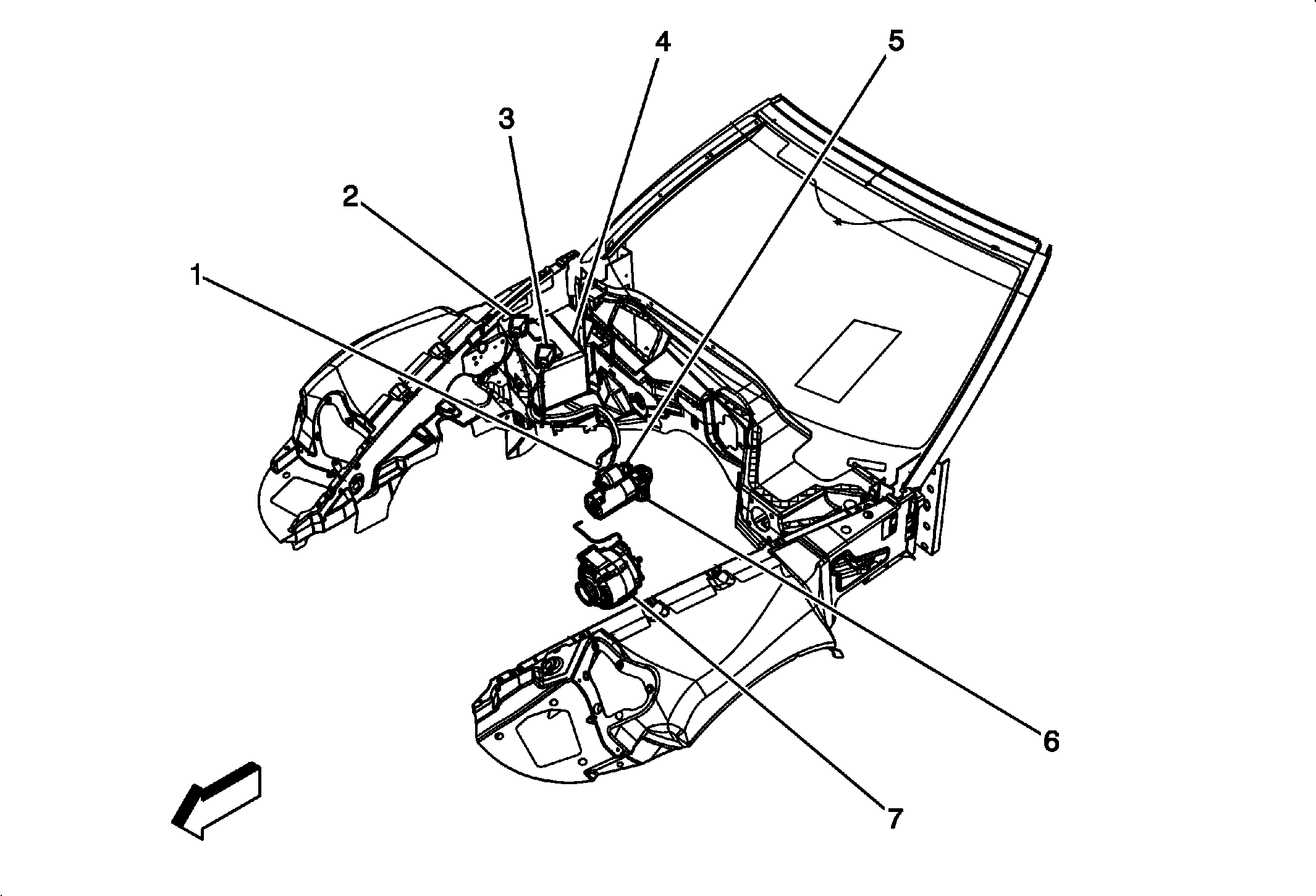

Engine Compartment Electrical Components
Engine Compartment Electrical Components
| Component Name |
Callout |
| G106 |
1 |
| Battery Positive Cable |
2 |
| Battery Negative Cable |
3 |
| Battery (LS3 without Z52) |
4 |
| Starter Solenoid |
5 |
| Starter Motor |
6 |
| Generator (LS3 or LS7) |
7 |
Courtesy of GENERAL MOTORS COMPANY
