Installation Procedure

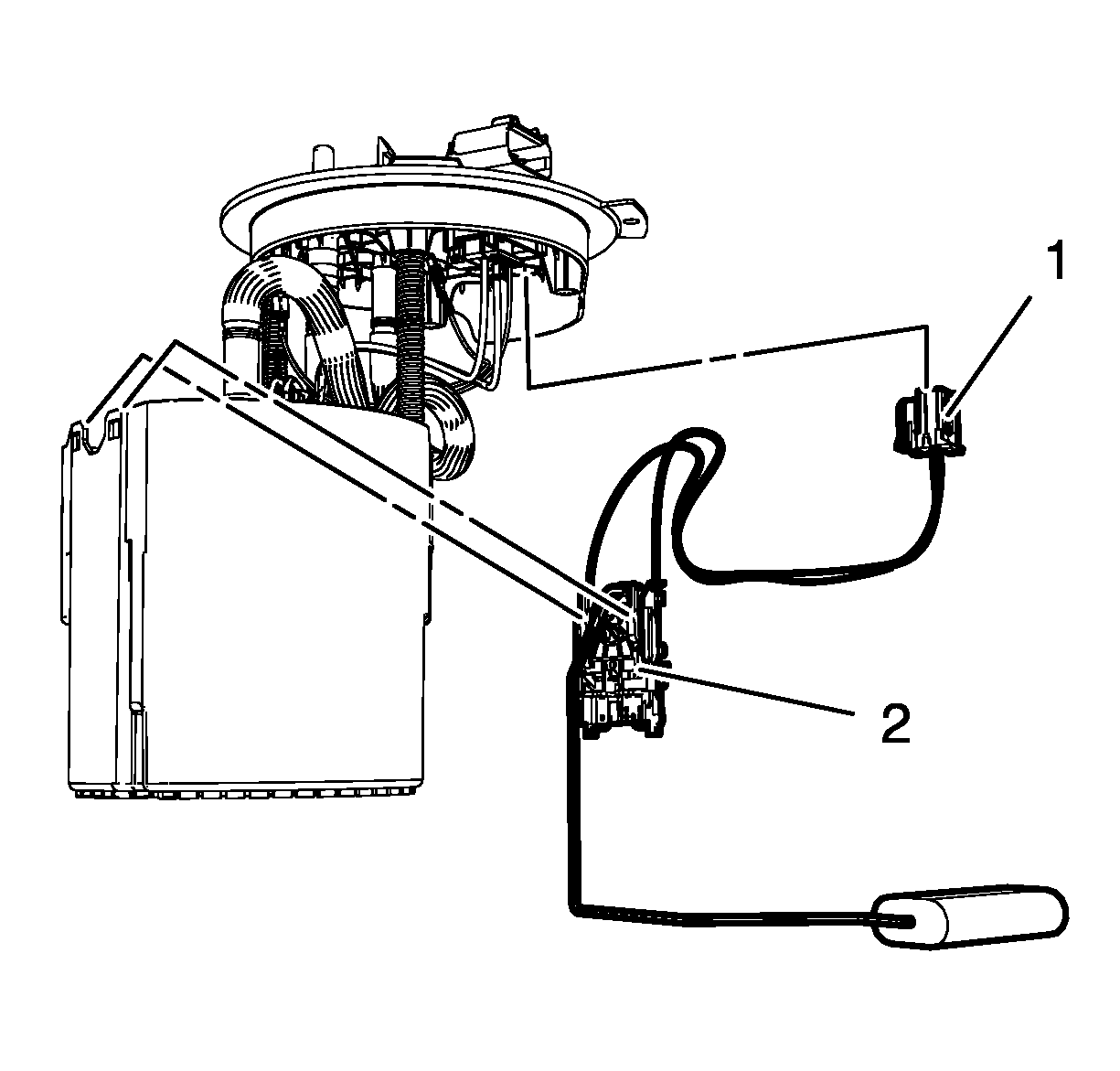

    Fig 1: Fuel Sender Assembly
    GM2189327Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel sender assembly (2).
  2. Clip in the 2 fuel sender retainer pins.
  3. Connect the fuel sender assembly wiring harness plug (1).
  4. Assemble and install the fuel tank. Refer to Fuel Tank Fuel Pump Module Replacement .
