Manifold Absolute Pressure Sensor Replacement

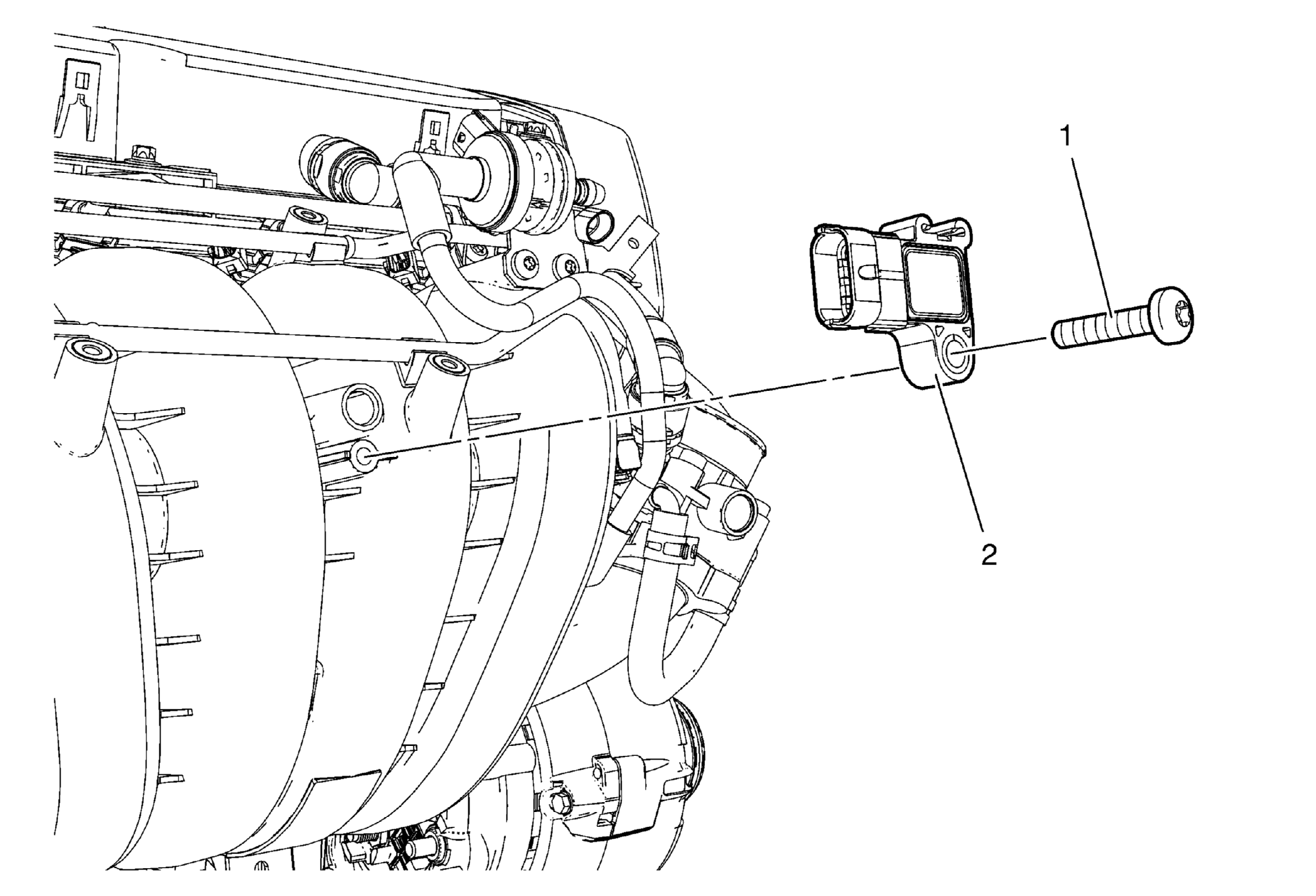

Fig 1: Manifold Absolute Pressure Sensor (1.8L LUW)

Courtesy of GENERAL MOTORS COMPANY

Manifold Absolute Pressure Sensor Replacement

Callout	Component Name
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Manifold Absolute Pressure Sensor Procedure  Disconnect the electrical connector.
