Spark Plug Replacement
Spark Plug Replacement

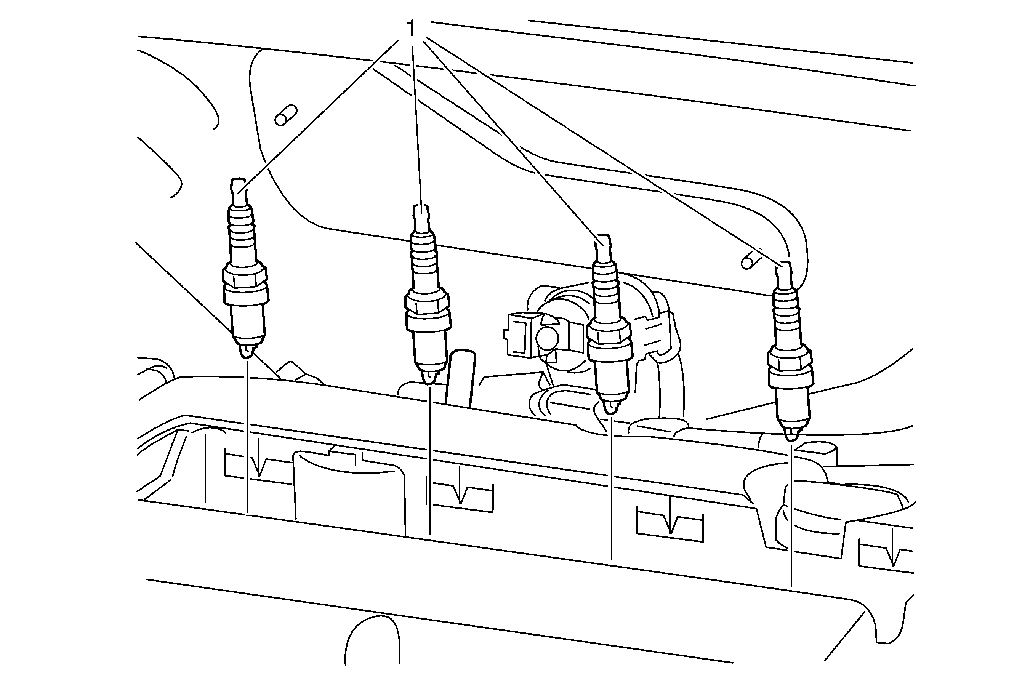

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the ignition coil. Refer to Ignition Coil Replacement . |
|
| 1 | Spark Plug Fastener
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
