Shift Lock Control Wiring Schematics: MH8

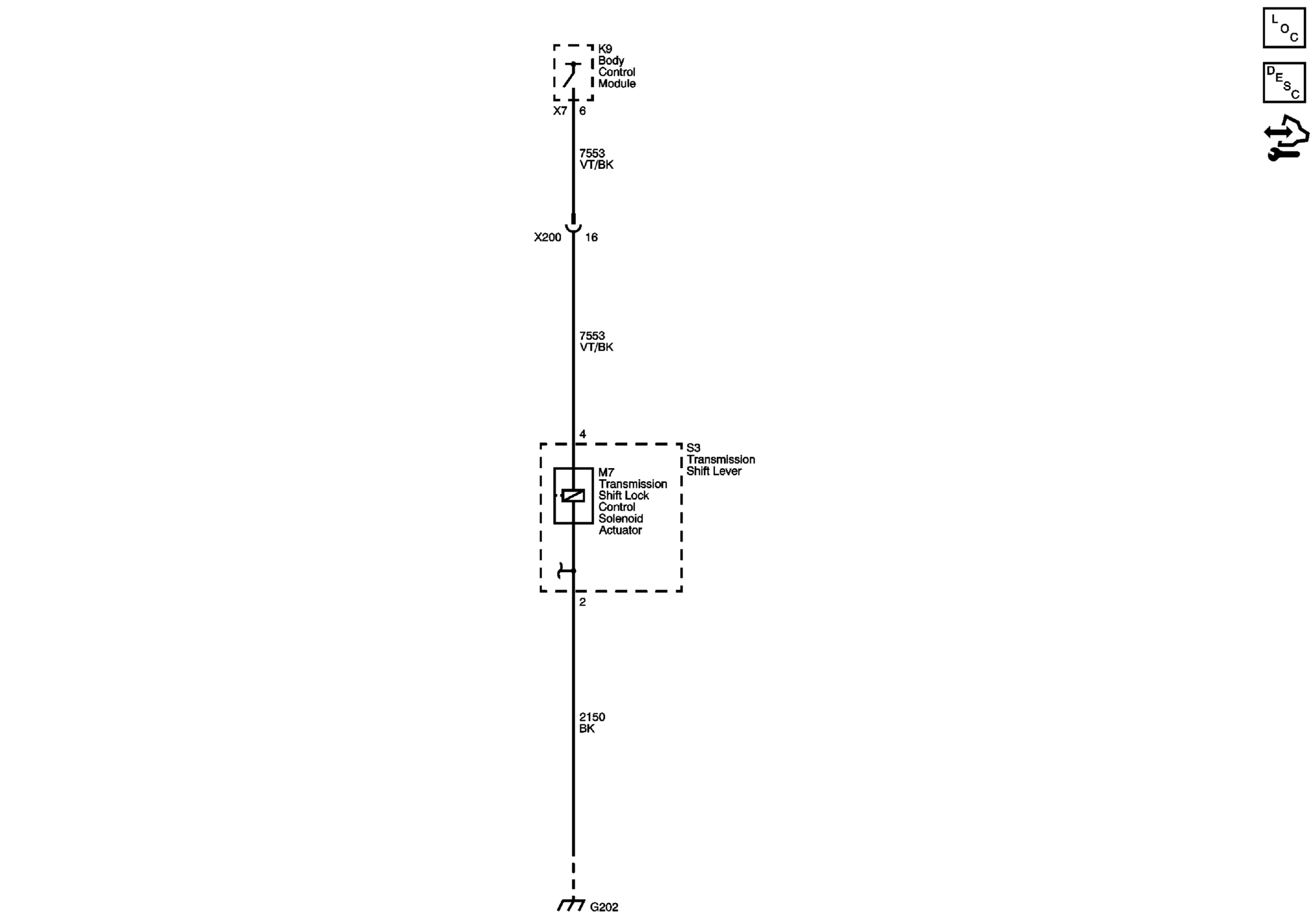

Fig 1: Shift Lock Control (MH8) Wiring Schematic

GM2587849

Courtesy of GENERAL MOTORS COMPANY
