Fuel Pump Flow Control Module Replacement

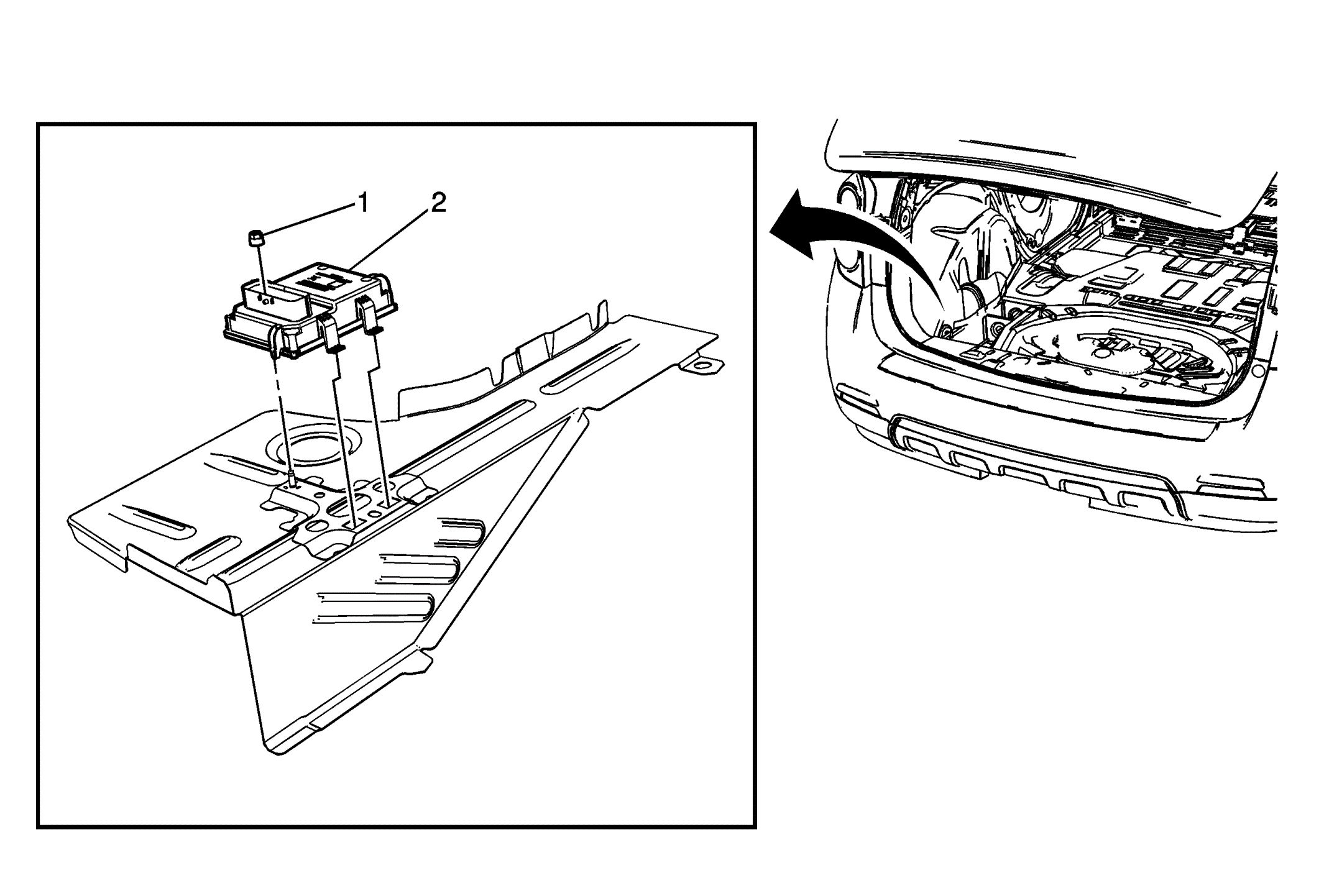

Fig 1: Fuel Pump Flow Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Fuel Pump Flow Control Module Fastener CAUTION: Refer to Fastener Caution Tighten 8 N.m(71 lb in)
2	Fuel Pump Flow Control Module Procedure Open the spare tire compartment lid. Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References

Callout

Component Name

Fuel Pump Flow Control Module Fastener

CAUTION:

Tighten
8 N.m(71 lb in)

Fuel Pump Flow Control Module

Procedure
