Shift Lock Control

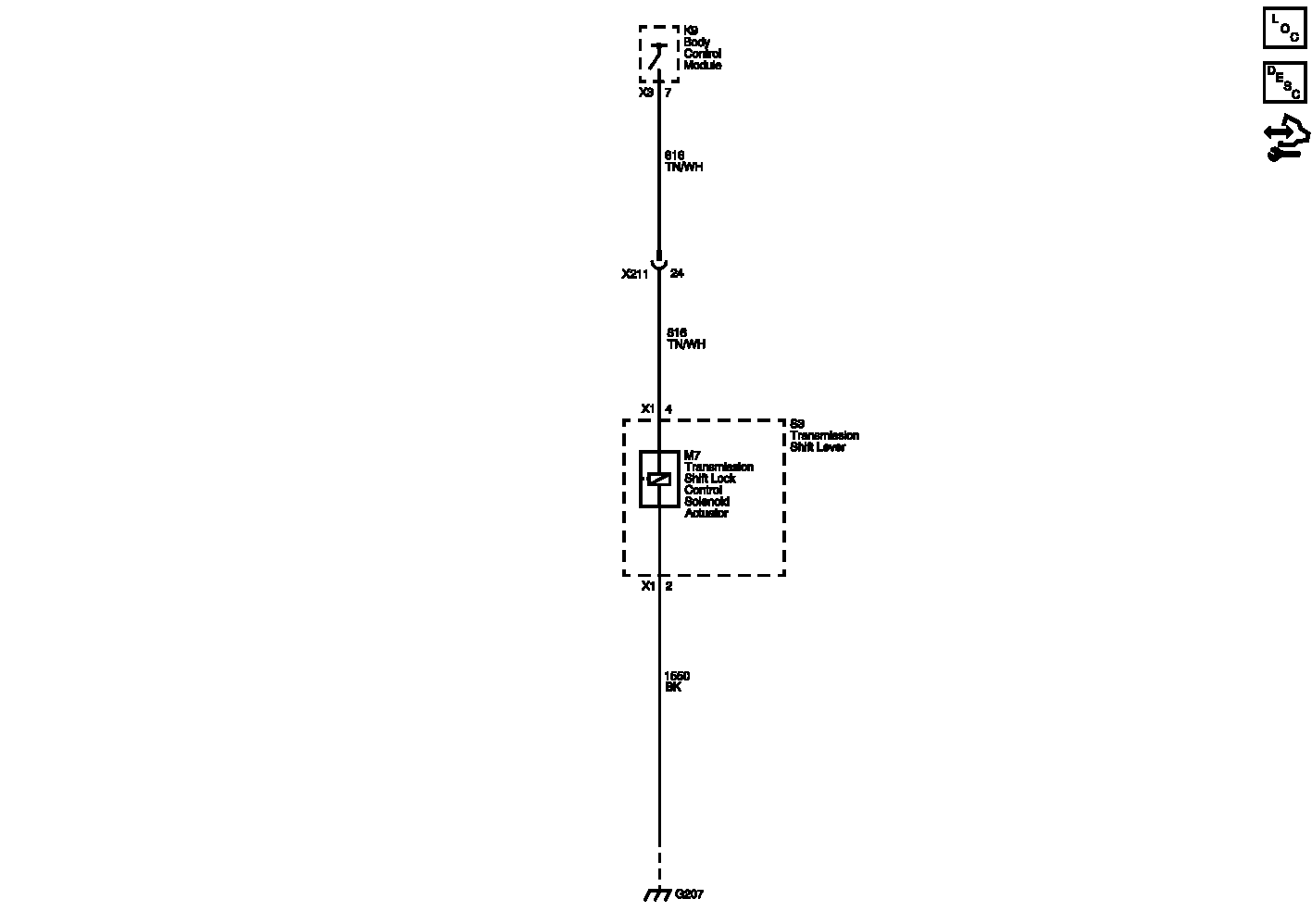

Fig 1: Shift Lock Control Wiring Schematic

GM2622897

Courtesy of GENERAL MOTORS COMPANY
