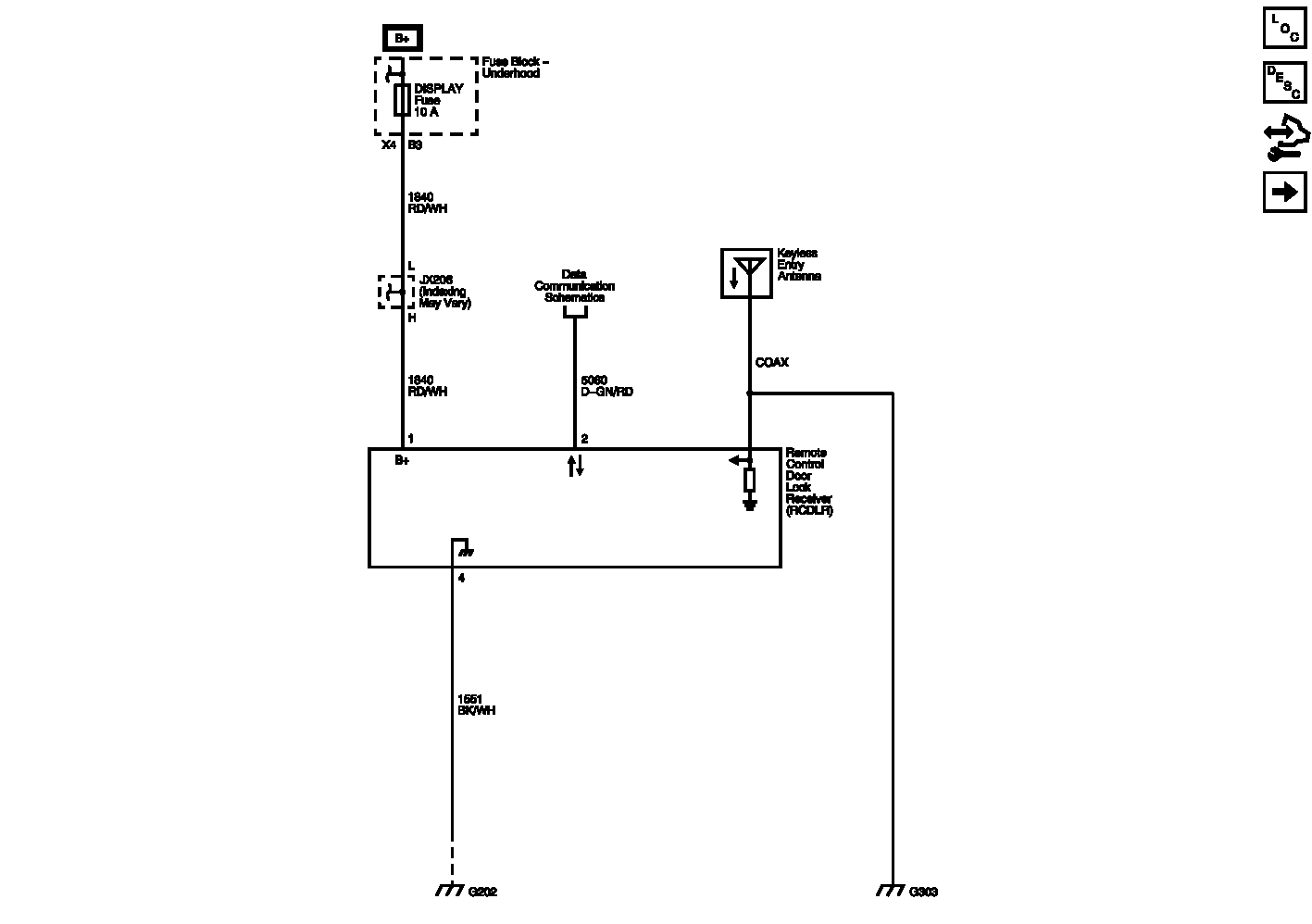

Home >> Chevrolet >> 2012 >> Impala LS, Gas >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Wiring Schematics >> Remote Function Wiring Schematics >> Keyless Entry
