Air Cleaner Assembly Replacement

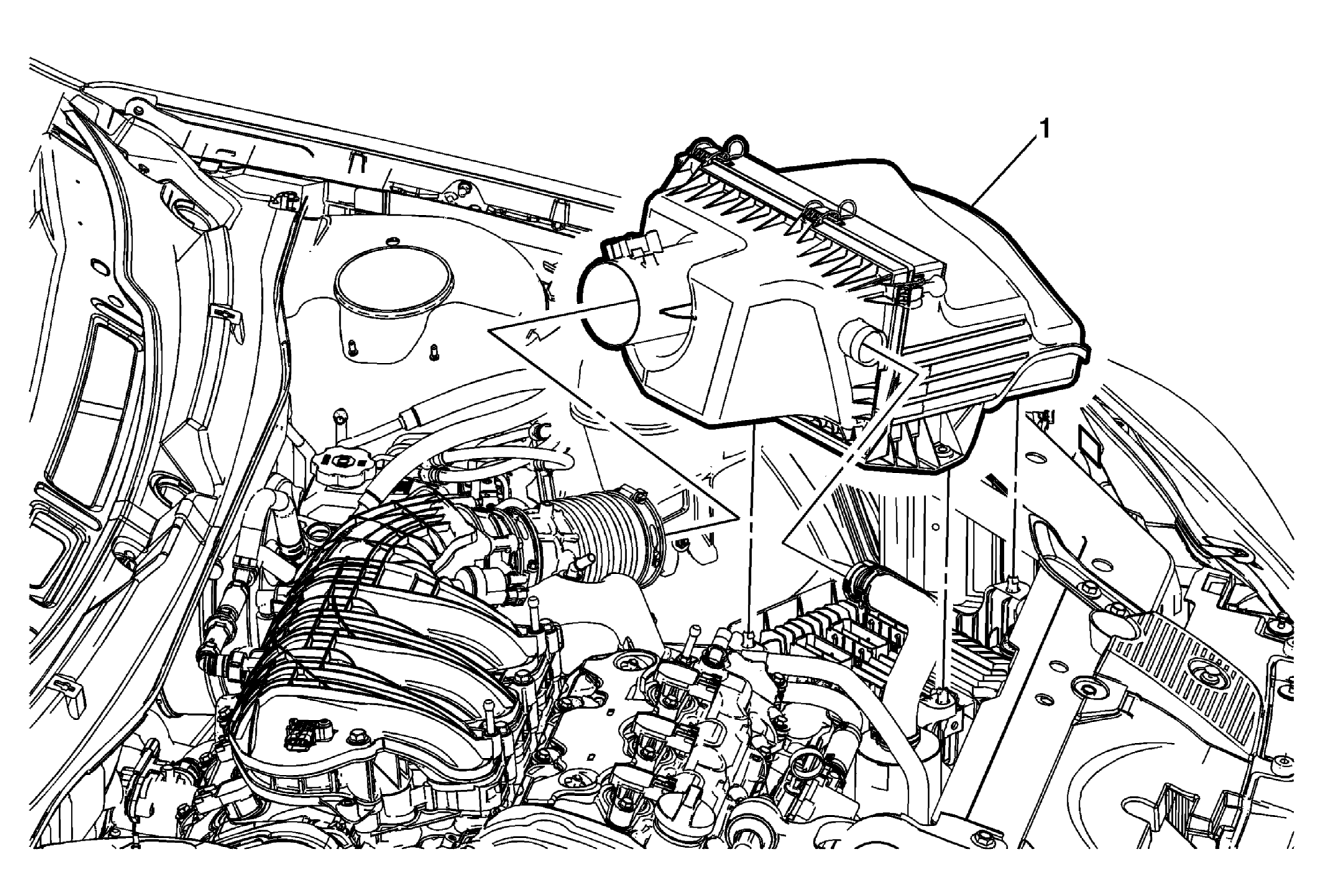

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement Remove the secondary air injection pump hose. Refer to Secondary Air Injection Pump Hose Replacement Disconnect the MAF sensor electrical connector.
1	Air Cleaner Assembly.

Callout

Component Name

Preliminary Procedure

Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
Remove the secondary air injection pump hose. Refer to Secondary Air Injection Pump Hose Replacement
Disconnect the MAF sensor electrical connector.

Air Cleaner Assembly.
