Air Cleaner Assembly Replacement
Air Cleaner Assembly Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . |
|

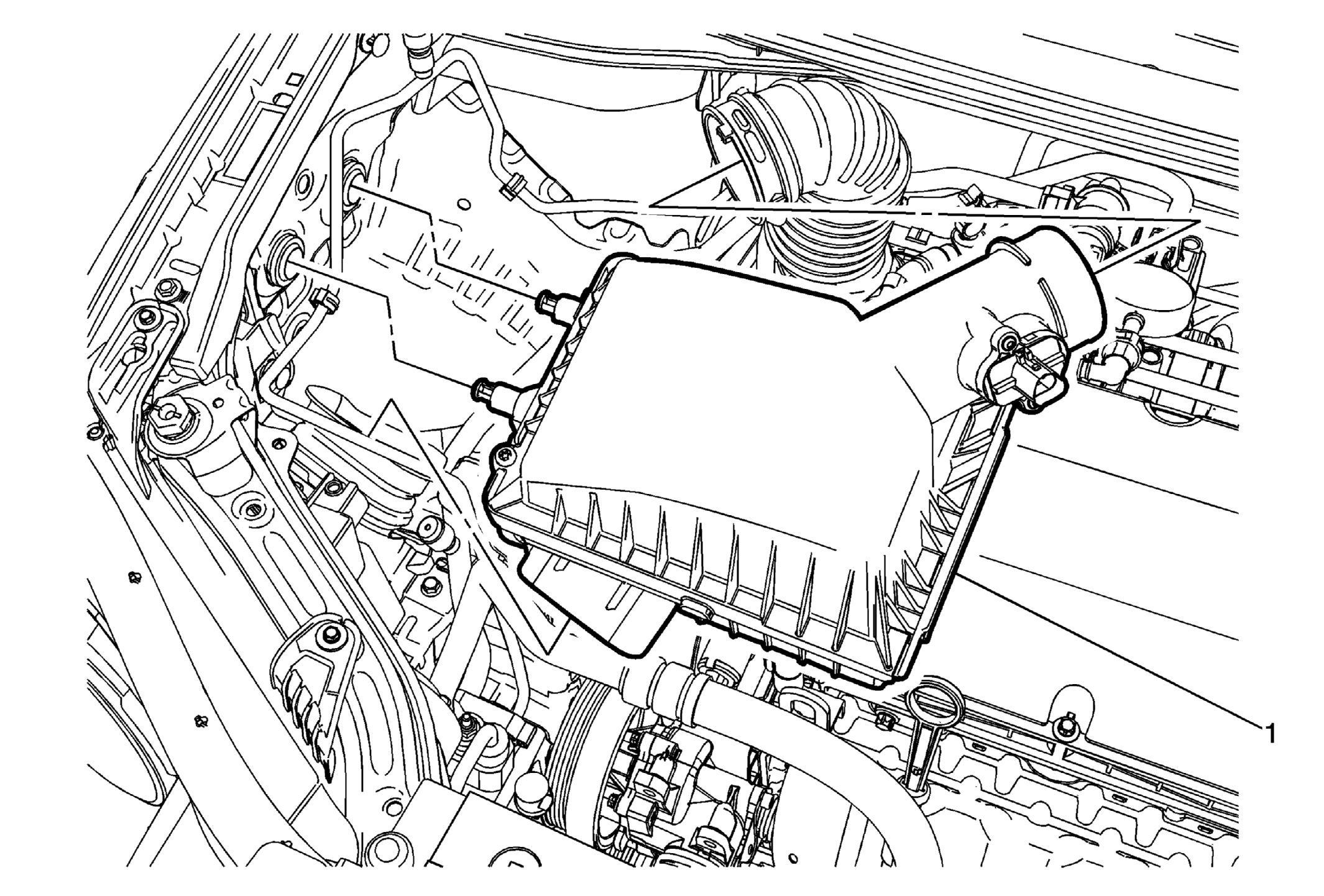

| 1 | Air Cleaner Assembly Procedure Pull the air cleaner assembly upward and away from the right inner fender to separate the assembly from the rubber grommets. |
